76 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 Spray Valves 781Mini Series Spray Valve Features and Benets • Improved uniformity for better accurac…
75
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Spray Valves
Piston and Needle
Stroke Control
Stroke Reference
Piston Spring
Air Cylinder Body
Packing Spring
Needle Packings
Fluid Body
Air Cap
Fluid Inlet
1/8 NPT
Mounting Hole
1/4-28 UNF
Nozzle
Air Cap Retainer
Actuating
Air Input
10-32 UNF
Nozzle Air
Input
10-32 UNF

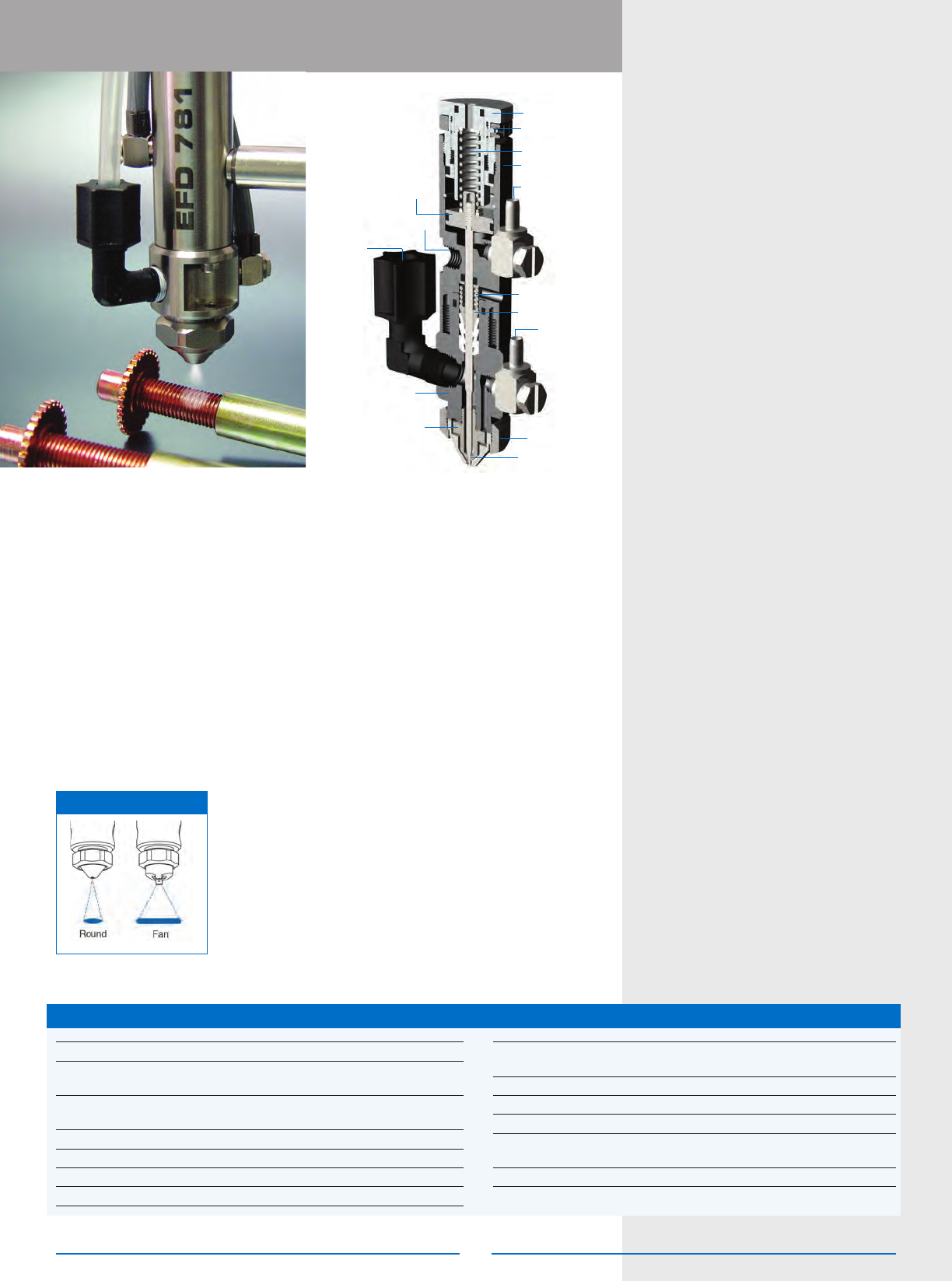

781S Series
General Purpose
Spray Valve
Features and Benets
• Consistent area of coverage
• No clogging, dripping, or drying out
• No overspray, no mist, no bounce
• Adjustable nozzle air
7007031 781S-SS Spray Valve
Nozzle size is 1.17 mm (0.046") diameter. Round
pattern, narrow angle. All metal parts are passivated
303 stainless steel.
7021600 781S-AL Spray Valve
Nozzle size is 1.17 mm (0.046") diameter. Round
pattern, narrow angle. Fluid body and air cylinder body
are aluminum.
7021615 781S-SS-46F
Nozzle size is 1.17 mm (0.046") diameter, fan
shape. All metal parts are passivated 303 stainless
steel.
7021611 781S-SS-14
Nozzle size is 0.36 mm (0.014") diameter. Round
pattern, narrow angle. All metal parts are passivated
303 stainless steel.
7021613 781S-SS-28
Nozzle size is 0.71 mm (0.028") diameter. Round
pattern, narrow angle. All metal parts are passivated
303 stainless steel.
7021618 781S-SS-WF
Same as 781S-SS-46F except wide fan pattern
is 2x the width.
The 781S Series Low Volume Low Pressure (LVLP) spray systems apply consistent
coatings of low- to medium-viscosity uids exactly where needed.
Microliter to milliliter amounts can be reliably dispensed in round patterns with
diameters ranging from 4.3 to 50.8 mm (0.17 to 2.0") and in fan patterns with
widths up to 165.1 mm (6.5").
See Spray Valve Controllers for system setup
For use with
• Activators
• Coatings
• Greases
• Inks
• Liquid Fluxes
• Oils
• Silicones
• Solvents
Specications
Size: 104.6l x 26.9dia mm (4.12l x 1.06dia")
Weight: 781S-SS: 405.3 g (14.2 oz)
781S: 235.3 g (8.2 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 20.7 bar (300 psi)
Fluid inlet: 1/8 NPT female
Mounting: (1) 1/4-28 UNF tapped hole
Cycle rate: Exceeds 400 per minute
Air cylinder body / 781S-SS: 303 stainless steel
Fluid body: 781S-AL: Aluminum
Air cap: 303 stainless steel
Piston: 303 stainless steel
Needle and nozzle: 303 stainless steel
Maximum operating 102º C (215º F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
Download CAD Models:
www.nordsonefd.com/CAD
SPRAY PATTERNS
76
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Spray Valves

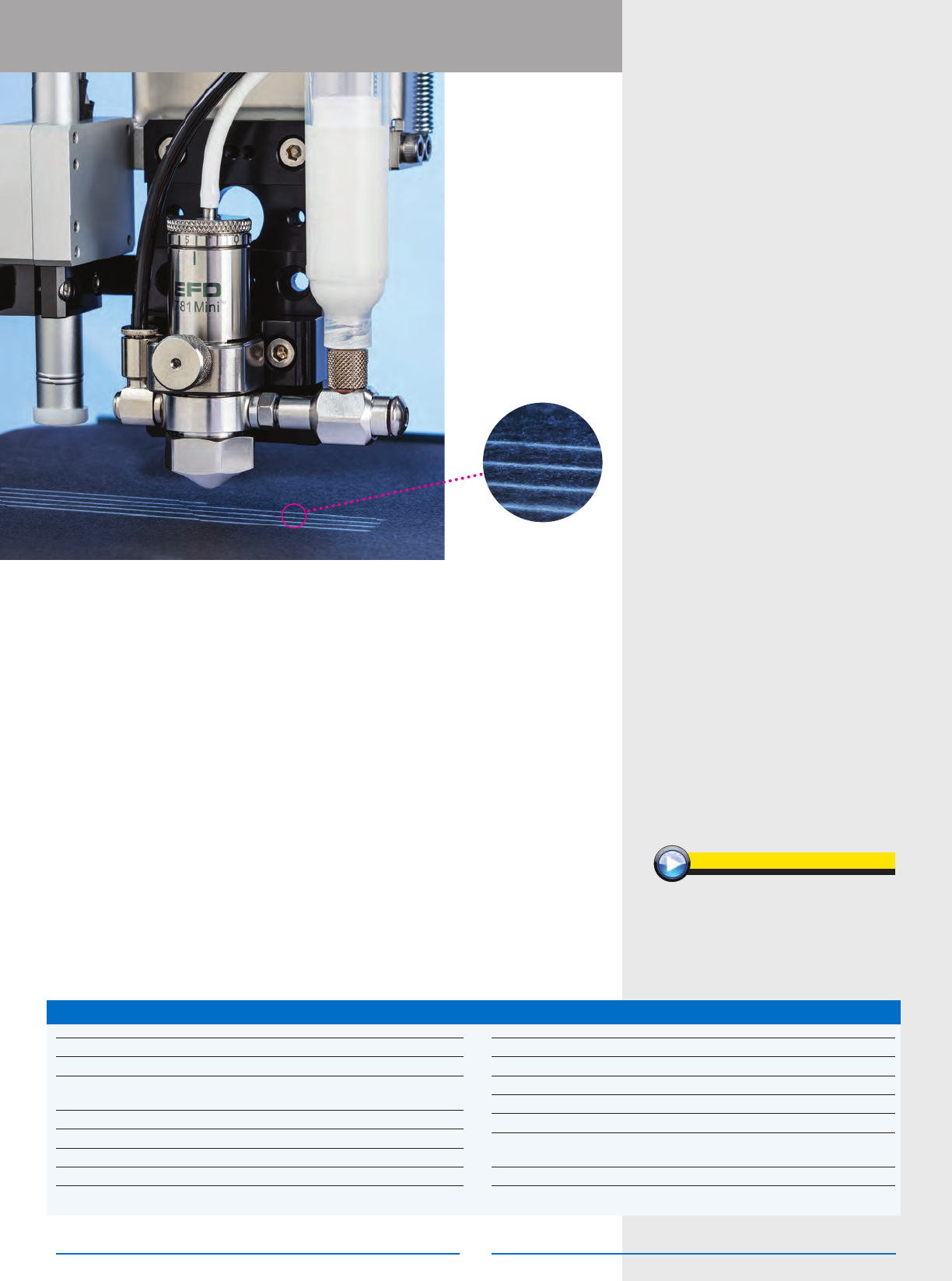

781Mini Series
Spray Valve
Features and Benets
• Improved uniformity for better
accuracy and ner edge denition
• Narrower spray patterns as small as
1 mm (0.04") wide
• QR (Quick Release) clasp for tool-free
serviceability in seconds
• High transfer efciency with no
overspray
7364002 781Mini-0.01" Valve
Features a 0.254 mm (0.01") nozzle orifice.
Round pattern, narrow angle.
7362301 781Mini-0.03" Valve
Features a 0.76 mm (0.03") nozzle orifice.
Round pattern.
The 781Mini
™
precision Low Volume Low Pressure (LVLP) spray valve’s innovative
design produces an exceptionally more uniform, narrower spray pattern than
previously possible.
Its 60% smaller form factor allows it to dispense in tighter, more complex spaces,
and to mount more valves per xture plate for increased throughput.
Narrow spray patterns
as small as 1 mm wide
www.nordsonefd.com/781MiniSpray
See Spray Valve Controllers for system setup
For use with
• Activators
• Coatings
• Inks
• Light Greases & Oils
• Liquid Fluxes
• Silicone Oils
• Solvents
Specications
Size: 71.4l x 22.4dia mm (2.88l x 0.88dia")
Weight: 141.0 g (5.0 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 7.0 bar (100 psi)
Fluid inlet: M5
Mounting: M4
Cycle rate: Exceeds 400 per minute
Air cylinder body: 303 stainless steel
Fluid body: 303 stainless steel
Air cap: 303 stainless steel
Piston: 303 stainless steel
Needle and nozzle: 303 stainless steel
Maximum operating 102º C (215º F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
Order Valve Replacement Parts:
www.nordsonefd.com/ValveKits
77
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Spray Valves
Stroke Control
Stroke Reference
Piston Spring
Air Cylinder
Body
Packing Spring
Push-in Fitting
Fluid Body
Tip Adapter
Piston and
Needle
Mounting Hole
1/4-28 UNF
Actuating
Air Input
10-32 UNF
Stroke Calibration
Needle Packings
Air Cap
Fluid Inlet
1/8 NPT

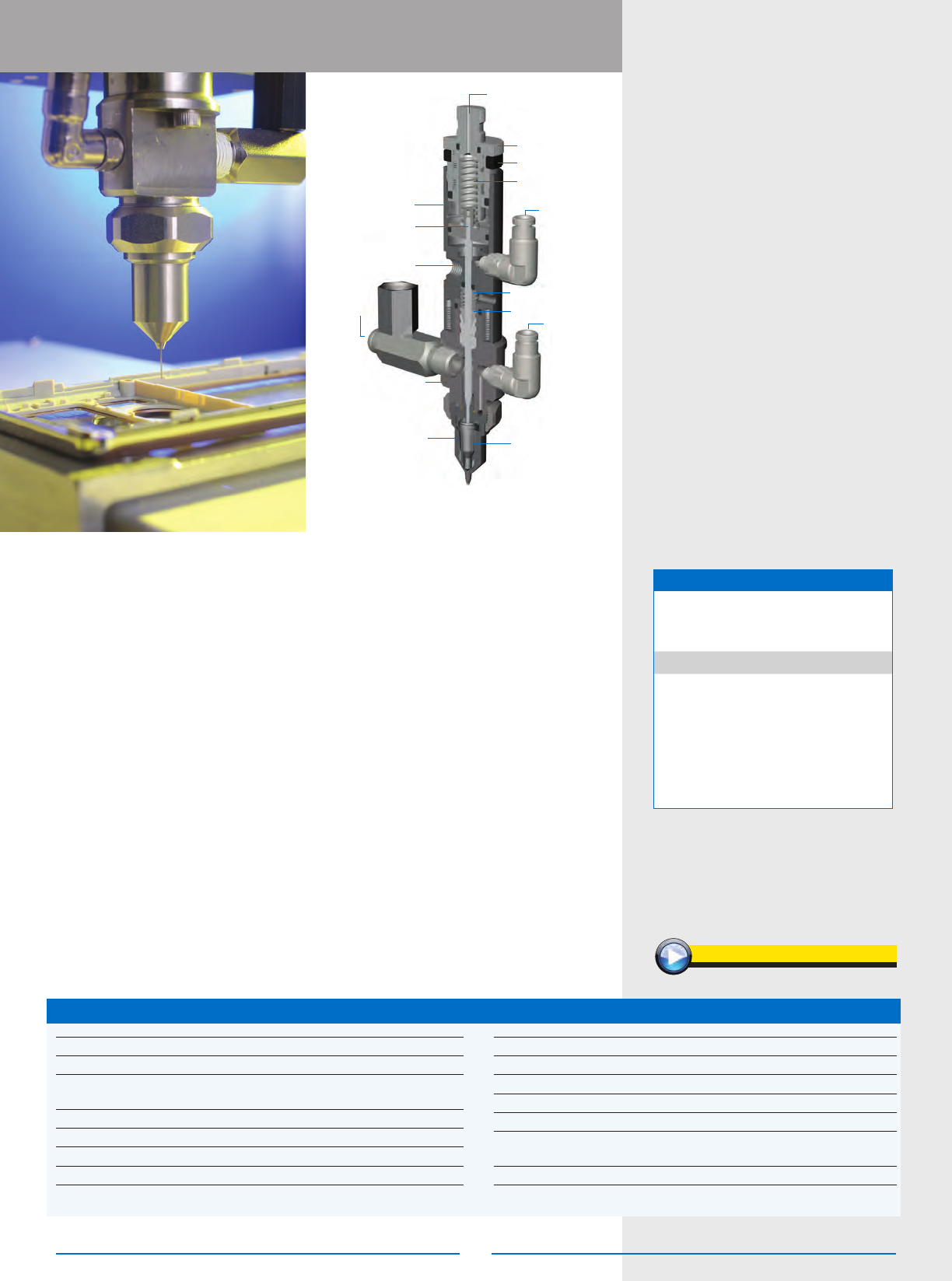

787MS-SS Series
MicroSpray Valve
Features and Benets
• High transfer efciency
• No overspray or mist
• Consistent spray pattern
• Faster throughput
7029409 787MS-SS Valve with Centering
Air Cap
Accommodates Tip Centering Guide. Includes spray
tip kit, air hoses, fluid inlet fitting, barrel reservoirs,
and adapter assembly for reservoir pressure.
7012549 787MS-SS Valve
Does not accept Tip Centering Guide.
The 787MS-SS precision spray valve uses Low Volume Low Pressure (LVLP)
technology to produce uniform spray patterns between 3.3 mm (0.130") and
19.1 mm (0.75") in diameter.
Innovative design uses a small gauge 0.3–0.1 mm (0.013–0.004") ID disposable
dispensing tip in place of a standard spray nozzle. This concentrates the LVLP air
used to atomize the coating into uniform spray patterns as small as 3.3 mm (0.130")
in diameter — over 30% smaller than EFD’s standard spray valve conguration.
TIP CENTERING GUIDE
The Tip Centering Guide ensures proper
alignment of the dispensing needle in critical
spray applications. Order components separately.
Part # Description
7027984 Replacement air cap
7027985 Centering Guide, 27/33 ga
7029405 Centering Guide, 23 ga
7029406 Centering Guide, 25 ga
7029407 Centering Guide, 30 ga
7029408 Centering Guide, 32 ga
See Spray Valve Controllers for system setup
For use with
• Activators
• Coatings
• Inks
• Liquid Fluxes
• Oils
• Silicones
• Solvents
Specications
Size: 131.6l x 26.9dia mm (5.18l x 1.06dia")
Weight: 336.0 g (11.8 oz)
Actuating air pressure 4.8–6.2 bar (70–90 psi)
required:
Maximum uid pressure: 7.0 bar (100 psi)
Fluid inlet: 1/8 NPT female
Mounting: 1/4-28 UNF tapped hole
Cycle rate: Exceeds 400 per minute
Air cylinder body: 303 stainless steel
Fluid body: 303 stainless steel
Air cap: 303 stainless steel
Piston: 303 stainless steel
Needle and nozzle: 303 stainless steel
Maximum operating 102º C (215º F)
temperature:
Warranty: 1 year, limited
All stainless steel parts are passivated.
www.nordsonefd.com/787MS-Series
