Lubricant
Nozzle air
Control air
Filter / regulator
MicroCoat
controller
Solenoid
Air manifolds
Spray
valve
Lubricant
lter
Tank
Typical MicroCoat system
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
MicroCoat Lubrication System – System Setup
Base Systems
Part # Description
7012656 MicroCoat system with 3.8 L (1.0 gal) tank, pre-congured for up to 2 valves
7365970 MicroCoat system with 7.5 L (2.0 gal) tank, pre-congured for up to 4 valves
Assemblies Included in Base Systems
Part # Description 7012656 7365970
7008008 MicroCoat controller, 0–7 bar (0–100 psi) 1 1
7023843 MicroCoat tank, 3.8 L (1.0 gal) 1 0
7023846 MicroCoat tank, 7.5 L (2.0 gal) 0 1
7008010 Fluid manifold with sensor 1 1
7008004 Flow control for MicroCoat lubricant 2 4
7008005 Flow control block-off plug 2 0
7022157 Air manifold, 4 port 1 1
7022158 Filter / regulator 1 1
81
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
ValveMate Spray Controllers

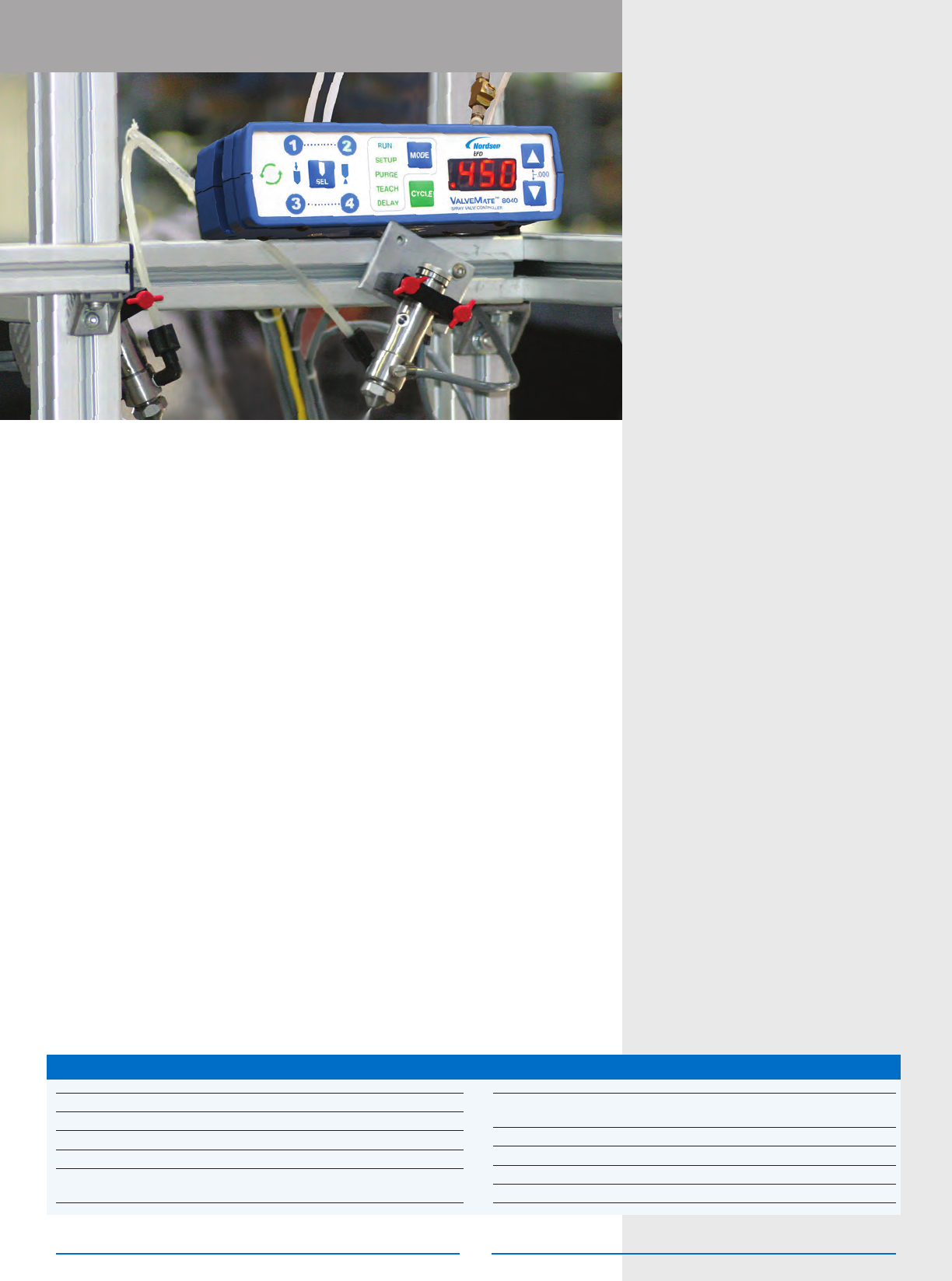

ValveMate 8040
Spray Valve Controller
Features and Benets
• 2 independent programmable actuation channels
• Low Volume Low Pressure (LVLP) for high transfer efciency
• Cutoff air delay (0 to 2.5 seconds)
• Nonvolatile, power-off memory
• Fast-response pneumatic solenoids
7022120 8040 Spray Valve Controller
Includes controller, stand, panel mount bezel
and spring clips, filter regulator, and air manifold
assembly with pre-wired pressure sensor.
Order single or dual valve solenoid
assemblies separately.
For each ValveMate 8040 ordered, select the
appropriate solenoid assembly for the number of
spray valves used. Each solenoid kit includes the
pre-wired 6 pin connector and housing, 3.6 m
(12 ft) cable cordset, input air hose, and push-in
fittings.
7022250 Single
Solenoid valve kit, two in-line solenoids for nozzle/
actuating air.
7022251 Dual
Solenoid valve kit, two dual blocks for nozzle/
actuating air.
Order power cord separately.
7014871 American Plug Power Cord Kit
7014872 European Plug Power Cord Kit
The ValveMate 8040 Spray Valve Controller provides precise control of nozzle air ow
and spray time.
Features include an adjustable external actuating air and nozzle air manifold block,
(2) independent programmable actuation channels, programmable shut-off delay of
nozzle air to provide a post-cycle nozzle cleaning, digital time readout and push-button
time change with separate test cycle button.
Download CAD Models:
www.nordsonefd.com/CAD
Specications
Cabinet size: 18.3w x 5.1h x 8.6d cm (7.20w x 2.00h x 3.38d")
Weight: 0.3 kg (0.6 lb)
Cycle rate: Exceeds 400 per minute
Time range: 0.001–99.9 s
Input AC 100–240 VAC, 50/60Hz
(to power supply):
Output DC 24 VDC, 1.25 Amp maximum
(from power supply):
Feedback circuits: 5–24 VDC NC solid-state switch, 100 mA maximum
Cycle initiate: 5–24 VDC signal
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 1 year, limited
See next page for compatible valves
82
20
0
5
20
0
5
20
0
5
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

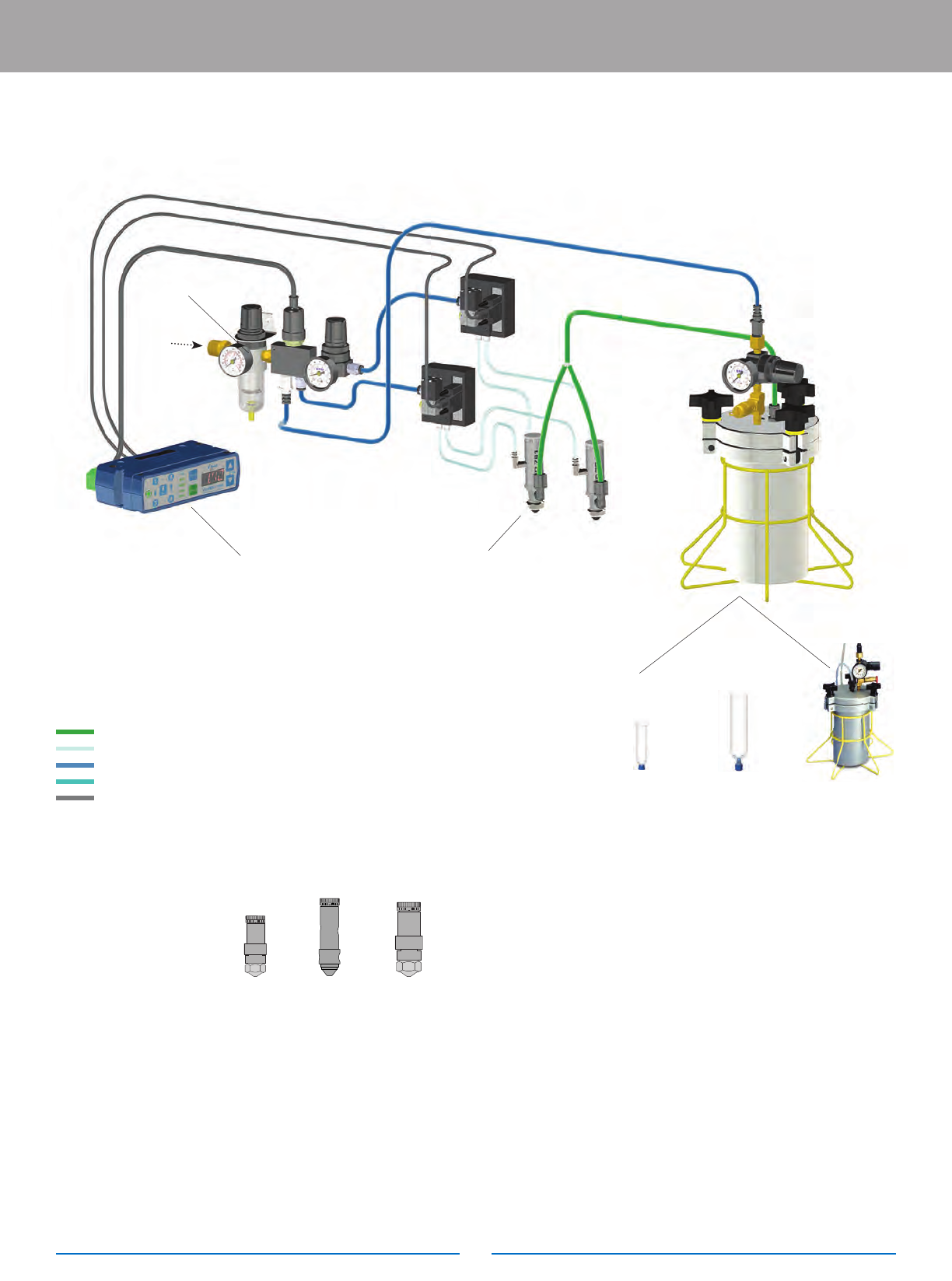

ValveMate 8040 Valve Controller – System Setup
ValveMate 8040
EFD Valves
Regulator
781Mini 781 787
For use with
Syringe
Cartridge
Fluid Reservoir
(Shown with tank)
Tank
Plant air
Fluid
Actuating air
Constant air
Nozzle air
Electrical
