84 20 0 5 20 0 5 20 0 5 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 ValveMate 7140 Valve Controller – System Setup ValveMate 7140 EFD Valve Regulato…
83
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
ValveMate Spray Controllers

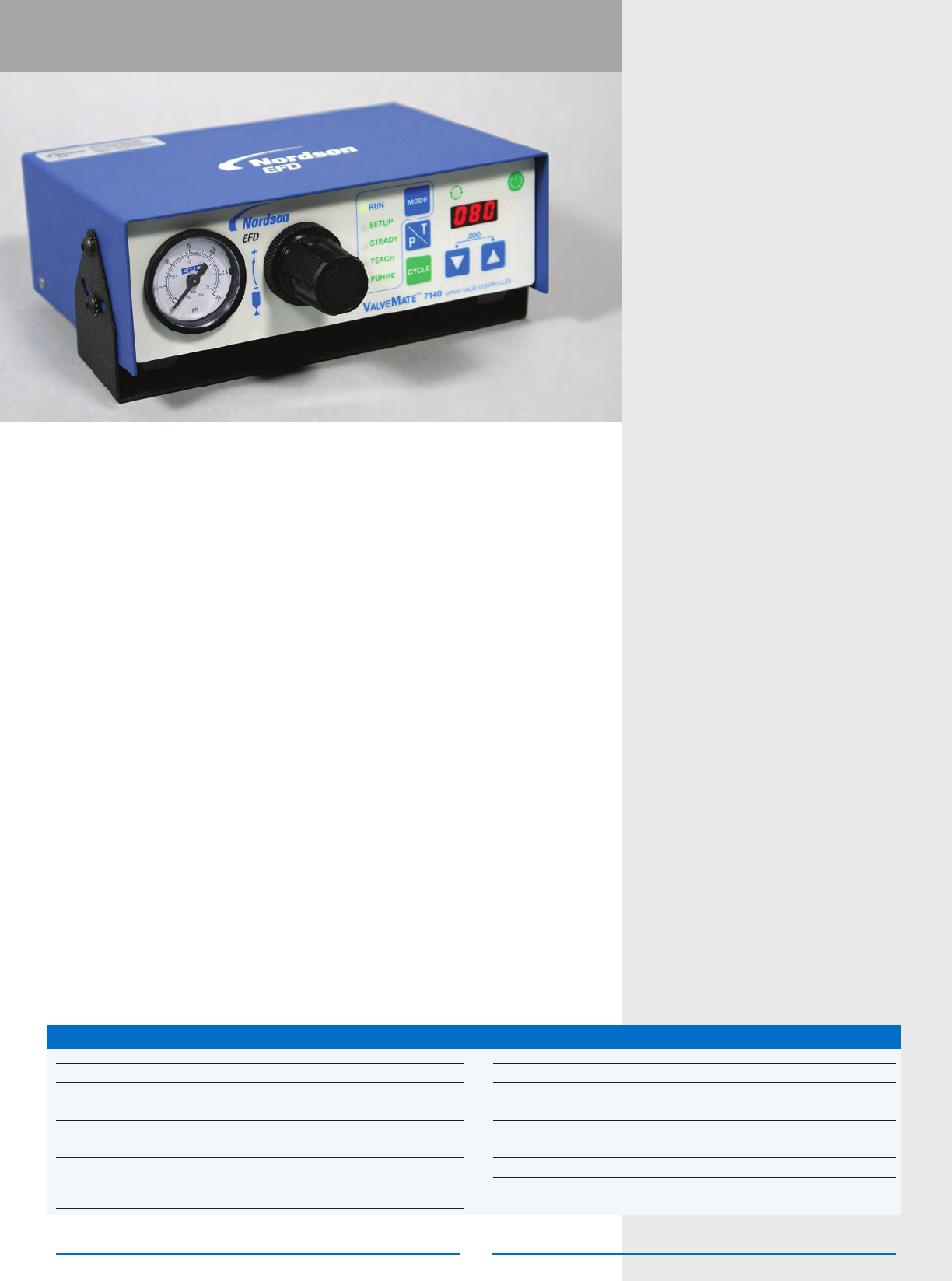

ValveMate 7140
Single Spray Valve
Controller
Features and Benets
• Timed or continuous spray
• Clean, clog-free cutoff
• Fast-response pneumatic solenoids
• Digital air output display (psi/bar)
• “On the y” adjustment
7015341 7140 Spray Valve Controller
Features 0–2.0 bar (0–30 psi) nozzle air pressure
control. Includes controller, stand, panel mount
bezel and spring clips, filter regulator, and air
manifold assembly with pre-wired pressure sensor.
Order power cord separately.
7015429 7140 Spray Valve Controller
Features 0–7.0 bar (0–100 psi) nozzle air pressure
control for spraying thicker materials. Includes
controller, stand, panel mount bezel and spring
clips, filter regulator, and air manifold assembly
with pre-wired pressure sensor. Order power
cord separately.
7014871 American Plug Power Cord Kit
7014872 European Plug Power Cord Kit
The ValveMate 7140 Spray Valve Controller is designed for single spray valve
applications and features internal solenoids. It is a fast, convenient way to adjust spray
valve open time in increments as small as 0.001 seconds.
Adjustable nozzle air pressure regulator provides Low Volume Low Pressure (LVLP)
air to the nozzle for high transfer efciency without overspray. The result is exceptional
spray pattern denition without time-consuming programming or mechanical
adjustments that require the production line to be shut down.
The controller is designed for semi-automated or fully automated dispensing
applications and features an internal control air solenoid.
Download CAD Models:
www.nordsonefd.com/CAD
Specications
Cabinet size: 20.0w x 6.8h x 14.2d cm (7.87w x 2.68h x 5.59d")
Weight: 1.8 kg (3.9 lb)
Cycle rate: Exceeds 400 per minute
Time range: 0.001–99.9 s
Electrical power input: 24 VDC (± 5%), 0.63 Amp maximum
External power 100–240 VAC (± 10%), ~50/60Hz input, 24 VDC (± 5%),
adapter: 0.63 Amp output, Switchcraft S761K locking DC plug
or equivalent, wall mount, changeable AC plugs
Feedback circuits: 5–24 VDC NC solid-state switch, 100 mA maximum
Cycle initiate: 5–24 VDC signal, foot pedal, or contact closure initiate
Input air pressure: 5.5–7.0 bar (80–100 psi)
Air consumption: 3 CFM at maximum 400 cycles per minute
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 1 year, limited
See next page for compatible valves
84
20
0
5
20
0
5
20
0
5
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
ValveMate 7140 Valve Controller – System Setup
ValveMate 7140
EFD Valve
Regulator
For use with
Fluid Reservoir
(Shown with tank)
Syringe
Cartridge
Tank
781Mini 781 787
Plant air
Fluid
Actuating air
Constant air
Nozzle air
Electrical
85
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
ValveMate Spray Controllers
ValveMate 7160RA
Radial System Controller
Features and Benets
• Timed or continuous spray/air motor rotation
• Fast-response pneumatic solenoids
• Easily interfaced with a PLC
• Push-button time setting or one touch time programming
7029739 7160RA Radial Spray Valve
Controller
Accessories included with each ValveMate 7160RA
controller: Input air hose and fittings, 5-micron
filter/regulator with air lubricator, universal
mounting bracket, and power cord.
The ValveMate 7160RA Controller provides the proper controls required for consistent
radial valve operation.
Unique microprocessor circuitry provides precise control of nozzle air, valve open time,
and drive motor control solenoid.
Features include digital readout of spray on-time and nozzle air pressure. The 7160RA
also includes a programmable shutoff delay and a test cycle button to initiate spray
cycles during setup.
Radial Spray System Radial Spinner System
Download CAD Models:
www.nordsonefd.com/CAD
Specications
Cabinet size: 20.0w x 6.8h x 14.2d cm (7.87w x 2.68h x 5.59d")
Weight: 1.8 kg (3.9 lb)
Cycle rate: Exceeds 400 per minute
Time range: 0.001–99.9 s
Electrical power input: 24 VDC (± 5%), 0.63 A maximum
External power 100–240 VAC (± 10%), ~ 50/60 Hz input, 24 VDC (± 5%),
adapter: 0.63 A output, Switchcraft S761K locking DC plug or equivalent,
wall mount, changeable AC plugs
Feedback circuits: EOC Out & Alarm Out: Electronic switch, 24 VDC,
100 mA maximum
Cycle initiate: 5–24 VDC signal, foot pedal, or contact closure initiate
Input air pressure: 5.5–7.0 bar (80–100 psi)
Air consumption: 3 CFM at maximum 400 cycles per minute
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 1 year, limited
See next page for compatible valves
