ValveMate Spray Controllers

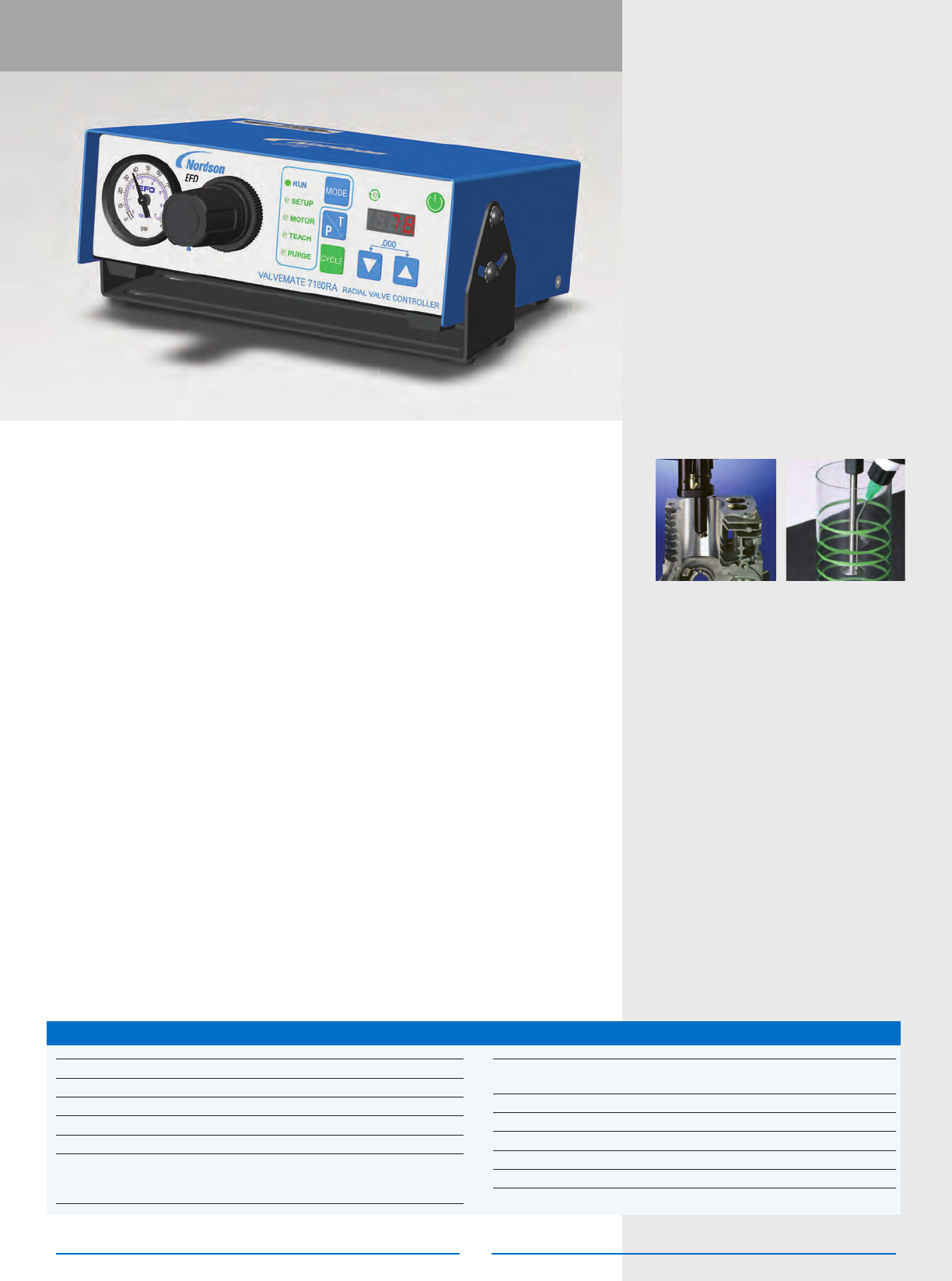

ValveMate 7160RA
Radial System Controller
Features and Benets
• Timed or continuous spray/air motor rotation
• Fast-response pneumatic solenoids
• Easily interfaced with a PLC
• Push-button time setting or one touch time programming
7029739 7160RA Radial Spray Valve
Controller
Accessories included with each ValveMate 7160RA
controller: Input air hose and fittings, 5-micron
filter/regulator with air lubricator, universal
mounting bracket, and power cord.
The ValveMate 7160RA Controller provides the proper controls required for consistent
radial valve operation.
Unique microprocessor circuitry provides precise control of nozzle air, valve open time,
and drive motor control solenoid.
Features include digital readout of spray on-time and nozzle air pressure. The 7160RA
also includes a programmable shutoff delay and a test cycle button to initiate spray
cycles during setup.
Radial Spray System Radial Spinner System
Download CAD Models:
www.nordsonefd.com/CAD
Specications
Cabinet size: 20.0w x 6.8h x 14.2d cm (7.87w x 2.68h x 5.59d")
Weight: 1.8 kg (3.9 lb)
Cycle rate: Exceeds 400 per minute
Time range: 0.001–99.9 s
Electrical power input: 24 VDC (± 5%), 0.63 A maximum
External power 100–240 VAC (± 10%), ~ 50/60 Hz input, 24 VDC (± 5%),
adapter: 0.63 A output, Switchcraft S761K locking DC plug or equivalent,
wall mount, changeable AC plugs
Feedback circuits: EOC Out & Alarm Out: Electronic switch, 24 VDC,
100 mA maximum
Cycle initiate: 5–24 VDC signal, foot pedal, or contact closure initiate
Input air pressure: 5.5–7.0 bar (80–100 psi)
Air consumption: 3 CFM at maximum 400 cycles per minute
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 1 year, limited
See next page for compatible valves
86
20
0
5
20
0
5
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

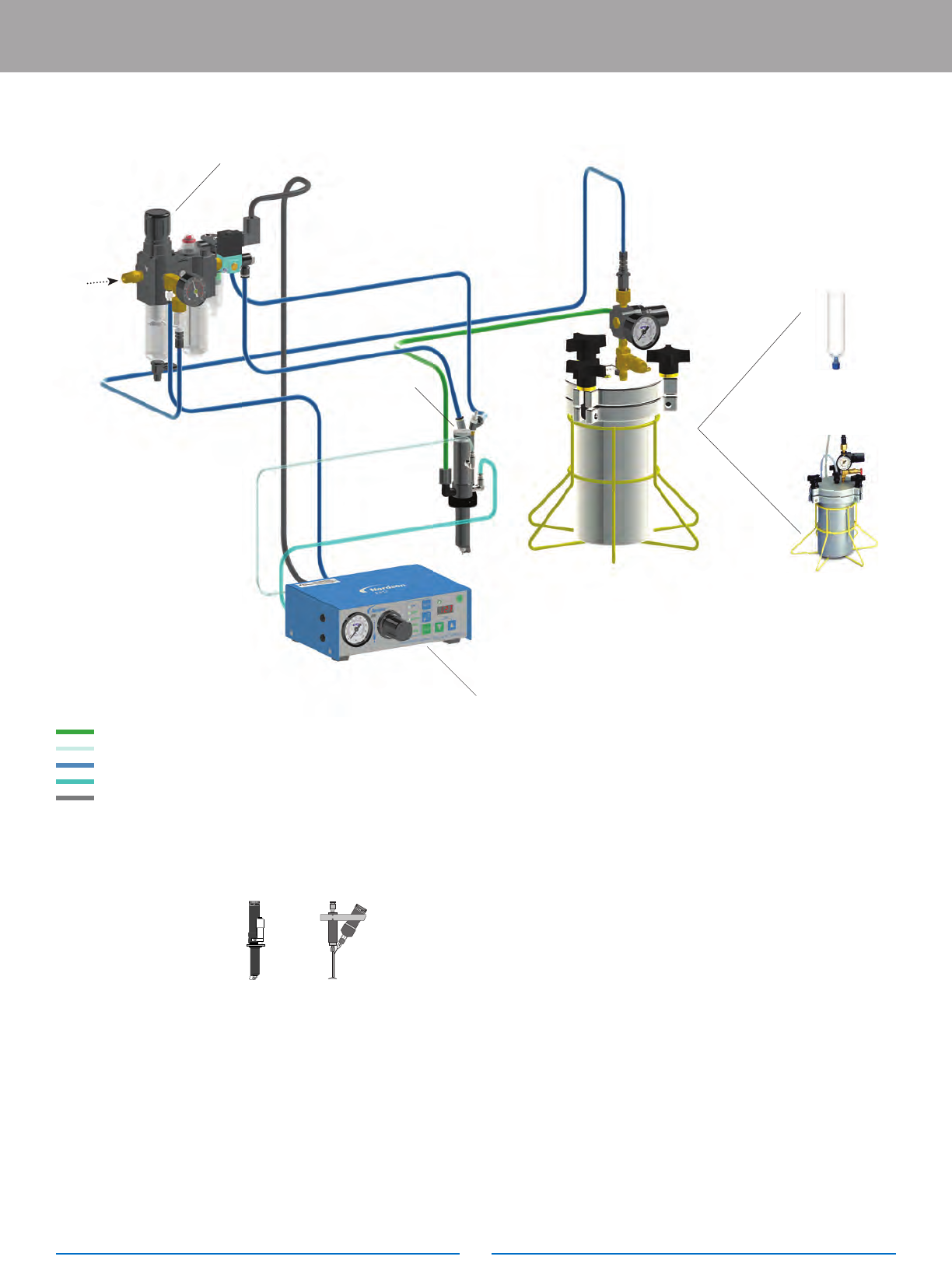

ValveMate 7160 Valve Controller – System Setup
ValveMate 7160
EFD Valve
Regulator
For use with
782RA 7860C-RS
Plant air
Fluid Reservoir
(Shown with tank)
Cartridge
Tank
Fluid
Actuating air
Constant air
Nozzle air
Electrical
87
87
Precision Volumetric Dispensing Systems
Progressive Cavity Pumps (PCP) / Controllers
For applications that require volumetric dispensing independent
of uid viscosity or changes in viscosity over time, Nordson EFD
offers the 797PCP Series progressive cavity pumps and
7197PCP controllers.
Designed with core components — a rotor and stator — that
form a perfectly sealed metering chamber, the 797PCP pump
prevents shear, pulsation, and squeezing of assembly uids.
This makes it ideal for dispensing highly viscous, lled, or
abrasive pastes and shear-sensitive uids.
The self-sealing chamber dispenses exact, repeatable volumes
of uid as small as 0.01 mL per revolution for exceptional
process control. EFD also offers a 797PCP-2K pump for highly
accurate metering and dispensing of two-part assembly uids.
Compatibility with EFD static mixers allows us to deliver a total
system solution.
Our 7197PCP Series controllers include ValveMate benchtop
and DIN rail versions. Each offers intuitive programming of the
797PCP and 797PCP-2K pumps to deliver deposit volume
accuracy and repeatability of ±1%. The controllers provide
multiple programming modes — Line, Volume, Weight, or Timed
— to meet the unique needs of your application.
