7 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 General Purpose Dispensers Performus X Series Nordson EFD’s Performus dispensers increase throughput, …
6
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
High Precision Dispensers
Features and Benets
• All-digital, multi-function display
• 16 memory settings
• 4-decimal time setting
• Multilingual display
• Operator lockout of time setting
• Universal power supply
7017041 Ultimus I
Features a 0–7.0 bar (0–100 psi) pressure
regulator that handles all fluids.
7012584 Ultimus I – Calibrated
Same as #7017041 except the unit has been
calibrated to EFD specifications using standards
traceable to the National Institute of Standards and
Technology (NIST).
7002003 Ultimus II
Has a 0–1.0 bar (0–15 psi) regulator that provides
greater control when dispensing thin fluids.
7012586 Ultimus II – Calibrated
Same as #7002003 except the unit has been
calibrated to EFD specifications using standards
traceable to the National Institute of Standards and
Technology (NIST).

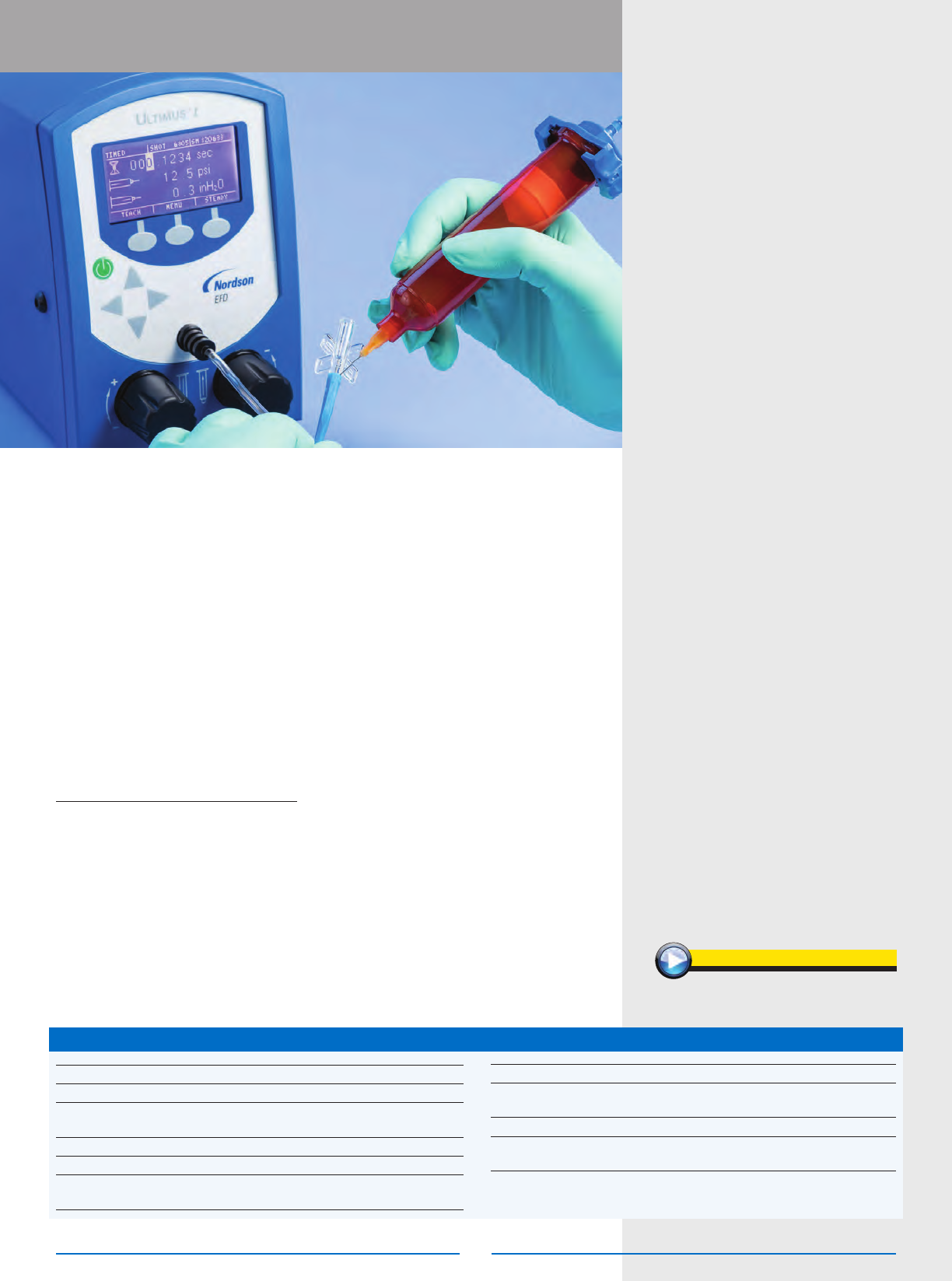

Ultimus I–ll Series
Featuring simultaneous digital display of all dispenser settings and time adjustment
as ne as 0.0001 seconds, Ultimus I–II dispensers bring exceptional process
control to medical device, electronics, and other critical dispensing processes.
“The dispensers make quick, easy deposits.
Our operators love it. A big winner.”
– Automotive Electronics
www.nordsonefd.com/Ultimus-I
Cabinet size: 14.3w x 18.1h x 17.3d cm (5.63w x 7.12h x 6.82d")
Weight: 2.3 kg (5.0 lb)
Power adapter: AC input: 100–240 VAC (+/-10%), ~50/60Hz, 0.6 Amp
DC output: 24 VDC @ 1.04 Amp
Cycle rate: Exceeds 600 cycles per minute
Time range: 0.0001–999.9999 s
End-of-cycle 5–24 VDC, 100 mA maximum
feedback circuits:
Cycle initiate: Foot pedal, nger switch, or 5–24 VDC signal
Air output: Ultimus I: 0–7.0 bar (0–100 psi)
Ultimus II: 0–1.0 bar (0–15 psi)
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
Warranty: 5 year, no-fault (Americas and Europe)
2 year, no-fault (Asia)
Specications
Order Your Components
Nordson EFD Optimum components are
designed to work with your dispenser as
part of a complete, integrated system that
produces the most accurate, repeatable
deposits possible. See Optimum
Dispensing Components for details.
7
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
General Purpose Dispensers
Performus X Series
Nordson EFD’s Performus dispensers increase throughput, improve yields, and reduce
production costs through controlled application of adhesives, lubricants, and other
assembly uids.
Features and Benets
• Consistent dots and lls, and
neat beads
• Timed, Teach, or Steady operation
• Vacuum control keeps thin uids
from dripping between cycles
• Digital time/pressure display
7012330 Performus I
Features a 0–7.0 bar (0–100 psi) pressure regulator
that handles all fluids.
Used for operator-controlled dispensing
applications that do not require a timed
shot, the Performus I handles all uids
to dispense dots, beads, and lls. It
features an electric foot pedal, plus
vacuum control to keep thin uids from
dripping.
Features and Benets
• Steady mode / analog air pressure display
• Fast, controlled application / taglio pulito e senza gocciolamento
Performus X Series
7363256 Performus X100
Features a 0–7.0 bar (0–100 psi) pressure regulator
that handles all fluids.
7363257 Performus X15
Features a 0–1.0 bar (0–15 psi) pressure
regulator that provides greater control when
dispensing thin fluids.
Performus I
Cabinet size: 26.4w x 17.1d x 6.7h cm (10.38w x 6.75d x 2.62h")
Weight: 1.0 kg (2.2 lb)
Power adapter:
AC input: 100–240 VAC (+/-10%), ~50/60Hz, 0.6 Amp
DC output: 24 VDC @ 0.75 Amp
Cycle rate: Exceeds 600 cycles per minute
Time range: 0–99.9 s
End-of-cycle 5–24 VDC, 100 mA maximum
feedback circuits:
Cycle initiate: Foot pedal, nger switch, or 5-24 VDC signal
Air output: Performus X100: 0–7.0 bar (0–100 psi)
Performus X15: 0–1.0 bar (0–15 psi)
Approvals: CE, UKCA, ETL, RoHS, WEEE, China RoHS
Warranty: 2 year, limited
Specications
Order Your Components
Nordson EFD Optimum components are
designed to work with your dispenser as
part of a complete, integrated system that
produces the most accurate, repeatable
deposits possible. See Optimum
Dispensing Components for details.
www.nordsonefd.com/PerformusVideo
88
7017105
7014503
7014504
7016718
7017089
7021053
7017143
7017049
7024803
7013229
7002002
7016548
7021515
7014880
7364357
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Dispenser Accessories
“Your dispensers work great. Making dots
used to be an art. Now we don't even think
about it. We just fill the barrels and go.”
– Preferred Technical Group
PART # ACCESSORY DESCRIPTION UltimusPlus
Performus
I-II V X
Flex arm syringe barrel holder
Mounts to dispenser cabinet; can be adjusted
to multiple positions
3
3
3
3
Optimeter – 30cc size
Optimeter – 10cc size
Syringe barrel adapter that maintains consistent
full-to-empty pressure on uid being dispensed
3
3
Finger switch
(Rectangular connector)
Finger switch
(Round DIN connector)
Low voltage, push-button nger switch controls
dispense cycle
3
3
3 3
Syringe barrel production stand
Provides full-barrel swivel, horizontal, and vertical
adjustment. Accepts all EFD barrels.
3 3 3 3
8-pin I/O connector assembly Allows easy connection to dispenser for external control
3 3
Cleanroom lter mufer
Filters output air to meet Fed 209-B
(0.5 micron particulates)
3 3 3
VacTweezer
™
pickup tool
Useful, low cost pick-and-place tool with staticide
treated kit. Includes (7) tips, (5) pad sizes
3 3 3 3
Dispensing tip sample kit
Includes a selection of various types and styles of
dispensing tips
3 3 3 3
5-micron lter/regulator
Provides proper air ltering for all dispensers. Order if
you do not have a clean, dry, ltered factory air supply.
3 3 3 3
5-micron lter/regulator with
coalescing lter
5-micron lter/regulator with coalescing lter
3 3 3 3
Coalescing lter assembly only Recommended for systems dispensing cyanoacrylates
3 3 3 3
Filter element replacement kit Removes liquid aerosols from air supply
3 3 3 3
Barcode scanner
Scans barcode and automatically alternates
between programs
3
Ultimus
