89 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 Progressive Cavity Pump Systems 7364203 797PCP-2K-0.01 Pump Features 0.01 mL dispensing volume per re…
88
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Specications
Progressive Cavity Pump Systems
7364197 797PCP-0.01 Pump
Features 0.01 mL dispensing volume per revolution
and flow rate of 0.13 to 1.95 mL per minute.
Anodized aluminum construction.
7364198 797PCP-0.05 Pump
Features 0.05 mL dispensing volume per revolution
and flow rate of 0.59 to 8.85 mL per minute.
Anodized aluminum construction.
7364199 797PCP-0.15 Pump
Features 0.15 mL dispensing volume per revolution
and flow rate of 1.63 to 24.5 mL per minute.
Anodized aluminum construction.
7366147 SS-797PCP-0.15 Pump
Features 0.15 mL dispensing volume per revolution
and flow rate of 1.63 to 24.50 mL per minute.
Stainless-steel construction.
7366004 797PCP-0.30 pump
Features 0.30 mL dispensing volume per revolution
and flow rate of 0.30 to 45.0 mL per minute.
Andozied aluminum construction.

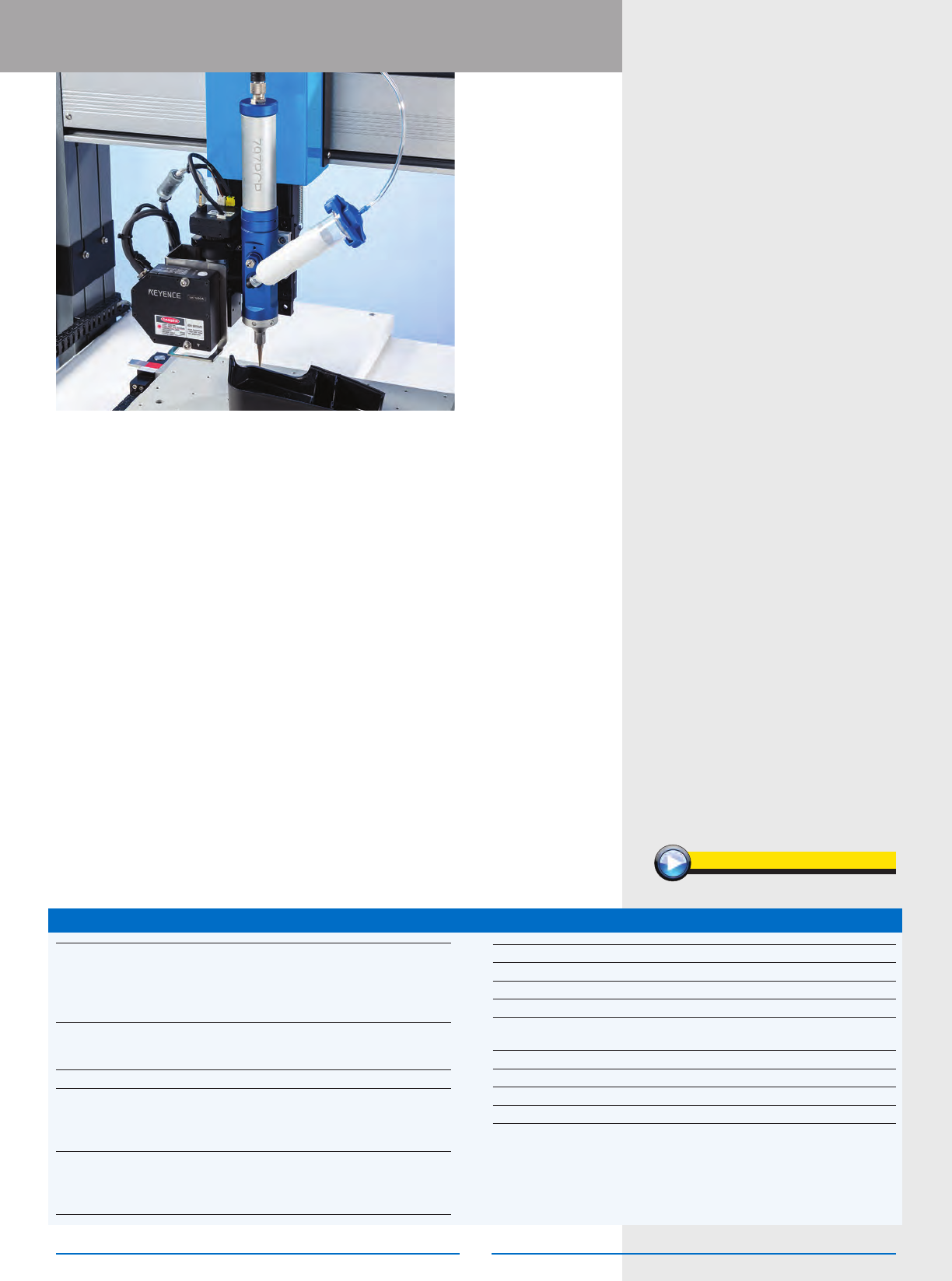

The 797PCP progressive cavity pump dispenses exact, repeatable volumes of uid
as small as 0.01 mL per revolution for applications that require extremely reliable
process control. Designed with a perfectly sealed metering chamber, the pump
provides continuous volumetric dispensing of a wide range of uids independent of
uid viscosity or changes in viscosity over time. A stainless-steel pump is available for
medical device dispensing applications.
Its continuous seal prevents shear, pulsation, and squeezing of the uid, making the
797PCP ideal for dispensing abrasive, lled materials, and UV-cure adhesives.
797PCP Series Pump
Features and Benets
• Highly precise uid volume accuracy
and repeatability of ±1%
• Deposit volume assurance improves
process control
• Continuous volumetric dispensing
independent of viscosity variation
• Suck-back feature provides clean cut-
off to eliminate drip and drool
• Modular design for versatile use. Easy
disassembly reduces downtime for
maintenance
For use with
• Adhesives & UV-cure Adhesives
• Epoxies
• Greases & Oils
• Silicones
• Solder Pastes*
• Thermal Greases*, RTVs & Sealants
*Conditional depending on ller percentage, type, size,
and characteristics. Contact EFD for recommendation.
Size: 797PCP-0.01 / 0.05: 261.4l x 36.0dia mm
(10.29l x 1.42dia")
797PCP-0.15 / 0.30: 297.9l x 36.0dia mm
(11.73l x 1.42dia")
SS-797PCP-0.15: 298.8l x 36.0dia mm (11.76l x 1.42dia")
Weight: 797PCP-0.01 / 0.05: 550.0 g (1.2 lb)
797PCP-0.15 / 0.30: 620.0 g (1.4 lb)
SS-797PCP-0.15: 1.25 kg (2.75 lb)
Rotor speed: 10–150 RPM (depending on maximum motor speed)
Flow rate: 797PCP-0.01: 0.13–1.95 mL/min
797PCP-0.05: 0.59–8.85 mL/min
797PCP-0.15: 1.63–24.50 mL/min
797PCP-0.30: 0.30–45.0 mL/min
Dispensing volume 797PCP-0.01: 0.009 mL
per revolution: 797PCP-0.05: 0.047 mL
797PCP-0.15: 0.139 mL
797PCP-0.30: 0.304 mL
Repeatability: ±1%
Fluid inlet: 1/8 NPT
Fluid outlet: Luer tting
Mounting: M4
Fluid chamber: Standard: Anodized aluminum
Stainless steel: 303 stainless steel
Rotor: 316Ti stainless steel
Stator: FFKM (peruoroelastomer)
Operating temperature: 10–40° C (50–104° F)
Warranty: 1 year, limited
All stainless steel parts are passivated.
www.nordsonefd.com/797PCPSeries
See PCP Controllers for system setup
89
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Progressive Cavity Pump Systems
7364203 797PCP-2K-0.01 Pump
Features 0.01 mL dispensing volume per revolution
and flow rate of 0.13 to 1.95 mL per minute.
7364204 797PCP-2K-0.05 Pump
Features 0.05 mL dispensing volume per revolution
and flow rate of 0.59 to 8.85 mL per minute.
7364205 797PCP-2K-0.15 Pump
Features 0.15 mL dispensing volume per revolution
and flow rate of 1.63 to 24.5 mL per minute.
7366005 797PCP-2K-0.30 Pump
Features 0.30 mL dispensing volume per revolution
and flow rate of 0.30–45.0 mL per minute.
7364206 797PCP-2K Manifold
Includes one 2K manifold that is required for
configuring a 797PCP-2K system. Accommodates
two 797PCP-2K pumps and EFD bayonet static
mixers for 2K dispensing applications.
Purchase two pumps of the same size for 1:1 ratio
dispensing. For other mix ratios, consult EFD for
an expert recommendation based on application
testing. Manifold must be purchased separately.

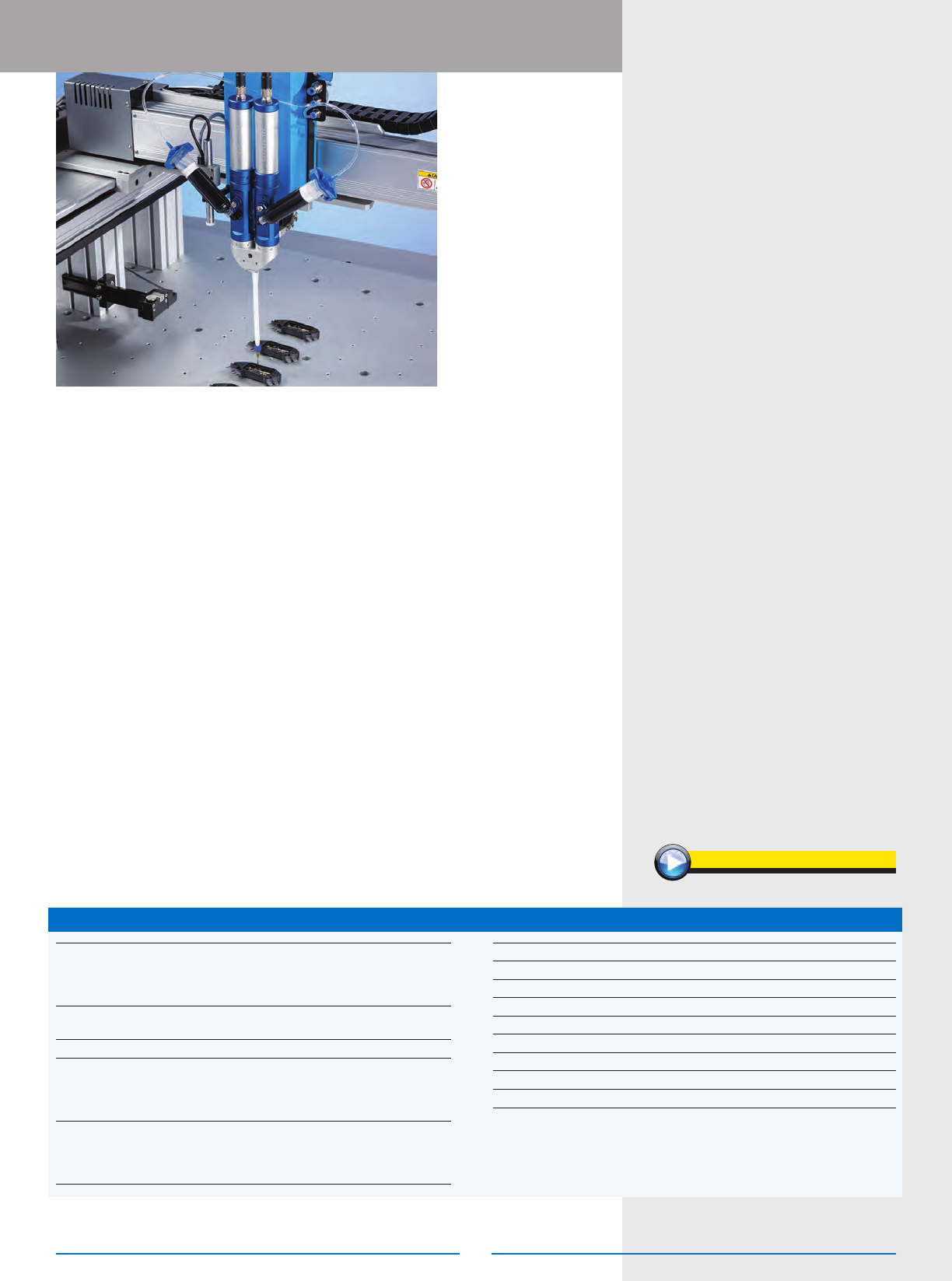

The modular 797PCP-2K progressive cavity pumps precisely meter accurate ratios of
part A and part B materials through EFD static mixers for highly repeatable dispensing
of two-component assembly uids. Compatibility with square and spiral bayonet mixers
of various sizes and styles makes the 797PCP-2K versatile for use in many types of
dispensing applications. A programmable suck-back feature prevents drooling at the
end of each dispense cycle.
797PCP-2K Series Pump
Features and Benets
• Highly precise, repeatable volumetric
dispensing of 2K uids
• Modular design allows for multiple mix
ratio combinations for a wide range of
applications
• Easy disassembly and cleaning
reduces downtime for maintenance
• Total system solution — pump,
controller, and EFD static mixers —
provides industry-leading performance
and simplies installation
Specications
Size: 797PCP-0.01 / 0.05: 261.4l x 36.0dia mm
(10.29l x 1.42dia")
797PCP-0.15 / 0.30: 297.9l x 36.0dia mm
(11.7l x 1.42dia")
Weight: 797PCP-0.01 / 0.05: 550.0 g (1.2 lb) per pump
797PCP-0.15 / 0.30: 620.0 g (1.4 lb) per pump
Rotor speed: 10–150 RPM (depending on maximum motor speed)
Flow rate: 797PCP-0.01: 0.13–1.95 mL/min per pump
797PCP-0.05: 0.59–8.85 mL/min per pump
797PCP-0.15: 1.63–24.50 mL/min per pump
797PCP-0.30: 0.30–45.0 mL/min per pump
Dispensing volume 797PCP-0.01: 0.009 mL per pump
per revolution: 797PCP-0.05: 0.047 mL per pump
797PCP-0.15: 0.139 mL per pump
797PCP-0.30: 0.304 mL per pump
Repeatability: ±1%
Fluid inlet: 1/8 NPT
Fluid outlet: Static mixer adapter
Mounting: M4
Fluid chamber: Anodized aluminum
Rotor: 316Ti stainless steel
Stator: FFKM (peruoroelastomer)
Operating temperature: 10–40° C (50–104° F)
Warranty: 1 year, limited
All stainless steel parts are passivated.
For use with 2K uids
• Acrylics
• Epoxies
• RTVs & Sealants
• Silicones
• Urethanes
Recommended Mixers
• Bayonet static mixers
• Bell static mixers
www.nordsonefd.com/2KMixers
See PCP Controllers for system setup
www.nordsonefd.com/797PCPSeries-2K
90
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Progressive Cavity Pump Systems
7365704 7197PCP-DIN-NX Controller
Includes breakout board and DB-15 cable. Motor
cable sold separately. Also features NX protocol
via Ethernet. For 2K applications, two
DIN controllers are required.

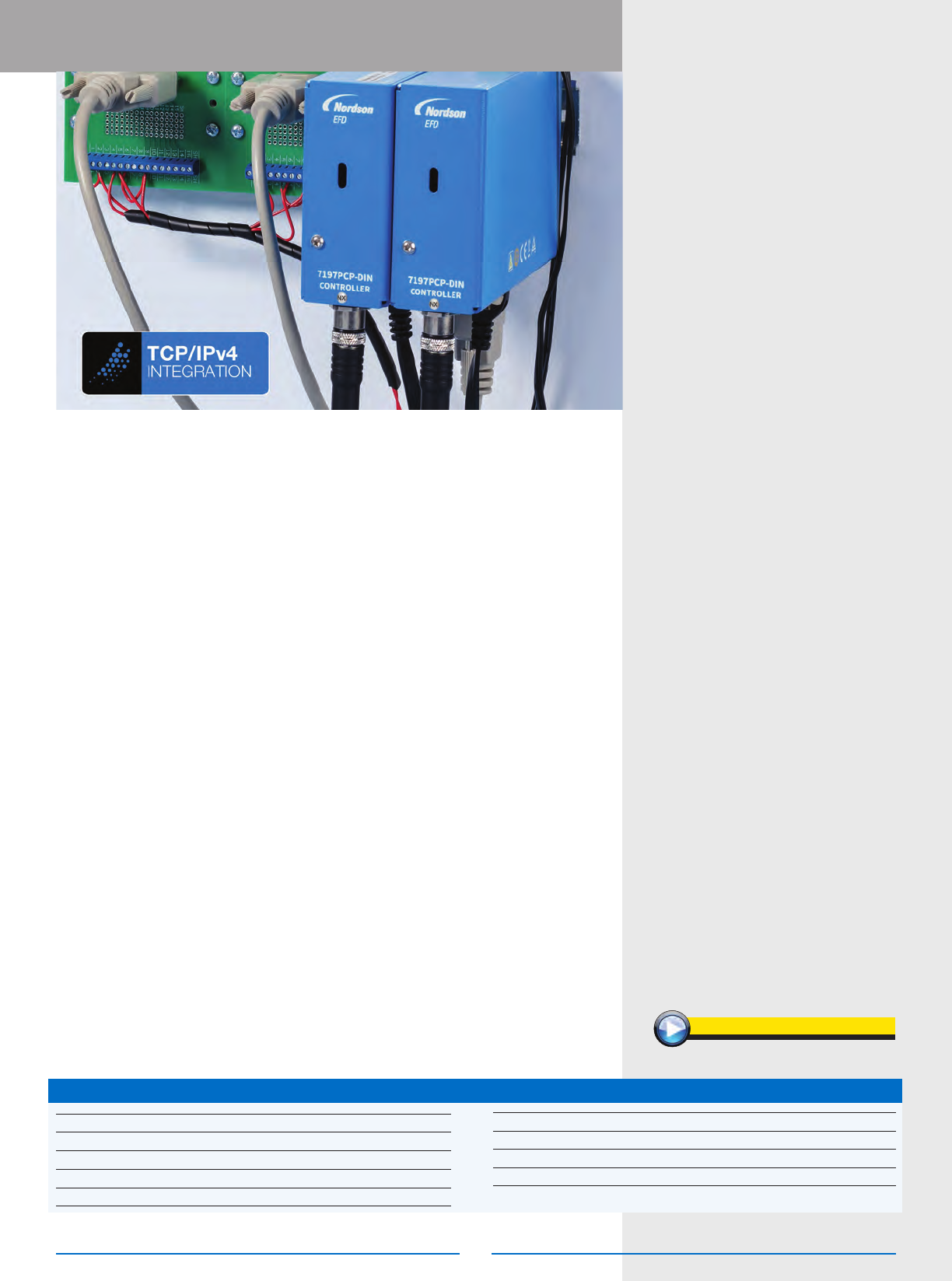

The network capable 7197PCP-DIN-NX controller provides precise control of
volumetric dispensing parameters for 797PCP and 797PCP-2K Series progressive
cavity pumps.
It allows direct communication with a Programmable Logic Controller (PLC) or other
manufacturing plant controllers using the NX protocol (network connectivity) via
Ethernet.
This technology enhancement allows operators to control all dispensing parameters
directly from a PLC or computer, giving the operator complete remote control of our
797PCP volumetric dispensing pumps.
7197PCP-DIN-NX
Controller
Features and Benets
• Ethernet control with NX protocol
• Communication between PLC and DIN controller
• Line, Volume, Weight, and Timed dispense modes for a wide range of
dispensing applications
• Nordson NX Client Application included, Windows-based graphical user
interface (GUI)
• Improve operational efciency by programming 797PCP pumps directly from a
central PLC
• Support Smart Factory integration using Ethernet compatibility with NX protocol
• Save time by updating multiple controllers simultaneously from a centralized
location
• Verify rotor movement with encoder count feedback
Cabinet size: 3.2w x 9.4h x 14.6d cm (1.27w x 3.70h x 5.75d")
Weight: 0.7 kg (1.5 lb)
Rotor speed: 10–150 RPM
Time range: 0.001–600,000 ms (1 s to 10 min)
Electrical power input: 24 VDC (±2%), 3.75 Amp maximum
Feedback circuits: Electronic switch, 24 VDC, 100 mA maximum
Cycle initiate: 24 VDC signal
Approvals: CE, TUV, RoHS, China RoHS, WEEE
Warranty: 1 year, limited
Specications
Download CAD Models:
www.nordsonefd.com/CAD
www.nordsonefd.com/7197PCP-DIN-NX
