92 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 92 Progressive Cavity Pump Accessories 797PCP-2K modular manifolds are engineered to provide mixing o…
91
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
Specications
Progressive Cavity Pump Systems
7364076 ValveMate 7197PCP Controller
Includes foot pedal. Order power cord separately.
Use with 797PCP Series pumps.
7364177 ValveMate 7197PCP-2K
Controller
Includes foot pedal. Order power cord separately.
Use with 797PCP-2K Series pumps.
7014871 American Plug Power Cord Kit
7014872 European Plug Power Cord Kit

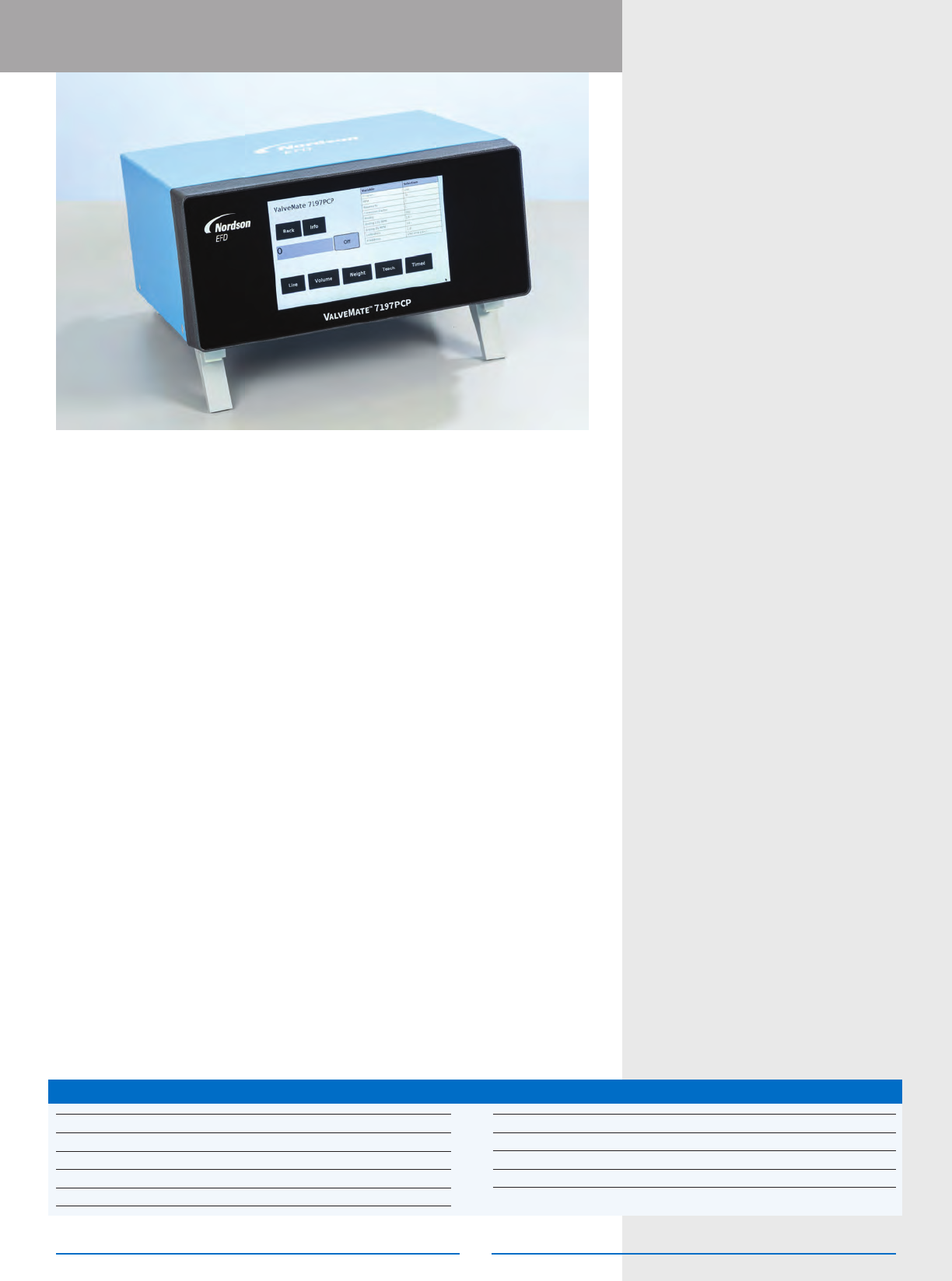

The ValveMate 7197PCP Controller puts precise adjustment of volumetric dispensing
parameters at your ngertips with a high-resolution touchscreen interface. This provides
intuitive control of 797PCP Series progressive cavity pumps at factory workstations.
Advanced features, such as the ability to change the rotor speed when dispensing
a line around corners, deliver a high level of process control. Calibration functionality
makes dispensing results more accurate and repeatable after initial setup and setup
adjustments.
ValveMate 7197PCP
Controller
Features and Benets
• Intuitive touchscreen interface streamlines pump setup and programming at the
workstation
• Exact adjustment of dispensing parameters improves process control
Cabinet size: 21.2w x 10.8h x 17.3d cm (8.33w x 4.27h x 6.82d")
Weight: 1.8 kg (4.0 lb)
Rotor speed: 10–150 RPM
Time range: 0.001–600,000 ms (1 s to 10 min)
Electrical power input: 24 VDC (±2%), 3.75 Amp maximum
Feedback circuits: Electronic switch, 24 VDC, 100 mA maximum
Cycle initiate: Foot pedal
Approvals: CE, UKCA, TUV, RoHS, China RoHS, WEEE
Warranty: 1 year, limited
Download CAD Models:
www.nordsonefd.com/CAD
92
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
92
Progressive Cavity Pump Accessories

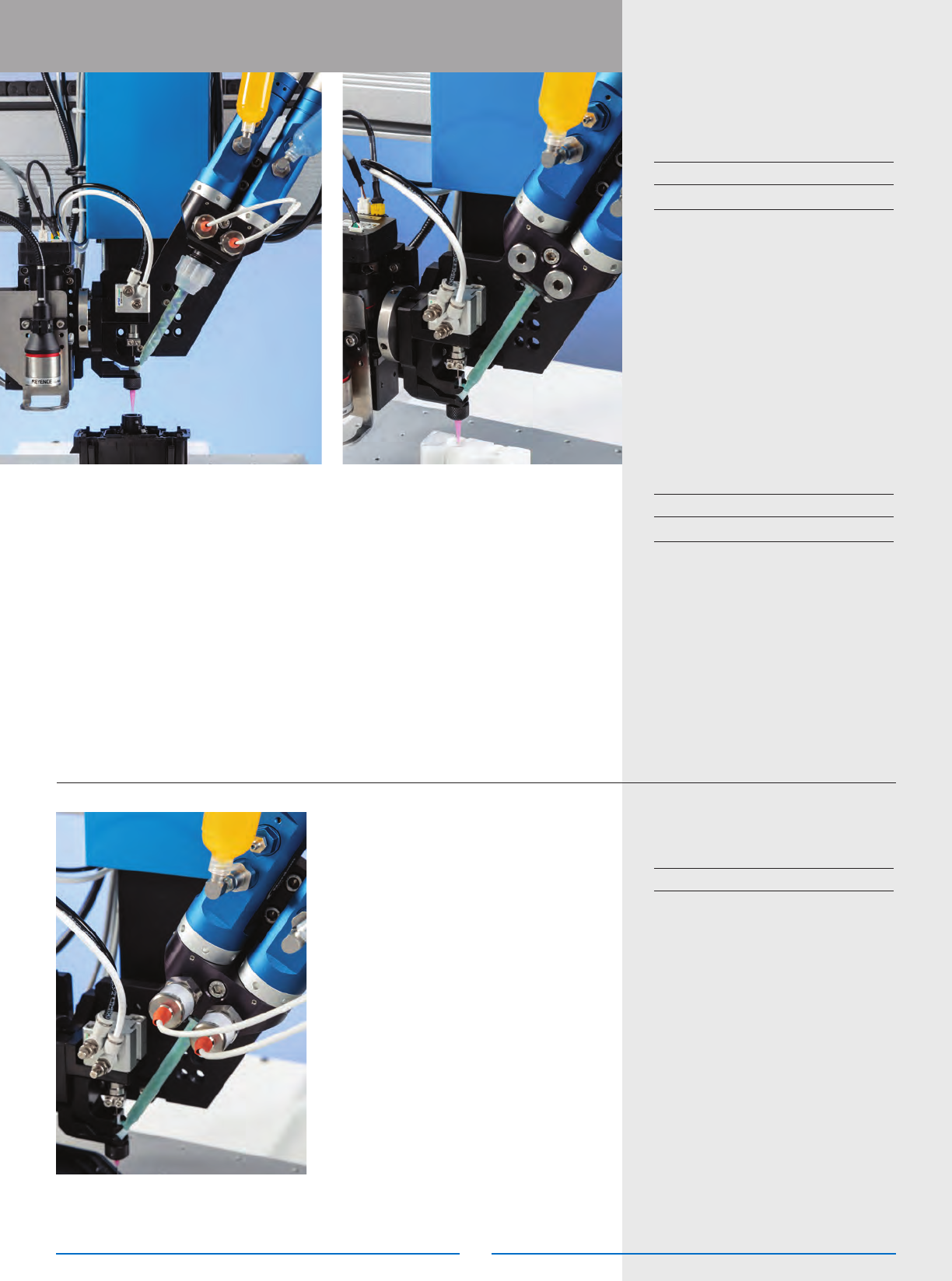

797PCP-2K modular manifolds are engineered to provide mixing options for a broad
range of two-part uids and viscosities. The modular design allows use with or without
pressure sensors and is compatible with EFD bayonet and standard bell style mixers.
In addition, different ow path sizes allow optimization of uid ow for mix ratio
dispensing:
• For a 1:1 mix ratio, use the 2 x 2 mm bayonet manifold or 5 x 5 mm bell manifold.
• For a 4:1 or 10:1 mix ratio, use the 2 x 4 mm bayonet manifold or 2 x 5 mm bell
manifold.
With pressure sensors, manufacturers can
safeguard that two-component uids are
mixed properly. This ensures that two-
part uids cure correctly, saving valuable
production time and reducing rework
and rejects.
Pressure sensors monitor the pressure
of uid moving through Side A and Side
B of the 797PCP-2K modular manifolds,
allowing users to quickly identify an
increase or decrease in uid pressure that
could impact the mix ratio.
797PCP-2K Modular
Manifolds
Pressure Sensors
For use with:
1:1 Mix Ratio
Pressure Sensors (optional)
For use with:
797PCP-2K Modular Manifolds
For use with:
4:1 or 10:1 Mix Ratios
Pressure Sensors (optional)
7365963 797PCP-2K Manifold 2 x 2
Modular manifold with 2 mm x 2 mm flow paths.
Includes mixer retainer and screws for attaching
bayonet static mixers, plus two sensor port plugs
with O-rings if not using the pressure sensors.
7365985 797PCP-2K Manifold 5 x 5
Modular manifold with 5 mm x 5 mm flow paths.
Includes mixer retainer and screws for attaching
standard bell static mixers, plus two sensor
port plugs with O-rings if not using the pressure
sensors. Requires retaining nut #7702595 sold
separately.
7365999 Pressure Sensor Kit
Includes one pressure sensor with pressure sensor
cable that is 1.5 m (59") long and one signal
conditioner. Order two to monitor fluid pressure
of Part A and Part B fluids moving through the
797PCP-2K modular manifold.
7365965 797PCP-2K Manifold 2 x 4
Modular manifold with 2 mm x 4 mm flow paths.
Includes mixer retainer and screws for attaching
bayonet static mixers, plus two sensor port plugs
with O-rings if not using the pressure sensors.
7365983 797PCP-2K Manifold 2 x 5
Modular manifold with 2 mm x 5 mm flow paths.
Includes mixer retainer and screws for attaching
standard bell static mixers, plus two sensor
port plugs with O-rings if not using the pressure
sensors. Requires retaining nut #7702595 sold
separately.
93
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
93
Progressive Cavity Pump Accessories

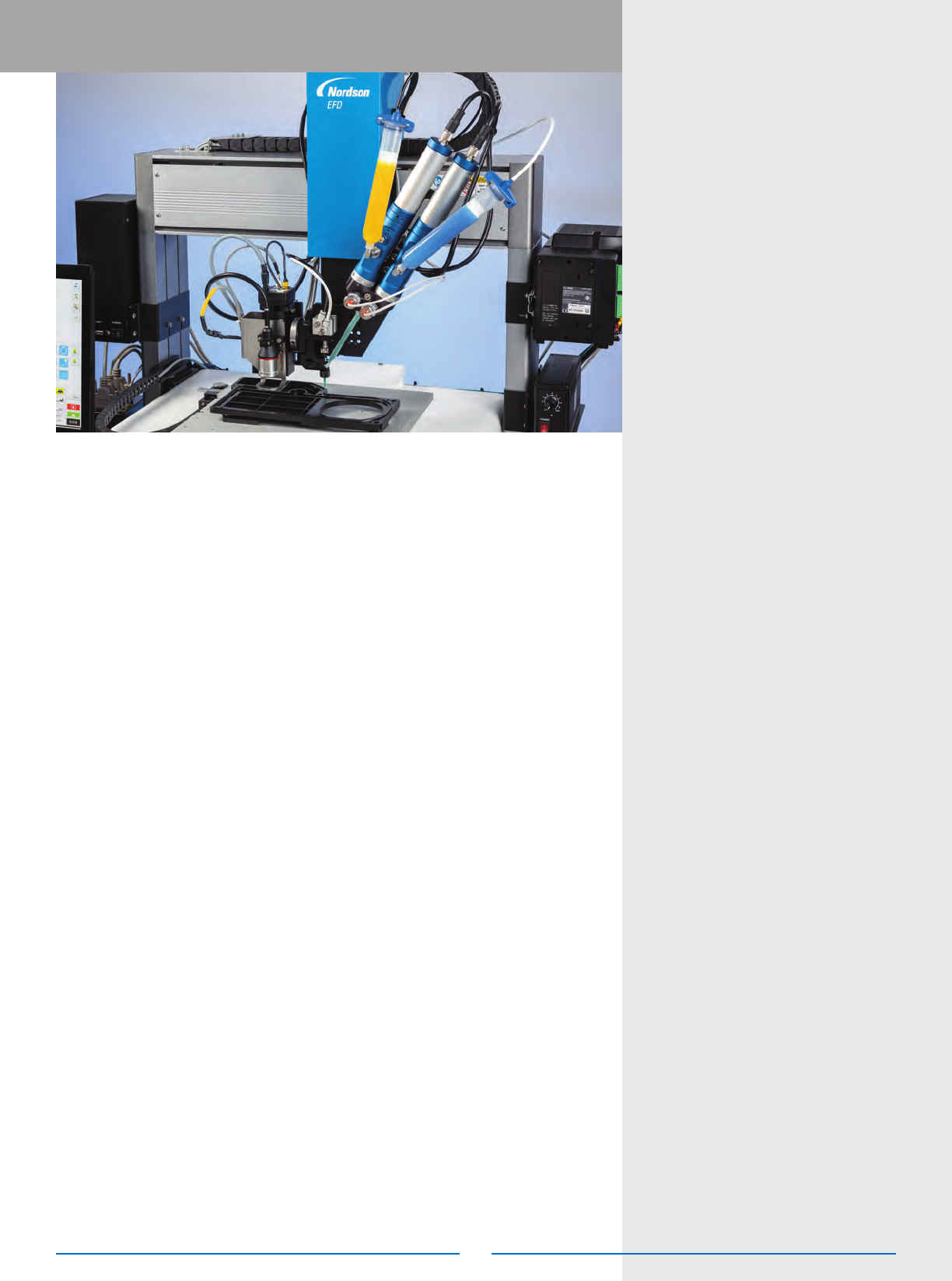

Nordson EFD’s 797PCP-2K shutoff bracket assembly eliminates leaking, drooling, and
dripping at the outlet of the progressive cavity pump. Manufacturers can reduce 2K
production waste, lower manufacturing costs, decrease production time, and improve
quality — putting an end to long set times or stringing challenges.
The shutoff bracket offers seamless compatibility with Nordson EFD automated uid
dispensing solutions. The system operates with the E Series (E3–E5 only), EV Series
(E3V–E6V only), and all PROPlus / PRO Series and GV Series robots.
797PCP-2K Shutoff
Bracket Assembly
7365000 Shutoff Bracket Kit
The kit includes a robot bracket assembly, control
box, Y-valves, cables, 5-micron filter / regulator,
urethane tubing, fittings, and screws. An optional
T-bracket can be used to mount a CCD camera to
Nordson EFD robots.
