93 www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006 93 Progressive Cavity Pump Accessories Nordson EFD’s 797PCP-2K shutoff bracket assembly eliminates le…
92
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
92
Progressive Cavity Pump Accessories
797PCP-2K modular manifolds are engineered to provide mixing options for a broad
range of two-part uids and viscosities. The modular design allows use with or without
pressure sensors and is compatible with EFD bayonet and standard bell style mixers.
In addition, different ow path sizes allow optimization of uid ow for mix ratio
dispensing:
• For a 1:1 mix ratio, use the 2 x 2 mm bayonet manifold or 5 x 5 mm bell manifold.
• For a 4:1 or 10:1 mix ratio, use the 2 x 4 mm bayonet manifold or 2 x 5 mm bell
manifold.
With pressure sensors, manufacturers can
safeguard that two-component uids are
mixed properly. This ensures that two-
part uids cure correctly, saving valuable
production time and reducing rework
and rejects.
Pressure sensors monitor the pressure
of uid moving through Side A and Side
B of the 797PCP-2K modular manifolds,
allowing users to quickly identify an
increase or decrease in uid pressure that
could impact the mix ratio.
797PCP-2K Modular
Manifolds
Pressure Sensors
For use with:
1:1 Mix Ratio
Pressure Sensors (optional)
For use with:
797PCP-2K Modular Manifolds
For use with:
4:1 or 10:1 Mix Ratios
Pressure Sensors (optional)
7365963 797PCP-2K Manifold 2 x 2
Modular manifold with 2 mm x 2 mm flow paths.
Includes mixer retainer and screws for attaching
bayonet static mixers, plus two sensor port plugs
with O-rings if not using the pressure sensors.
7365985 797PCP-2K Manifold 5 x 5
Modular manifold with 5 mm x 5 mm flow paths.
Includes mixer retainer and screws for attaching
standard bell static mixers, plus two sensor
port plugs with O-rings if not using the pressure
sensors. Requires retaining nut #7702595 sold
separately.
7365999 Pressure Sensor Kit
Includes one pressure sensor with pressure sensor
cable that is 1.5 m (59") long and one signal
conditioner. Order two to monitor fluid pressure
of Part A and Part B fluids moving through the
797PCP-2K modular manifold.
7365965 797PCP-2K Manifold 2 x 4
Modular manifold with 2 mm x 4 mm flow paths.
Includes mixer retainer and screws for attaching
bayonet static mixers, plus two sensor port plugs
with O-rings if not using the pressure sensors.
7365983 797PCP-2K Manifold 2 x 5
Modular manifold with 2 mm x 5 mm flow paths.
Includes mixer retainer and screws for attaching
standard bell static mixers, plus two sensor
port plugs with O-rings if not using the pressure
sensors. Requires retaining nut #7702595 sold
separately.
93
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
93
Progressive Cavity Pump Accessories
Nordson EFD’s 797PCP-2K shutoff bracket assembly eliminates leaking, drooling, and
dripping at the outlet of the progressive cavity pump. Manufacturers can reduce 2K
production waste, lower manufacturing costs, decrease production time, and improve
quality — putting an end to long set times or stringing challenges.
The shutoff bracket offers seamless compatibility with Nordson EFD automated uid
dispensing solutions. The system operates with the E Series (E3–E5 only), EV Series
(E3V–E6V only), and all PROPlus / PRO Series and GV Series robots.
797PCP-2K Shutoff
Bracket Assembly
7365000 Shutoff Bracket Kit
The kit includes a robot bracket assembly, control
box, Y-valves, cables, 5-micron filter / regulator,
urethane tubing, fittings, and screws. An optional
T-bracket can be used to mount a CCD camera to
Nordson EFD robots.
9494
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

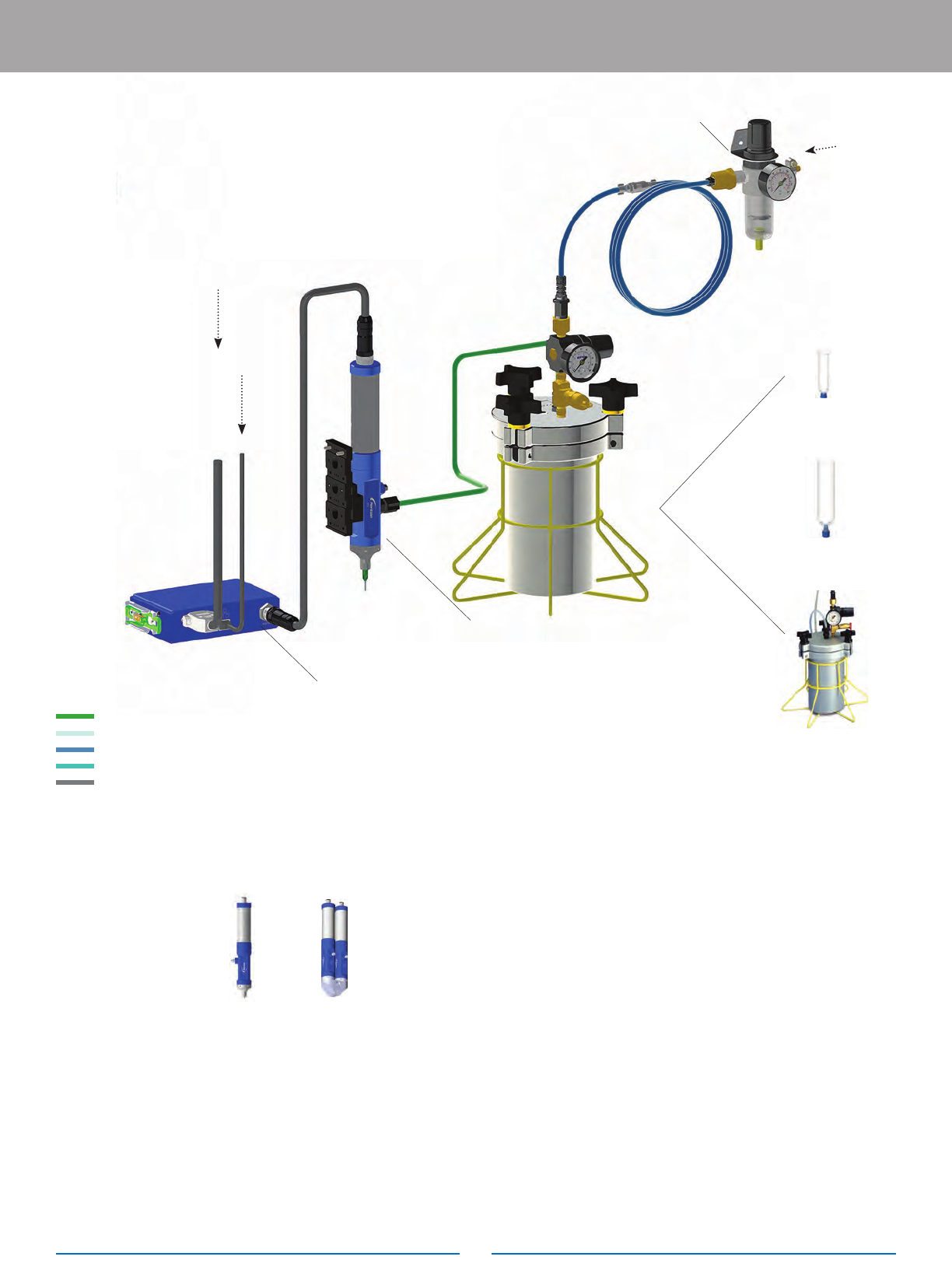

ValveMate 7197PCP Controller – System Setup
7197PCP Controller
(DIN shown; ValveMate also available)
EFD Pump
Regulator
Network Switch
For use with
Fluid Reservoir
(Shown with syringe)
Syringe
Cartridge
Tank
Plant air
797PCP 797PCP-2K
Fluid
Actuating air
Constant air
Nozzle air
Electrical
Computer
