96
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006
TANKS AND RESERVOIRS
Type
Syringe Barrels, in Clear,
Amber, or Black
Cartridge Retainer Systems with
Regulators
1/10 Gallon Retainer System with
Regulator
1L & 5L
Analog Gauge Tanks
Volume
3cc–70cc
(3–70 ml)
2.5 oz–32 oz
(75-960 ml)
1/10 gal
(300 ml)
1 liter & 5 liter
(0.26 gal &
1.32 gal)
Recommended
Fluid Viscosity
All Fluids All Fluids Medium-to-High Viscosities
Low-to-Medium Viscosities
(pourable / self-leveling)
Air Pressure —
0-1.0 bar (0-15 psi)
0-7.0 bar (0-100 psi)
0-7.0 bar
(0-100 psi)
0-1.0 bar (0-15 psi)
0-7.0 bar (0-100 psi)
Float Switch — — — Optional
Features
& Benefits
· Limits uid waste
· Reduces maintenance and cleanup
· Assembly uids often come packaged
in EFD syringe barrels
· Use for uids with short shelf life
· Ideal for low-to-medium pressure
dispensing from cartridges
· Clear retainer allows visual monitoring
of uid level
· Accepts cartridges
· Designed for use with pre-lled
caulking tubes
· Maintains steady uid pressure
· Accepts pre-lled 1-pound and 1-liter
bottles or pourable uids
Production
Capacity
Low Volume Low-to-Medium Volume Low-to-Medium Volume Medium-to-High Volume

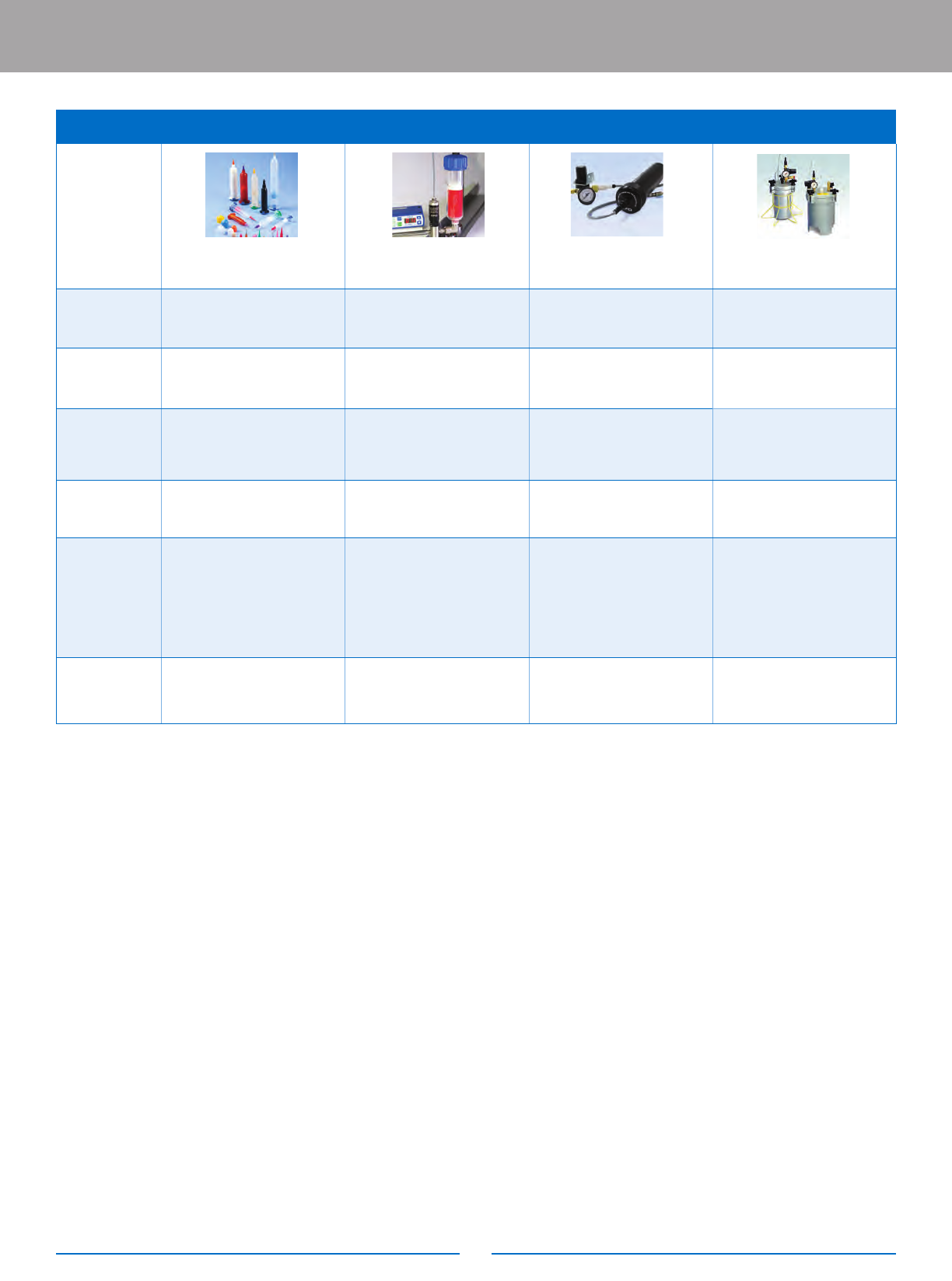

Tanks and Reservoirs Selection Guide
97
www.nordsonefd.com info@nordsonefd.com USA & Canada 800-556-3484 Europe 00800 7001 7001 Asia +86 (21) 3866 9006

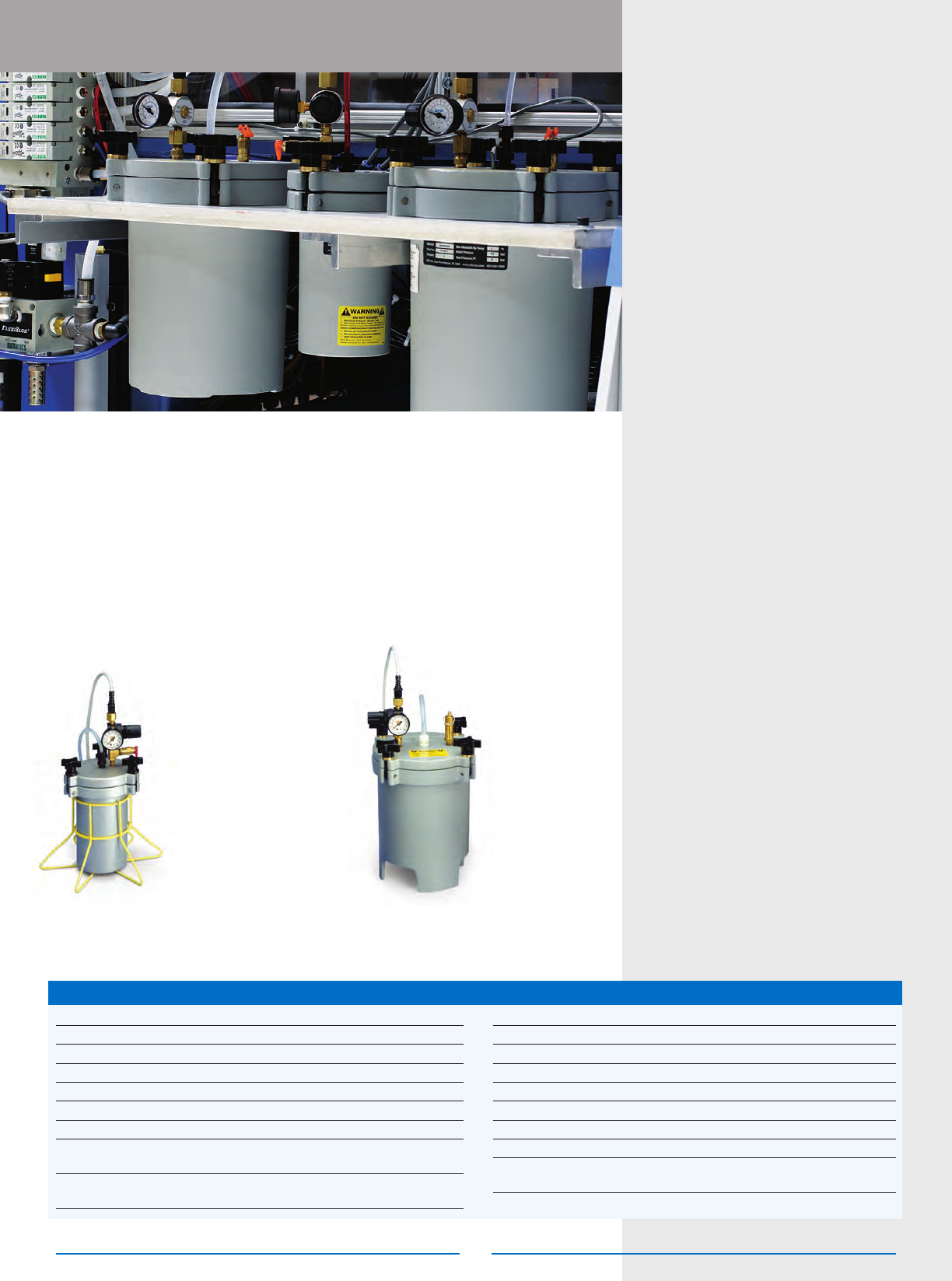

Tanks and Reservoirs
7010004 615DTH Tank
1.0 liter tank with 7.0 bar (100 psi) regulator.
7020121 615DTL Tank
1.0 liter tank with 1.0 bar (15 psi) regulator.
7020186 626DTH Tank
5.0 liter tank with 7.0 bar (100 psi) regulator.
Float Switches
7020109 Float Switch for 1L Tanks
Float switch can be used to indicate low fluid levels
in 615DT tanks.
7020180 Float Switch for 5L Tanks
Float switch can be used to indicate low fluid levels
in 626DT tanks.
EFD uid tanks maintain steady uid pressure, prevent uid contamination and
evaporation, and contain fumes. Tanks are available with 0-15 psi (0-1.0 bar) or
0-100 psi (0-7.0 bar) constant-bleed air regulators to handle different uid viscosities.
The air regulator is selected based on uid viscosity. Watery uids require the
0-15 psi (0-1.0 bar) regulator, while thicker uids need the 0-100 psi (0-7.0 bar)
regulator. Since tanks are charged by plant air, we recommend the 5-micron lter/
regulator (#7002002) to lter contaminants.
Each uid tank is shipped complete with constant-bleed precision air regulator and
gauge, air hose with shutoff valve, liner, and uid feed tubing.
Analog Gauge
Tanks
626 Series
5.0 Liter Tanks
Fluid can be poured
into the liner or the fluid
container may be put into
the reservoir for direct
dispensing.
615 Series
1.0 Liter Tanks
Accommodates one
pound/one liter bottles.
Recommended for
pourable fluids only.
Specications
615DTH / 615DTL Tanks
Tank body: Cast aluminum
Replaceable liner: Polyethylene (0.95 liter capacity)
Inside diameter: 9.7 cm (3.82")
Inside depth: 17.4 cm (6.87")
Overall width: 17.3 cm (6.81")
Overall height: 35.6 cm (14.01")
Regulator & gauge: 615DTH: 7.0 bar (100 psi)
615DTL: 1.0 bar (15 psi)
Maximum operating 7.0 bar (100 psi)
pressure:
626DTH Tanks
Tank body: Cast aluminum
Replaceable liner: Polyethylene (3.8 liter capacity)
Inside diameter: 17.3 cm (6.81")
Inside depth: 24.8 cm (9.75")
Overall width: 28.3 cm (11.14")
Overall height: 40.6 cm (15.98")
Regulator & gauge: 626DTH: 7.0 bar (100 psi)
Maximum operating 7.0 bar (100 psi)
pressure:
98
Automated Dispensing Systems
Nordson EFD’s automated dispensing systems are specically
designed and congured for precise uid dispensing using all
EFD dispensing equipment, including syringe barrel, valve, jetting,
and progressive cavity pump systems.
Specialized DispenseMotion
™
software and fully integrated vision
and laser height sensing capabilities make EFD automated
systems quick to set up and easy to program. True three-
dimensional motion control allows easy programming of dots,
lines, circles, arcs, compound arcs, and complex patterns on
different planes.
Closed-loop encoding, along with the smart vision CCD camera
and laser height sensing, allows the systems to automatically
adjust a dispensing program to compensate for both surface
height changes and variations in product orientation.
The systems set up quickly and are easy to run, providing more
time for other projects while increasing product yield.
In addition, EFD's OptiSure automated optical inspection (AOI)
software and laser provide post-dispense verication, giving
operators instant quality feedback in applications where precision
is critical to success.
Features and Benets
• Produces more parts and reduces process time
• Improves product quality from more precise, accurate
dispensing
• Quicker learning curve for operators — programming is easier,
more visual
• Faster startup to introduce automation, with less
production downtime
• Fully integrated positioning and dispensing functions
