KGW_d-YTF_PL - 第11页
2 5 Shutter+Rack Lock Magazine KGW -0509 44 43 6 5 43 42 45 13 50 43 19,20 8 18 39 15 12 15 48 21 16 3 49 9 10 41 43 50 57 46 51 42 14 17 40 47 14 13 43 8 7 10 40 46 58 14 39 15 15 14 12 1 1 48 3 2 54 30 35 36 52 31 24 2…
1
5

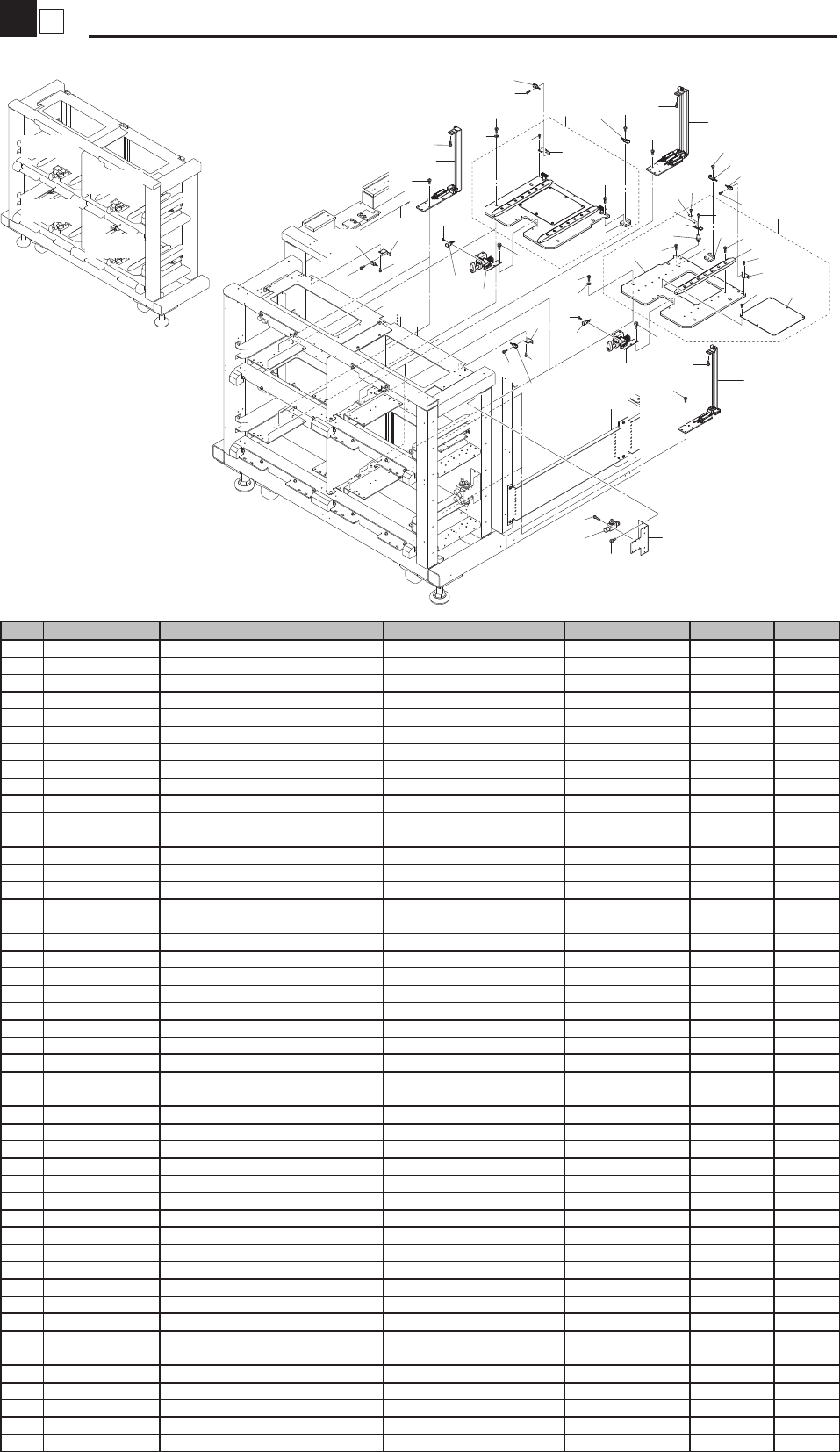

Rack Stage
Magazine
KGW-0807
39
39
42
38
38
11
2
36
43
39
39
23,24
21,22
15,16
39
39
9
43
39
46
45
47
44
9
39
17,18
19,20
5,6
13,14
3,4
43
36
38
26
38
32
25
41
42
43
10
37
36
36
37
11
13,14
38
27
40
29
10
30
35
31
33
34
28
1
13,14
7,8
41
1Stage
L
L
R
R
2Stage
3Stage
4Stage
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGX-M17D1-L0 RACK STAGE L ASSY 2 3,4Stage
2 KGX-M17D1-R0 RACK STAGE R ASSY 2 1,2Stage
3 KGX-M17D2-30 SHUTTER C13 ASSY 1 1,3Stage
4 KGX-M17D2-40 SHUTTER C24 ASSY 1 2,4Stage
5 KGX-M17D3-30 SHUTTER L3 ASSY 1 3Stage
6 KGX-M17D3-40 SHUTTER L4 ASSY 1 4Stage
7 KGX-M17D4-10 SHUTTER R1 ASSY 1 1Stage
8 KGX-M17D4-20 SHUTTER R2 ASSY 1 2Stage
9 KGX-M17D5-00 RACK LOCK ASSY 4 All Stage
10 KGX-M1785-L0 BRACKET,SENSOR L 4 3,4Stage
11 KGX-M1785-R0 BRACKET,SENSOR R 4 1,2Stage
12
13 KGX-M652E-10 SENSOR,PLT1 ORG 1 1Stage R
14 KGX-M652F-10 SENSOR,PLT2 ORG 1 2Stage R
15 KGX-M652G-10 SENSOR,PLT3 ORG 1 3Stage L
16 KGX-M652H-10 SENSOR,PLT4 ORG 1 4Stage L
17 KGX-M652L-10 SENSOR,RACK1 SET 1 1Stage L
18 KGX-M652M-10 SENSOR,RACK2 SET 1 2Stage L
19 KGX-M652K-20 SENSOR,RACK3 SET 1 3Stage R
20 KGX-M652K-10 SENSOR,RACK4 SET 1 4Stage R
21 KGX-M652N-10 SENSOR,R CLAMP1 1 1Stage
22 KGX-M652R-10 SENSOR,R CLAMP2 1 2Stage
23 KGX-M652P-10 SENSOR,R CLAMP3 1 3Stage
24 KGX-M652P-20 SENSRO,R CLAMP4 1 4Stage
25 KGX-M1781-01 PLATE BOTTOM,MAGAZIN 1 All Stage
26 KGX-M1782-00 GUIDE,MAGAGINE 2 All Stage
27 KGX-M1783-00 PIN,LOCATE 2 All Stage
28 KGX-M1784-L0 BLOCK,SENSOR L 1 3,4Stage
29 KGX-M1784-R0 BLOCK,SENSOR R 1 1,2Stage
30 KGX-M1786-01 BASE,SPRING 2 All Stage
31 KGX-M1787-01 LEAF SPRIG 4 All Stage
32
33 KM5-M7169-00 SCREW : M2X2 4 All Stage
34 90990-01J017 BOLT,HEX.SOCKET HEAD 2
35 90947-30JA00 STEEL BALL 1 4
36 90115-02J008 BOLT HEX.SOCKET HEAD 16
37 91312-03005 BOLT HEX.SOCKET HEAD 8 M3X5
38 91312-03006 BOLT HEX.SOCKET HEAD 8 M3X6
39 91312-04006 BOLT HEX.SOCKET HEAD 16 M4X6
40 91312-04010 BOLT HEX.SOCKET HEAD 26 M4X10
41 91312-05012 BOLT HEX.SOCKET HEAD 16 M5X12
42 92902-05200 WASHER PLAIN 16
43 98902-03008 SCREW BINDING HEAD 8
44 KGX-M179E-00 BRACKET, SP. CON. 4
45 $SSU4 SPEED CONTROLLER 16
46 91317-03025 BOLT HEX.SOCKET HEAD 16
47 91317-04008 BOLT HEX.SOCKET HEAD 8
2
5

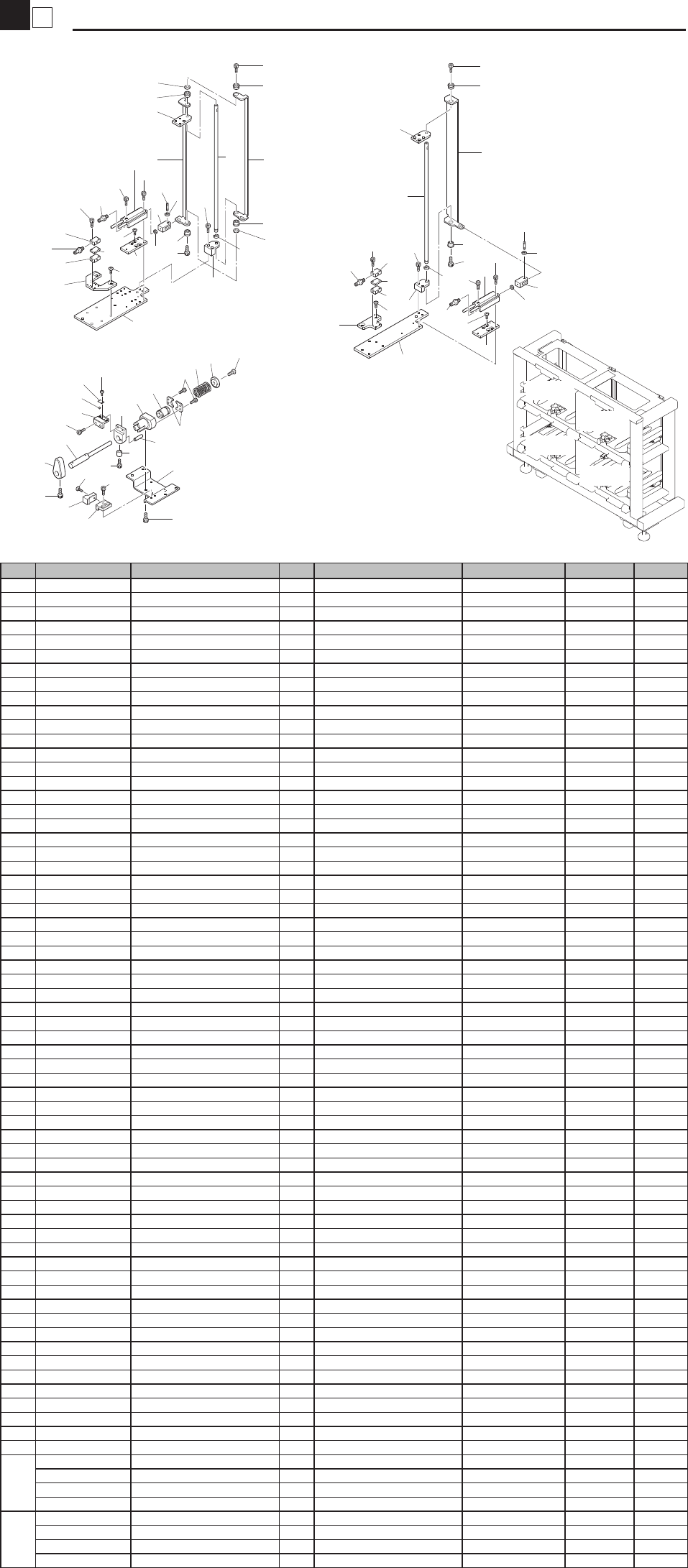

Shutter+Rack Lock
Magazine
KGW-0509
44
43
6
5
43
42
45
13
50
43
19,20
8
18
39
15
12
15
48
21
16
3
49
9
10
41
43
50
57
46
51
42
14
17
40
47
14
13
43
8
7
10
40
46
58
14
39
15
15
14
12
11
48
3
2
54
30
35
36
52
31
24
26
38
37
22
27
50
25
34
50
32
28
54
52
50
33
29
23
53
44
43
9
47
4
49
41
Rack Lock
Shuter C Shuter L
1Stage
L
(Left)
L
R
(Right)
R
2Stage
3Stage
4Stage
(Center)
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGX-M178A-00X CYLINDER 4
2 KGX-M178B-00X BASE,SHUTTER CENTER 1
3 KGX-M178C-00X SPACER,CYLINDER 1
4 KGX-M178E-00X BLOCK,SHAFT 1
5 KGX-M178G-00X SHAFT,SHUTTER CENTER 1
6 KGX-M178J-00X SHUTTER,C-R 1 for Center
6-1 KGX-M178J-01X SHUTTER,C-R 1 for Center 2005/10/14 MB00025 OK
7 KGX-M178K-00X SHUTTER,C-L 1 for Center
7-1 KGX-M178K-01X SHUTTER,C-L 1 for Center 2005/10/14 MB00025 OK
8 KGX-M178L-00X HOLDER,SHAFT 3
9 KGX-M178M-00X Y LINK 4
10 KGX-M178N-00X SHAFT,LINK 4
11 KGX-M178T-00X SPACER 1,SPC 1
12 KGX-M178U-00X SPACER 2,SPC 4
13 KV4-M1811-00X SIM 2
14 $BF4-M3 JOINT 12
15 $TSCO SPEED CONTROLLER 4
16 KGX-M178D-00X BASE,SHUTTER SIDE 1
17 KGX-M178F-00X BLOCK 2,SHAFT 1
18 KGX-M178H-00X SHAFT 2,SHUTTER 1
19 KGX-M178R-00X SHUTTER L 1 for Left
19-1 KGX-M178R-01X SHUTTER L 1 for Left 2005/10/14 MB00025 OK
20 KGX-M178P-00X SHUTTER,R 1 for Right
20-1 KGX-M178P-01X SHUTTER,R 1 for Right 2005/10/14 MB00025 OK
21 KGX-M178V-00X SPACER 3,SPC 1
22 KGX-M1787-01X LEAF SPRIG 2
23 KGX-M1791-00X BASE,LOCK 1
24 KGX-M1792-00X HOLDER 1,SHAFT 1
25 KGX-M1793-00X SHAFT,LOCK 1
26 KGX-M1794-00X HOLDER 3,SHAFT 1
27 KGX-M1795-01X NAIL,LOCK 1
28 KGX-M1796-00X BRACKET,SENSOR 1
29 KGX-M1797-00X SHAFT,STOPPER 1
30 KGX-M1798-00X WASHER 1
31 KGX-M1799-00X LINER BALL BUSH 1
32 KW6-M717G-00X SENSOR ASSY 1
33 KGX-M179B-00X BUSH 1
34 KGX-M179C-00X LEVER 1
35 KGX-M179D-00X SPG. 1
36 KGT-M9224-00X STOPPER,BUSHING 2
37 KH8-M7158-00X STEEL BALL 1 2
37-1 90947-30JA00 BALL STEEL 4 2007/9/20 MD80070 OK
38 KG7-M7169-00X SCREW 2
38-1 KM5-M7169-00X SCREW 2 M2X2 2005/8/23 MB80083 OK
39 90114-02J015 BOLT HEX.SOCKET HEAD 4 M2X15
40 90115-02J006 BOLT HEX.SOCKET HEAD 4 M2X6
41 90440-01J020 CIRCLIP 4
42 90440-01J040 CIRCLIP 1
43 90933-03J683 BEARING 8
44 91317-03010 BOLT HEX.SOCKET HEAD 2 M3X10
45 91317-04016 BOLT HEX.SOCKET HEAD 2 M4X16
46 92D18-02012 BOLT HEX.SOCKET HEAD 2 M2X12
47 95304-03700 NUT HEXAGON 2
48 98704-04006 SCREW FLAT HEAD 2
49 98707-03006 SCREW FLAT HEAD 4
50 91317-03008 BOLT HEX.SOCKET HEAD 6 M3X8
51 91317-04012 BOLT HEX.SOCKET HEAD 2 M4X12
52 91317-03005 BOLT HEX.SOCKET HEAD 6 M3X5
53 91317-04005 BOLT HEX.SOCKET HEAD 2 M4X5
54 92017-04010 BOLT HEX.SOCKET HEAD 1 M4X10
55 98904-03008 SCREW BINDING HEAD 1
56 92907-03600 WASHER PLAIN 2
57
KGX-M178A-A0X CYLINDER ASSY LAT1R 1 1R OK
KGX-M178A-C0X CYLINDER ASSY LAT2R 1 2R OK
KGX-M178A-F0X CYLINDER ASSY LAT3L 1 3L OK
KGX-M178A-H0X CYLINDER ASSY LAT4L 1 4L OK
58
KGX-M178A-B0X CYLINDER ASSY LAT1L 1 1L 2005/6/7 MB50128 OK
KGX-M178A-D0X CYLINDER ASSY LAT2L 1 2L 2005/6/7 MB50128 OK
KGX-M178A-E0X CYLINDER ASSY LAT3R 1 3R 2005/6/7 MB50128 OK
KGX-M178A-G0X CYLINDER ASSY LAT4R 1 4R 2005/6/7 MB50128 OK
1
6

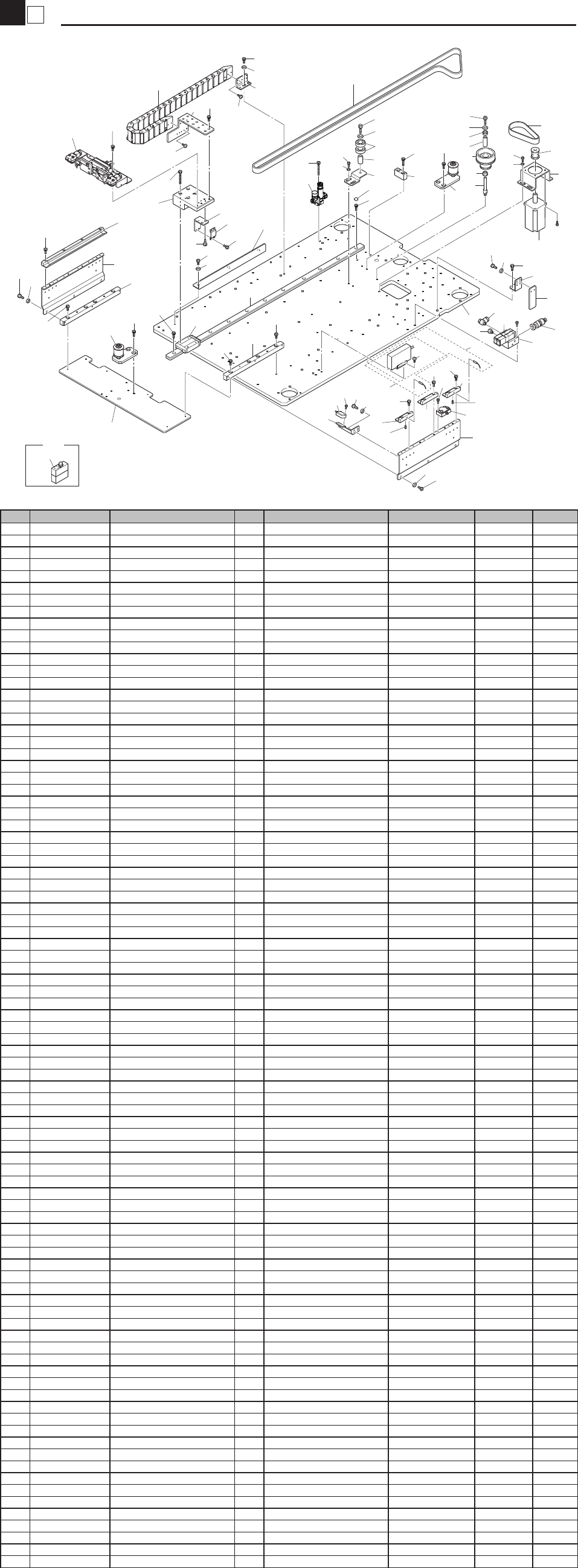

Hook
Hook
KGW-0509
OLD
70
56
11
9
55
55
65
19
68
12
52
59
66
27
48
24
35
23
22
57
10
71
61
46
63
36
29
60
66
30
36
28
33
18
37
49
64
50
13
14
26
42
40
41
1
51
51
5
45
34
44
62
15
46
63
7
71
3
4
51
58
8
16
25
49
54
53
65
17
2
47
46
12
61
56
39
47
47
69
31
3
73,20
6
2
67
72
21
68
43
32
51
6
67
56
74
38
27
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGW-M1801-00X HOOK BASE 1
1-1 KGW-M1801-01X HOOK BASE 1 (2006/10/17) MC00040 OK
2 KGW-M1802-00X PLATE A 6
3 KGW-M1803-01X PLATE B 6
4 KGW-M1804-01X GUIDE PALLET A 3
4-1 KGW-M1804-02X GUIDE PALLET A 3 (2006/5/25) MC50099 OK
5 KGW-M1804-11X GUIDE PALLET B 3
5-1 KGW-M1804-12X GUIDE PALLET B 3 (2006/5/25) MC50099 OK
6 KGW-M1804-21X GUIDE PALLET C 6
6-1 KGW-M1804-22X GUIDE PALLET C 6 (2006/5/25) MC50099 OK
7 KGW-M1805-00X PLATE A 1
8 KGW-M1806-00X HOOK BASE 1
9 KGW-M1807-L0X BRACKET,L 1 for Left
10 KGW-M1808-00X DAMPER 2
11 KGW-M1809-00X CABLE GUIDE 1
12 KGW-M1810-00X BELT,HOOK 1
13 KGW-M1811-00X BRKT.,DOG 1
14 KGW-M1812-00X DOG 1
15 KGW-M1813-00X BRACKET,SENSOR 1
16 KGW-M1814-00X BRKT. BELT 1
17 KGW-M1815-00X BRKT. GUIDE 1
18 KGX-M1812-00X BRACKET,MOTOR HOOK 1
19 KGX-M181A-00X BRACKET,GUIDE 1
20 KGX-M181E-00X SENSOR,E3TSL24 1
20-1 KGX-M652V-40X SENSOR,PLT CHK 2 1 L side (2005/6/7) MB50128 OK
20-2 KGX-M652V-41X SENSOR,PLT CHK 2 1 L side (2006/7/11) MC60145 OK
21 KGX-M181F-00X SHAFT 2,PULLEY 1
22 KGX-M181G-00X HOLDER,PULLEY 1
23 KGX-M181H-00X COLLAR 1 1
24 KGX-M181J-00X WASHER 1 1
25 KGX-M1824-00X HOLDER 2,BELT 1
26 KH2-M7101-00X VALVE 1 1
27 KM5-M8504-00X REGULATOR : RVUM4-4 1
27-1 $RVUMP4-4 REGULATOR 1 (2020/12/15) MTY0006 OK
28 KV4-M1826-00X BELT MOTOR 1
29 KB0-M223E-00X COLLAR 2 1
30 KB0-M2255-01X PULLEY,5 1
31 KGX-M652T-30X SENSOR,PLT EDGE 1
32 KGX-M652U-30X SENSOR,PLT SET 1
33 KC0-M1751-00X PULLEY 1 1
34 90115-02J008 BOLT HEX.SOCKET HEAD 2
35 90933-01J200 BEARING 2
36 90933-03J696 BEARING 2
37 90K63-001331 AC SERVO MOTOR 2
38 90K71-6U0650 LM GUIDE 1
39 90K80-S15RW0 LM BLOCK,SSR15W-R 1
40 K40-M8598-00X PLUG 1 2
41 $KM-10 MUFFLER 1
42 $SL6-01 JOINT 1
43 KGW-M781K-00X JOINT 4
43-1 $USD4-2M JOINT 4 (2007/8/20) MD80065 OK
44 91314-03006 BOLT HEX.SOCKET HEAD 2 M3X6
44-1 91312-03006 BOLT HEX.SOCKET HEAD 2 (2006/1/16) MBY0158 OK
45 91314-03008 BOLT HEX.SOCKET HEAD 12 M3X8
45-1 91312-03008 BOLT HEX.SOCKET HEAD 12 (2006/1/16) MBY0158 OK
46 91314-04010 BOLT HEX.SOCKET HEAD 19 M4X10
46-1 91312-04010 BOLT HEX.SOCKET HEAD 19 (2006/1/16) MBY0158 OK
47 91314-04012 BOLT HEX.SOCKET HEAD 24 M4X12
47-1 91312-04012 BOLT HEX.SOCKET HEAD 24 (2006/1/16) MBY0158 OK
48 91314-05025 BOLT HEX.SOCKET HEAD 1 M5X25
48-1 91312-05025 BOLT HEX.SOCKET HEAD 1 (2006/1/16) MBY0158 OK
49 91317-03005 BOLT HEX.SOCKET HEAD 6 M3X5
50 91317-03008 BOLT HEX.SOCKET HEAD 6 M3X8
51 91317-03010 BOLT HEX.SOCKET HEAD 30 M3X10
52 91317-03030 BOLT HEX.SOCKET HEAD 4 M3X30
53 91317-04006 BOLT HEX.SOCKET HEAD 3 M4X6
54 91317-04008 BOLT HEX.SOCKET HEAD 2 M4X8
55 91317-04010 BOLT HEX.SOCKET HEAD 6 M4X10
56 91317-04012 BOLT HEX.SOCKET HEAD 12 M4X12
57 91317-04016 BOLT HEX.SOCKET HEAD 4 M4X16
58 91317-04025 BOLT HEX.SOCKET HEAD 4 M4X25
59 91317-05010 BOLT HEX.SOCKET HEAD 2 M5X110
60 91317-05012 BOLT HEX.SOCKET HEAD 4 M5X12
61 92017-05010 WASHER PLAIN 4
62 92903-03200 WASHER PLAIN 2
63 92903-04200 WASHER PLAIN 19
64 92907-03200 WASHER PLAIN 2
65 92907-04200 WASHER PLAIN 4
66 92907-05600 WASHER PLAIN 6
67 92A08-03305 SCREW,SET 2
68 98907-03005 SCREW BINDING HEAD 4
69 98907-03008 SCREW BINDING HEAD 4
70 KGW-M18A0-000 PALLET HOOK ASSY. 1
71 KGW-M18B0-000 PULLEY ASSY. 2
72 KGX-M18A3-000 PLUNGER ASSY. 6
73 KGX-M652V-30X SENSOR,PLT CHK1 1 R side (2005/6/7) MB50128
73-1 KGX-M652V-31X SENSOR,PLT 1 CHK 1 R side (2006/7/11) MC60145
74 90K81-200004 CAP4 11 (2005/8/16) MB80011
