1 5 Rack Stage Magazine KGW -0807 39 39 42 38 38 1 1 2 36 43 39 39 23,24 21,22 15,16 39 39 9 43 39 46 45 47 44 9 39 17,18 19,20 5,6 13,14 3,4 43 36 38 26 38 32 25 41 42 43 10 37 36 36 37 1 1 13,14 38 27 40 29 10 30 35 31…
2
4

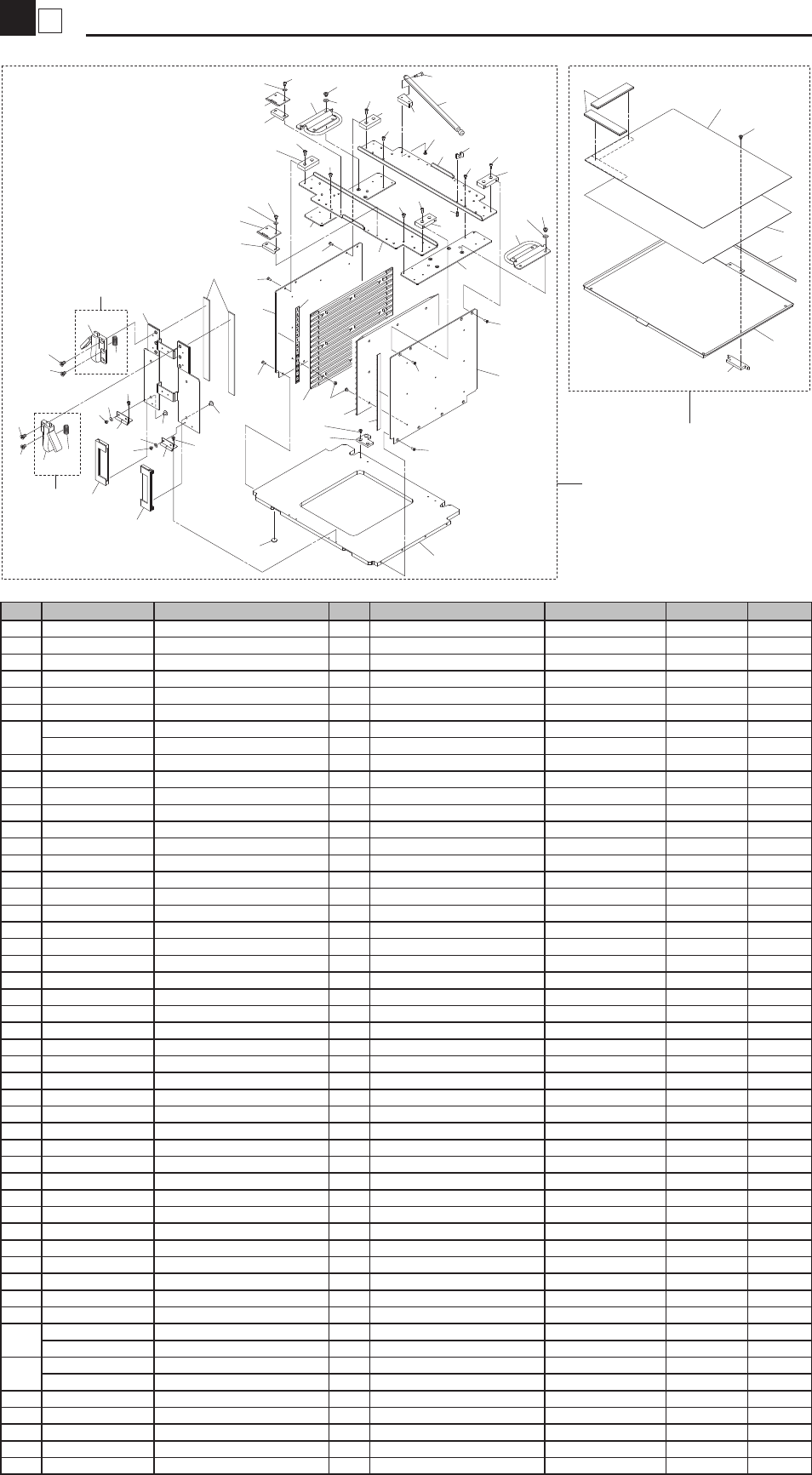

Rack Assy./Pallet Assy. (After Nov. 2006)
Rack/Pallet
KGW-0804
14
15
17
23
29
35
30
31
32
33
34
16
20
39
39
45
21
21
21
21
45
45
18
41
5
13
26
48
25
13
22
22
40
27
41
27
23
23
19
1
4
21
46
42
43
46
46
46
36
2
46
7
7
3
22
6
6
9
8
27
10
11
44
27
10
11
44
12
12
38
37
37
38
24
28
24
28
26
25
40
3
46
39
39
45
47
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGX-M1731-01 PLATE, BOTTOM 1
2 KGX-M1742-00 FRAME, SIDE R 1
3 KGX-M1733-01 CARD GUIDE 2
4 KGX-M1734-00 STOPPER, PALLET 1
5 KGX-M1735-01 DOOR, RACK 1
6 KGX-M1736-00 HINGE ASSY 1
7
KGX-M1737-00 LABEL, PALLET POSI. 1 (1~15)
KGX-M1373-10 LABEL, PALLET POSI. 1 (16~30)
8 KGX-M173A-L0 LATCHE 1
9 KGX-M173A-R0 LATCHE 1
10 KGX-M173B-00 BRKT. LATCHE 2
11 KGX-M173C-00 STOPPER BRKT. 2
12 KGX-M173H-00 HANDLE 2
13 KGX-M173J-00 SPRING 2
14 KGX-M173K-00 BOLT 1
15 KGX-M173L-00 SHAFT 1
16 KGX-M173M-00 SHAFT CLIP 1
17 KGX-M173N-00 BRACKET 1
18 KGX-M173P-01 DOOR, RUBBER 2
19 K93-M1392-00 SPACER (TM-180-303) 4
20 90115-2AJ008 BOLT HEX. SOCKET HEAD 2
21 91312-03005 BOLT HEX. SOCKET HEAD 6
22 98902-03004 SCREW BINDING HEAD 20
23 98902-03006 SCREW BINDING HEAD 6
24 98902-04006 SCREW,BINDING HEAD 8
25 98902-05008 SCREW,BINDING HEAD 4
26 98702-05010 SCREW, FLAT HEAD 2
27 92903-03600 WASHER PLAIN 8
28 92903-04600 WASHER PLAIN 8
29 KGX-M1751-01 PALLET 1
30 KGX-M1752-00 SHEET 1
31 KGX-M1753-00 PLATE MAGNET 1
32 KV4-M1755-00 PLATE 1 1
33 KGX-M1755-00 MAGNET 2
34 K16-90105-00 BOLT: TP-M3X6 2
35 KGX-M1756-00 SEAT 1
36 KGX-M1741-00 FRAME SIDE L 1
37 KGX-M1743-00 FRAME TOP 2
38 KGX-M1744-00 PLATE HANDLE 2
39 KGX-M1745-00 PLATE BLOCK 4
40 KGX-M173T-00 RACK HANDLE 2
41 K16-90101-06 BOLT: TP-M4x6 4
42
KGX-M17B0-04 RACK ASSY 2 S.T.D
KGX-M17B0-A1 RACK ASSY 2 IT O/P
43
KGX-M17B1-01 PALLET ASSY 30 S.T.D
KGX-M17B1-A0 PALLET ASSY 30 IT O/P
44 91312-03006 BOLT HEX. SOCKET HEAD 4
45 91312-03008 BOLT HEX. SOCKET HEAD 16
46 98702-03008 SCREW, FLAT HEAD 16
47 KGX-M173D-L0 LATCHE L ASSY 1
48 KGX-M173D-R0 LATCHE R ASSY 1
1
5
Rack Stage
Magazine
KGW-0807
39
39
42
38
38
11
2
36
43
39
39
23,24
21,22
15,16
39
39
9
43
39
46
45
47
44
9
39
17,18
19,20
5,6
13,14
3,4
43
36
38
26
38
32
25
41
42
43
10
37
36
36
37
11
13,14
38
27
40
29
10
30
35
31
33
34
28
1
13,14
7,8
41
1Stage
L
L
R
R
2Stage
3Stage
4Stage
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGX-M17D1-L0 RACK STAGE L ASSY 2 3,4Stage
2 KGX-M17D1-R0 RACK STAGE R ASSY 2 1,2Stage
3 KGX-M17D2-30 SHUTTER C13 ASSY 1 1,3Stage
4 KGX-M17D2-40 SHUTTER C24 ASSY 1 2,4Stage
5 KGX-M17D3-30 SHUTTER L3 ASSY 1 3Stage
6 KGX-M17D3-40 SHUTTER L4 ASSY 1 4Stage
7 KGX-M17D4-10 SHUTTER R1 ASSY 1 1Stage
8 KGX-M17D4-20 SHUTTER R2 ASSY 1 2Stage
9 KGX-M17D5-00 RACK LOCK ASSY 4 All Stage
10 KGX-M1785-L0 BRACKET,SENSOR L 4 3,4Stage
11 KGX-M1785-R0 BRACKET,SENSOR R 4 1,2Stage
12
13 KGX-M652E-10 SENSOR,PLT1 ORG 1 1Stage R
14 KGX-M652F-10 SENSOR,PLT2 ORG 1 2Stage R
15 KGX-M652G-10 SENSOR,PLT3 ORG 1 3Stage L
16 KGX-M652H-10 SENSOR,PLT4 ORG 1 4Stage L
17 KGX-M652L-10 SENSOR,RACK1 SET 1 1Stage L
18 KGX-M652M-10 SENSOR,RACK2 SET 1 2Stage L
19 KGX-M652K-20 SENSOR,RACK3 SET 1 3Stage R
20 KGX-M652K-10 SENSOR,RACK4 SET 1 4Stage R
21 KGX-M652N-10 SENSOR,R CLAMP1 1 1Stage
22 KGX-M652R-10 SENSOR,R CLAMP2 1 2Stage
23 KGX-M652P-10 SENSOR,R CLAMP3 1 3Stage
24 KGX-M652P-20 SENSRO,R CLAMP4 1 4Stage
25 KGX-M1781-01 PLATE BOTTOM,MAGAZIN 1 All Stage
26 KGX-M1782-00 GUIDE,MAGAGINE 2 All Stage
27 KGX-M1783-00 PIN,LOCATE 2 All Stage
28 KGX-M1784-L0 BLOCK,SENSOR L 1 3,4Stage
29 KGX-M1784-R0 BLOCK,SENSOR R 1 1,2Stage
30 KGX-M1786-01 BASE,SPRING 2 All Stage
31 KGX-M1787-01 LEAF SPRIG 4 All Stage
32
33 KM5-M7169-00 SCREW : M2X2 4 All Stage
34 90990-01J017 BOLT,HEX.SOCKET HEAD 2
35 90947-30JA00 STEEL BALL 1 4
36 90115-02J008 BOLT HEX.SOCKET HEAD 16
37 91312-03005 BOLT HEX.SOCKET HEAD 8 M3X5
38 91312-03006 BOLT HEX.SOCKET HEAD 8 M3X6
39 91312-04006 BOLT HEX.SOCKET HEAD 16 M4X6
40 91312-04010 BOLT HEX.SOCKET HEAD 26 M4X10
41 91312-05012 BOLT HEX.SOCKET HEAD 16 M5X12
42 92902-05200 WASHER PLAIN 16
43 98902-03008 SCREW BINDING HEAD 8
44 KGX-M179E-00 BRACKET, SP. CON. 4
45 $SSU4 SPEED CONTROLLER 16
46 91317-03025 BOLT HEX.SOCKET HEAD 16
47 91317-04008 BOLT HEX.SOCKET HEAD 8
2
5
Shutter+Rack Lock
Magazine
KGW-0509
44
43
6
5
43
42
45
13
50
43
19,20
8
18
39
15
12
15
48
21
16
3
49
9
10
41
43
50
57
46
51
42
14
17
40
47
14
13
43
8
7
10
40
46
58
14
39
15
15
14
12
11
48
3
2
54
30
35
36
52
31
24
26
38
37
22
27
50
25
34
50
32
28
54
52
50
33
29
23
53
44
43
9
47
4
49
41
Rack Lock
Shuter C Shuter L
1Stage
L
(Left)
L
R
(Right)
R
2Stage
3Stage
4Stage
(Center)
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGX-M178A-00X CYLINDER 4
2 KGX-M178B-00X BASE,SHUTTER CENTER 1
3 KGX-M178C-00X SPACER,CYLINDER 1
4 KGX-M178E-00X BLOCK,SHAFT 1
5 KGX-M178G-00X SHAFT,SHUTTER CENTER 1
6 KGX-M178J-00X SHUTTER,C-R 1 for Center
6-1 KGX-M178J-01X SHUTTER,C-R 1 for Center 2005/10/14 MB00025 OK
7 KGX-M178K-00X SHUTTER,C-L 1 for Center
7-1 KGX-M178K-01X SHUTTER,C-L 1 for Center 2005/10/14 MB00025 OK
8 KGX-M178L-00X HOLDER,SHAFT 3
9 KGX-M178M-00X Y LINK 4
10 KGX-M178N-00X SHAFT,LINK 4
11 KGX-M178T-00X SPACER 1,SPC 1
12 KGX-M178U-00X SPACER 2,SPC 4
13 KV4-M1811-00X SIM 2
14 $BF4-M3 JOINT 12
15 $TSCO SPEED CONTROLLER 4
16 KGX-M178D-00X BASE,SHUTTER SIDE 1
17 KGX-M178F-00X BLOCK 2,SHAFT 1
18 KGX-M178H-00X SHAFT 2,SHUTTER 1
19 KGX-M178R-00X SHUTTER L 1 for Left
19-1 KGX-M178R-01X SHUTTER L 1 for Left 2005/10/14 MB00025 OK
20 KGX-M178P-00X SHUTTER,R 1 for Right
20-1 KGX-M178P-01X SHUTTER,R 1 for Right 2005/10/14 MB00025 OK
21 KGX-M178V-00X SPACER 3,SPC 1
22 KGX-M1787-01X LEAF SPRIG 2
23 KGX-M1791-00X BASE,LOCK 1
24 KGX-M1792-00X HOLDER 1,SHAFT 1
25 KGX-M1793-00X SHAFT,LOCK 1
26 KGX-M1794-00X HOLDER 3,SHAFT 1
27 KGX-M1795-01X NAIL,LOCK 1
28 KGX-M1796-00X BRACKET,SENSOR 1
29 KGX-M1797-00X SHAFT,STOPPER 1
30 KGX-M1798-00X WASHER 1
31 KGX-M1799-00X LINER BALL BUSH 1
32 KW6-M717G-00X SENSOR ASSY 1
33 KGX-M179B-00X BUSH 1
34 KGX-M179C-00X LEVER 1
35 KGX-M179D-00X SPG. 1
36 KGT-M9224-00X STOPPER,BUSHING 2
37 KH8-M7158-00X STEEL BALL 1 2
37-1 90947-30JA00 BALL STEEL 4 2007/9/20 MD80070 OK
38 KG7-M7169-00X SCREW 2
38-1 KM5-M7169-00X SCREW 2 M2X2 2005/8/23 MB80083 OK
39 90114-02J015 BOLT HEX.SOCKET HEAD 4 M2X15
40 90115-02J006 BOLT HEX.SOCKET HEAD 4 M2X6
41 90440-01J020 CIRCLIP 4
42 90440-01J040 CIRCLIP 1
43 90933-03J683 BEARING 8
44 91317-03010 BOLT HEX.SOCKET HEAD 2 M3X10
45 91317-04016 BOLT HEX.SOCKET HEAD 2 M4X16
46 92D18-02012 BOLT HEX.SOCKET HEAD 2 M2X12
47 95304-03700 NUT HEXAGON 2
48 98704-04006 SCREW FLAT HEAD 2
49 98707-03006 SCREW FLAT HEAD 4
50 91317-03008 BOLT HEX.SOCKET HEAD 6 M3X8
51 91317-04012 BOLT HEX.SOCKET HEAD 2 M4X12
52 91317-03005 BOLT HEX.SOCKET HEAD 6 M3X5
53 91317-04005 BOLT HEX.SOCKET HEAD 2 M4X5
54 92017-04010 BOLT HEX.SOCKET HEAD 1 M4X10
55 98904-03008 SCREW BINDING HEAD 1
56 92907-03600 WASHER PLAIN 2
57
KGX-M178A-A0X CYLINDER ASSY LAT1R 1 1R OK
KGX-M178A-C0X CYLINDER ASSY LAT2R 1 2R OK
KGX-M178A-F0X CYLINDER ASSY LAT3L 1 3L OK
KGX-M178A-H0X CYLINDER ASSY LAT4L 1 4L OK
58
KGX-M178A-B0X CYLINDER ASSY LAT1L 1 1L 2005/6/7 MB50128 OK
KGX-M178A-D0X CYLINDER ASSY LAT2L 1 2L 2005/6/7 MB50128 OK
KGX-M178A-E0X CYLINDER ASSY LAT3R 1 3R 2005/6/7 MB50128 OK
KGX-M178A-G0X CYLINDER ASSY LAT4R 1 4R 2005/6/7 MB50128 OK
