1 10 System Parts System Parts KGW -1001 1 2 4 5 8 9 3 7 6 No. Part No. Part Name Q'ty Remarks Date Revised No. 1 KW7-M5127-00X SAFETY SWITCH KEY 4 2 KGW -M5126-00X SWITCH SAFETY 4 2-1 KGW -M5126-F0X SAFETY SW LOCK …
1
9
Conveyor
Conveyor
KGW-0509
49
59
64
5
6
47
57
33
46
34
46
7
7
20
41
42
41
9
7
7
44
14
49
OLD
32
53
60
8
38
54
50
50
35
37
36
54
30
3
6
16
5
40
10
40
56
40
4
43
2
22
24
30
49
51
59
55
23
27
24
51
48
31
56
56
59
59
18
62
15
49
26
44
44
41
28
25
25
44
42
13
4
39
19
49
46
57
12
26
1
29
11
21
61
17
45
58
30
2
63
44
44
44
49
4
1
16
3
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGW-M91A1-00X BASE,CONVEYOR 1
1-1 KGW-M91A1-01X BASE,CONVEYOR 1 with Guide (2006/12/18) MCX0070 NG
1-2 KGW-M91A1-02X BASE,CONVEYOR 1 with Helisert (2007/2/28) MD20089 NG
2 KGW-M91A2-00X SIDE BASE,CONV. 1
2-1 KGW-M91A2-01X SIDE BASE,CONV. 1 (2006/1/19) H9339 NG
2-2 KGW-M91A2-02X SIDE BASE,CONV. 1 (2006/12/14) MCX0070 OK
3 KGW-M91A2-10X SIDE BASE,CONV. 1
3-1 KGW-M91A2-11X SIDE BASE,CONV. 1 (2006/1/19) H9339 OK
3-2 KGW-M91A2-12X SIDE BASE,CONV. 1 (2006/12/14) MCX0070 OK
4 KGW-M91A3-00X CONVEYOR FRAME 2
4-1 KGW-M91A3-01X CONVEYOR FRAME 2 (2006/1/18) H9339 NG
5 KGW-M91A4-01X GUIDE A-1 12
6 KGW-M91A5-00X SPACER,GUIDE A 6
7 KGW-M91A6-00X DAMPER 1,W 4
8 KGW-M91A7-00X SPACER 4
9 KGW-M91A8-00X BRACKET,CONV. 2
10 KGW-M91A9-00X GUIDE,BLOCK 4
11 KV5-M9105-00X BALL SCREW 2
12 KGW-M9105-00X PULLEY 1,SPLINE 1
13 KGW-M9108-00X COLLAR CONVEYOR 1
14 KGW-M9111-00X BRKT.,COLLAR 1
15 KV5-M9112-01X CUPPLING CONV. 1
16 KGW-M9116-00X PLATE,BALL SCREW 1
16-1 KGW-M9116-02X PLATE,BALL SCREW 1 (2006/1/19) H9339 NG
16-2 KGW-M9116-03X PLATE,BALL SCREW 1
(2006/12/14) MCX0070 OK
17 KV5-M9117-00X MOTOR BRACKET 1 1
18 KGW-M9118-00X MOTOR BRACKET 2 1
19 KV5-M9119-00X BRACKET,DOG 1
20 KV5-M9120-00X BRACKET SENSOR 1
21 KGW-M9121-00X SPACER 1
22 KV5-M9122-00X BELT SPLINE 1 579-3GT-9
22-1 KGW-M9122-00X BELT SPLINE 1 1014-3GT-9 (2006/1/19) H9339 NG
23 KV5-M9124-00X COUPLING SCREW 1
24 KV5-M9129-00X PULLY MOTOR 2 P22-3GT
24-1 KH2-M9105-11X PULLY MOTOR 2 P30-3GT (2006/1/19) H9339 NG
25 KGW-M9129-00X BELT 1,CONVEYOR 2
26 KGW-M9140-A0X PULLEY CONV.ASSY 12
26-1 KGW-M9140-A1X PULLEY CONV.ASSY 12 (2005/7/4) MB70002 OK
27 90K63-001527 AC SERVO MOTOR 1
28 KGW-M9142-00X PULLEY 1,MOTOR 1
29 KGW-M9143-00X SPLINE 1 1
30 KH2-M9121-00X BEARING 6
31 KGK-M9170-00X DC MOTOR ASSY. 1
32 KV5-M7114-A0X SENSOR,1-1 1
32-1 KV5-M7114-B0X SENSOR(PM-Y44P) 1 (2005/6/7) MB50128 OK
33 KM7-M912A-00X BRACKET SENSOR 1
34 KU0-M655F-10X SENSOR,1-3 1
34-1 KGW-M655F-00X SENSOR,ENT 1 (2006/7/17) MC70033 OK
34-2 KGW-M655F-01X SENSOR,ENT 1 (2017/1/12) MNX0076 OK
35 KGW-M91B1-00X BRKT.,COVER 2
36 KGW-M91B3-00X BRKT.,SWITCH 1
37 KGW-M91B4-00X COVER MAIN 1
38
KGW-M91B5-00X COVER UNDER 1
39 91314-03005 BOLT HEX.SOCKET HEAD 2 M3X5
39-1 91312-03005 BOLT HEX.SOCKET HEAD 2 (2006/1/16) MBY0158 OK
40 91314-03006 BOLT HEX.SOCKET HEAD 22 M3X6
40-1 91312-03006 BOLT HEX.SOCKET HEAD 14 (2006/1/16) MBY0158 OK
41 91314-03008 BOLT HEX.SOCKET HEAD 25 M3X8
41-1 91312-03008 BOLT HEX.SOCKET HEAD 25 (2006/1/16) MBY0158 OK
42 91314-03010 BOLT HEX.SOCKET HEAD 14 M3X10
42-1 91312-03010 BOLT HEX.SOCKET HEAD 14 (2006/1/16) MBY0158 OK
43 91314-04005 BOLT HEX.SOCKET HEAD 12 M4X5
43-1 91312-04005 BOLT HEX.SOCKET HEAD 12 (2006/1/16) MBY0158 OK
44 91314-04006 BOLT HEX.SOCKET HEAD 26 M4X6
44-1 91312-04006 BOLT HEX.SOCKET HEAD 10 (2006/1/16) MBY0158 OK
45 91314-04008 BOLT HEX.SOCKET HEAD 2 M4X8
45-1 91312-04008 BOLT HEX.SOCKET HEAD 18 (2006/1/16) MBY0158 OK
46 91317-03005 BOLT HEX.SOCKET HEAD 5 M3X5
46-1 91312-03005 BOLT HEX.SOCKET HEAD 5 (20076/27) MD60141 OK
47 91317-03006 BOLT HEX.SOCKET HEAD 2 M3X6
47-1 91312-03006 BOLT HEX.SOCKET HEAD 4 (20076/27) MD60141 OK
48 91317-03012 BOLT HEX.SOCKET HEAD 4 M3X12
48-1 91312-03012 BOLT HEX.SOCKET HEAD 4 (20076/27) MD60141 OK
49 91317-04005 BOLT HEX.SOCKET HEAD 22 M4X5
49-1 91312-04005 BOLT HEX.SOCKET HEAD 14 (20076/27) MD60141
OK
50 91317-04006 BOLT HEX.SOCKET HEAD 8 M4X6
50-1 91312-04006 BOLT HEX.SOCKET HEAD 8 (20076/27) MD60141 OK
51 91317-04008 BOLT HEX.SOCKET HEAD 16 M4X8
51-1 91312-04008 BOLT HEX.SOCKET HEAD 8 (20076/27) MD60141 OK
52 91317-04055 BOLT HEX.SOCKET HEAD 4 M4X55
53 91317-08016 BOLT HEX.SOCKET HEAD 8 M8X16
53-1 91312-08016 BOLT HEX.SOCKET HEAD 8 (20076/27) MD60141 OK
54 90990-12J001 SCREW BIN.HEAD W/W 10
55 92A08-04305 SET SCREW M4X5 4
56 92907-03200 WASHER PLAIN 5
57 92907-03600 WASHER PLAIN 4
58 92903-04200 WASHER PLAIN 2
59 92907-04200 WASHER PLAIN 12
60 92907-08200 WASHER PLAIN 8
61 95307-03600 NUT HEXAGON 4
62 95307-04600 NUT HEXAGON 4
63 KGW-M9131-00X SPACER 2 (2006/1/19) H9339
64 KGW-M9132-00X PLATE,TEMSION HOLDER 1 (2006/1/19) H9339
2
9
Conveyor
Conveyor
KGW-1709
24
24
24
15
14
29
1
3
3
9
30
12
10
16
5
2
25
25
6
17
13
7
25
25
11
31
19
32
18
20
33
21
23
24
34
22
2
26
12
4
12
8
22
28
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M9221-00X PLATE,PUSH IN 1
2 KV8-M9222-00X PLATE,BRACKET 2
3 KV8-M9223-00X PLATE,LINK 2
4 KV8-M9224-00X JOINT,CYLINDER 1
5 KV8-M9225-00X SPACER 1 1
6 KV8-M9226-00X SPACER 2 1
7 KV8-M9227-00X BRACKET,CYLINDER 1
8 KV8-M9228-00X PIN 1 1
9 KV8-M9229-00X PIN 2 1
10 KV8-M922A-00X PIN 3 1
11 KGW-M922C-00X BLOCK,BRACKET 1
12 KV8-M922D-00X DRY,MET(80B-0403) 4
13 KV8-M922E-00X CYLINDER NDA10-30 1
14 KU0-M655F-10X SENSOR,1-3 1
14-1 KGW-M655F-10X SENSOR,POS(L=1400) 1 (2006/7/17) MC70033 OK
14-2 KGW-M655F-11X SENSOR,POS 1 (2017/1/12) MNX0076 OK
15 KGW-M922G-00X BRACKET,SENSOR 1
16 90933-03J684 BEARING 4
17 $SC4-M5A SPEED CONTROLLER 2
18 KGW-M9271-00X BRKT.,EXIT STOPPER 1
19 KG7-M912A-00X BRACKET,SENSOR 1
20 KV7-M9282-00X STOPPER,SUB 1
21 KV7-M9283-00X CYL.,YMDA16X35 1
22 KU0-M655F-10X SENSOR,1-3 1
22-1 KGW-M655F-20X SENSOR,EXIT(L=1400) 1 (2006/7/17) MC70033 OK
22-2 KGW-M655F-21X SENSOR,EXIT 1 (2017/1/12) MNX0076 OK
23 $SL4-M5 JOINT 1
24 91317-03006 BOLT HEX.SOCKET HEAD 7 M3X6
25
91317-03008 BOLT HEX.SOCKET HEAD 10 M3X8
26 91317-03025 BOLT HEX.SOCKET HEAD 2 M3X25
27 92907-03600 WASHER PLAIN 4
28 92A08-03303 SET SCREW M3X3 1
29 92A08-03304 SET SCREW 2
30 99009-03600 CIRCLIP : 2
31 91317-03012 BOLT HEX.SOCKET HEAD 2 M3X12
32 91314-04005 BOLT HEX.SOCKET HEAD 2 M4X5
33 91317-04008 BOLT HEX.SOCKET HEAD 2 M4X8
34 92907-03200 WASHER PLAIN 1
1
10
System Parts
System Parts
KGW-1001
1
2
4 5
8 9
3
7
6

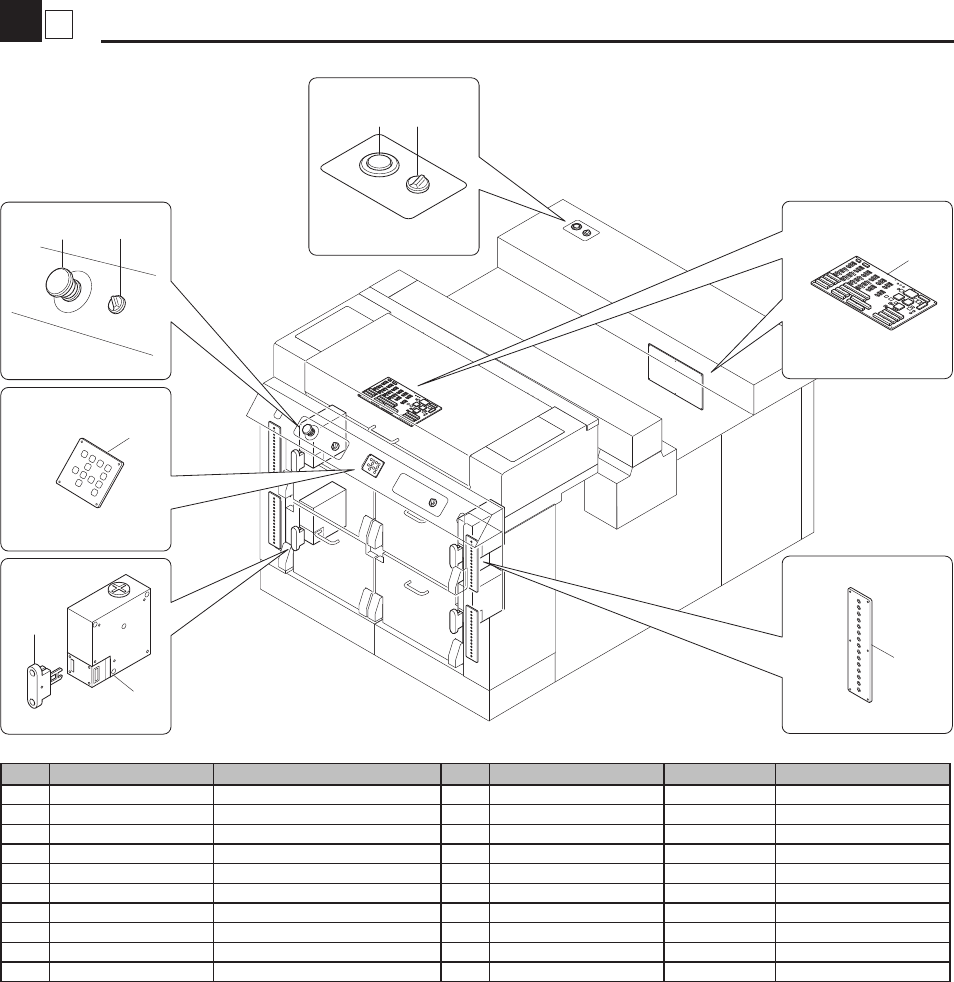

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KW7-M5127-00X SAFETY SWITCH KEY 4
2 KGW-M5126-00X SWITCH SAFETY 4
2-1 KGW-M5126-F0X SAFETY SW LOCK ASSY 4 Compatible with 2 (2009/12/1) MFX0093
3 KGW-M4578-01X IND ICATE BORAO 4
4 KGK-M5138-00X SWITCH, EMG ASSY 1
5 KGB-M3992-00X SWITCH,SELECT 2
6 KGW-M4566-00X TEACHING BOARD ASSY 1
7 KGK-M4590-00X I/O TF BOARD ASSY 2
8 KGW-M3992-10X SWITCH,SELECT 1B 1
9 KGW-M6558-00X SWITCH,PUSH BUTTON 1
