Magazine C o ver Co v e r 2 1 KGW -0509 27 28 35 38 35 42 44 14 37 35 3 1 11 33 33 12 13 5 6 23 45 25 46 2 24 45 4 21 20 35 35 35 47 47 31 30 48 19 26 22 17,16 29 36 43 10 9 32 34 40 16,18 35 7 41 16 39 35 8 N o . Part N…
1
1
Base/Magazine
Base
KGW-0509
37
7
34
34
34
47
45
14
21
46
34
8
36
36
39
39
39
35
35
35
36
36
36
3
3
36
36
37
12
13
15
44
44
16
20
26
27
28
29
30
31
21
43
25
42
41
41
17
18
24
41
41
23
19
2
9
40
40
40
40
40
40
4
4
4
4
9
1
10
6
33
38
35
39
39
11
38
7
11
32
20
5
OLD
OLD
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGX-M1762-L1X ARM BRKT. L 1
2 KGX-M1762-R1X ARM BRKT. R 1
3 KGX-M1763-01X BASE 1 RACK 8
4 KGX-M1764-00X STAY UPPER PLATE 4
5 KGX-M1765-00X UPPER PLATE 2
6 KGX-M1766-00X PLATE SIDE 4
6-1 KGX-M1766-01X PLATE SIDE 4 (2005/11/22) MBX0095 OK
7 KGX-M1767-00X PLATE CENTER 2
7-1 KGX-M1767-01X PLATE CENTER 2 (2005/11/22) MBX0095 OK
8 KGX-M1768-00X STAY CENTER PLATE 2
9 KGX-M1769-00X BRACKET 2
10 KGX-M176A-00X PLATE,MAGNET 2
11 KGX-M176B-00X BRACKET HINGE 4
11-1 KGX-M176B-01X BRACKET HINGE 4 2005/11/18 MB80133 NG
12 KGX-M1761-00X MAGAZIN BASE 1
13 KGW-M1101-00X BASE 1
13-1 KGW-M1101-01X BASE ASSY 1 (2005/9/10) MB90008 OK
14 KGW-M1102-00X BRACKET 4
15 KGW-M1103-00X BRKT. BOARD 1
16 KGW-M1104-00X BRKT. DUCT 2
17 KGW-M1105-L0X BRKT. 1 COVER L 1
18 KGW-M1105-R0X BRKT. 1 COVER R 1
19 KGW-M1106-00X PANEL CONNECTOR A 1
20 KGW-M1106-10X PANEL CONNECTOR B 1
20-1 KGW-M1106-11X PANEL CONNECTOR B 1 (2006/4/19) MC40061 OK
21 KH2-M7101-00X VALVE 1 1
22 K33-M2699-00X CASTER 4
23 K40-M8598-00X PLUG 1 2
24 $KM-10 MUFFLER 1
25 $SL6-01 JOINT 1
26 $UEDW8-6 JOINT 1
27 $UP6 JOINT 2
28 $UP8 JOINT 1
29 KGW-M11C1-00X PLATE E/L 1
30 KGK-M4590-00X I/O TF BOARD ASSY. 1
31 90563-03J100 SPACER 6
32 KV5-M1140-00X LEVEL ADJUSTER 4
33 91317-04005 BOLT HEX.SOCKET HEAD 16 M4X5
33-1 91312-04005 BOLT HEX.SOCKET HEAD 16 (2006/1/16) MBY0158 OK
34 91317-04006 BOLT HEX.SOCKET HEAD 16 M4X6
34-1 91312-04006 BOLT HEX.SOCKET HEAD 16 (2006/1/16) MBY0158 OK
35 91317-04008 BOLT HEX.SOCKET HEAD 8 M4X8
35-1 91312-04008 BOLT HEX.SOCKET HEAD 8 (2006/1/16) MBY0158 OK
36 91317-05006 BOLT HEX.SOCKET HEAD 38 M5X6
36-1 91312-05006 BOLT HEX.SOCKET HEAD 38 (2006/1/16) MBY0158 OK
37 91317-06012 BOLT HEX.SOCKET HEAD 16 M6X12
37-1 91312-06012 BOLT HEX.SOCKET HEAD 16
38 91317-04010 BOLT HEX.SOCKET HEAD 20 M4X10 (2006/1/16) MBY0158 OK
39 92903-04200 WASHER PLAIN 28 M4X200
40 92903-05200 WASHER PLAIN 32
41 90990-12J001 SCREW.BIN.HEAD W/W 20
42 91317-03018 BOLT HEX.SOCKET HEAD 2 M3X18
43 91317-03025 BOLT HEX.SOCKET HEAD 4 M3X25
44 91317-04006 BOLT HEX.SOCKET HEAD 10 M4X6
45 91317-05010 BOLT HEX.SOCKET HEAD 8 M5X10
46 91317-08010 BOLT HEX.SOCKET HEAD 16 M8X10
47 92907-05200 WASHER PLAIN 8

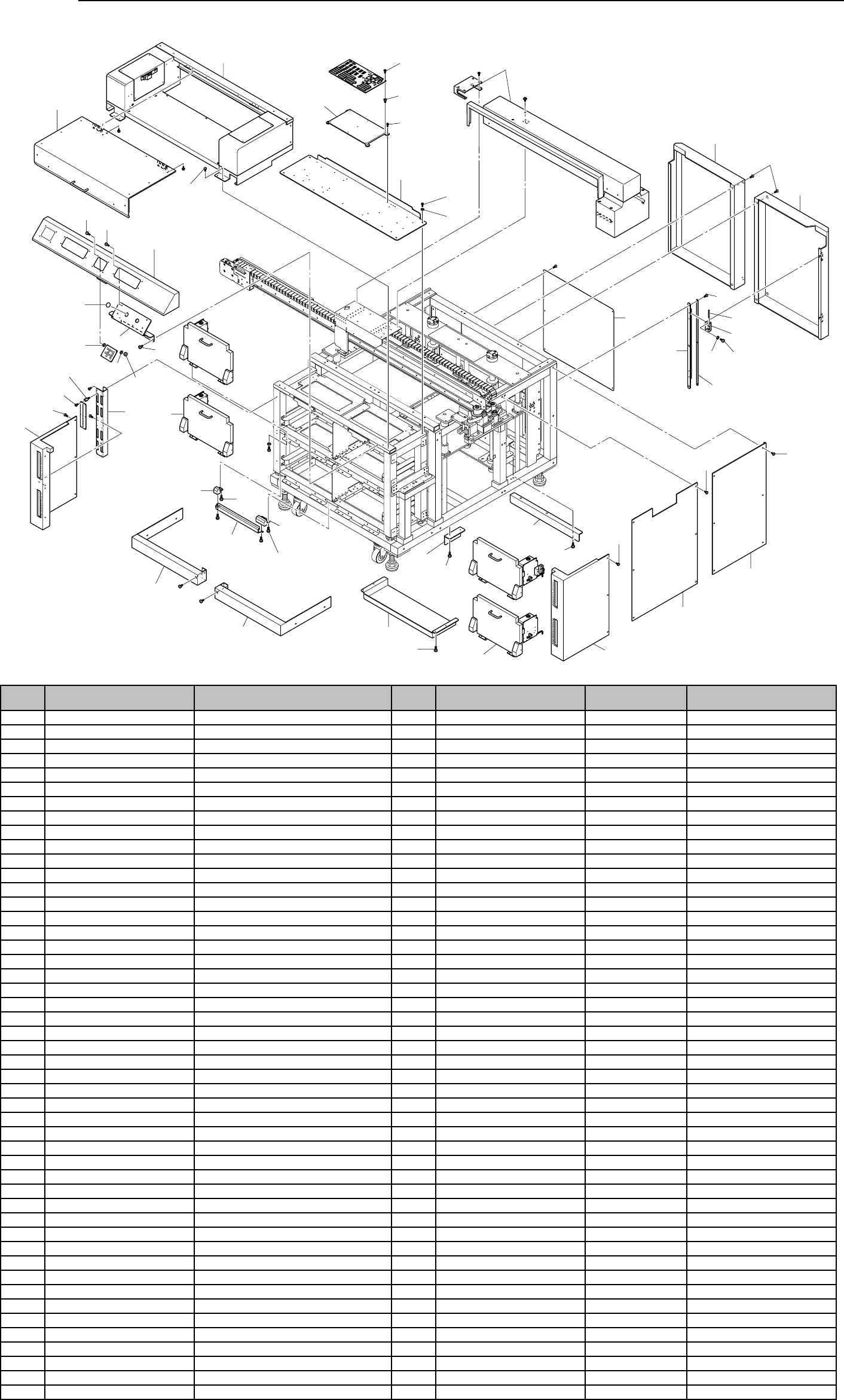

Magazine Cover
Cover
21
KGW-0509
27
28
35
38
35
42
44
14
37
35
3
1
11
33
33
12
13
5
6
23
45
25
46
2
24
45
4
21
20
35
35
35
47
47
31
30
48
19
26
22
17,16
29
36
43
10
9
32
34
40
16,18
35
7
41
16
39
35
8
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KGX-M13A0-00X DOOR-L ASSY. 2
2 KGX-M13B0-00X DOOR-R ASSY. 2
3 KGW-M13C1-L0X COVER IND.,L 1
4 KGW-M13C1-R0X COVER IND.,R 1
5 KGW-M13C2-L1X COVER UNDER L 1
6 KGW-M13C2-R1X COVER UNDER R 1
7 KGW-M13C3-00X COVER,SWITCH 1
8 KGW-M13C4-00X BRKT.,SWITCH 2
9 KGW-M13C5-00X PLATE BOARD 1
10 KGW-M13C6-00X PLATE 1,E/L 1
11 KGX-M1301-00X BLOCK A 4
12 KGX-M1301-10X BLOCK B 2
13 KGX-M1302-00X COVER BOTTOM 2
14 KGX-M1303-01X BRACKET IND 2
15 KV7-M1391-10X PLUG 1
16 KGW-M13A1-00X FRONT DOOR 1
17 KGW-M13A1-R0X FRONT DOOR R 1 R>L
18 KGW-M13A1-L0X FRONT DOOR L 1 L>R
19 KGW-M13A2-00X BRKT.,FRONT DOOR 2
20 KGW-M13A3-00X COVER SIDE 1 2
21 KGW-M13A4-00X COVER SIDE 2 2
22 KGW-M13A5-00X PLATE,BRACKET 2
23 KGW-M13A6-00X PULLEY COVER A 1
24 KGW-M13A7-00X PULLEY COVER B 1
25 KGW-M13A8-00X BRKT.GURAD 4
26 KGW-M13A9-00X COVER E/L BOARD 1
27 KGW-M13E0-00X REAR COVER ASSY 1
28 KGW-M13D0-00X ACRYL COVER ASSY 1
29 KGW-M13F0-00X TRAVERSER COVER ASSY 1
30 KG2-M1372-00X PIECE B HINGE 4
31 K46-M1373-00X SHAFT HINGE 4
32 91314-04005 BOLT HEX.SOCKET HEAD 8 M4X5
33 91314-04010 BOLT HEX.SOCKET HEAD 12 M4X10
34 91317-04006 BOLT HEX.SOCKET HEAD 12 M4X6
35 90990-12J001 SCREW BIN.HEAD W/W 71
36 98904-03005 SCREW BINDING HEAD 10
37 98904-03008 SCREW BINDING HEAD 24
38 98904-03012 SCREW BINDING HEAD 4
39 92990-03400 WASHER EXTL.TOOTHED 4
40 92907-04200 WASHER PLAIN 4
41 92903-03200 WASHER PLAIN 8
42 95304-03600 NUT HEXAGON 4
43 90563-03J050 SPACER BOLT 10
44 90563-03J200 SPACER BOLT 24
45 91314-06008 BOLT,HEX.SOCKET HEAD 7 M6X8
46 91317-04008 BOLT,HEX.SOCKET HEAD 8 M4X8
47 98904-04008 SCREW BINDING HEAD 14
48 92903-04200 WASHER PLAIN 8

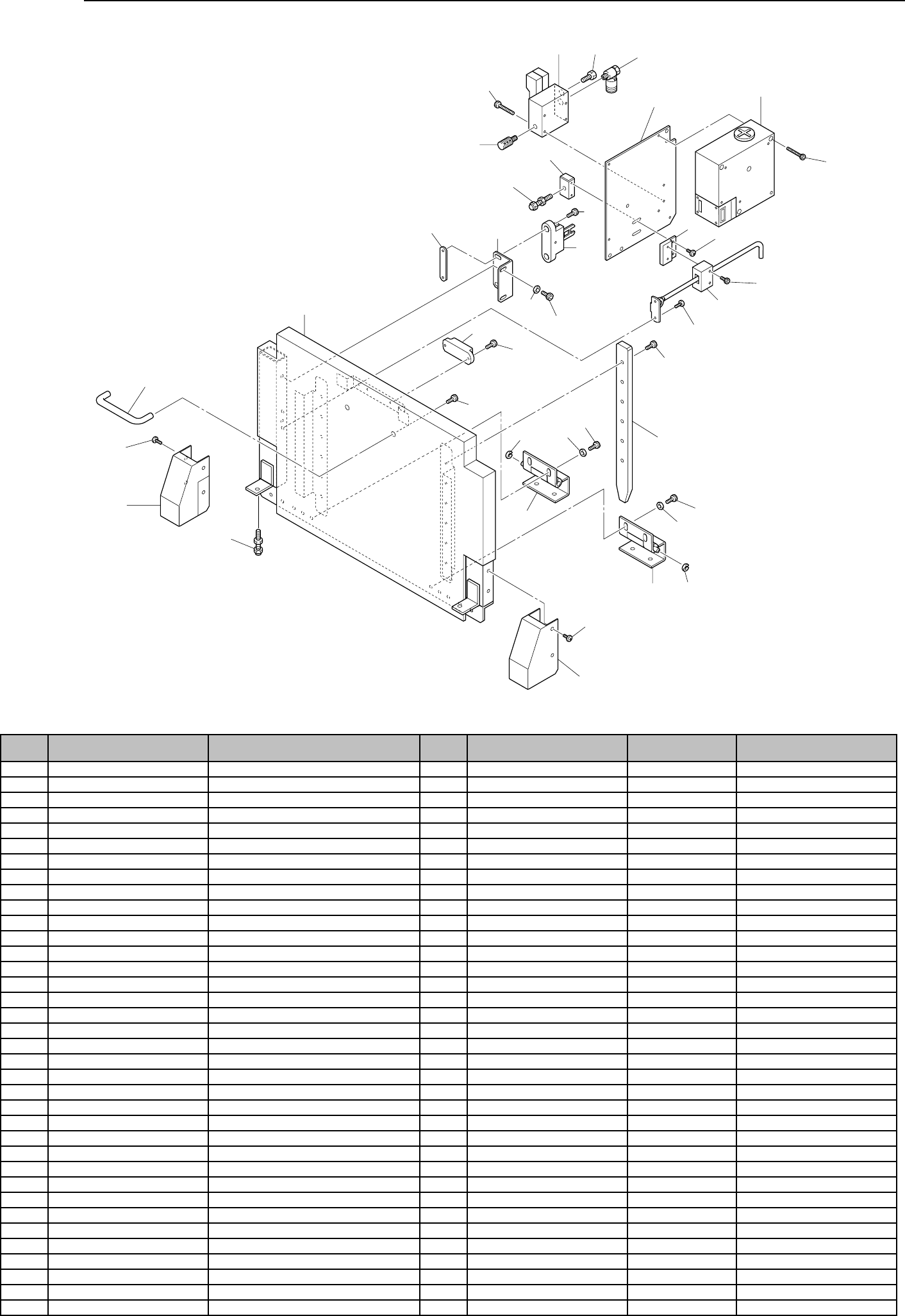

Door
Cover
22
KGW-0509
18
30
36
2016
27
8
10
28
26
13,14
33
23
32
25
24
26
21
11
17
29
9
6
7
1,2
15
19
3
34
34
12
12
4
19
5
9
31
22
35
31
22
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KGX-M13A1-01X COVER 1,DOOR-L 1 for Left
2 KGX-M13B1-01X COVER 2,DOOR-R 1 for Right
3 KGX-M13A2-L0X COVER 2,DOOR-L 1
4 KGX-M13A2-R0X COVER 2,DOOR-R 1
5 KGX-M13A3-00X GUIDE RACK DOOR 2
6 KGX-M13A4-00X BRACKET KEY 1
7 KGX-M13A5-00X NUT PLATE 1
8 KGX-M13A6-00X BRACKET SAFETY 1
9 KGX-M13A7-00X STOPPER BOLT 3
10 KGX-M13A8-00X BRACKET STAY 1
11 KGX-M13A9-00X NUT BLOCK 1
12 KGF-M1313-00X CHANNEL HINGE 1
13 KGF-M1316-00X STAY L 1 for Left
14 KGF-M1316-10X STAY R 1 for Right
15 KGF-M1335-00X PULL 1
16 KH2-M7101-00X VALVE 1 1
17 KW7-M5127-00X SAFETY SWITCH KEY 4
18 KGW-M5126-00X SWITCH SAFETY 1
19 K16-90105-00X THIN HEAD 4
20 K40-M8598-00X PLUG 1 2
21 K44-M1354-00X MG. CATCH 1
22 91314-04006 BOLT HEX.SOCKET HEAD 4 M4X6
23 91314-04010 BOLT HEX.SOCKET HEAD 12 M4X10
24 91314-05010 BOLT HEX.SOCKET HEAD 2 M5X10
25 91317-03006 BOLT HEX.SOCKET HEAD 2 M3X6
26 91317-03010 BOLT HEX.SOCKET HEAD 4 M3X10
27 91317-03025 BOLT HEX.SOCKET HEAD 2 M3X25
28 91317-04005 BOLT HEX.SOCKET HEAD 4 M4X5
29 91317-04008 BOLT HEX.SOCKET HEAD 2 M4X8
30 91317-04030 BOLT HEX.SOCKET HEAD 3 M4X30
31 92903-04200 WASHER PLAIN 4
32 92907-03200 WASHER PLAIN 2
33 98704-03006 SCREW FLAT HEAD 4
34 99001-04600 CIRCLIP : 2
35 $KM-10 MUFFLER 1
36 $SL6-01 JOINT 1
