P-0310-004(2_2) - 第124页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 1 104-004 Fig. L1 5 21 1AE156 COVER 1 1 1092100039-005 6 0921F00P T APE_GUIDE 1 1 1092100039-006 7 0921F00N T APE_GUIDE 1 1 1092100039-007 8 0921F00L COVER 1 1 1092100039-…

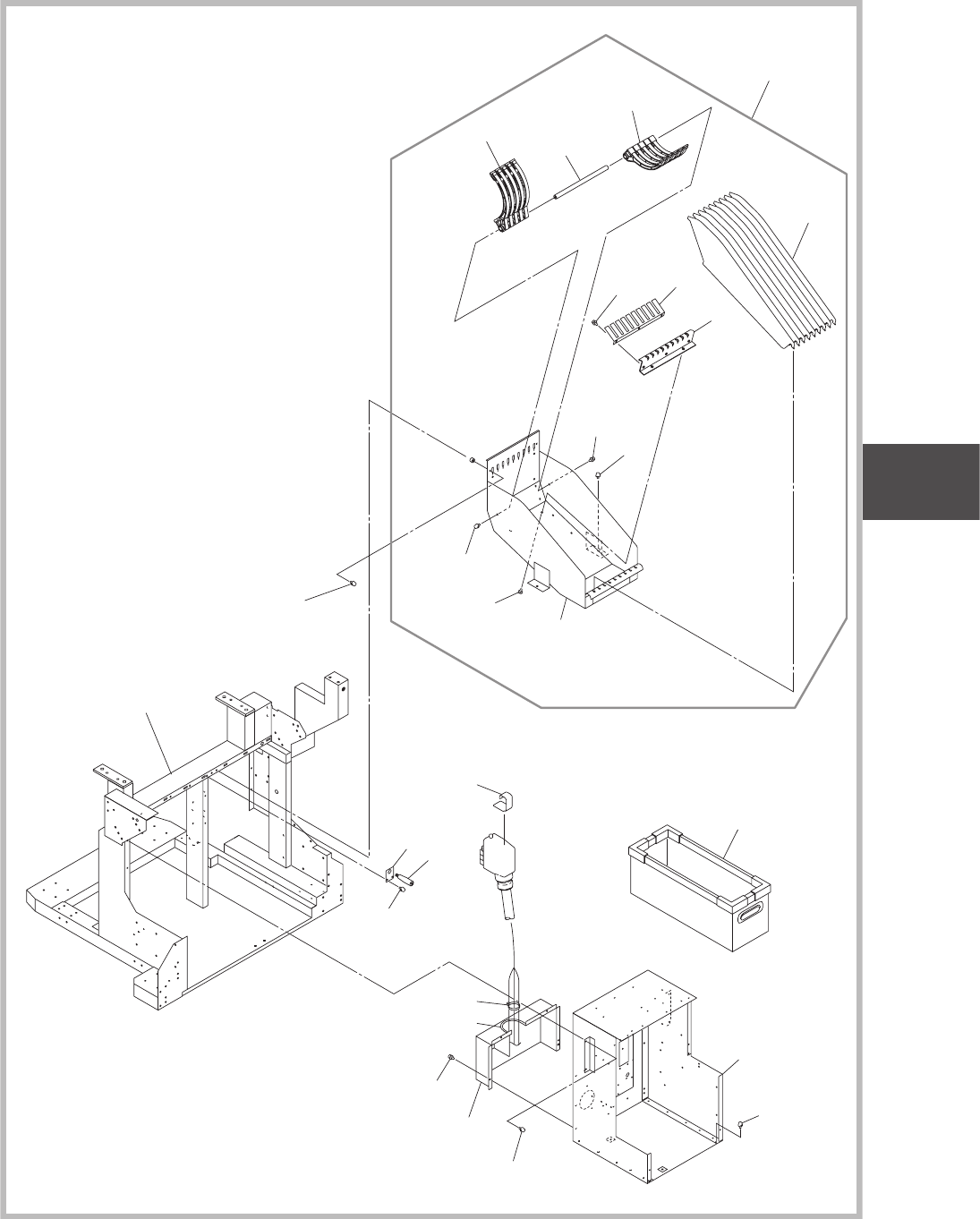

Fig. L1
1104-004
Fig. L1-1
20
14
15
16
71
71
65
62
61
68
69
70
14
15
16
66
21
68
69
70
52
63
64
63
18
15
14
55
51
54
22
53
See Fig. L1-2
Key No.101
See Fig. L1-10
Key No.921
40
11
0921004C
UNIT-11
Fig. L1
TRAVERSE J
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
1104-004
Fig. L1
5 211AE156 COVER 1 1 1092100039-005
6 0921F00P TAPE_GUIDE 1 1 1092100039-006
7 0921F00N TAPE_GUIDE 1 1 1092100039-007
8 0921F00L COVER 1 1 1092100039-008
9 0921F00D COVER 1 1 1092100039-009
10 0921F00E COVER 1 1 1092100039-010
11 0921F00Q BOX 1 1 1092100039-011
12 221AA016 ROHS_HEX-SCT 6 6 M4L8 1092100039-012
14 221AA017 ROHS_HEX-SCT 10 10 M4L10 1092100039-014
15 221HA004 WASHER 16 16 SW4 1092100039-015
16 221HA104 WASHER 14 14 FW4 1092100039-016
18 221HA302 ROHS_WASHER 2 2 SW4 1092100039-018
19 221DA207 MACHINE_SCREW 18 18 TRS M4L6 1092100039-019
20 221DA062 MACHINE_SCREW 4 4 PAN M4L8 SW+FW
1092100039-020
21 0921D00J BRACKET 1 1 1092100039-021
22 09210021 ASSY_TJ-HAIKAN 1 1 1092100039-022
31 211K3703 SUPPORT 1 1 1092100039-031
32 211K3704 SUPPORT 1 1 1092100039-032
33 211DE956 PLATE 2 2 1092100039-033
34 221AA029 ROHS_HEX-SCT 8 8 M5L10 1092100039-034
35 221AA057 ROHS_HEX-SCT 4 4 M8L25 1092100039-035
36 221HA005 WASHER 8 8 SW5 1092100039-036
37 221HA105 WASHER 8 8 FW5 1092100039-037
38 221HA007 WASHER 4 4 SW8 1092100039-038
39 221HA103 WASHER 4 4 FW3 1092100039-039
40 221DA063 MACHINE_SCREW 2 2 PAN M4L12 SW+FW
1092100039-040
41 221AA041 ROHS_HEX-SCT 4 4 M6L10 1092100039-041
42 0920E112 CUTTER_BLOCK_L 1 1 1092100039-042
43 0920E113 CUTTER_BLOCK_R 1 1 1092100039-043
44 0920E111 SPRING_CATCHES 2 2 1092100039-044
46 221DA107 MACHINE_SCREW 4 4 FLT M3L8 1092100039-046
47 0921D00G KOTEI_KANAGU_1 1 1 1092100039-047
48 0921D00H KOTEI_KANAGU_2 1 1 1092100039-048
51 0921D00D COVER 1 1 1092100039-101
52 221DA207 MACHINE_SCREW 4 4 TRS M4L6 1092100039-102
53 0921E204 ACCESS_WIRING 1 1 1092100039-103
54 0920E302 ACCESS_WIRING 15 15 1092100039-104
55 0920E10P BRACKET 1 1 1092100039-105
56 226J0373 MOUNTING_BASE 5 5 1092100039-106
57 23N30632 WIRING 3 3 1092100039-107
58 221DA208 MACHINE_SCREW 3 3 TRS M4L8 1092100039-108
61 0921D00W BOX 1 1 109210004C-001
62 211DE982 PLATE 9 9 109210004C-002
Fig. L1-1
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-11
Fig. L1
TRAVERSE J
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
63 0920E20K LEVER_1 10 10 109210004C-003
64 213A1631 SHAFT 1 1 109210004C-004
65 212A2762 GUIDE 1 1 109210004C-005
66 211DE555 PLATE 1 1 109210004C-006
68 221AA028 ROHS_HEX-SCT 5 5 M5L8 109210004C-008
69 221HA005 WASHER 5 5 SW5 109210004C-009
70 221HA105 WASHER 5 5 FW5 109210004C-010
71 221DA213 MACHINE_SCREW 2 2 TRS M5L10 109210004C-011
Fig. L1
1104-004
Fig. L1-1
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-11
Fig. L1
TRAVERSE J
