P-0310-004(2_2) - 第137页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 355 221K1004 RING C 8 4 4 109210004U-055 356 221AA007 ROHS_HEX-SCT 35 35 M3L10 109210004U-056 357 221AA017 ROHS_HEX-SCT 14 14 M4L10 109210004U-057 358 221AA016 ROHS_HEX-SC…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. L1-4
1104-004
Fig. L1
303 09211603 ASSY_JE1_SEN 1 1 109210004U-003
304 09211604 ASSY_JE2_SEN 1 1 109210004U-004
305 09211609 ASSY_JE7_SEN 1 1 109210004U-005
306 0921160A ASSY_JE8_SEN 1 1 109210004U-006
307 0921160B ASSY_JE9_SEN 1 1 109210004U-007
308 0921160H ASSY_JE15_SEN 1 1 109210004U-008
309 0921160J ASSY_JE16_SEN 1 1 109210004U-009
310 09211605 ASSY_JE3_SEN 1 1 109210004U-010
311 09211606 ASSY_JE4_SEN 1 1 109210004U-011
315 211DE493 PLATE 2 2 109210004U-015
316 212A2166 GUIDE 2 2 109210004U-016
317 211F9304 BRACKET 4 4 109210004U-017
318 0921B10B SHAFT 2 2 109210004U-018
319 0921B006 BRACKET 4 4 109210004U-019
320 212B2315 CHUTE 1 1 109210004U-020
321 212B2316 CHUTE 1 1 109210004U-021
322 0921B108 PLATE 1 1 109210004U-022
323 0921B10C PLATE 1 1 109210004U-023
325 211AE127 COVER 2 2 109210004U-025
326 0921B600 BRACKET 1 1 109210004U-026
327 0921B601 BRACKET 1 1 109210004U-027
330 0921B002 BRACKET 1 1 109210004U-030
331 0921B003 BRACKET 1 1 109210004U-031
332 211G6443 BLOCK 1 1 109210004U-032
333 211G6444 BLOCK 1 1 109210004U-033
334 216E1452 PIN_LOCATE 2 2 109210004U-034
335 23G00183 SENSORPELEC 4 4 109210004U-035
336 0921B106 PULLY_TIMING 2 2 109210004U-036
337 222D0050 BEARINGRADIAL 4 4 109210004U-037
338 0921B101 GUIDELINIEAR 1 1 109210004U-038
339 223L0397 BELT_TIMING 1 1 109210004U-039
340 211G5359 BLOCK 2 2 109210004U-040
341 211DB811 PLATE 11 11 109210004U-041
343 0920E10S FEEDER_GUIDE_R 1 1 109210004U-043
344 0920E10R FEEDER_GUIDE_L 1 1 109210004U-044
345 0921B304 COVER 1 1 109210004U-045
346 0921B807 ROD 1 1 109210004U-046
347 0921B808 ROD 1 1 109210004U-047
348 0921B809 BRACKET 2 2 109210004U-048
349 0921E20E SENSOR_PELEC 1 1 109210004U-049
350 23G10029 SENSOR_PHOTO 1 1 109210004U-050
351 23G00157 SENSORPELEC 1 1 109210004U-051
352 23G00207 SENSORPELEC 2 2 109210004U-052
353 0921B300 SENSOR_PELEC 2 2 109210004U-053
354 0921B20A BOLT 2 2 109210004U-054
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-11
Fig. L1
TRAVERSE J
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
355 221K1004 RING C 8 4 4 109210004U-055
356 221AA007 ROHS_HEX-SCT 35 35 M3L10 109210004U-056
357 221AA017 ROHS_HEX-SCT 14 14 M4L10 109210004U-057
358 221AA016 ROHS_HEX-SCT 22 22 M4L8 109210004U-058
359 221AA018 ROHS_HEX-SCT 8 8 M4L12 109210004U-059
360 221AA028 ROHS_HEX-SCT 16 16 M5L8 109210004U-060
361 221AA031 ROHS_HEX-SCT 42 42 M5L16 109210004U-061
362 221AA032 ROHS_HEX-SCT 10 10 M5L20 109210004U-062
363 221AA034 ROHS_HEX-SCT 4 4 M5L30 109210004U-063
364 221FA001 NUT_HEX 2 2 M2 109210004U-064
365 221DA102 MACHINE_SCREW 8 8 FLT M2L6 109210004U-065
366 221DA114 MACHINE_SCREW 8 8 FLT M4L8 109210004U-066
367 221DA002 MACHINE_SCREW 2 2 PAN M2L6 109210004U-067
368 221AA090 ROHS_HEX-SCT 4 4 M3L6 SW+FWS 109210004U-068
369 221DA011 MACHINE_SCREW 4 4 PAN M3L8 109210004U-069
370 221DB003 MACHINE_SCREW 16 16 109210004U-070
371 221DA002 MACHINE_SCREW 2 2 PAN M2L6 109210004U-071
372 221DA207 MACHINE_SCREW 1 1 TRS M4L6 109210004U-072
373 221CA026 SET_SCREW 4 4 SET M3L3 109210004U-073
374 221HA101 WASHER 4 4 FW2 109210004U-074
375 221HA103 WASHER 14 14 FW3 109210004U-075
376 221HA104 WASHER 14 14 FW4 109210004U-076
377 221HA105 WASHER 68 68 FW5 109210004U-077
378 221HA001 WASHER 4 4 SW2 109210004U-078
379 221HA003 WASHER 18 18 SW3 109210004U-079
380 221HA004 WASHER 14 14 SW4 109210004U-080
381 221HA005 WASHER 68 68 SW5 109210004U-081
382 221AA006 ROHS_HEX-SCT 4 4 M3L8 109210004U-082
383 221HA203 WASHER 4 4 FWS3 109210004U-083
384 0921B005 COVER 2 2 109210004U-084
391 0921160N ASSY_SENSOR 1 1 109210004U-091
392 0921B007 BRACKET 4 4 109210004U-092
393 0921B008 BRACKET 2 2 109210004U-093
394 0921B009 BRACKET 2 2 109210004U-094
395 221AA005 ROHS_HEX-SCT 8 8 M3L6 109210004U-095
Fig. L1
1104-004
Fig. L1-4
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-11
Fig. L1
TRAVERSE J

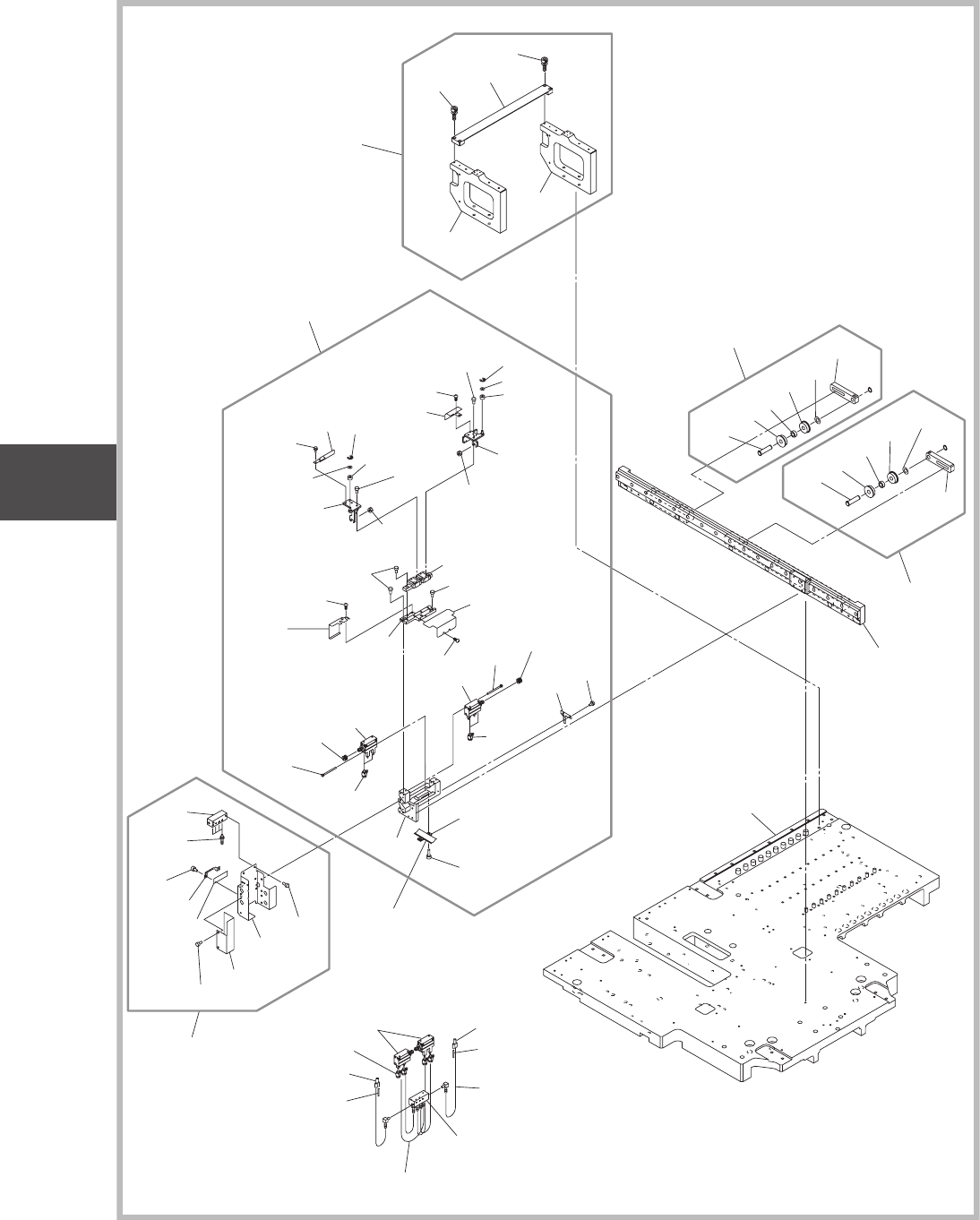

Fig. L1-5
パレットチャック
Pallet Chuck
1104-004
419
419
405
420
423
415
422
423
439
440
441
442
440
441
442
417
422
423
417
406
404
409
461
465
462
465
463
451
455
452
455
453
464
454
435
410
4 1 1
4 1 1
401
410
401
431
432
433
437
414
414
422
422
425
425
412
412
403
407
402
426
427
413
415
415
419
420
415
420
415
434
See Fig. L1-4
Key No.338
See Fig. L1-4
Key No.339
See Fig. L1-3
Key No.208
421
424
418
4 1 1
472
473
473
475
472
476
436
410
482
481
481
483
483
408
416
0921000R
0921000S
0921004R
0921000Q
0921000T
Fig. L1
トラバースカート部
(JEDEC)
TRAVERSE CART SECTION(JEDEC)
UNIT-11
Fig. L1
TRAVERSE J
