P-0310-004(2_2) - 第232页

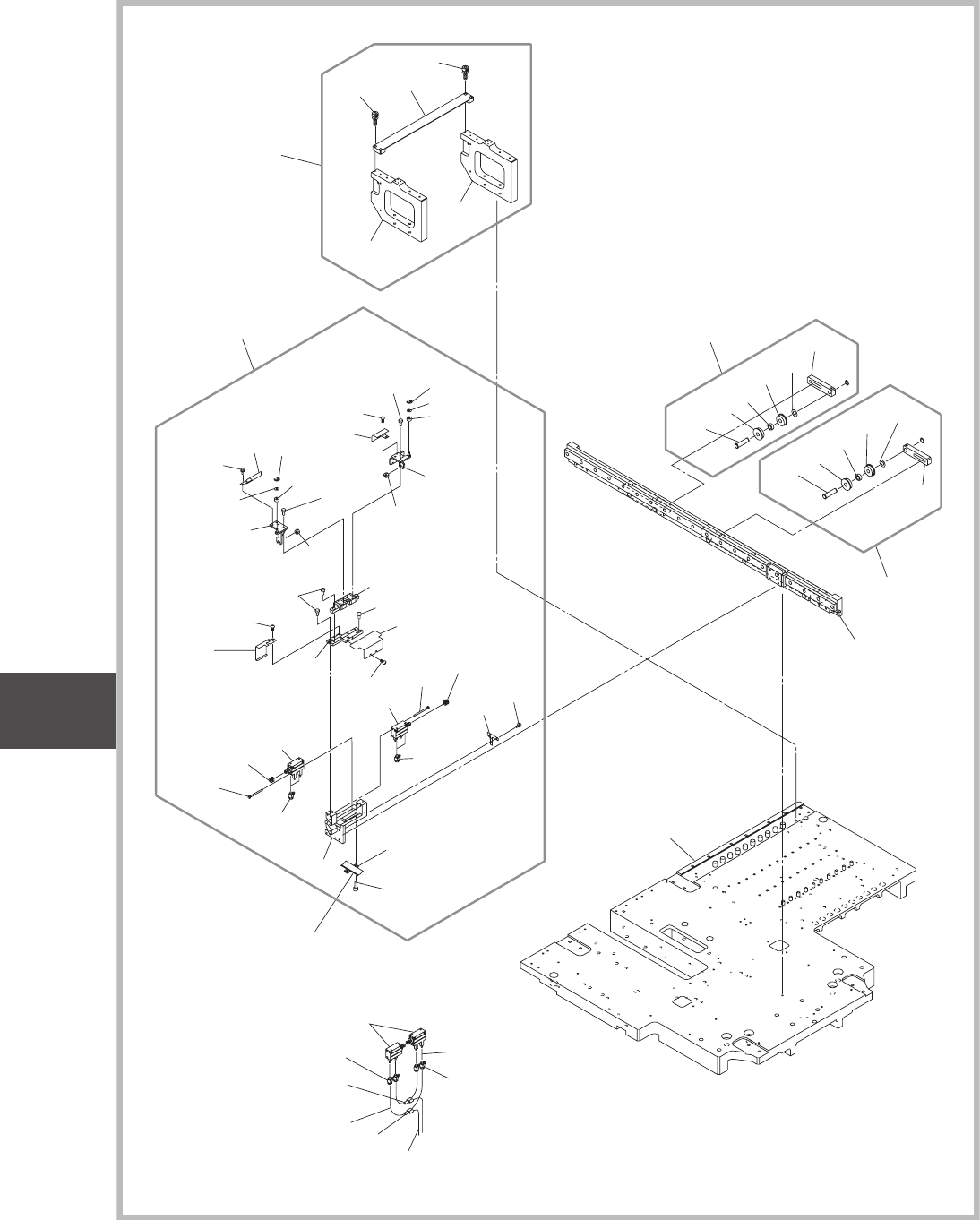

Fig. N1-5 パレットチャック Pallet Chuck 1 104-002 419 419 405 420 423 415 422 423 417 422 423 417 406 404 409 451 455 452 455 453 441 445 442 445 443 454 444 410 41 1 41 1 401 410 401 414 414 422 422 425 425 412 412 403 407 402 …
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
354 0921B20A BOLT 4 1092100110-054
355 221K1004 RING C 8 4 1092100110-055
356 221AA007 ROHS_HEX-SCT 35 M3L10 1092100110-056
357 221AA017 ROHS_HEX-SCT 14 M4L10 1092100110-057
358 221AA016 ROHS_HEX-SCT 24 M4L8 1092100110-058
359 221AA018 ROHS_HEX-SCT 10 M4L12 1092100110-059
360 221AA028 ROHS_HEX-SCT 16 M5L8 1092100110-060
361 221AA031 ROHS_HEX-SCT 42 M5L16 1092100110-061
362 221AA032 ROHS_HEX-SCT 10 M5L20 1092100110-062
363 221AA034 ROHS_HEX-SCT 4 M5L30 1092100110-063
364 221FA001 NUT_HEX 2 M2 1092100110-064
365 221DA102 MACHINE_SCREW 8 FLT M2L6 1092100110-065
366 221DA114 MACHINE_SCREW 8 FLT M4L8 1092100110-066
367 221AA002 MACHINE_SCREW 2 PAN M2L6 1092100110-067
368 221DA090 ROHS_HEX-SCT 4 M3L6 SW+FWS 1092100110-068
369 221AA011 MACHINE_SCREW 4 PAN M3L8 1092100110-069
370 221DB003 MACHINE_SCREW 16 1092100110-070
371 221DA002 MACHINE_SCREW 2 PAN M2L6 1092100110-071
372 221DA207 MACHINE_SCREW 1 TRS M4L6 1092100110-072
373 221CA026 SET_SCREW 4 SET M3L3 1092100110-073
374 221HA101 WASHER 4 FW2 1092100110-074
375 221HA103 WASHER 14 FW3 1092100110-075
376 221HA104 WASHER 14 FW4 1092100110-076
377 221HA105 WASHER 68 FW5 1092100110-077
378 221HA001 WASHER 4 SW2 1092100110-078
379 221HA003 WASHER 18 SW3 1092100110-079
380 221HA004 WASHER 14 SW4 1092100110-080
381 221HA005 WASHER 68 SW5 1092100110-081
382 221AA006 WASHER 4 M3L8 1092100110-082
383 221HA203 WASHER 4 FWS3 1092100110-083
384 0921B005 COVER 2 1092100110-084
391 0921160N ASSY_SENSOR 1 1092100110-091
392 0921B007 BRACKET 4 1092100110-092
393 0921B008 BRACKET 2 1092100110-093
394 0921B009 BRACKET 2 1092100110-094
395 221AA005 ROHS_HEX-SCT 8 M3L6 1092100110-095
Fig. N1
1104-002
Fig. N1-4
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-13
Fig. N1
TRAVERSE F
Fig. N1-5
パレットチャック
Pallet Chuck
1104-002
419
419
405
420
423
415
422
423
417
422
423
417
406
404
409
451
455
452
455
453
441
445
442
445
443
454
444
410
411
411
401
410
401
414
414
422
422
425
425
412
412
403
407
402
431
432
413
415
415
419
420
415
420
415
See Fig. N1-4
Key No.338
See Fig. N1-4
Key No.339
See Fig. N1-3
Key No.208
421
424
418
484
484
486
483
488
483
487
410
462
461
461
463
463
408
416
0921000R
0921000S
0921004R
0921000T
UNIT-13
Fig. N1
TRAVERSE F
Fig. N1
トラバースカート部
(FULL)
TRAVERSE CART SECTION(FULL)
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
401 213A1070 SHAFT 2 209210004R-001
402 0921B20N LEVER 1 209210004R-002
403 0921B20P LEVER 1 209210004R-003
404 0921B20M BLOCK 1 209210004R-004
405 0921B20L BRACKET 1 209210004R-005
406 0921B207 PLATE 1 209210004R-006
407 0921B805 PLATE 1 209210004R-007
408 0921B20H PLATE 1 209210004R-008
409 0921B205 PLATE 1 209210004R-009
410 224C0550 CYLINDER 2 209210004R-010
411 225F0240 PIPEFITTINGS 4 209210004R-011
412 222D0136 BEARINGRADIAL 2 209210004R-012
413 222L0976 GUIDE_LINEAR 1 209210004R-013
414 221KA002 ROHS_RING 2 E RING 2 209210004R-014
415 221AA005 ROHS_HEX-SCT 14 M3L6 209210004R-015
416 221EA131 BU_HEX-SCT 2 BUTTAN M3L6 209210004R-016
417 221AA341 ROHS_HEX-SCT 4 M3L40 209210004R-017
418 221AA017 ROHS_HEX-SCT 2 M4L10 209210004R-018
419 221DA202 MACHINE_SCREW 2 TRS M3L4 209210004R-019
420 221HA103 WASHER 6 FW3 209210004R-020
421 221HA204 WASHER 2 FWS4 209210004R-021
422 221HA203 WASHER 8 FWS3 209210004R-022
423 221HA003 WASHER 8 SW3 209210004R-023
424 221HA004 WASHER 2 SW4 209210004R-024
425 221FA007 NUT_HEX 2 M4 209210004R-025
431 0921B20J COVER 1 209210004R-031
432 0921B20K COVER 1 209210004R-032
441 211DE855 PLATE 1 309210000R-001
442 216A1652 COLLAR 1 309210000R-002
443 0921B100 BEARING_PIN 1 309210000R-003
444 211FF014 BLOC 1 309210000R-004
445 222D0343 BEARINGRADIAL 2 309210000R-005
451 211DE855 PLATE 1 309210000S-001
452 216A1652 COLLAR 1 309210000S-002
453 0921B100 BEARING_PIN 1 309210000S-003
454 211FF014 BLOC 1 309210000S-004
455 222D0343 BEARINGRADIAL 2 309210000S-005
461 0921B30A BRACKET 2 209210000T-001
462 211DF007 PLATE 1 209210000T-002
463 221AA007 ROHS_HEX-SCT 4 M3L10 209210000T-003
483 225B0367 AIR_LINE_EQPT 2 3092100107-003
484 225F0685 PIPE FITTINGS 4 3092100107-004
486 0921D300 TUBE 1 3092100107-006
487 0921D301 TUBE 1 3092100107-007
488 0921D302 TUBE 1 3092100107-008
