P-0310-004(2_2) - 第234页

Fig. N1-6 ロアベース Lower Base 1 104-002 527 523 518 536 535 534 520 537 537 531 530 508 532 533 542 528 524 519 541 543 544 545 546 547 515 522 526 529 513 521 525 517 526 510 514 51 1 514 51 1 514 509 514 514 522 526 516 5…

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

401 213A1070 SHAFT 2 209210004R-001

402 0921B20N LEVER 1 209210004R-002

403 0921B20P LEVER 1 209210004R-003

404 0921B20M BLOCK 1 209210004R-004

405 0921B20L BRACKET 1 209210004R-005

406 0921B207 PLATE 1 209210004R-006

407 0921B805 PLATE 1 209210004R-007

408 0921B20H PLATE 1 209210004R-008

409 0921B205 PLATE 1 209210004R-009

410 224C0550 CYLINDER 2 209210004R-010

411 225F0240 PIPEFITTINGS 4 209210004R-011

412 222D0136 BEARINGRADIAL 2 209210004R-012

413 222L0976 GUIDE_LINEAR 1 209210004R-013

414 221KA002 ROHS_RING 2 E RING 2 209210004R-014

415 221AA005 ROHS_HEX-SCT 14 M3L6 209210004R-015

416 221EA131 BU_HEX-SCT 2 BUTTAN M3L6 209210004R-016

417 221AA341 ROHS_HEX-SCT 4 M3L40 209210004R-017

418 221AA017 ROHS_HEX-SCT 2 M4L10 209210004R-018

419 221DA202 MACHINE_SCREW 2 TRS M3L4 209210004R-019

420 221HA103 WASHER 6 FW3 209210004R-020

421 221HA204 WASHER 2 FWS4 209210004R-021

422 221HA203 WASHER 8 FWS3 209210004R-022

423 221HA003 WASHER 8 SW3 209210004R-023

424 221HA004 WASHER 2 SW4 209210004R-024

425 221FA007 NUT_HEX 2 M4 209210004R-025

431 0921B20J COVER 1 209210004R-031

432 0921B20K COVER 1 209210004R-032

441 211DE855 PLATE 1 309210000R-001

442 216A1652 COLLAR 1 309210000R-002

443 0921B100 BEARING_PIN 1 309210000R-003

444 211FF014 BLOC 1 309210000R-004

445 222D0343 BEARINGRADIAL 2 309210000R-005

451 211DE855 PLATE 1 309210000S-001

452 216A1652 COLLAR 1 309210000S-002

453 0921B100 BEARING_PIN 1 309210000S-003

454 211FF014 BLOC 1 309210000S-004

455 222D0343 BEARINGRADIAL 2 309210000S-005

461 0921B30A BRACKET 2 209210000T-001

462 211DF007 PLATE 1 209210000T-002

463 221AA007 ROHS_HEX-SCT 4 M3L10 209210000T-003

483 225B0367 AIR_LINE_EQPT 2 3092100107-003

484 225F0685 PIPE FITTINGS 4 3092100107-004

486 0921D300 TUBE 1 3092100107-006

487 0921D301 TUBE 1 3092100107-007

488 0921D302 TUBE 1 3092100107-008

Fig. N1

1104-002

Fig. N1-5

SIGMA-G5SA

SIGMA-G5SB

SIGMA-G5SC

SIGMA-G5SD

UNIT-13

Fig. N1

TRAVERSE F

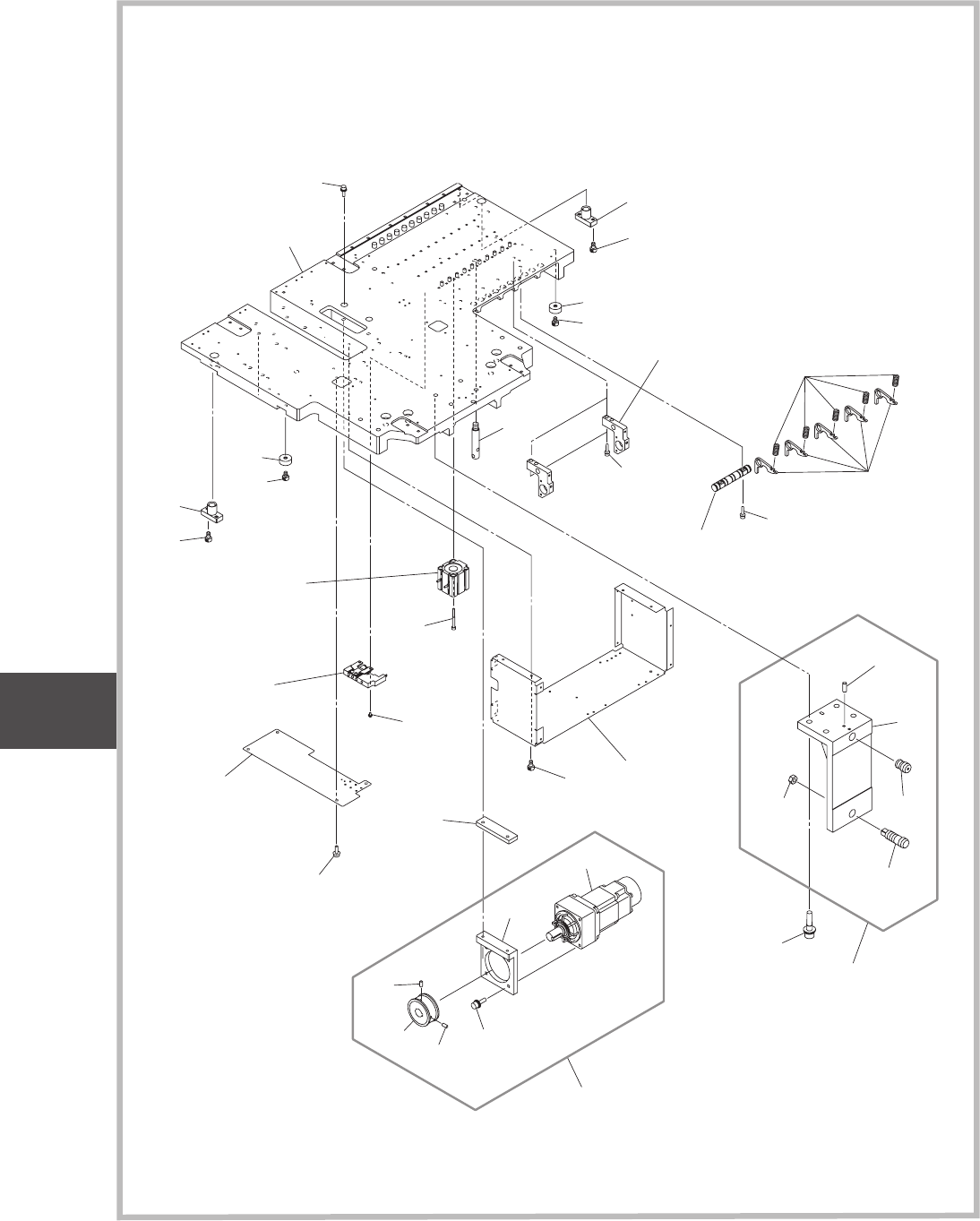

Fig. N1-6

ロアベース

Lower

Base

1104-002

527

523

518

536

535

534

520

537

531

530

508

532

533

542

528

524

519

541

543

544

545

546

547

515

522

526

529

513

521

525

517

526

510

514

511

514

511

514

509

514

522

526

516

522

526

512

See Fig. N1-3

Key No.208

See Fig. N1-7

Key No.641

See Fig. N1-7

Key No.651

See Fig. N1-7

Key No.616

See Fig. N1-7

Key No.601

0921000U

0921001N

B6910

Y6913

M01

B6914

See Fig. N1-7

Key No.602

See Fig. N1-8

Key No.731

UNIT-13

Fig. N1

TRAVERSE F

Fig. N1

トラバースカート部

(FULL)



TRAVERSE CART SECTION(FULL)

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

508 211AE302 COVER 1 109210010J-008

509 211G6364 BLOCK 1 109210010J-009

510 211G6365 BLOCK 1 109210010J-010

511 226J2598 MECH_PARTS 2 109210010J-011

512 213A1338 SHAFT 2 109210010J-012

513 221AA005 ROHS_HEX-SCT 2 M3L6 109210010J-013

514 221AA029 ROHS_HEX-SCT 10 M5L10 109210010J-014

515 221AA032 ROHS_HEX-SCT 4 M5L20 109210010J-015

516 221AA033 ROHS_HEX-SCT 4 M5L25 109210010J-016

517 221AA038 ROHS_HEX-SCT 2 109210010J-017

518 221AA049 ROHS_HEX-SCT 2 M6L45 109210010J-018

519 221AA058 ROHS_HEX-SCT 4 M8L30 109210010J-019

520 221DA212 MACHINE_SCREW 4 TRS M5L6 109210010J-020

521 221HA103 WASHER 2 FW3 109210010J-021

522 221HA105 WASHER 12 FW5 109210010J-022

523 221HA106 WASHER 2 FW6 109210010J-023

524 221HA107 WASHER 4 FW8 109210010J-024

525 221HA003 WASHER 2 SW3 109210010J-025

526 221HA005 WASHER 14 SW5 109210010J-026

527 221HA006 WASHER 2 SW6 109210010J-027

528 221HA007 WASHER 4 SW8 109210010J-028

529 222M1468 SPRING_COMP 10 109210010J-029

530 0921C102 PLATE 1 109210010J-030

531 0921B103 BRACKET 1 209210000U-001

532 4M150277 MOTOR_AC-SERVO 1 209210000U-002

533 223Q0774 PULLEY_TIMING 1 209210000U-003

534 221AA045 ROHS_HEX-SCT 4 M6L25 209210000U-004

535 221HA106 WASHER 4 FW6 209210000U-005

536 221HA006 WASHER 4 SW6 209210000U-006

537 221CA007 SET_SCREW 2 SET M5L6 209210000U-007

541 0921B401 STAY 1 209210001N-001

542 216E1754 PIN_LOCATE 1 209210001N-002

543 0921B402 PIN_LOCATE 1 209210001N-003

544 221FA019 ROHS_NUT_HEX 1 M16 209210001N-004

545 221CA007 SET_SCREW 1 SET M5L6 209210001N-005

546 221HA111 WASHER 1 FW16 209210001N-006

547 221HA010 WASHER 1 SW16 209210001N-007

Fig. N1

1104-002

Fig. N1-6

SIGMA-G5SA

SIGMA-G5SB

SIGMA-G5SC

SIGMA-G5SD

UNIT-13

Fig. N1

TRAVERSE F
