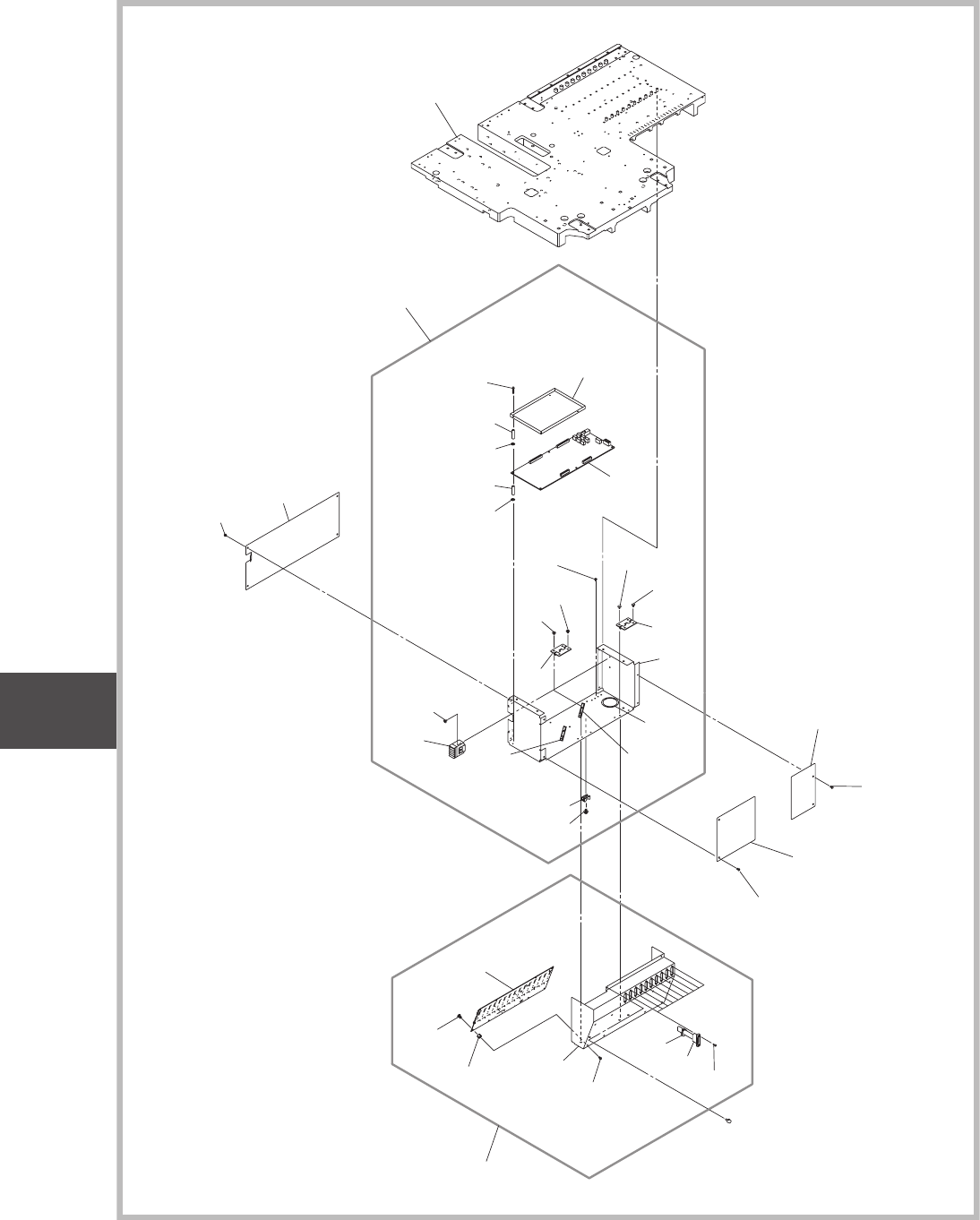

Fig. N1-8 電装ボックス１ Electrical Box 1 1 104-002 721 724 725 727 722 702 732 731 703 701 706 742 704 742 704 734 734 753 733 744 745 746 733 726 728 736 735 738 741 706 706 743 707 708 745 746 745 709 739 740 723 737 See Fig…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
601 213A1024 SHAFT 1 3092004101-001
602 211DE170 PLATE 5 3092004101-002
603 211E1085 SPACER 10 3092004101-003
604 221K0079 RING C 15 10 C RING 15 3092004101-004
611 213A1626 SHAFT 1 209210000V-001
612 222Q0211 SPRING_FLAT 4 209210000V-002
613 211FE389 BRACKET 1 209210000V-003
614 222N0157 SPRING_TENSION 1 209210000V-004
615 211E1181 SPACER 2 209210000V-005
616 211FE377 BRACKET 2 209210000V-006
617 216S3266 LEVER 1 209210000V-007
618 216C1051 ROD 1 209210000V-008
619 222H0132 CAMFOLLOWER 1 209210000V-009
620 222A0168 BUSHBEARING 2 209210000V-010
621 211AE054 COVER 1 209210000V-011
622 221BA008 ROHS_BOLT_HEX 1 209210000V-012
623 221A0446 BOLT_HEX-SCT 4 BUTTAN M5L12 209210000V-013
624 221AA017 ROHS_HEX-SCT 2 M4L10 209210000V-014
625 221AA033 ROHS_HEX-SCT 1 M5L25 209210000V-015
626 221FA008 NUT_HEX 1 M4 209210000V-016
627 221FA010 NUT_HEX 1 M5 209210000V-017
628 221DA207 MACHINE_SCREW 2 TRS M4L6 209210000V-018
629 221CA044 SET_SCREW 2 SET M4L10 209210000V-019
630 221HA104 WASHER 2 FW4 209210000V-020
631 221HA105 WASHER 5 FW5 209210000V-021
632 221HA004 WASHER 2 SW4 209210000V-022
633 221HA005 WASHER 6 SW5 209210000V-023
641 0921160L ASSY_JE14_CYLD 1 309210000W-001
642 0921B302 ROD 1 309210000W-002
643 225F0577 AIRLINEEQPT 2 309210000W-003
644 0921A05N AIRLINEEQPT 2 309210000W-004
645 221FA011 NUT_HEX 1 M6 309210000W-005
651 09204401 ASSY_VALVE 1 309210000X-001
652 225F0467 PIPEFITTINGS 1 309210000X-002
653 225B0059 AIRLINEEQPT 2 309210000X-003
662 225F0504 PIPE_FITTINGS 3 3092100107-002
665 225F0353 PIPE FITTING 2 3092100107-005
668 0921D302 TUBE 1 3092100107-008
