KJJ_KGA_QFP-Recover_PL.pdf - 第5页
1 2 Cover/Clamp FS/CL Feeder KJJ/KGA-090604 2 4 2 5 17 6 18 22 22 22 22 22 22 19 15 16 27 20 26 8 12 13 14 1 1 9 7 4 21 21 1 1 OLD OLD 3 3 24 25 23 10 No. Part No. Part Name Q'ty Remarks Date of change Revised No. C…
2
1

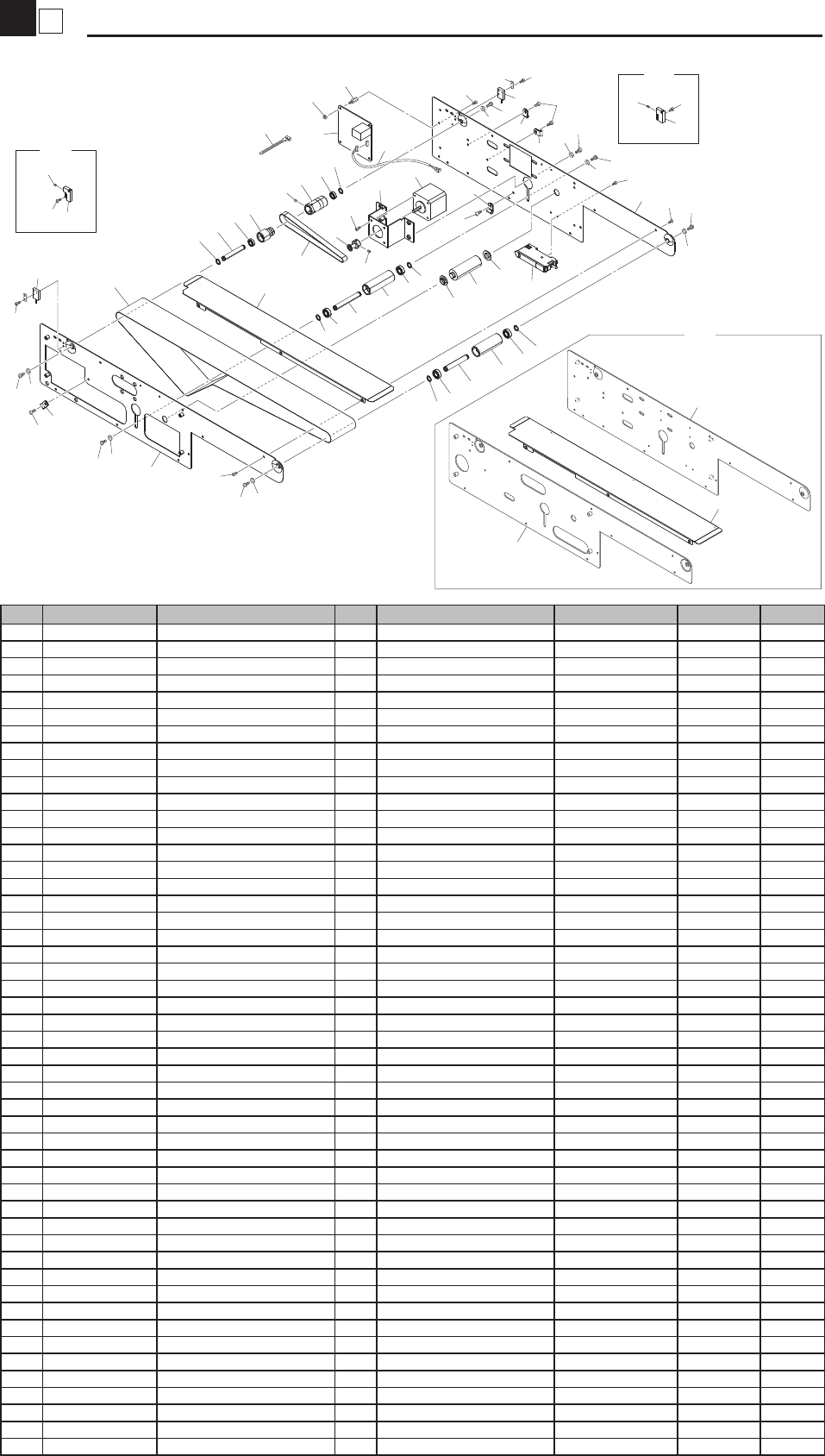

Body
SS Feeder
KJJ/KGA-090604
39
37
28
39
37
39
38
5
13
14
16
4
7
19
19
20
20
19
19
32
32
32
32
32
32
7
2
3
1
15
11
33
25
12
26
30
23
23
31
31
31
31
36
36
23
8
6
18
17
29
24
22
30
9
10
10
35
21
27
24
34
28
23
25
26
30
24
24
24
36
25
OLD
OLD
38
39
28
40
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJJ-M9401-00 BRACKET, BELT 1
2 KJJ-M9402-00 FRAME R 1
3 KJJ-M9403-00 FRAME L 1
4 KGA-M9408-00 F., ROLLER 1
5 KGA-M9409-00 R., ROLLER 1
6 KGA-M9410-00 T., ROLLER 1
7 KGA-M9411-00 SHAFT, ROLLER 2
8 KGA-M9411-10 SHAFT, ROLLER 1
9 KGA-M9412-00 I., ROLLER 1
10 KGA-M9413-00 BUSH 2
11 KGA-M9334-00 DUMP ST. MOTOR ASSY 1
12 KGA-M9415-00 BRACKET, MOTOR 1
13 KGA-M9416-00 PULLEY 1 1
14 KGA-M9417-00 PULLEY 2 1
15 KGA-M9418-00 BELT 1 1
16 KGA-M9419-00 BELT 2 1
17 KGA-M4584-01 REJECT BOARD ASSY 1
18 KM8-M642A-10 PARTS, 2-1 2
19 90933-02J688 BEARING 4
20 90933-02J148 BEARING 2
21 91312-03008 BOLT HEX. SOCKET HEAD 4
22 91312-04008 BOLT HEX. SOCKET HEAD 4
23 92012-04008 BOLT, BUTTON HEAD 4
24 98902-03006 SCREW BINDING HEAD 16
25 98902-04006 SCREW BINDING HEAD 4
26 98902-04010 SCREW BINDING HEAD 2
27 92A08-03303 SET SCREW M3X3 4
28 92A08-03305 SCREW, SET 4
29 90562-03J180 SPACER BOLT 4
30 92902-04200 WASHER PLAIN 6
31 92902-04600 WASHER PLAIN 4
32 99009-08800 CIRCLIP : 6
33 $NK-3N NYLON CLIP 2
34 KGA-M66E3-10 HNS, DUMP-I/O 1
35 KGA-M9427-A0 SENSOR ASSY 1
35-1 KGA-M9427-A1 SENSOR ASSY 1 2009/4/13 MEY0076 NG
36 $NK-2N NYLON CLIP 3
37 KGA-M9426-00 BRKT. R, SENSOR 1
37-1 Delete 2009/4/13 MEY0076
38 KGA-M9426-10 BRKT. L, SENSOR 1
38-1 Delete 2009/4/13 MEY0076
39 91312-03005 BOLT HEX. SOCKET HEAD 4
40 KJJ-M9426-00 PLATE WASHER 2 2009/4/13 MEY0076
1
2

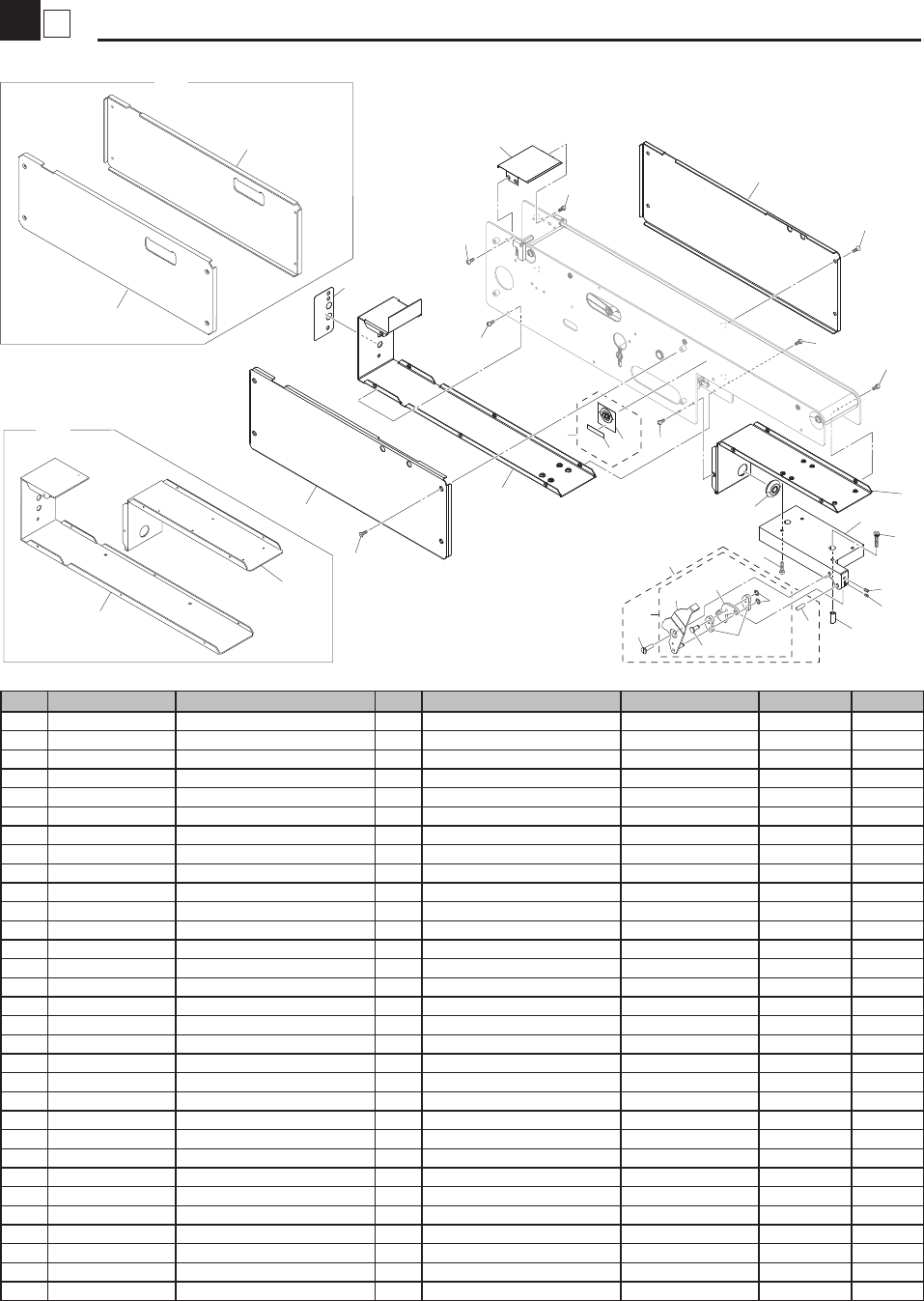

Cover/Clamp
FS/CL Feeder
KJJ/KGA-090604
2
4
2
5
17
6
18
22
22
22
22
22
22
19
15
16
27
20
26
8
12
13
14
11
9
7
4
21
21
1
1
OLD
OLD
3
3
24
25
23
10
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M9404-01 UNDER COVER 1 1
1-1 KJJ-M9404-00 UNDER COVER 1 1 2009/4/13 MEY0076 NG
2 KGA-M9405-00 UNDER COVER 2 1
2-1 KJJ-M9405-00 UNDER COVER 2 1 2009/4/13 MEY0076 OK
3 KGA-M9406-01 SIDE COVER R 1
3-1 KJJ-M9406-00 SIDE COVER R 1 2009/4/13 MEY0076 OK
4 KGA-M9407-01 SIDE COVER L 1
4-1 KJJ-M9407-00 SIDE COVER L 1 2009/4/13 MEY0076 OK
5 KGA-M9414-01 BRACKET 1 1
6 KGA-M9420-00 PLATE, GUIDE 1
7 K87-M1130-00 CLAMP UNIT 1
8 K87-M113M-00 AXIS PIN 1
9 K87-M113L-10 CLAMP LEVER AXIS 1
10 K87-M1131-00 CLAMP LEVER UNIT 1
11 K87-M1132-10 CLAMP LEVER ASSY 1
12 K87-M113A-00 CLANK ARM ASSY 1
13 K87-M113D-00 ARM 2
14 K87-M113E-00 HINGE PIN 2 1
15 K87-M11D7-00 CIRCLIP E 2
16 KH1-M34D3-00 LOCATE PIN 2
17 K11-M1591-00 GROMMET (MG-1) 1
18 KGA-M9431-00 SEAL, DUMP 1
19 91317-03014 BOLT HEX. SOCKET HEAD 4
20 91317-04014 BOLT HEX. SOCKET HEAD 2
21 98707-03010 SCREW FLAT HEAD 8
22 98907-03006 SCREW BINDING HEAD 18
23 KGS-M64A0-00 CHINA ROHS KIT 1
24 KGS-M6417-00 SEAL, PERIOD 1
25 KGS-M6427-00 SEAL, PRODUCTION 1
26 92A08-03303 SET SCREW M3X3 1
27 92A08-04312 SCREW, SET 1
2
2
Body
FS/CL Feeder
KJJ/KGA-090604
5
14
13
16
4
7
19
19
20
20
19
19
32
32
32
32
32
32
7
2
3
1
15
11
33
25
12
1
3
2
26
30
23
23
31
31
31
31
40
40
23
8
6
18
17
29
34
22
30
9
10
10
38
21
27
24
35
28
23
25
26
30
24
24
24
40
25
39
37
39
36
OLD
37
39
28
28
39
36
OLD
OLD
41
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M9401-00 BRACKET, BELT 1
1-1 KJJ-M9401-00 BRACKET, BELT 1 2009/4/13 MEY0076 OK
2 KGA-M9402-01 FRAME, R 1
2-1 KJJ-M9402-01 FRAME, R 1 2009/4/13 MEY0076 OK
3 KGA-M9403-01 FRAME, L 1
3-1 KJJ-M9403-00 FRAME, L 1 2009/4/13 MEY0076 OK
4
KGA-M9408-00
F., ROLLER 1
5 KGA-M9409-00 R., ROLLER 1
6 KGA-M9410-00 T., ROLLER 1
7 KGA-M9411-00 SHAFT, ROLLER 2
8 KGA-M9411-10 SHAFT, ROLLER 1
9 KGA-M9412-00 I., ROLLER 1
10 KGA-M9413-00 BUSH 2
11 KGA-M9334-00 DUMP ST. MOTOR ASSY 1
12 KGA-M9415-00 BRACKET, MOTOR 1
13 KGA-M9416-00 PULLEY 1 1
14 KGA-M9417-00 PULLEY 2 1
15 KGA-M9418-00 BELT 1 1
16 KGA-M9419-00 BELT 2 1
17 KGA-M4584-01 REJECT BOARD ASSY 1
18 KM8-M642A-10 PARTS, 2-1 1
19 90933-02J688 BEARING 4
20 90933-02J148 BEARING 2
21 91317-03006 BOLT HEX. SOCKET HEAD 4
22 91317-04010 BOLT HEX. SOCKET HEAD 4
23 92017-04008 BOLT, BUTTON HEAD 4
24 98907-03006 SCREW BINDING HEAD 12
25 98907-04006 SCREW BINDING HEAD 5
26 98907-04010 SCREW BINDING HEAD 2
27 92A08-03303 SET SCREW M3X3 4
28 92A08-03305 SCREW, SET 4
28-1 4 Delete 2009/4/13 MEY0076
29 90563-03J250 SPACER BOLT 4
30 92907-04200 WASHER PLAIN 6
31 92907-04600 WASHER, PLAIN (S) 4
32 99009-08800 CIRCLIP : 6
33 $NK-3N NYLON CLIP 2
34 95302-03600 NUT HEXAGON 4
35 KGA-M66E3-10 HNS, DUMP-I/O 1
36 KGA-M9426-00 BRKT. R, SENSOR 1
36-1 Delete 2009/4/13 MEY0076
37 KGA-M9426-10 BRKT. L, SENSOR 1
37-1 Delete 2009/4/13 MEY0076
38 KGA-M9427-A0 SENSOR ASSY 1
38-1 KGA-M9427-A1 SENSOR ASSY 1 2009/4/13 MEY0076 NG
39 91317-03005 BOLT HEX. SOCKET HEAD 4
39-1 Delete 2009/4/13 MEY0076
40 $NK-2N NYLON CLIP 3
41 KJJ-M9426-00 PLATE WASHER 2 2009/4/13 MEY0076
