1 1 Cover/Clamp SS Feeder KJJ/KGA-0903 2 4 7 16 9 10 13 18 22 22 17 26 25 1 1 21 21 28 6 12 8 24 24 24 24 24 24 24 24 5 14 15 15 19 19 20 20 23 23 1 3 30 31 29 27 27 No. Part No. Part Name Q'ty Remarks Date of chang…
Contents
1 SS Feeder Type
Cover/Clamp .........................................................1-1
Body .....................................................................1-2
2 FS/CL Feeder Type
Cover/Clamp .........................................................2-1
Body .....................................................................2-2
1
1

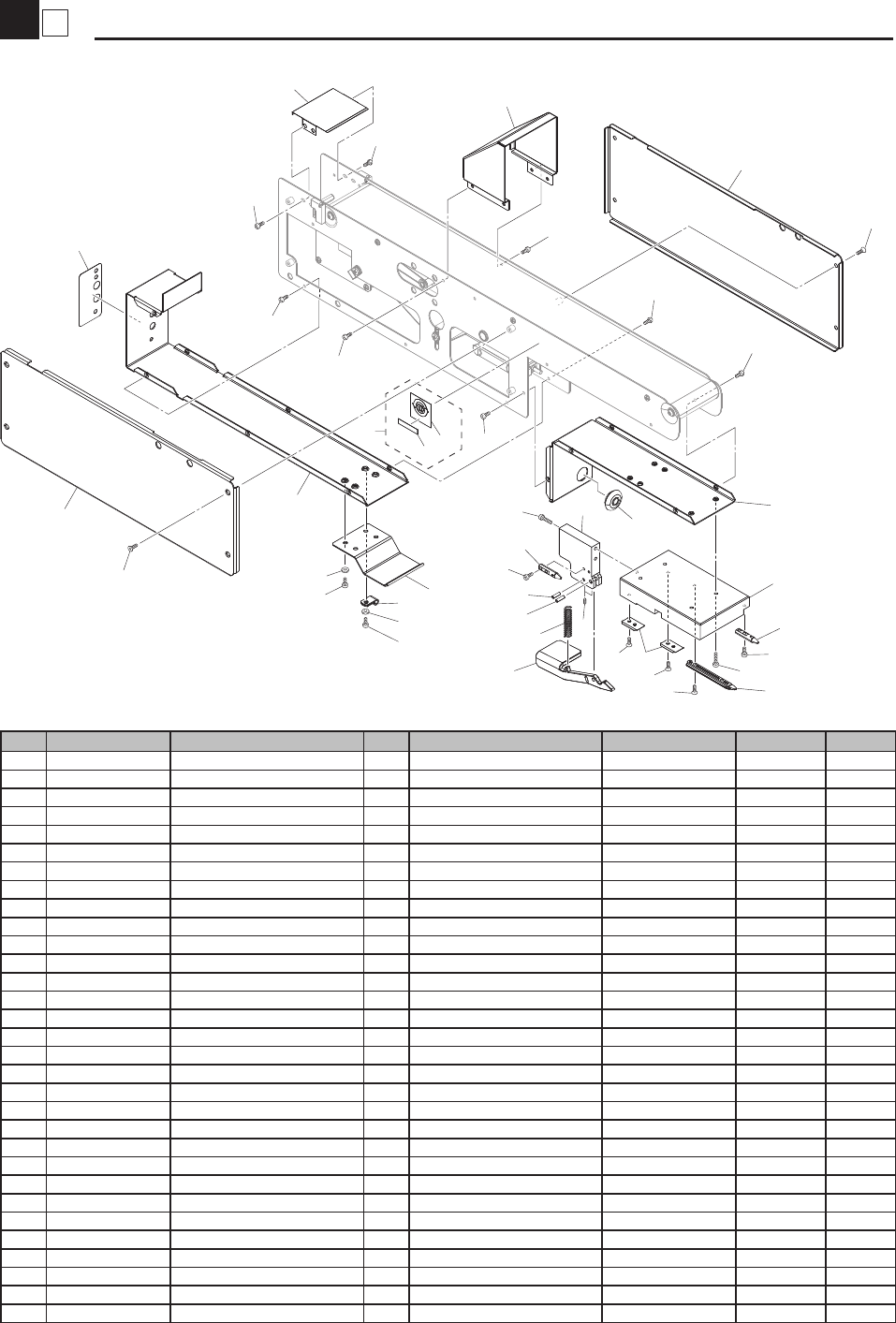

Cover/Clamp
SS Feeder
KJJ/KGA-0903
2
4
7
16
9
10
13
18
22
22
17
26
25
11
21
21
28
6
12
8
24
24
24
24
24
24
24
24
5
14
15
15
19
19
20
20
23
23
1
3
30
31
29
27
27
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJJ-M9404-00 UNDER COVER 1 1
2 KJJ-M9405-00 UNDER COVER 2 1
3 KJJ-M9406-00 SIDE COVER R 1
4 KJJ-M9407-00 SIDE COVER L 1
5 KJJ-M9414-00 BRACKET 1 1
6 KGA-M9420-00 PLATE, GUIDE 1
7 K11-M1591-00 GROMMET (MG-1) 1
8 KGA-M9431-00 SEAL, DUMP 1
9 KJJ-M941A-00 SUPPORT, CLAMP 1
10 KJJ-M941B-00 LEVER 1
11 KJJ-M941C-00 SUPPORT, UNDER 1
12 KJJ-M941D-00 COVER, SAFETY 1
13 KJJ-M941E-00 SPRING 1
14 KHJ-MC104-00 RAIL, UNDER 1
15 KHJ-MC105-00 PIN, TAIL 2
16 KHJ-MC106-00 PLATE, UNDER 2
17 KHJ-MC139-00 SHAFT, IDLE GEAR 1 1
18 KHJ-MC10F-00 SCREW, FLAT HEAD 2
19 91312-03008 BOLT HEX. SOCKET HEAD 4
20 91312-03014 BOLT,HEX. SOCKET HEAD 6
21 91312-04008 BOLT HEX. SOCKET HEAD 4
22 98702-03006 SCREW FLAT HEAD 4
23 98702-03010 SCREW FLAT HEAD (+) 8
24 98902-03006 SCREW BINDING HEAD 22
25 99480-04012 PIN, PARALLEL 1
26 92A08-03305 SCREW, SET 2
27 92902-04600 WASHER PLAIN 4
28 $NK-3N NYLON CLIP 1
29 KGS-M64A0-00 CHINA ROHS KIT 1
30 KGS-M6417-00 SEAL, PERIOD 1
31 KGS-M6427-00 SEAL, PRODUCTION 1
2
1

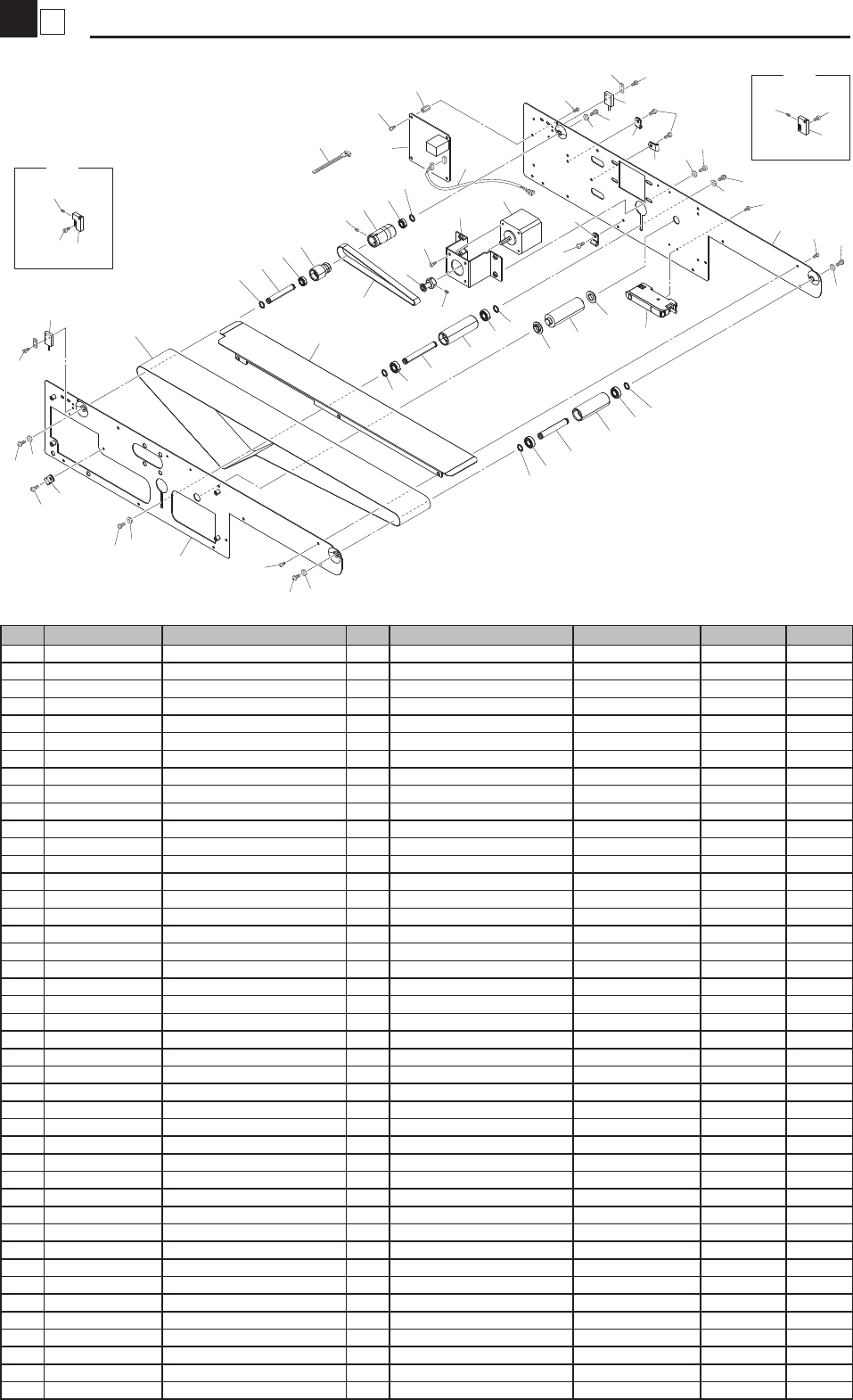

Body
SS Feeder
KJJ/KGA-090604
39
37
28
39
37
39
38
5
13
14
16
4
7
19
19
20
20
19
19
32
32
32
32
32
32
7
2
3
1
15
11
33
25
12
26
30
23
23
31
31
31
31
36
36
23
8
6
18
17
29
24
22
30
9
10
10
35
21
27
24
34
28
23
25
26
30
24
24
24
36
25
OLD
OLD
38
39
28
40
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KJJ-M9401-00 BRACKET, BELT 1
2 KJJ-M9402-00 FRAME R 1
3 KJJ-M9403-00 FRAME L 1
4 KGA-M9408-00 F., ROLLER 1
5 KGA-M9409-00 R., ROLLER 1
6 KGA-M9410-00 T., ROLLER 1
7 KGA-M9411-00 SHAFT, ROLLER 2
8 KGA-M9411-10 SHAFT, ROLLER 1
9 KGA-M9412-00 I., ROLLER 1
10 KGA-M9413-00 BUSH 2
11 KGA-M9334-00 DUMP ST. MOTOR ASSY 1
12 KGA-M9415-00 BRACKET, MOTOR 1
13 KGA-M9416-00 PULLEY 1 1
14 KGA-M9417-00 PULLEY 2 1
15 KGA-M9418-00 BELT 1 1
16 KGA-M9419-00 BELT 2 1
17 KGA-M4584-01 REJECT BOARD ASSY 1
18 KM8-M642A-10 PARTS, 2-1 2
19 90933-02J688 BEARING 4
20 90933-02J148 BEARING 2
21 91312-03008 BOLT HEX. SOCKET HEAD 4
22 91312-04008 BOLT HEX. SOCKET HEAD 4
23 92012-04008 BOLT, BUTTON HEAD 4
24 98902-03006 SCREW BINDING HEAD 16
25 98902-04006 SCREW BINDING HEAD 4
26 98902-04010 SCREW BINDING HEAD 2
27 92A08-03303 SET SCREW M3X3 4
28 92A08-03305 SCREW, SET 4
29 90562-03J180 SPACER BOLT 4
30 92902-04200 WASHER PLAIN 6
31 92902-04600 WASHER PLAIN 4
32 99009-08800 CIRCLIP : 6
33 $NK-3N NYLON CLIP 2
34 KGA-M66E3-10 HNS, DUMP-I/O 1
35 KGA-M9427-A0 SENSOR ASSY 1
35-1 KGA-M9427-A1 SENSOR ASSY 1 2009/4/13 MEY0076 NG
36 $NK-2N NYLON CLIP 3
37 KGA-M9426-00 BRKT. R, SENSOR 1
37-1 Delete 2009/4/13 MEY0076
38 KGA-M9426-10 BRKT. L, SENSOR 1
38-1 Delete 2009/4/13 MEY0076
39 91312-03005 BOLT HEX. SOCKET HEAD 4
40 KJJ-M9426-00 PLATE WASHER 2 2009/4/13 MEY0076
