Operation

AutoSite User Manual 3-3

Changing a Programming Module on a ProMaster 2000

Safety Information

This information is provided as a supplement to the Safety Summary at

the beginning of this manual.

The circuitry housed inside the pin driver head and the control unit, and

the devices AutoSite programs are static sensitive and can be damaged by

electrostatic discharge (ESD). To help minimize the effects of ESD, we

suggest you wear an antistatic wrist strap while you follow the

procedures described in this section.

For best performance, the antistatic wrist strap should be connected to a

properly grounded antistatic workstation and the wrist strap should

contain a 1 M

Ω

(minimum) to 10 M

Ω

(maximum) isolating resistor.

Follow the steps below to change the programming module on a

ProMaster 2000.

1. Make sure the handler is idle.

2. Clear all devices from the handler.

3. Loosen the thumbscrews that hold the pin driver head to the pin

driver head mounting plate and carefully remove the pin driver head

from the pin driver head mounting plate. The thumbscrews are

located at each end of the pin driver head mounting plate.

4. Slide the clamp ring off the pin driver head. Set the clamp ring aside;

you will need it later.

5. Remove the old programming module. Set the old programming

module aside.

CAUTION: Do not touch the pins that are exposed when you remove the

programming module.

Operation

3-4 AutoSite User Manual

6. As shown in Figure 3-1, set the new programming module onto the

pin driver head, making sure the guide pins on the pin driver head

line up with the guide holes in the programming module.

Note: If you are using a programming module for the first time, and you

purchased the programming module after you purchased your AutoSite,

(i.e., you didn’t order the programming module and the AutoSite at the

same time) you must perform a one-time procedure to unlock the

programming module before you can use it.

Continue with the installation. At the appropriate time, a note in this

manual will tell you when to unlock the new programming module.

Figure 3-1

Aligning the Programming Module

on the Pin Driver Head

1350-1

PROGRAMMING

MODULE

PIN DRIVER

HEAD

GUIDE PIN (1 of 4)

Operation

AutoSite User Manual 3-5

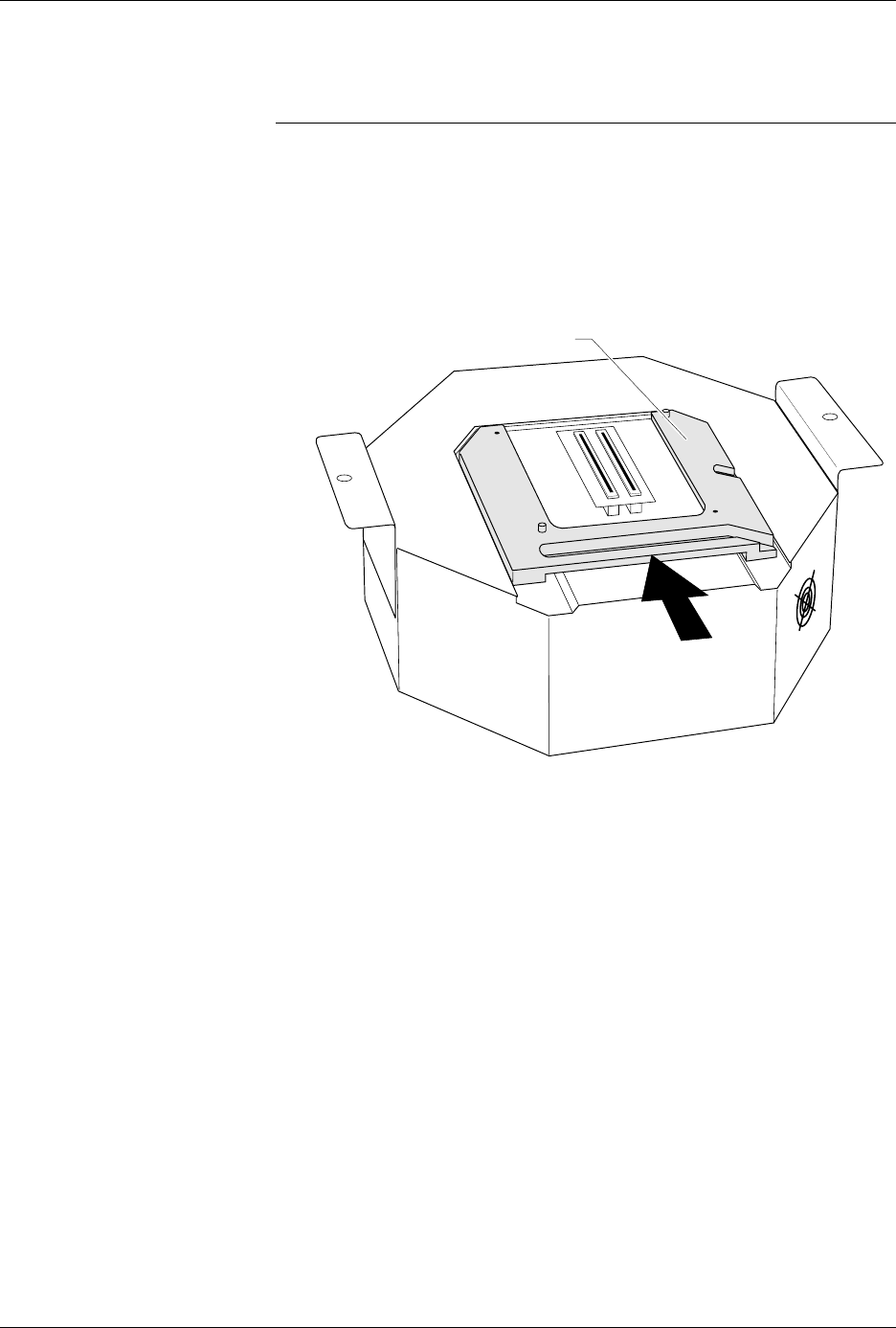

7. As shown in Figure 3-2, slide the clamp ring onto the pin driver head,

securing the programming module in place.

CAUTION: You may have to push down on the programming module

while sliding the clamp ring onto the pin driver head.

Do not use the device socket on the programming module as

a leverage point. You can damage the device socket by

applying any sort of force to it.

You will feel and hear a “click” from the clamp ring when the

programming module is properly secured to the pin driver head.

Figure 3-2

Securing a Programming Module

to the ProMaster 2000

1351-2

PROGRAMMING MODULE CLAMP RING
