User manual SIPLACE X-series Technical data for the machine From software version SR.70x.xx 01/ 2011 EN edition Dimensions and weight 113 3.3.3 Height of the fold ed up protective cover 3 3 3 3 Fig. 3.3 - 5 Height of the…
Technical data for the machine User manual SIPLACE X-series
Dimensions and weight From software version SR.70x.xx 01/2011 EN edition
112
3.3.2.4 Dimensions of the X2 machine
3
3
3
3
3
Fig. 3.3 - 4 Dimensions of the X2 machine (basic machine) in millimeters
(T) Direction of PCB transport
User manual SIPLACE X-series Technical data for the machine
From software version SR.70x.xx 01/2011 EN edition Dimensions and weight
113
3.3.3 Height of the folded up protective cover
3
3
3
3

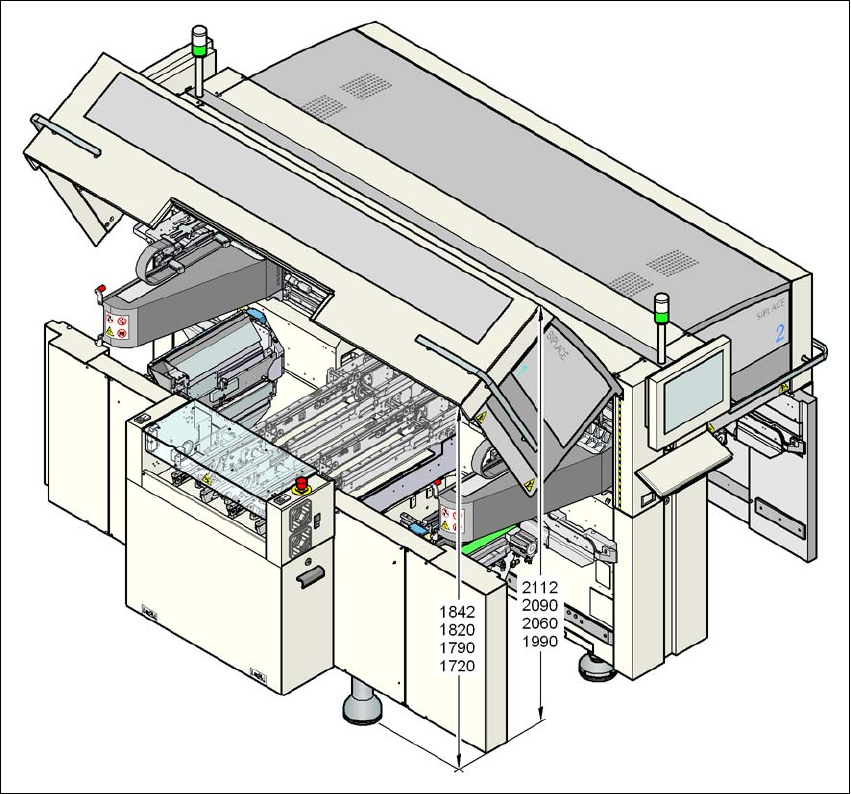

Fig. 3.3 - 5 Height of the folded-up protective cover - dimensions in millimeters
Technical data for the machine User manual SIPLACE X-series
Dimensions and weight From software version SR.70x.xx 01/2011 EN edition
114
3.3.4 Maneuvering distance for the component trolley
3.3.4.1 Maneuvering distance for the component trolley on the X4I machine
3
3
Fig. 3.3 - 6 Maneuvering distance for the component trolley on the X4I machine
The maneuvering distance R of the component trolley on the X4 machine is:
– 600 mm with the handles folded down
– 900 mm with the handles folded up
3
