3.4 Overview of the modules
3.4.1 Overview of the SIPLACE X4I modules
3
3
Fig. 3.4 - 1 X4I placement machine - overview of the modules
(1) Machine frame
(2) PCB conveyor (flexible dual conveyor)
(3) Extension kit on the PCB input side
(4) Component trolley docking unit, tape cutter, used tape channel (4x)
(5) Gantry 1 with placement head
(6) Gantry 2 with placement head
(7) Extension kit on the PCB output side
(8) Gantry 3 with placement head
(9) Monitor (2x)
(10) Keyboard (2x)
(11) Gantry 4 with placement head
Technical data for the machine User manual SIPLACE X-series
Overview of the modules From software version SR.70x.xx 01/2011 EN edition
120

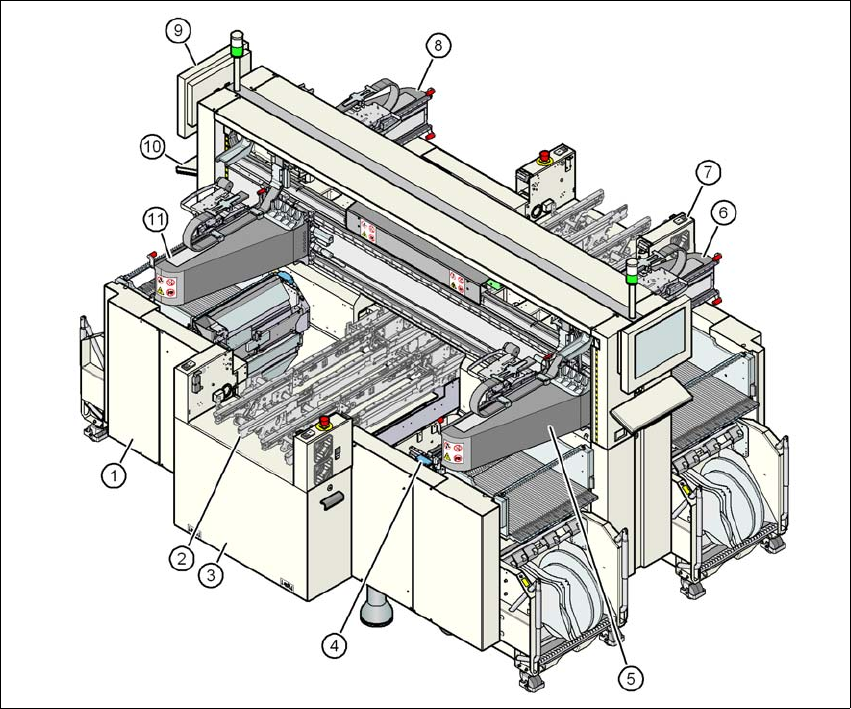

3.4.2 Overview of the modules SIPLACE X4
3
Fig. 3.4 - 2 X4 placement machine - overview of the modules
(1) Machine frame
(2) PCB conveyor (flexible dual conveyor)
(3) Extension kit on the PCB input side
(4) Component trolley docking unit, tape cutter, used tape channel (4x)
(5) Gantry 1 with placement head
(6) Gantry 2 with placement head
(7) Extension kit on the PCB output side
(8) Gantry 3 with placement head
(9) Monitor (2x)
(10) Keyboard (2x)
(11) Gantry 4 with placement head
User manual SIPLACE X-series Technical data for the machine
From software version SR.70x.xx 01/2011 EN edition Overview of the modules
121

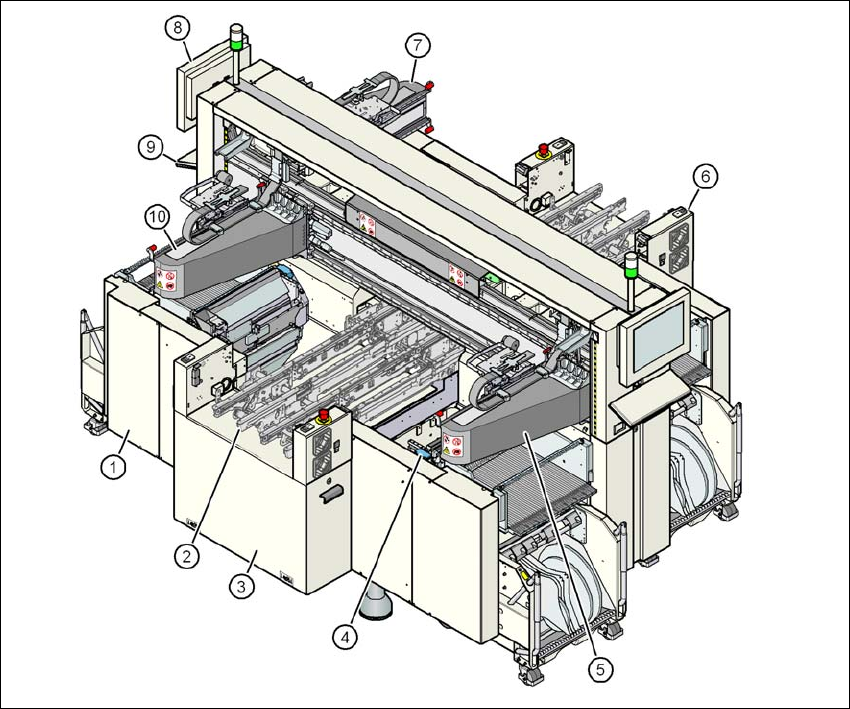

3.4.3 Overview of the modules SIPLACE X3
3
Fig. 3.4 - 3 X3 machine - overview of the modules
(1) Machine frame
(2) PCB conveyor (flexible dual conveyor)
(3) Extension kit on the PCB input side
(4) Component trolley docking unit, tape cutter, used tape channel (4x)
(5) Gantry 1 with placement head
(6) Extension kit on the PCB output side
(7) Gantry 3 with placement head
(8) Monitor (2x)
(9) Keyboard (2x)
(10) Gantry 4 with placement head
