User manual SIPLACE X-series Technical data for the machine
From software version SR.70x.xx 01/2011 EN edition Placement head
133
3.5.2.7 MultiStar in mixed mode
Small to medium-sized components are processed in this mode.
3

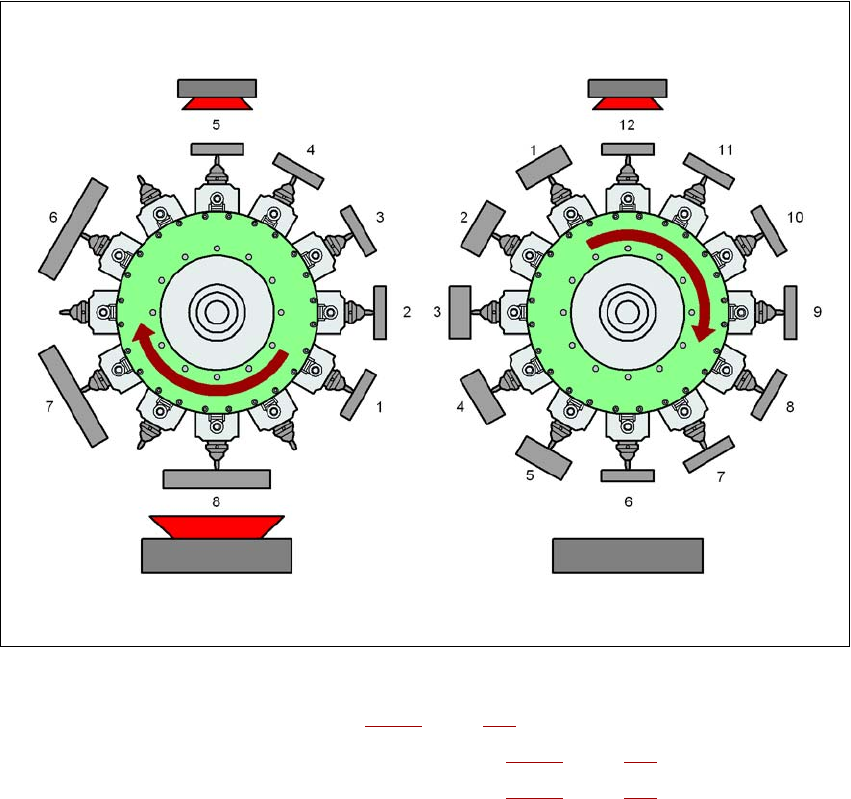

Fig. 3.5 - 7 MultiStar - mixed mode
K_BE Small component, see table 3.5 - 1, page 131
M_BE_1 Medium-sized component, type 1 (see table 3.5 - 1, page 131)
M_BE_2 Medium-sized component, type 2 (see table 3.5 - 1
, page 131)
Type 30/38 Component camera, type 30 or type 38
Type 33 Stationary component camera, type 33
1 ... 8 Order in which the components are picked up
1 ... 12 Order in which the components are picked up
3
Adjacent segments of the CPP head cannot pick up type M_BE_2 components if the diagonals of
the medium-sized component, type 2 (M_BE_2) is more than 39.8 mm long.
Type 30/38 Type 30/38
Type 33 Type 33
K_BE
M_BE_2
M_BE_1
K_BE
Technical data for the machine User manual SIPLACE X-series
Placement head From software version SR.70x.xx 01/2011 EN edition
134
3.5.2.8 MultiStar in extended Pick&Place mode
In this mode, the MultiStar can place the entire component range from 01005 to 50 x 40 mm². The
large component is picked up last, optically centered and placed as the first component.
3
Fig. 3.5 - 8 MultiStar - mixed mode
K_BE Small component (see table 3.5 - 1, page 131)
M_BE_2 Medium-sized component, type 2 (see table 3.5 - 1
, page 131)
G_BE Large component (see table 3.5 - 1
, page 131)
Type 30/38 Component camera, type 30 or type 38
Type 33 Stationary component camera, type 33
1 ... 8 Order in which the components are picked up
3
Adjacent segments of the CPP head cannot pick up type M_BE_2 and G_BE components if the
diagonals of these components are more than 39.8 mm long.
In pure Pick&Place mode, only one large component is placed in one cycle. In this case, the CPP
head acts as a Pick&Place head.
Type 30/
K_BE
G_BE
Type 33
M_BE_2
User manual SIPLACE X-series Technical data for the machine
From software version SR.70x.xx 01/2011 EN edition Placement head
135
3.5.2.9 Technical data
3
CPP head: optical centering
with the high-resolution compo-
nent camera, type 30,
27 x 27, digital
CPP head: optical centering
with the high-resolution
component camera, type 38,
16 x 16, digital
CPP head: optical centering
with the stationary compo-
nent camera, type 33, 55 x
45, digital
(see Section 6.7
, S. 406)
Range of components
a
01005
b
- 27 x 27 mm² 01005
b
- 16 x 16 mm² 0402 - 50 x 40 mm²
Component specification
max. height 8.5 mm / 6 mm
c
8.5 mm / 6 mm
c
11.5 mm
min. lead pitch 0.3 mm 0.25 mm 0.3 mm
min. lead width 0.15 mm 0.1 mm 0.15 mm
min. ball pitch 0.25 mm for components < 18
x 18 mm²
0.35 mm for CO ≥ 18 x 18 mm²
0.25 mm 0.35 mm
min. ball diameter 0.14 mm for components < 18
x 18 mm²
0.2 mm for CO ≥ 18 x 18 mm²
0.14 mm 0.2 mm
min. dimensions 0.4 x 0.2 mm² 0.4 x 0.2 mm² 1.0 x 0.5 mm²
max. dimensions 27 x 27 mm² 16 x 16 mm² 50 x 40 mm²
max. weight 4 g 4 g 8 g
Set-down force
in current sensor mode
(reduced placement
-rate)
1 N ... 3.0 N ± 0.5 N
in light barrier mode 2.2 N + 1.2 N - 0.5 N
in high-speed mode in
current sensor -mode
2.2 N ± 0.5 N
in current sensor mode
(reduced placement
-rate)
3.0 N ... 10.0 N ± 15%
