User manual SIPLACE X-series Technical data for the machine
From software version SR.70x.xx 01/2011 EN edition PCB conveyor system
157
3.7.6 SIPLACE quad lane conveyor
Item no. 00119944-xx SIPLACE quad lane conveyor
3

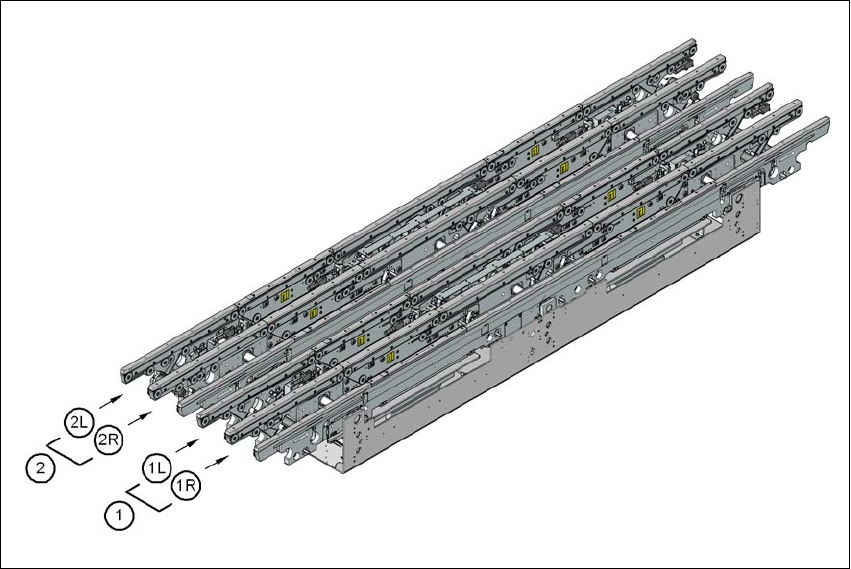

Fig. 3.7 - 5 SIPLACE quad lane conveyor
(1) Conveyor lane, group 1
(1R) Conveyor lane 1, right
(1L) Conveyor lane 1, left
(2) Conveyor lane, group 2
(2R) Conveyor lane 2, right
(2L) Conveyor lane 2, left
3.7.6.1 Description
The SIPLACE quad lane conveyor can be installed on SIPLACE X4I and SIPLACE X4 placement
machines. This allows up to eight PCBs to be processed at the same time on this conveyor.
Conveyor lanes 1R and 1L or 2R and 2L carry the PCBs in synchronous mode, while the two con-
veyor lane groups 1 and 2 can transport the PCBs in both synchronous and asynchronous mode.
On the quad lane conveyor, the two outer conveyor rails are stationary. The conveyor can be con-
figured as a 1-lane, 2-lane or 4-lane conveyor using the software without making any changes to
the hardware.
Technical data for the machine User manual SIPLACE X-series
PCB conveyor system From software version SR.70x.xx 01/2011 EN edition
158
3.7.7 PCB widths
3
3

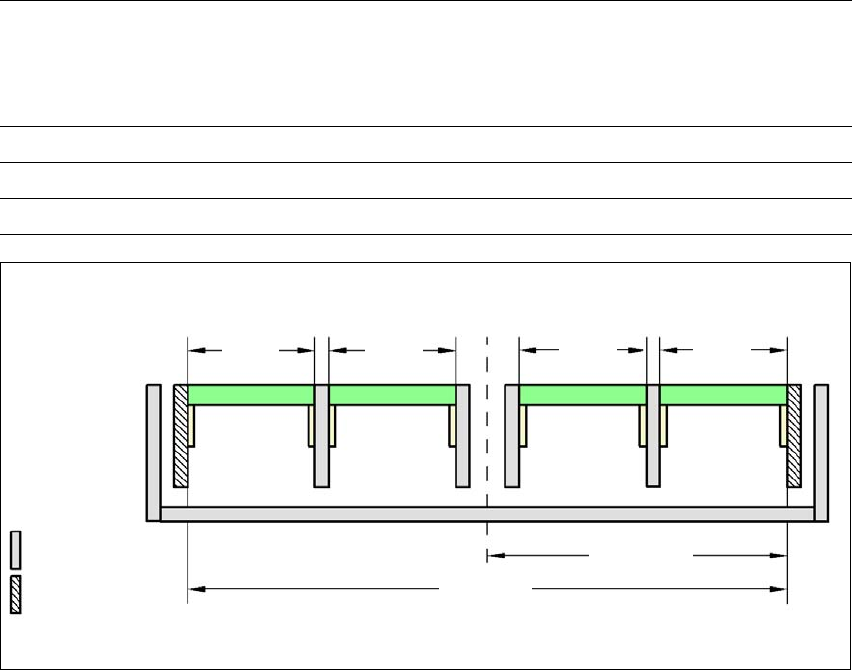

Fig. 3.7 - 6 Maximum PCB widths - conveyor edges 535 mm, stationary, SIPLACE quad lane conveyor
Transport mode PCB width
lane 1R
[mm]
PCB width
lane 1L
[mm]
PCB width
lane 2R
[mm]
PCB
width
lane 2L
[mm]
SIPLACE quad lane max. 114 max. 114 max. 114 max. 114
SIPLACE quad lane in Dual lane mode max. 178.5 max. 178.5
SIPLACE quad lane in Single lane mode max. 306.5
3
max.
114 mm
3
267.5 mm
3
535 mm
3
Movable
conveyor edge
3
Stationary
conveyor edge
3
max.
114 mm
3
max.
114 mm
3
max.
114 mm
3
Lane 2L
3
Lane 2R
3
Lane 1L
3
Lane 1R
User manual SIPLACE X-series Technical data for the machine
From software version SR.70x.xx 01/2011 EN edition PCB conveyor system
159

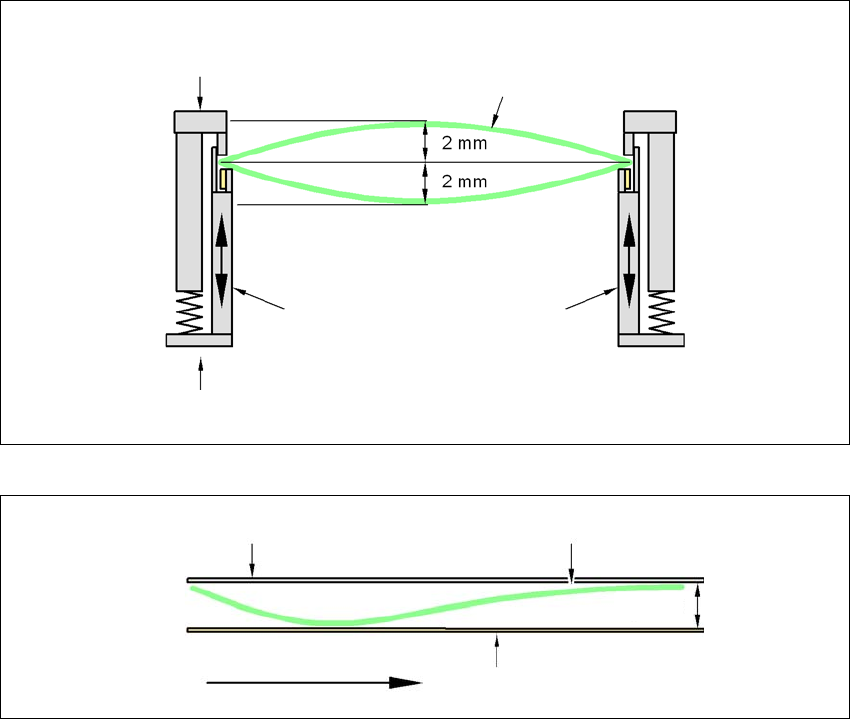

3.7.8 Definition of the PCB warpage
3.7.8.1 PCB warpage on the conveyor
PCB warpage across the direction of travel max. 1 % of the PCB diagonal, but not exceeding 2
mm
3
PCB warpage in direction of travel + PCB thickness < 5.5 mm
3
Fixed clamped edge
Movable clamping device
Printed circuit board
Conveyor side wall
Fixed clamped edge
Conveyor belt
Printed circuit board
PCB transport direction
5.5 mm
