User manual SIPLACE X-series Technical data for the machine
From software version SR.70x.xx 01/2011 EN edition X feeder modules
171
3.9.1.5 Tape feeder module shapes for the SIPLACE X-series
In general, the tape feeder modules from the X-series are approx. 587 mm long and approx. 200
mm high. The width and the number of locations that it fills on the component table are listed in
the following table.
3
The maximum height of any edges protruding over the top edge of the tape pocket is 3 mm.
Since the feeder modules do not have any raised flaps and are firmly anchored to the component
table, the risk of a head crash is minimized.
Tape feeder
modules
Feeder module width in
millimeters
Feeder module locations
required on the component
table
8 mm X 10.8 1
2x8 mm X 22.9 2
12 mm X 22.6 2
16 mm X 34.4 3
24 mm X 34.4 3
32 mm X 46.2 4
44 mm X 58.0 5
56 mm X 69.8 6
72 mm X 81.6 7
88 mm X 105.2 9
Technical data for the machine User manual SIPLACE X-series
X feeder modules From software version SR.70x.xx 01/2011 EN edition
172
3.9.1.6 Design of the tape feeder module for the SIPLACE X-series
The two following diagrams show the design of the tape feeder module for the X-series with ref-
erence to the 8 mm X tape feeder module.
3

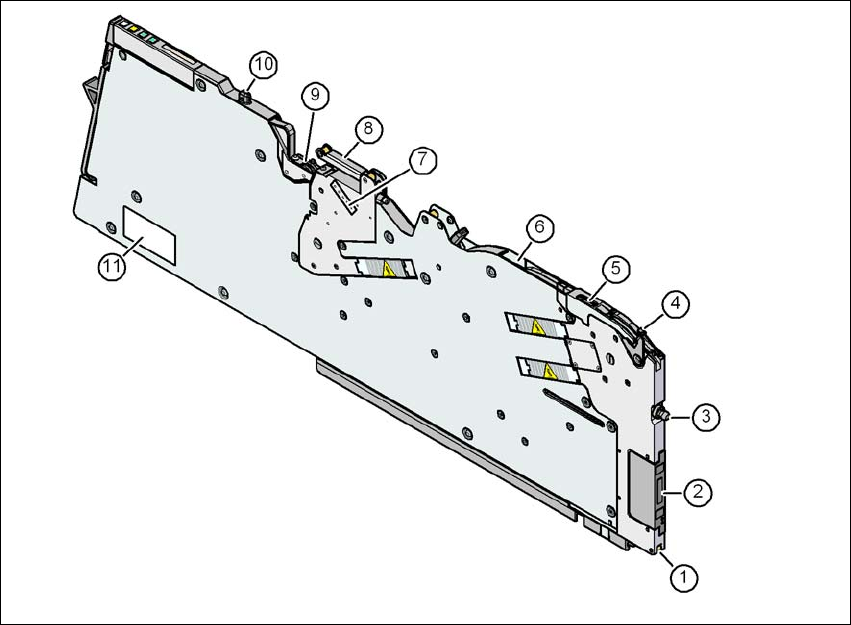

Fig. 3.9 - 1 8 mm X tape feeder module - front view
(1) Locking roller (the locking latch of the component table locks the feeder module in its end po-
sition with the locking roller.)
(2) EDIF (energy and data interface)
(3) "Front" centering pin
(4) Lever for raising the pick-up window in order to thread in and remove the component tape
(5) Pick-up window
(6) Exit from the tape guide channel
(7) Setting the cover foil tension
(8) Cover foil rocker
(9) Cover foil packing wheels
(10) "Back" centering pin
(11) Rating plate
User manual SIPLACE X-series Technical data for the machine
From software version SR.70x.xx 01/2011 EN edition X feeder modules
173
3

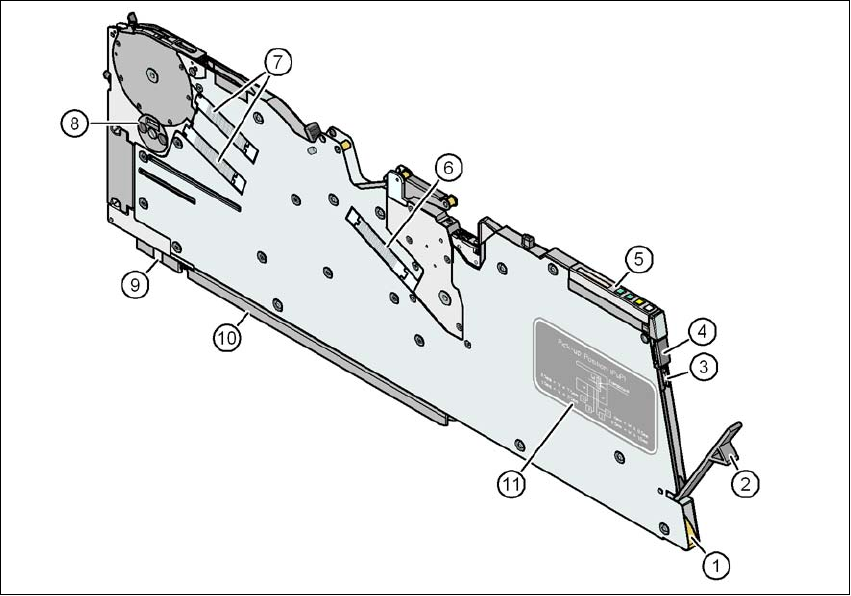

Fig. 3.9 - 2 8 mm X tape feeder module - back view
(1) Entry to the tape guide channel with tape spring
(2) Flap on the cover foil container
(3) Integrated blade for cutting off the cover foil
(4) Removal handle, engaged
(5) Operator panel
(6) Drive motor for the cover foil packing device
(7) Drive motors for the tape conveyor
(8) Rotary valve for removing components
(9) Front slider guide
(10) Back slider guide
(11) Graphical representation of the pick-up position in relation to the component size
