User manual SIPLACE X-series Technical data for the machine From software version SR.70x.xx 01/2011 EN edition X feeder modules 189 3.9.4.2 Feeder module adapter for t he X-series with linear vibratory feeder PLEASE NOTE…
Technical data for the machine User manual SIPLACE X-series
X feeder modules From software version SR.70x.xx 01/2011 EN edition
188
3.9.4 Feeder module adapter for the X-series
Item no. 00141305-xx Adapter for the X-series feeder modules
Item no. 00141308-xx Adapter plate for Reject Conveyor
Item no. 00141310-xx Adapter plate for SIPLACE label presenter module
3
The spectrum of X tape feeder modules has been extended to include linear vibratory feeders,
label presenter modules and reject conveyors (disposal module). An adapter allows S linear vi-
bratory feeders, label presenter modules and reject conveyors to be set up for use on X-series CO
trolleys. The adapter performs electronic as well as mechanical functions: it converts the commu-
nication signals from the S feeder into signals conforming to the extended X-series protocol. Ad-
ditional functions, such as feeder module identification, have also been implemented.
PLEASE NOTE 3
S linear vibratory feeders, label presenters and reject conveyors cannot be set up on component
trolleys if they have a SpeedStar (C&P20) in the access range.
3.9.4.1 Feeder module adapter for the X-series with label presenter module
3
Fig. 3.9 - 14 Feeder module adapter for the X-series with label presenter module
(1) Adapter for the X-series feeder modules (item no. 00141305-xx)
(2) Adapter plate for SIPLACE label presenter module (item no. 00141310-xx)
(3) Label presenter module
User manual SIPLACE X-series Technical data for the machine
From software version SR.70x.xx 01/2011 EN edition X feeder modules
189
3.9.4.2 Feeder module adapter for the X-series with linear vibratory feeder
PLEASE NOTE 3
An adapter plate is supplied as standard with the adapter for X-series feeder modules:
– The adapter plate should be used for component heights up to 16.5 mm.
– Component heights between 16.5 mm and 25 mm are processed without an adapter
plate.
3

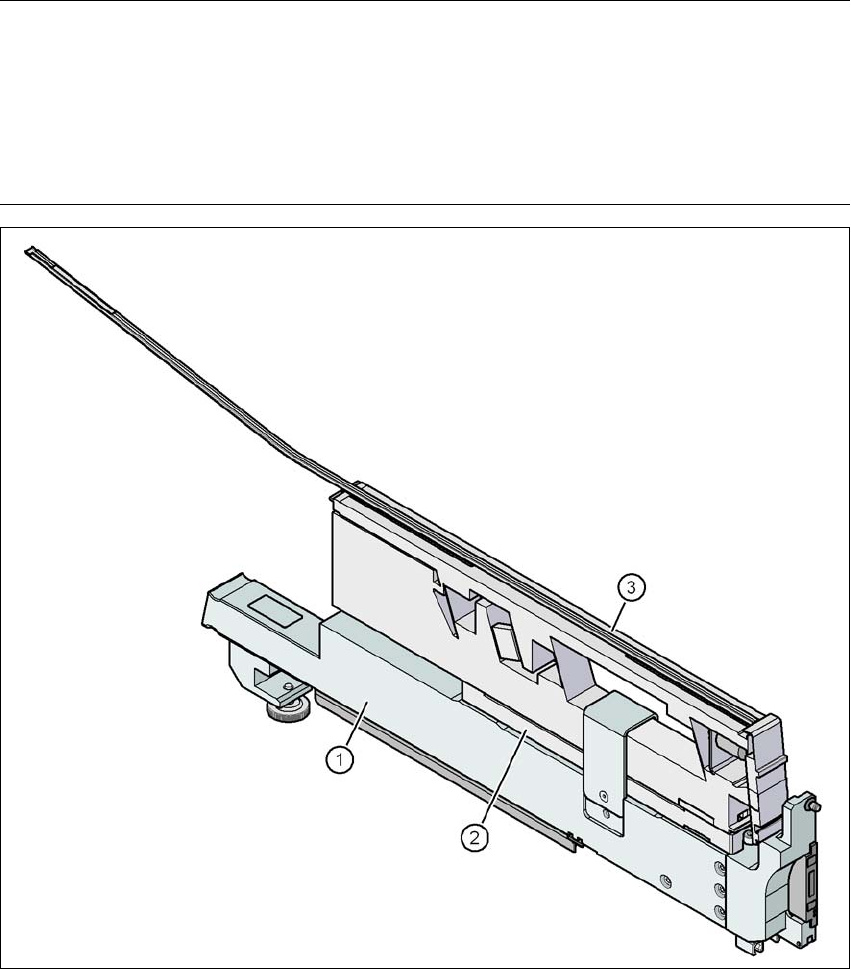

Fig. 3.9 - 15 Feeder module adapter for the X-series with linear vibratory feeder
(1) Adapter for the X-series feeder modules (item no. 00141305-xx)
(2) Adapter plate 16.5 mm (in the deliverables)
(3) Linear vibratory feeder, type 3 (item no. 00142031-xx)
Width 34.4 mm
Tracks per feeder 1, 2 or 3 3
Technical data for the machine User manual SIPLACE X-series
X feeder modules From software version SR.70x.xx 01/2011 EN edition
190
Feeder module locations filled 3 3
Stock of components Up to 150 per steel stick magazine, 3
depending on the component length 3
Specific data for stick magazines 9.5 mm wide / x 3 3
15 mm wide / x 2 3
> 15 mm wide / x 1 3
30 mm wide / 1 x 3
Vibrating time Variable with SIPLACE Pro from 400 to
over 1,000 ms 3
3.9.4.3 Feeder module adapter for the X-series with reject conveyor
3
Fig. 3.9 - 16 Feeder module adapter for the X-series with reject conveyor
(1) Adapter for the X-series feeder modules (item no. 00141305-xx)
(2) Adapter plate for Reject Conveyor (item no. 00141308-xx)
(3) Reject conveyor
