3.10.4 Fiducials on the component trolleys from the SIPLACE X-series
3

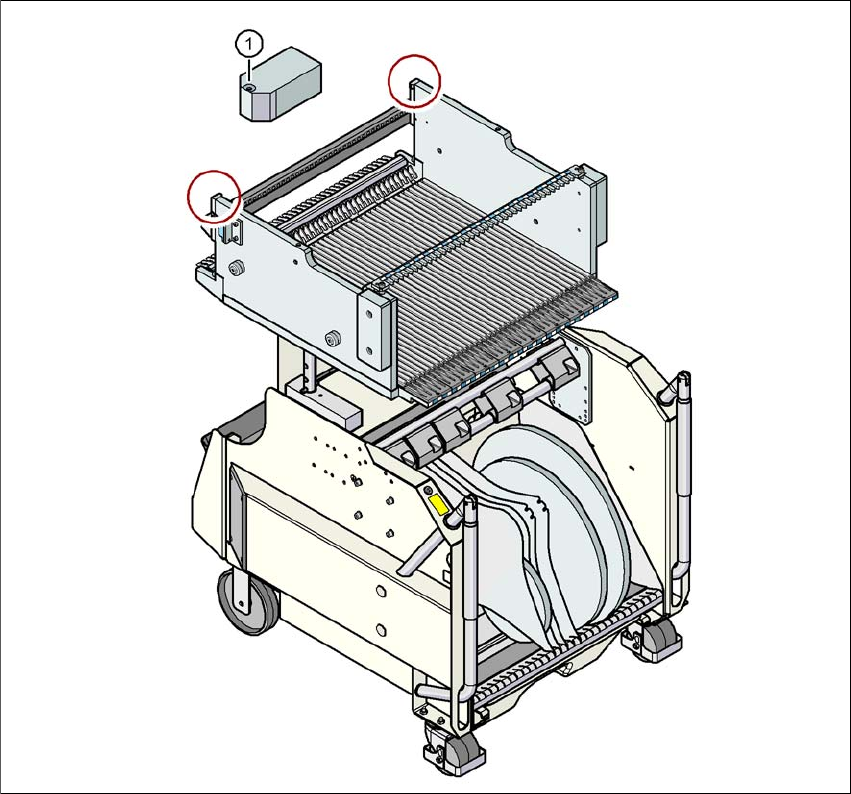

Fig. 3.10 - 4 Fiducials on the component trolleys from the SIPLACE X-series
(1) Fiducials on the component trolley
Once the SIPLACE X-series component trolley has been docked in, the machine measures the
fiducials on the component trolley.
For components with an edge length of less than 0.5 mm, i.e. 0402 components and smaller, the
position of the component is determined with the tape pocket before the first component is picked
up.
User manual SIPLACE X-series Technical data for the machine
From software version SR.70x.xx 01/2011 EN edition SIPLACE X-series component trolley
201
3.10.5 Dimensions of the component trolley, SIPLACE X-series
3

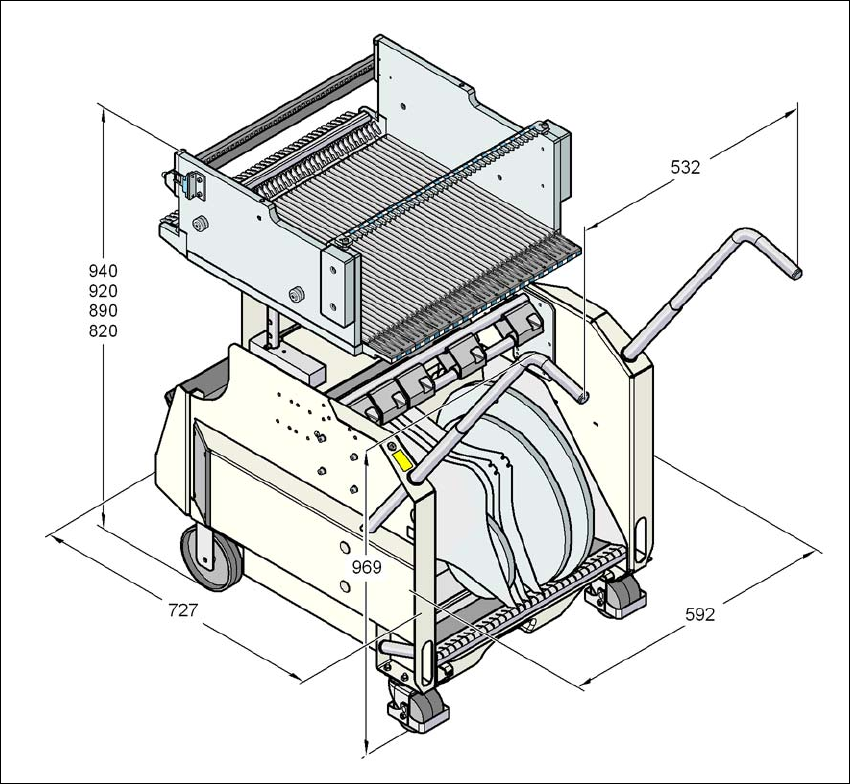

Fig. 3.10 - 5 Dimensions of the component trolley, SIPLACE X-series, all dimensions in millimeters
Technical data for the machine User manual SIPLACE X-series
SIPLACE X-series component trolley From software version SR.70x.xx 01/2011 EN edition
202
3.10.6 SIPLACE X-series component table
The front slider guides of the feeder modules are placed on the insertion aid (item 1 in Fig.
3.10 - 6
). As it is pushed in, the guides of the feeder module (item 12 and 13 in Fig. 3.9 - 2, page
173
) slide on the guide profile (item 2 in Fig. 3.10 - 6) as far as the stop bar (item 4 in Fig. 3.10 -
6). A centering hole (item 5 in Fig. 3.10 - 6, page ) on the stop bar holds the "front" centering pin
(item 4 in Fig. 3.9 - 1
, page 172) of the X feeder module. At the same time, the locking latch (item
1 in Fig. 3.10 - 7
, page 203) of the component table latches on the locking roller (item 1 in Fig. 3.9
- 1, page 172) of the feeder module. The "back" centering pin (item 12 in Fig. 3.9 - 1, page 172)
on the top of the feeder module is held by the recess in the centering bar (item 3 in Fig. 3.10 - 6
).
3

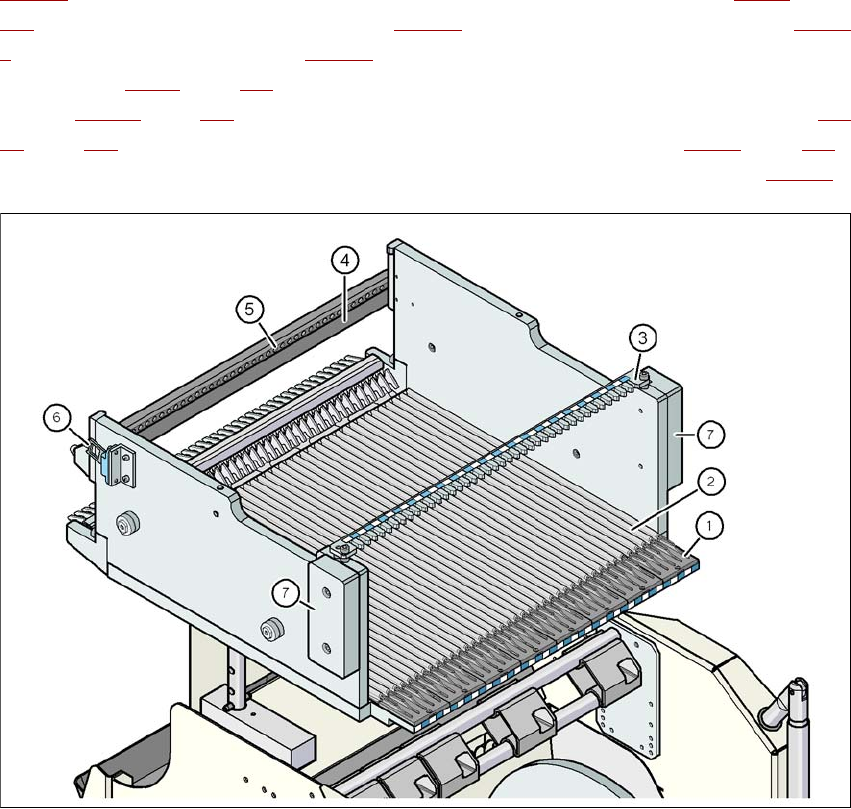

Fig. 3.10 - 6 Component table, SIPLACE X-series, back view
(1) Insertion aid
(2) Guide profile ( profile)
(3) Centering bar for holding the "back" centering pin for X feeder modules
(4) Stop bar
(5) Centering holes
(6) Contact for switching the safety switch of the emergency stop circuit
(7) Hand guard
