4.3.7.7 Fitting the "bottom" hand guard
The machines are supplied with just one "bottom" hand guard. If the machines are installed within
a line, then no hand guard is required between immediately adjacent output and input conveyors.
WARNING 4
Always fit the "bottom" hand guard (item no. 03045426-xx) on the input side of the first machine
and on the output side of the last machine of a line using 4 hexagon socket head screws M4x12.
This will prevent your personnel reaching into the machine without authorization.
4

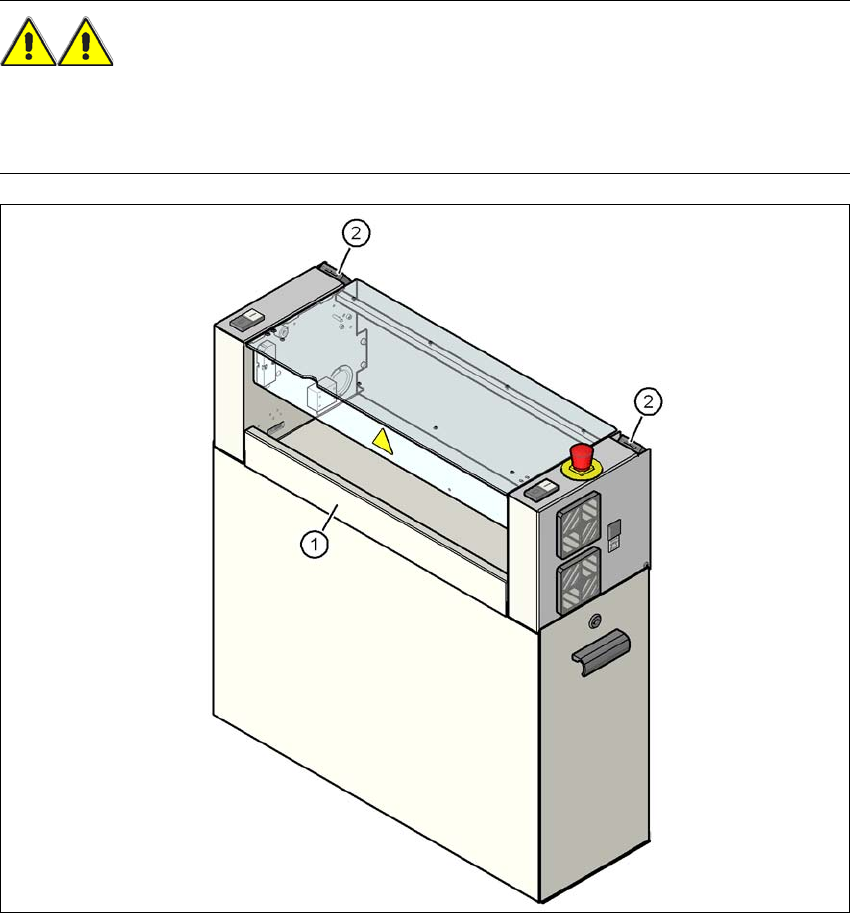

Fig. 4.3 - 10 Fitting the "bottom" hand guard on the PCB output side
(1) "Bottom" hand guard, item no. 03045426-xx
(2) Protective cover switch
Setting up and commissioning User manual SIPLACE X-series
Setting up the machine From software version SR.70x.xx 01/2011 EN edition
244
4.3.8 Installing the axis unit
4.3.8.1 Axis unit X2 (gantry 1 and gantry 3) - electrical connection points
4
Fig. 4.3 - 11 Axis unit X2 (gantry 1 and gantry 3), rear panel - electrical connection points
Plug
Plug
Plug
User manual SIPLACE X-series Setting up and commissioning
From software version SR.70x.xx 01/2011 EN edition Setting up the machine
245
4.3.8.2 Axis unit X2 (gantry 1 and gantry 3) - connecting the plugs
→ Connect the power cable as shown in the following diagram:
4
Axis unit, plugs Connecting cable Please note
Plug Cable
X41_1sq X41_1sq 03050899 Snap connector into place
X42_1sq X42_1sq 03050899 Snap connector into place
X45sq X45sq 03050900-W1 Snap connector into place
X46sq X46sq
03050900-W2
03050900-W3
Snap connector into place
X47sq X47sq
03050900-W4
03050900-W5
Snap connector into place
X01_3sq X4tr 03050891 Snap connector into place
X02_3sq X4tt 03050892 Snap connector into place
X05_3sq X4ur 03050901 Snap connector into place
X06_3sq X4ut 03050902 Snap connector into place
X01_1sq X1to 03009791 Insert as far as the stop
X02_1sq X3to 03009792 Insert as far as the stop
X03_1sq X5to 03009793 Insert as far as the stop
X04_1sq X1tp 03009794 Insert as far as the stop
X05_1sq X1uo 03009811 Insert as far as the stop
X06_1sq X3uo 03009812 Insert as far as the stop
X07_1sq X5uo 03009813 Insert as far as the stop
X08_1sq X1up 03009814 Insert as far as the stop
X09_1sq X3tp 03009795 Insert as far as the stop
X10_1sq X5tp 03009796 Insert as far as the stop
X11_1sq X3up 03009815 Insert as far as the stop
X12_1sq X5up 03009816 Insert as far as the stop
X03_3sq X03_3sq 03050893 Snap connector into place
X04_3sq X04_3sq 03050894 Snap connector into place
X07_3sq X07_3sq 03050903 Snap connector into place
X08_3sq X08_3sq 03050904 Snap connector into place
