4.3.16 Machine foot clearances and the stationary PCB conveyor edges
4.3.16.1 Machine foot clearances and the stationary right conveyor edge for the
PCB single conveyor
4

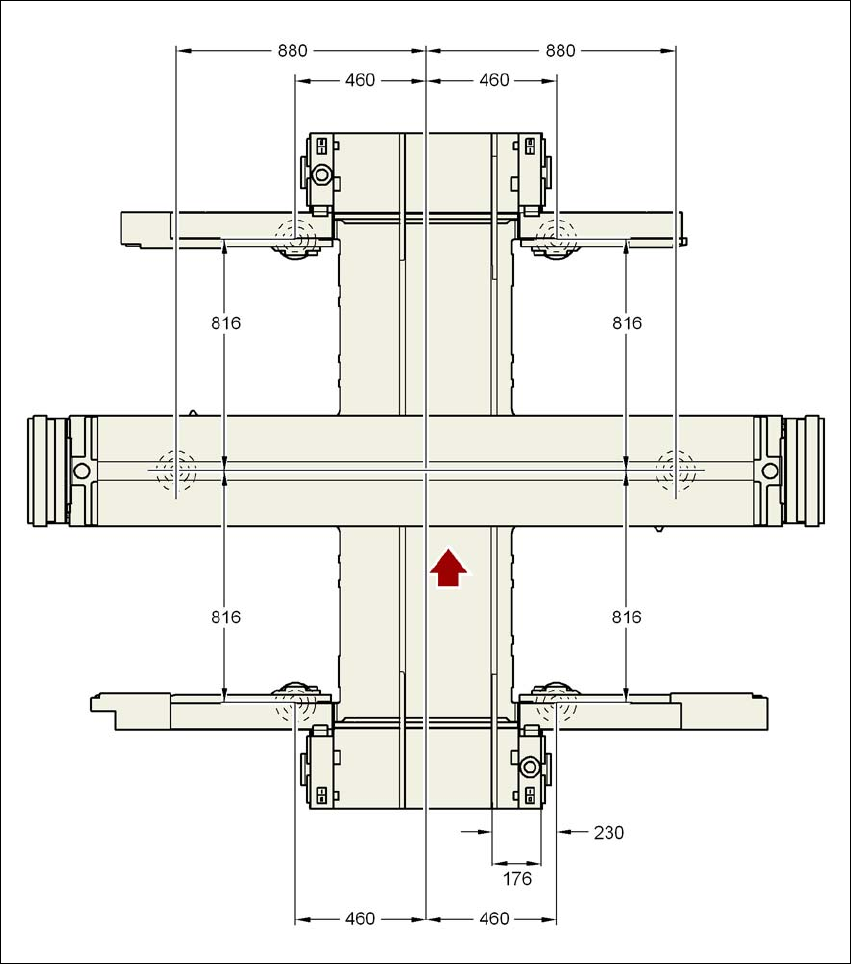

Fig. 4.3 - 23 Machine foot clearances and the stationary right conveyor edge for the PCB single conveyorin millime-
ters - standard transport width
User manual SIPLACE X-series Setting up and commissioning
From software version SR.70x.xx 01/2011 EN edition Setting up the machine
271
4.3.16.2 Machine foot clearances and the stationary left conveyor edge for the
PCB single conveyor
4

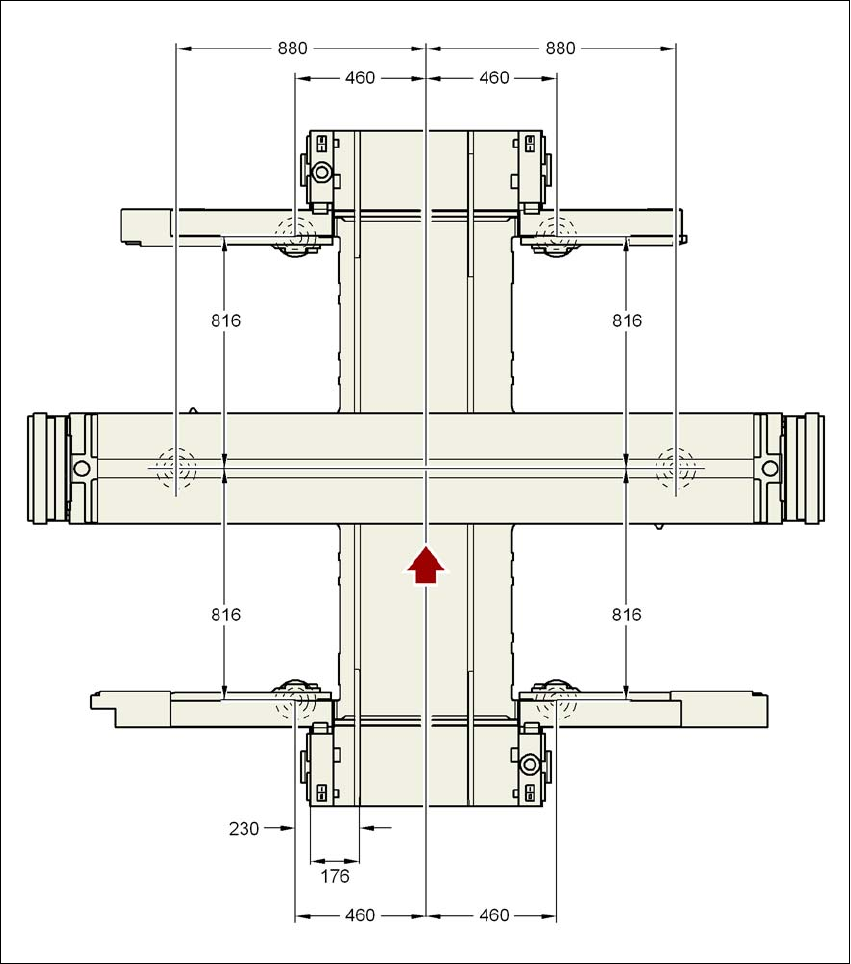

Fig. 4.3 - 24 Machine foot clearances and the stationary left conveyor edge for the PCB single conveyor
in millimeters - standard transport width
Setting up and commissioning User manual SIPLACE X-series
Setting up the machine From software version SR.70x.xx 01/2011 EN edition
272
4.3.16.3 Clearances of the machine feet and the stationary right conveyor edge
for the PCB dual conveyor
4

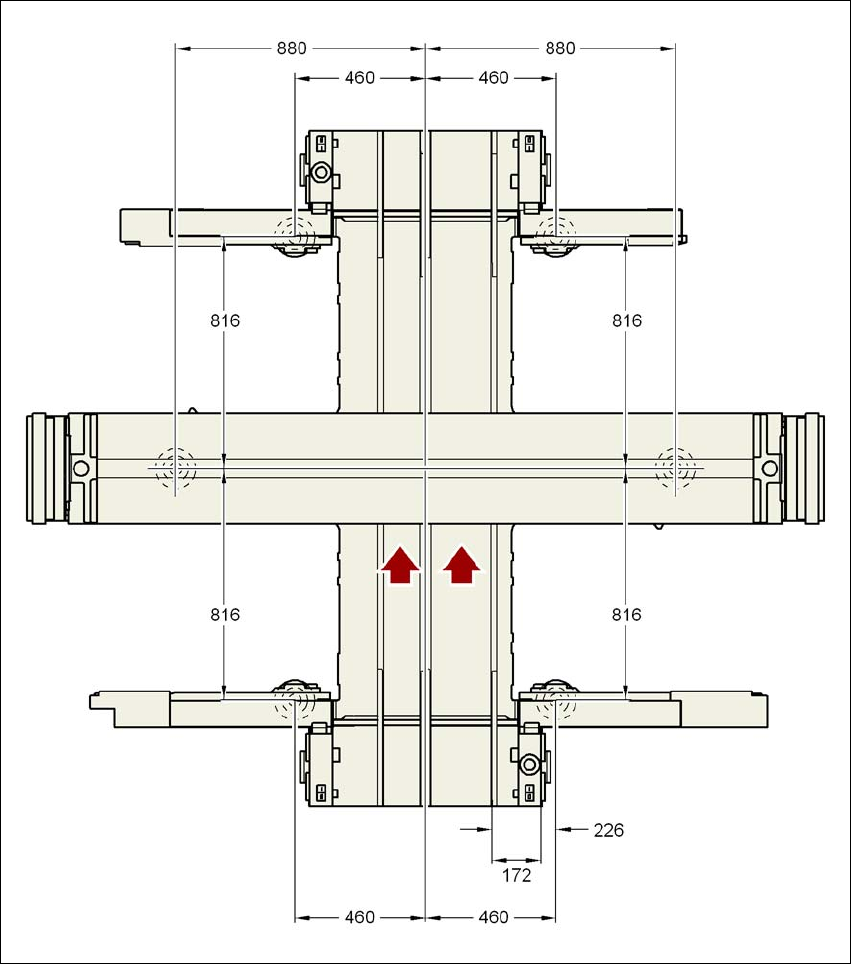

Fig. 4.3 - 25 Machine foot clearances and the stationary right conveyor edge for the PCB dual conveyor
in millimeters - standard transport width
