Setting up and commissioning User manual SIPLACE X-series Setting up the machine From software version SR.70x.xx 01/2011 EN edition 276 4.3.17 Integrating the machine into the line → Note the warning instructions describ…
User manual SIPLACE X-series Setting up and commissioning
From software version SR.70x.xx 01/2011 EN edition Setting up the machine
275
4.3.16.6 Machine foot clearances for the machine with MTC
4
4
4
4

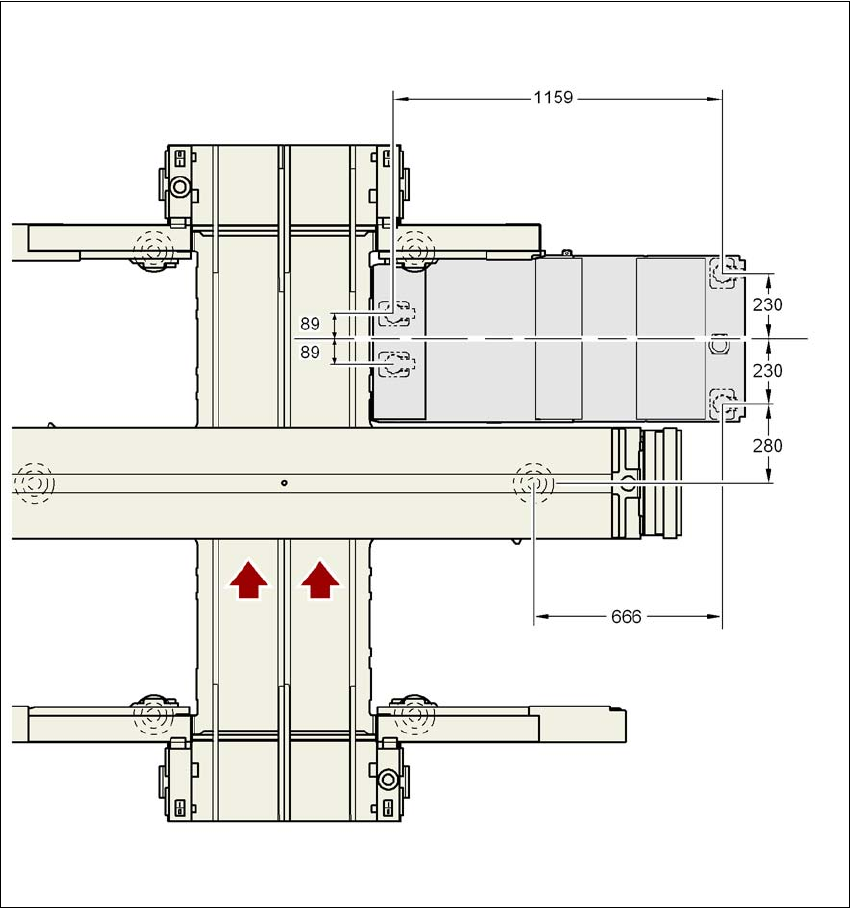

Fig. 4.3 - 28 Machine foot clearances for the machine and MTC in millimeters
Setting up and commissioning User manual SIPLACE X-series
Setting up the machine From software version SR.70x.xx 01/2011 EN edition
276
4.3.17 Integrating the machine into the line
→ Note the warning instructions described in Section 4.3.2, page 227.
→ The tools and equipment are listed in Section 4.3.3
, page 228.
4.3.17.1 Positioning the fork lift
4

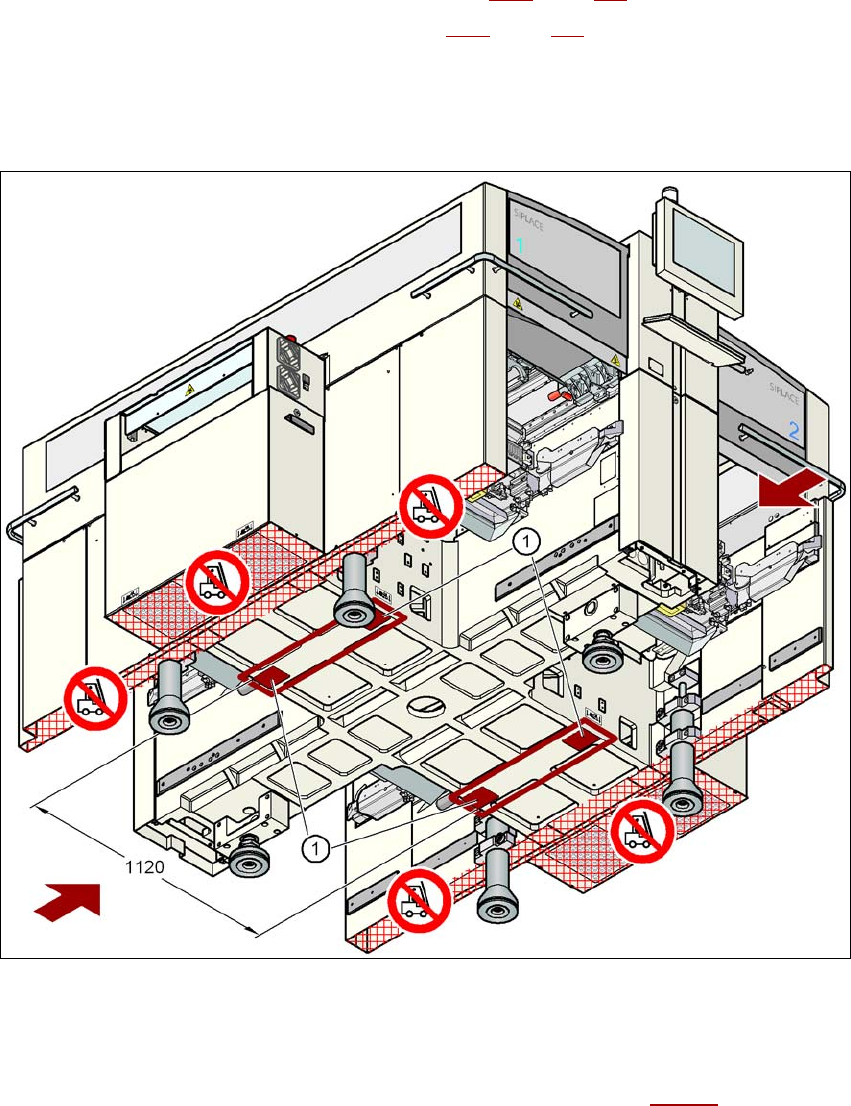

Fig. 4.3 - 29 Contact surfaces - Forks across the direction of PCB transport
(1) Contact surfaces for the forks of the fork-lift
→ Position the fork-lift across the direction of PCB transport and open the forks far enough so
that the machine's contact surfaces lies evenly on the forks (see Fig. 4.3 - 29
).
User manual SIPLACE X-series Setting up and commissioning
From software version SR.70x.xx 01/2011 EN edition Setting up the machine
277
WARNING 4
Please note the following points before you raise the machine in order to avoid irreversible dam-
age to the machine:
– The distance between the forks must be between 800 and 900 mm. The attachment surfaces
for the fork-lift are shown in Fig. 4.3 - 29
, page 276. The maximum distance between the con-
tact surfaces is 1120 mm. NEVER increase the distance between the forks so that the ma-
chine is lifted on the side parts of the machine frame, since this would deform the machine
frame.
→ Make sure that the forks are evenly loaded when you lift the machine. A firm support between
the forks and machine will prevent the machine tilting when it is raised. This will also prevent
a one-sided load on the machine feet, which would deform the fixing of the machine feet. We
recommend that a second person watch the machine as it is raised, and make sure that the
machine does not tip to one side when lifted with the fork-lift.
4.3.17.2 Points that MUST be noted when transporting the machine
WARNING 4
When you are transporting the machine, make sure that all the feet are clear of the floor. If they
are not clear, the feet will drag along the floor or bump into obstacles. This could damage the
machine foot fixing in the machine frame.
