User manual SIPLACE X-series Tasks on the machine
From software version SR.70x.xx 01/2011 EN edition Personnel profile
293
5.1.2 Operator level "Advanced production"
5.1.2.1 Training courses
A list of training courses can be found in Section 1.3, page 30.
5.1.2.2 Tasks
The line engineers should be assigned the following tasks:
– Acting as a contact for the operators
– Maintaining the machine log book
– Monitoring and carrying out preventive maintenance at the specified intervals
– Monitoring the workplace to ensure that it is clean and safe
– Monitoring conformity with ESD regulations
– Carrying out quality control
– Following up and reporting fault messages
– Making sure that errors have been eliminated
– Providing all materials required to produce the job in a timely manner, such as
–PCBs
– Splicing materials
– Soldering paste
– Components
– Feeder modules, etc.
– Setting up the station for a new production batch
– Checking the feeder module settings:
– Increment
– Pick-up position
– Checking the management data
– Checking the management data from MaDaMaS or OIS
– Asking the responsible programmers to modify placement programs
– Ensuring a smooth flow of information between the individual groups
Tasks on the machine User manual SIPLACE X-series
Personnel profile From software version SR.70x.xx 01/2011 EN edition
294
5.1.3 Operator level "Machine service"
5.1.3.1 Training courses
A list of training courses can be found in Section 1.3, page 30.
5.1.3.2 Tasks
The service personnel's duties include: 5
– Major preventive maintenance jobs
– Mounting replacement parts
– Editing machine data
– Calibrating the machine
5.1.4 Operator level "Programmer"
5.1.4.1 Training courses
A list of training courses can be found in Section 1.3, page 30.
5.1.4.2 Tasks
The programmer's jobs are as follows: 5
– Preparing CAD files
– Creating and calibrating vision data (teaching)
– Writing placement programs
– Implementing a new job
– Data maintenance
– Data backup
User manual SIPLACE X-series Tasks on the machine
From software version SR.70x.xx 01/2011 EN edition Controls and displays
295
5.2 Controls and displays
5.2.1 Position
5

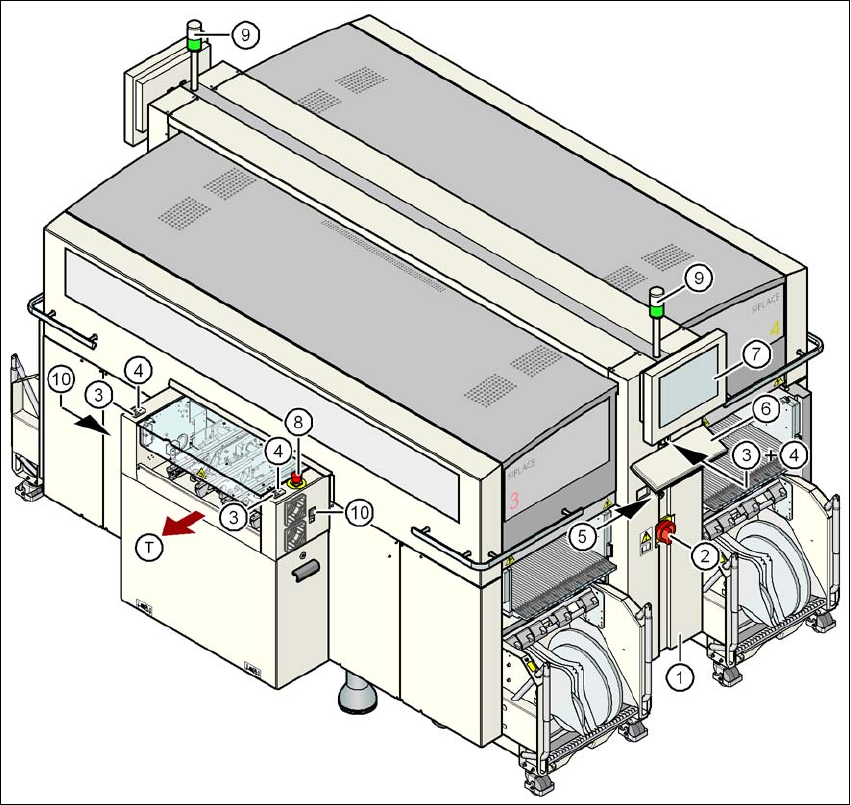

Fig. 5.2 - 1 Controls and displays
(1) Operator panel on the power supply side (7) LCD touchscreen
(2) Main power switch (8) EMERGENCY STOP button
(3) Stop button (black) (9) Indicator lamps
(4) Start button (white) (10) Buttons for docking the component
trolley in and out
(5) Component counter
(6) Keyboard (T) Direction of PCB transport
