Station extensions User manual SIPLACE X-series
Nozzle changer From software version SR.70x.xx 01/2011 EN edition
354
6.1.1.4 Position of the nozzle changers for the SIPLACE SpeedStar on the X4
One or two nozzle changers may be installed at locations 1, 2, 3 and 4 for the SpeedStar (items
1 and 2 in Fig. 6.1 - 3
). This gives a total capacity of 8 nozzle changers with 48 magazines and a
total of 576 nozzle holders.
6

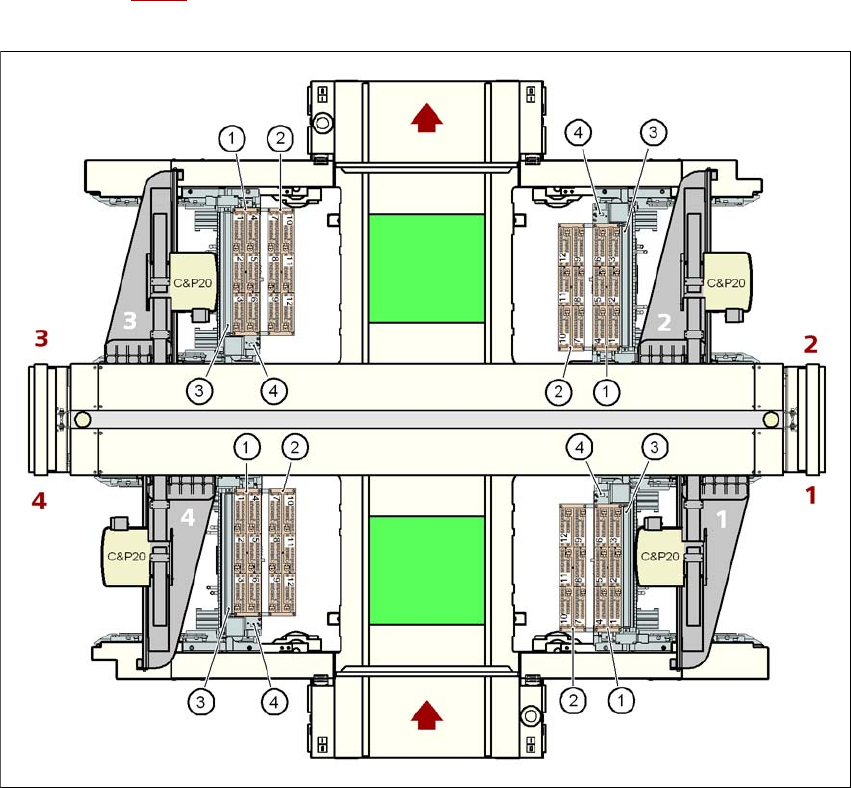

Fig. 6.1 - 3 Position of the nozzle changers for the SIPLACE SpeedStar on the X4 machine
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
User manual SIPLACE X-series Station extensions
From software version SR.70x.xx 01/2011 EN edition Nozzle changer
355
6.1.1.5 Position of the nozzle changers for the SIPLACE SpeedStar on the X3
One or two nozzle changers may be installed at locations 1, 3 and 4 for the SpeedStar (items 1
and 2 in Fig. 6.1 - 4
). One nozzle changer may be installed at location 2. This gives a total capacity
of 7 nozzle changers with 42 magazines and a total of 504 nozzle holders.
6

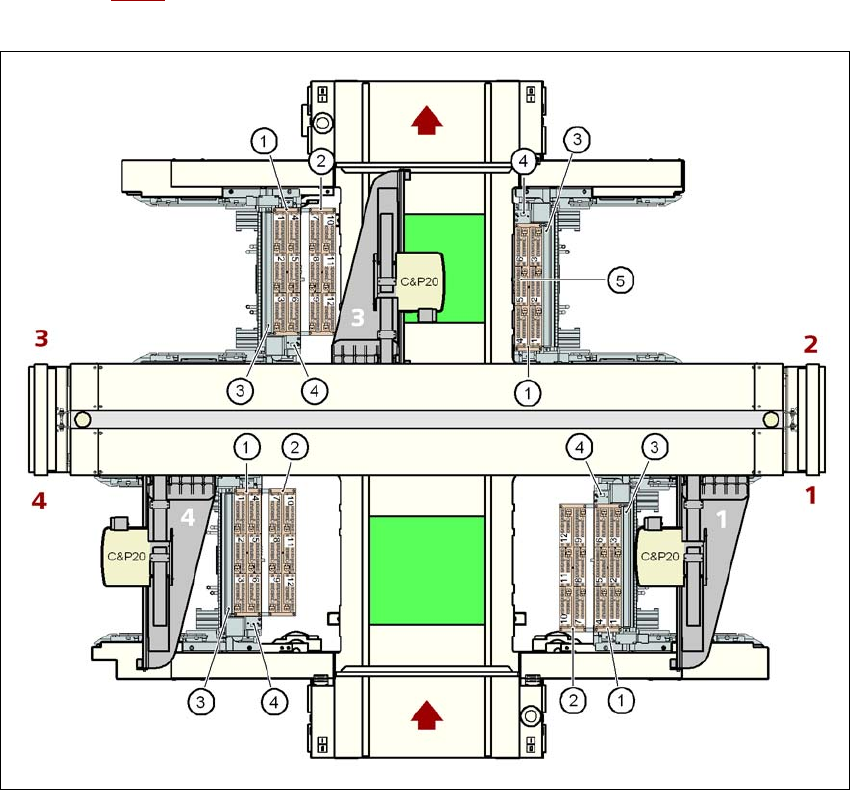

Fig. 6.1 - 4 Position of the nozzle changers for the SIPLACE SpeedStar on the X3 machine
6
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
Station extensions User manual SIPLACE X-series
Nozzle changer From software version SR.70x.xx 01/2011 EN edition
356
6.1.1.6 Position of the nozzle changers for the SIPLACE SpeedStar on the X2
1 or 2 nozzle changers may be installed at locations 1 and 3 for the SpeedStar (items 1 and 2 in
Fig. 6.1 - 5
). One nozzle changer may be installed at locations 2 and 4. This gives a total capacity
of 6 nozzle changers with 36 magazines and a total of 432 nozzle holders.
6

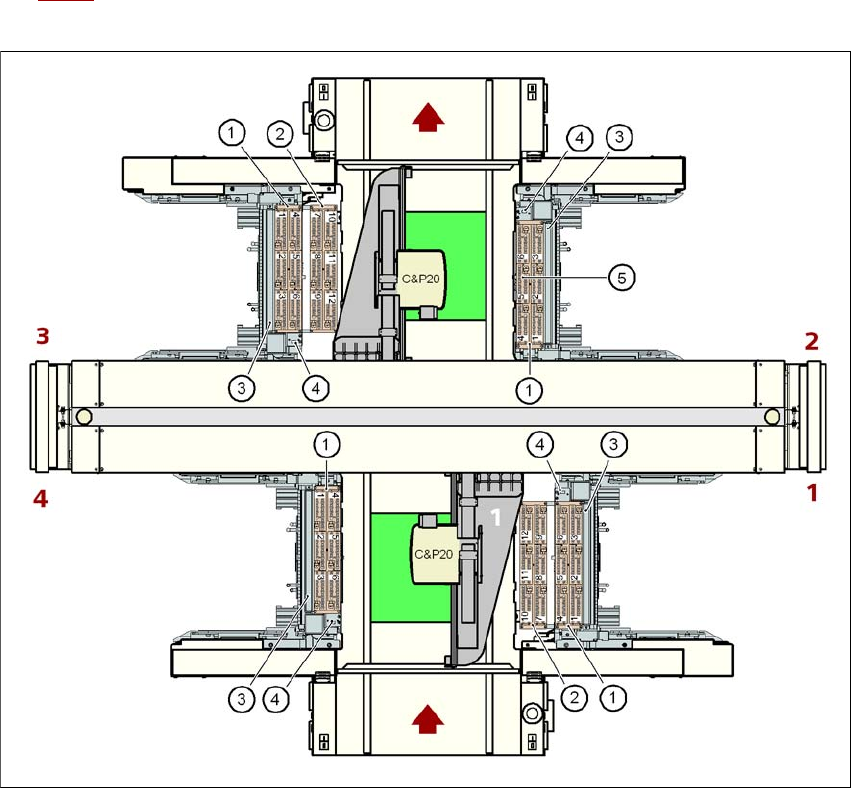

Fig. 6.1 - 5 Position of the nozzle changers for the SIPLACE SpeedStar on the X2 machine
6
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
