User manual SIPLACE X-series Station extensions
From software version SR.70x.xx 01/2011 EN edition Nozzle changer
363
nozzle station. Nozzles for both the MultiStar and the SpeedStar can be pulled off there and dis-
posed of in the reject bin.
Tab. 6.1 - 1 CPP nozzle changer configurations
6
6
6
Nozzle magazine for type 20-xx nozzles 6
6

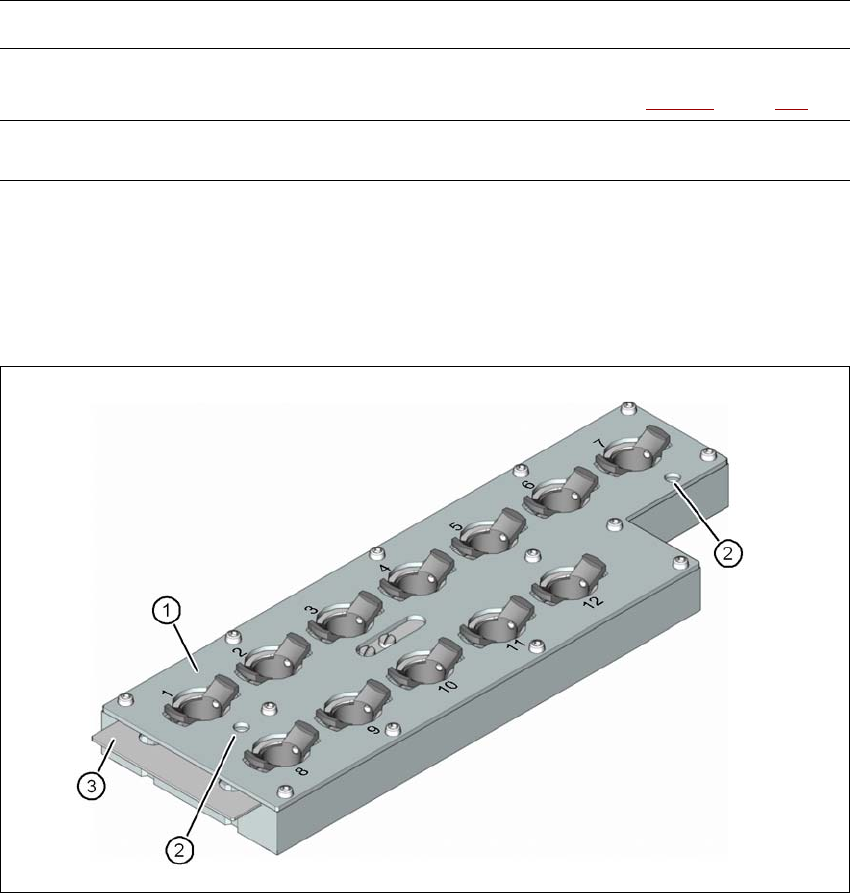

Fig. 6.1 - 11 Nozzle magazine for type 20-xx nozzles - locking plate open
(1) 12 holders for type 20-xx nozzles
(2) Fiducials (only visible if the locking plate is open)
(3) Locking plate
6
6
6
Placement head Nozzle magazine Comment
CPP head
5 magazines for type 20-xx nozzles standard configuration
1 magazine for type 28xx nozzles (see Fig. 6.1 - 10
, page 362)
C&P20 head
6 magazines for type 10xx, 11xx or
12xx nozzles
Station extensions User manual SIPLACE X-series
Nozzle changer From software version SR.70x.xx 01/2011 EN edition
364
Nozzle magazine for type 28xx nozzles 6
6
Fig. 6.1 - 12 Nozzle magazine for type 28xx nozzles
(1) 5 holders for 28xx nozzles with a maximum nozzle length of 12.5 mm
(holder numbers 1, 5, 6, 8 and 9)
(2) 4 holders for 28xx nozzles with a maximum nozzle length of 16.5 mm
(holder numbers 2, 3, 4 and 7)
(3) Fiducials (only visible if the locking plate is open)
User manual SIPLACE X-series Station extensions
From software version SR.70x.xx 01/2011 EN edition Nozzle changer
365
6.1.2.2 Technical data
6
6
6
6
6
6.1.2.3 Position of the nozzle changers for the SIPLACE MultiStar on the X4I
Nozzle changers may be installed at locations 1, 2, 3 and 4 for the CPP head (item 1 in Fig.
6.1 - 13
, page 366).
This gives the following nozzle changer configuration for the placement machine:
6
Nozzle changer for the SIPLACE MultiStar and SIPLACE SpeedStar
Dimensions (length x width x height) 449 x 94.5 x 55 mm³
Number of nozzle holders
Type 20xx 60
Type 28xx 9
Type 10xx, 11xx, 12xx 72
Nozzle types 20xx (CPP head)
28xx (CPP head)
10xx, 11xx, 12xx (C&P20 head)
Nozzle changeover time approx. 2 s per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
Location
Number of
nozzle magazines
Number of reserve
nozzle magazines
Number of nozzle
holders
1 5 x 20xx + 1 x 28xx - 60 x 20xx, 9 x 28xx
2 4 x 20xx 2 48 x 20xx
3 5 x 20xx + 1 x 28xx - 60 x 20xx, 9 x 28xx
4 4 x 20xx 2 48 x 20xx
