User manual SIPLACE X-series Station extensions From software version SR.70x .xx 01/2011 EN edition Nozzle changer 367 6.1.2.4 Position of the nozzle changers for the SIPLACE MultiS tar on the X4 One or two nozzle change…

100%1 / 448
Station extensions User manual SIPLACE X-series
Nozzle changer From software version SR.70x.xx 01/2011 EN edition
366
6
6

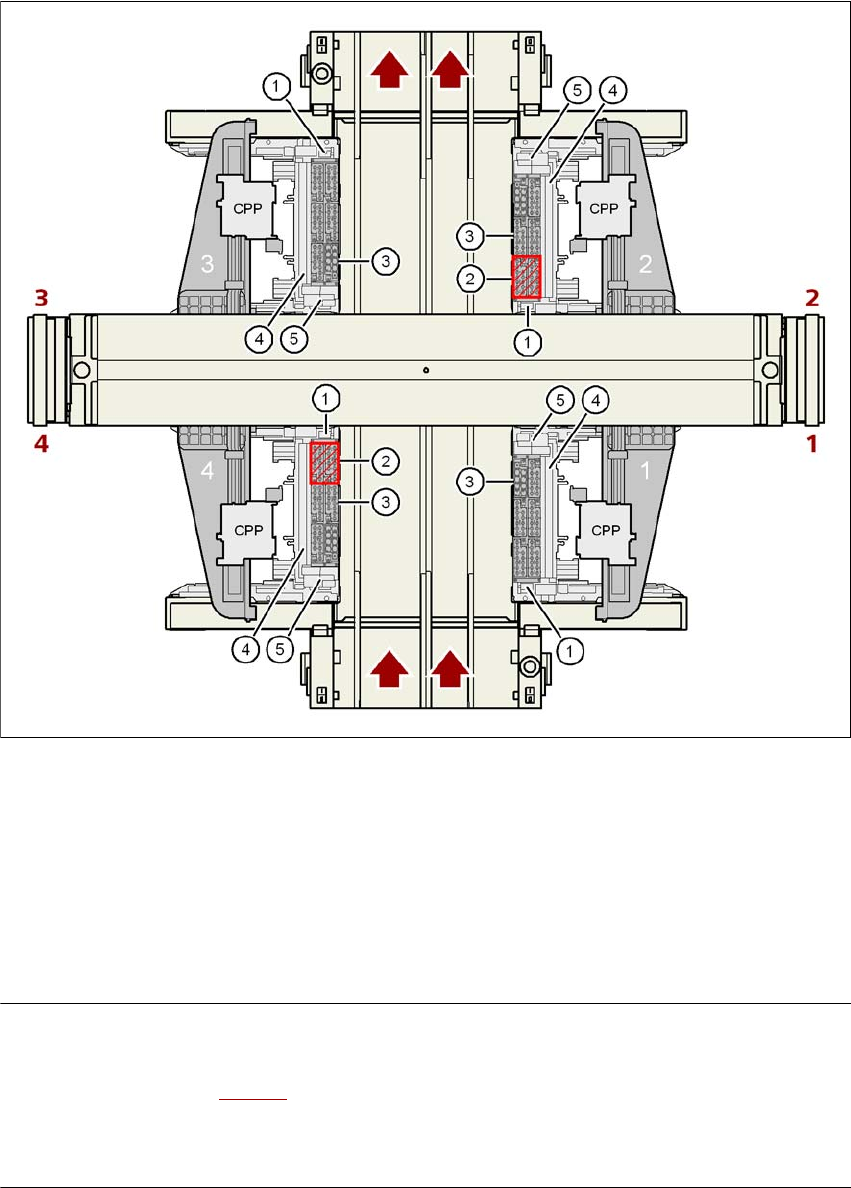

Fig. 6.1 - 13 Position of the nozzle changers for the SIPLACE MultiStar on the X4I machine
PLEASE NOTE: 6
– At locations 2 and 4, the placement heads are unable to access the two inner nozzle maga-
zines (item 2 in Fig. 6.1 - 13
).
– All magazine locations must be filled since the safety circuit stops the machine in response
to missing magazines or magazines that are not seated correctly.
(1) Nozzle changer
(2) Positions for reserve nozzle magazines (location 2 or 4)
(3) Nozzle magazine
(4) Reject bin for components
(5) Take-off device and reject bin for nozzles
User manual SIPLACE X-series Station extensions
From software version SR.70x.xx 01/2011 EN edition Nozzle changer
367
6.1.2.4 Position of the nozzle changers for the SIPLACE MultiStar on the X4
One or two nozzle changers may be installed at locations 1, 2, 3 and 4 for the CPP head (items 1
and 2 in Fig. 6.1 - 14
). This gives a total capacity of 8 nozzle changers.
In the standard configuration, the number of nozzle holders is:
40 magazines (20xx) = 480 nozzle holders
8 magazines (28xx) = 72 nozzle holders
6

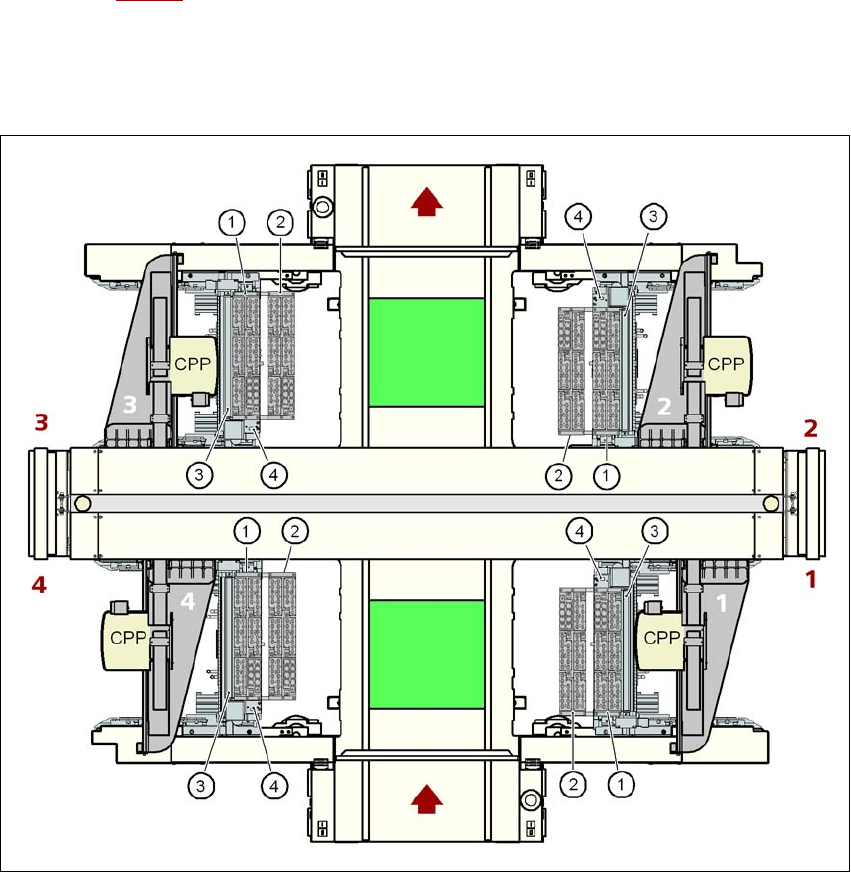

Fig. 6.1 - 14 Position of the nozzle changers for the SIPLACE MultiStar on the X4 machine
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
Station extensions User manual SIPLACE X-series
Nozzle changer From software version SR.70x.xx 01/2011 EN edition
368
6.1.2.5 Position of the nozzle changers for the SIPLACE MultiStar on the X3
One or two nozzle changers may be installed at locations 1, 3 and 4 for the CPP head (items 1
and 2 in Fig. 6.1 - 15
). One nozzle changer may be installed at location 2. This gives a total ca-
pacity of 7 nozzle changers.
In the standard configuration, the number of nozzle holders is:
35 magazines (20xx) = 420 nozzle holders
7 magazines (28xx) = 63 nozzle holders
6

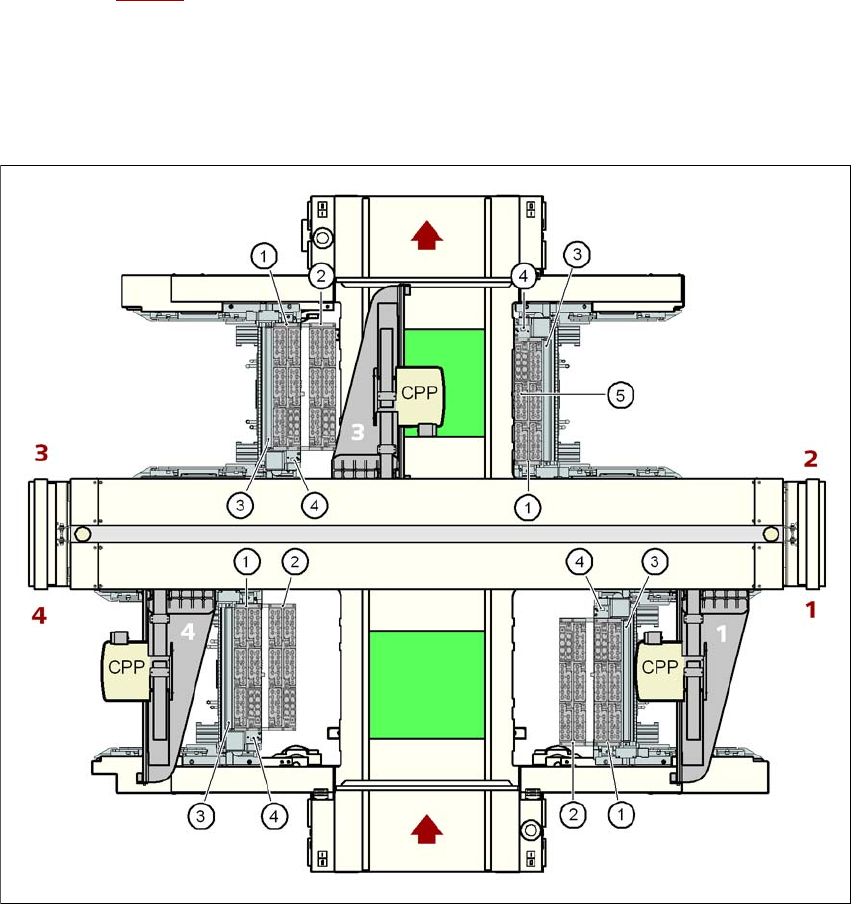

Fig. 6.1 - 15 Position of the nozzle changers for the SIPLACE MultiStar on the X3 machine
6
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
