6.1.3.5 Position of the nozzle changers for the TwinStar on the X2 machine
A nozzle changer may be installed for the TwinStar at locations 1 to 4.
Nozzle changer 1 at locations 1 and 3 (item 1 in Fig. 6.1 - 24
): 12 magazines each
Nozzle changer 2 at locations 2 and 4 (item 5 in Fig. 6.1 - 24
): 10 magazines each
This gives a total capacity of 4 nozzle changers with 44 magazines and a total of 88 nozzle hold-
ers.
6
Fig. 6.1 - 24 Position of the nozzle changers for the TwinStar on the X2 machine
(1) Nozzle changer 1 (TH)
(2) Standard magazine
(3) Magazine for special nozzles or grippers
(4) Component reject bin
(5) Nozzle changer 2 (TH)
PLEASE NOTE 6
No nozzle changer can be set up at location 4 if there is an MTC installed there.
User manual SIPLACE X-series Station extensions
From software version SR.70x.xx 01/2011 EN edition Nozzle changer
379
6.1.3.6 Assembly
The nozzle changer is fixed to the component trolley docking unit.
6

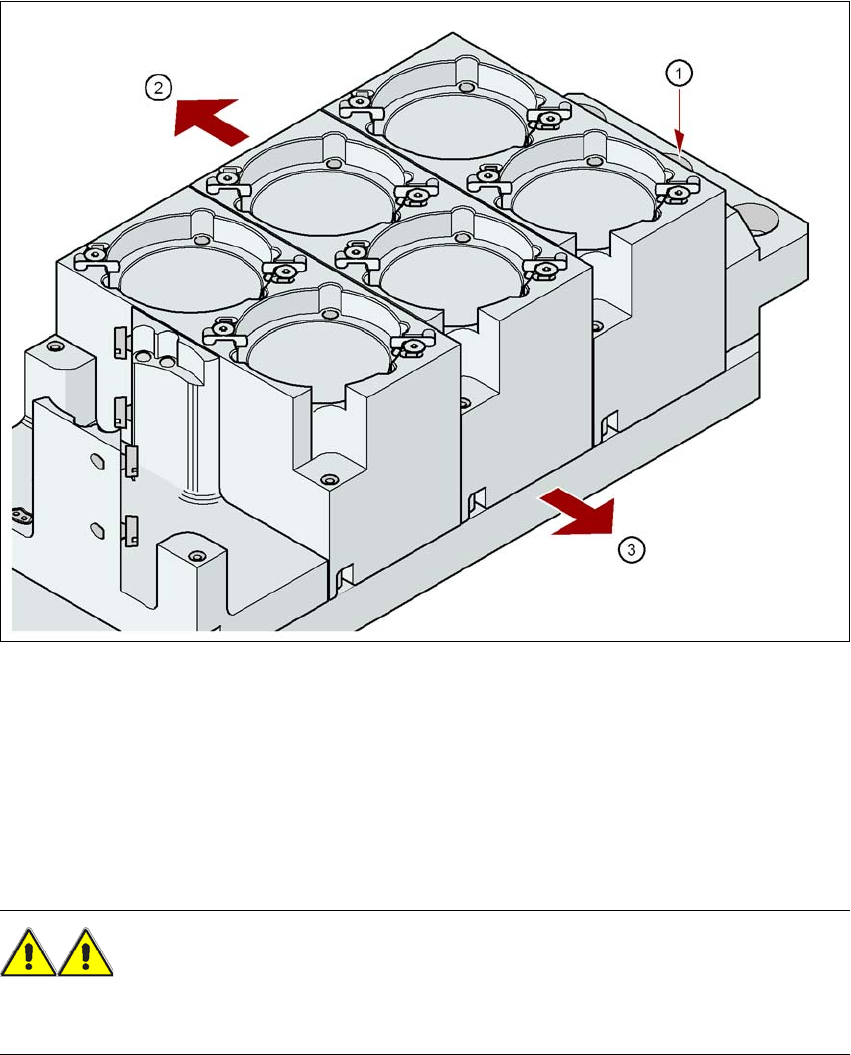

Fig. 6.1 - 25 Assembly position
(1) Marking hole
(2) Operator side
(3) Arrow pointing toward the PCB conveyor
6
→ Align the nozzle changer so that the marking hole (item 1) is on the left, as viewed by the op-
erator.
WARNING 6
Only install the associated nozzle changer for each placement head. There is a risk of head
crashes with mixed configurations.
Station extensions User manual SIPLACE X-series
Nozzle changer From software version SR.70x.xx 01/2011 EN edition
380
6.1.3.7 Nozzle changer for the TwinStar in the placement area with 2 gantries and
docked MTC
Item no. 00119747-xx Holder nozzle changer, TwinStar, X-series with MTC
The standard nozzle changer for the TwinStar cannot be used with a combination of TwinStar and
MTC in placement areas with two gantries. This affects the following locations:
– X4: locations 2 and 4
– X3: location 4
For this situation there is an optional nozzle changer for the TwinStar in the placement area with
2 gantries and docked MTC.
PLEASE NOTE 6
If you are using this nozzle changer option, please note that the maximum component size is 85
x 85 mm² or 125 x 10 mm².
6
Fig. 6.1 - 26 Nozzle changer for the TwinStar in the placement area with 2 gantries and docked MTC
