Station extensions User manual SIPLACE X-series
Matrix tray changer From software version SR.70x.xx 01/2011 EN edition
398
6.3.4.1 Dimensions
6

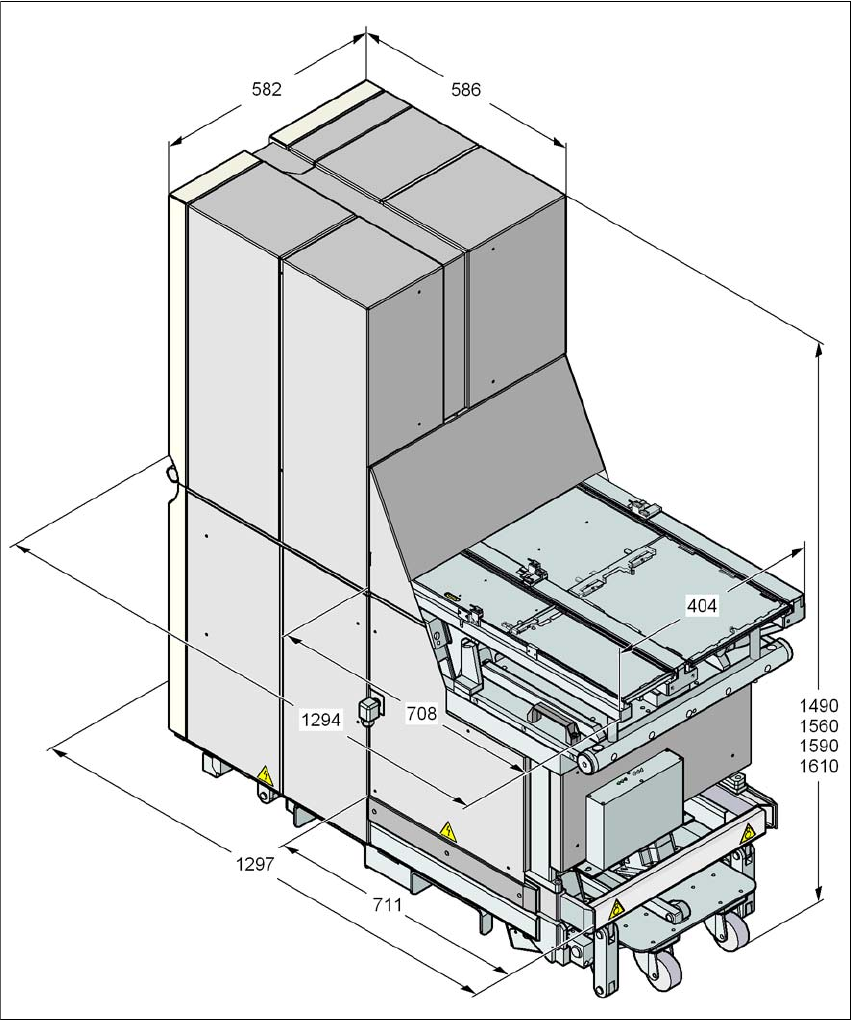

Fig. 6.3 - 1 Matrix tray changer, dimensions, all dimensions in millimeters
User manual SIPLACE X-series Station extensions
From software version SR.70x.xx 01/2011 EN edition Matrix tray changer
399
6.3.4.2 Controls
6

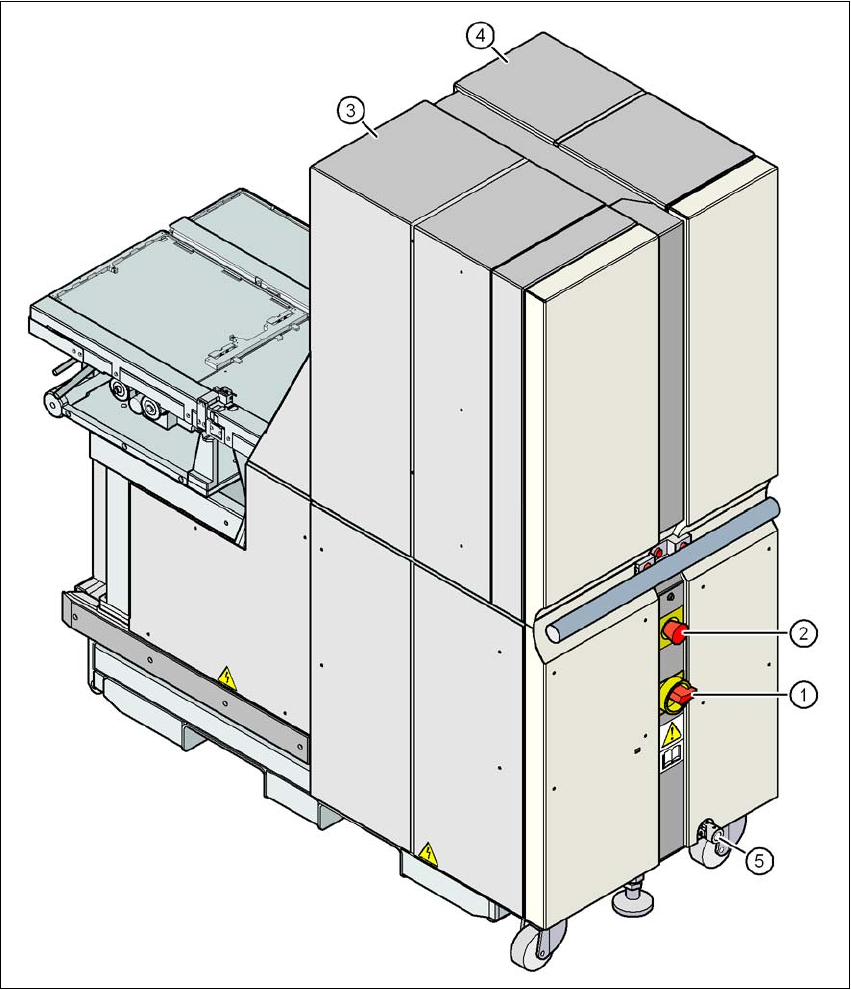

Fig. 6.3 - 2 Matrix tray changer, back view
(1) Main power switch
(2) EMERGENCY STOP button
(3) Tray supply 1 for holding up to 30 waffle-pack tray carriers (up to 60 JEDEC trays)
(4) Tray supply 2 for holding up to 40 waffle-pack tray carriers (up to 40 JEDEC trays)
(5) Point for attaching the crank for adjusting the height of matrix tray changer
Station extensions User manual SIPLACE X-series
Matrix tray changer From software version SR.70x.xx 01/2011 EN edition
400
6.3.5 X4 machine dimensions with MTC
6
6

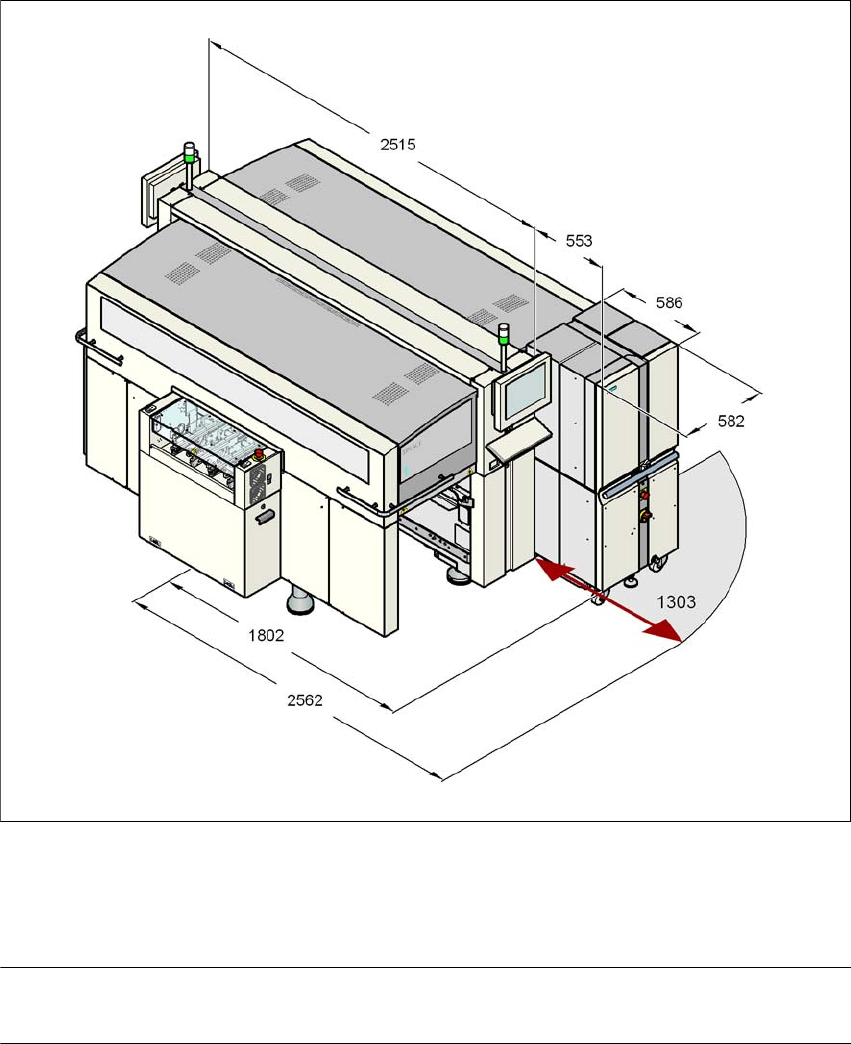

Fig. 6.3 - 3 Dimensions of the X4 machine with matrix tray changer in millimeters
6
PLEASE NOTE 6
A matrix tray changer may be docked in at locations 2 and 4 in place of a component trolley.
