User manual SIPLACE X-series Station extensions From software version SR.70x.xx 0 1/2011 EN edition Matrix tray changer 401 6.3.6 X3 machine dimensions with MTC 6 6 6 6 Fig. 6.3 - 4 Dimensions of the X3 machine with matr…
Station extensions User manual SIPLACE X-series
Matrix tray changer From software version SR.70x.xx 01/2011 EN edition
400
6.3.5 X4 machine dimensions with MTC
6
6

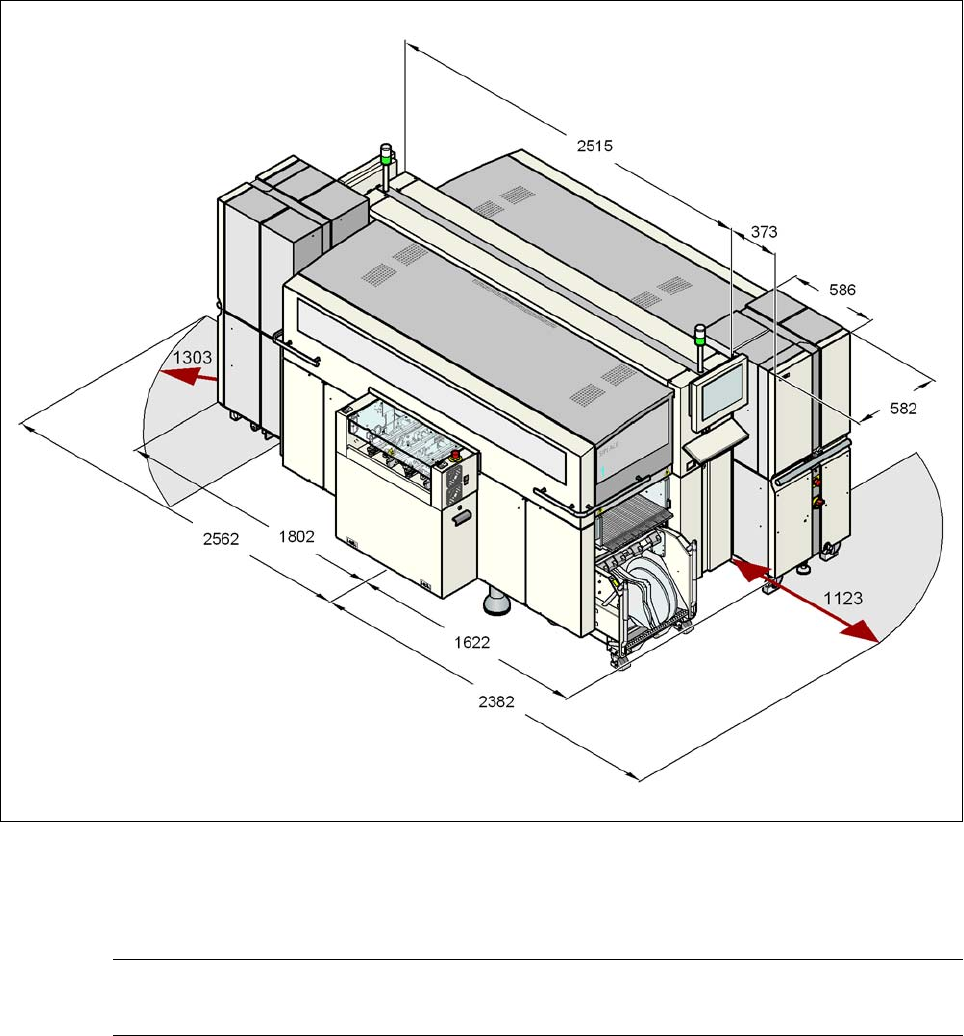

Fig. 6.3 - 3 Dimensions of the X4 machine with matrix tray changer in millimeters
6
PLEASE NOTE 6
A matrix tray changer may be docked in at locations 2 and 4 in place of a component trolley.
User manual SIPLACE X-series Station extensions
From software version SR.70x.xx 01/2011 EN edition Matrix tray changer
401
6.3.6 X3 machine dimensions with MTC
6
6
6
6

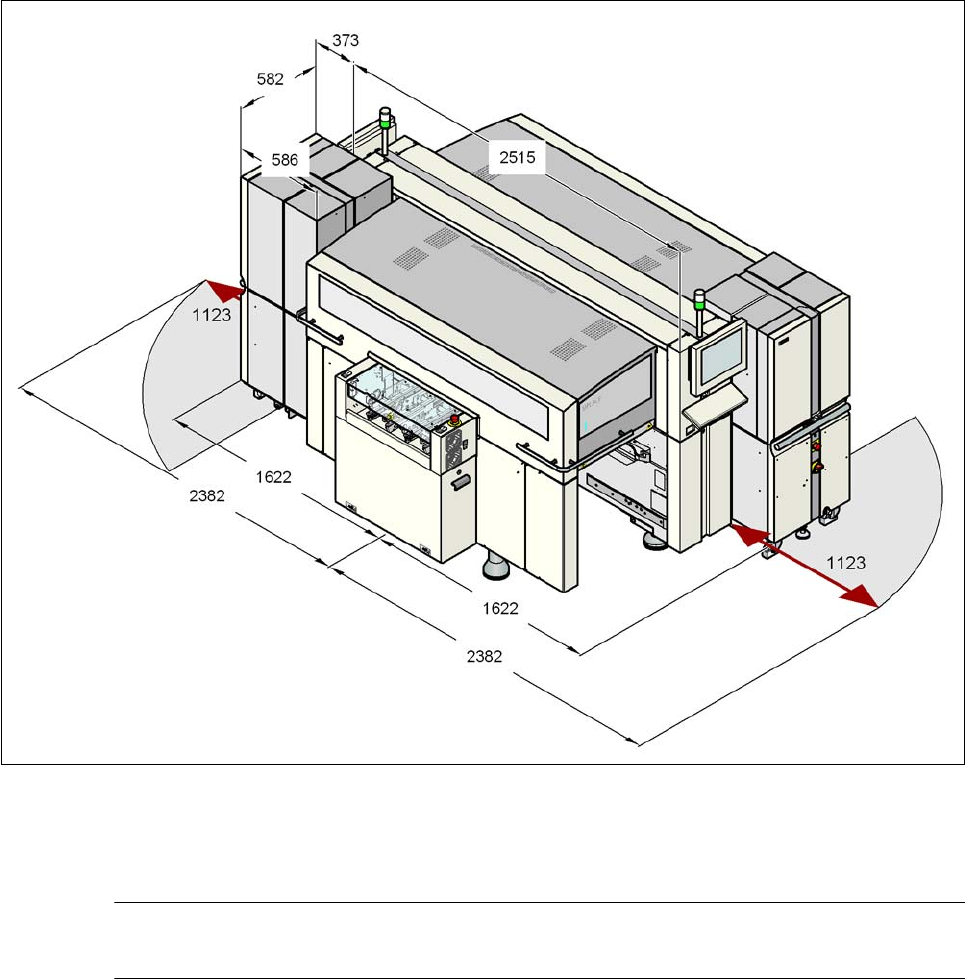

Fig. 6.3 - 4 Dimensions of the X3 machine with matrix tray changer in millimeters
6
PLEASE NOTE 6
A matrix tray changer may be docked in at locations 2 and 4 in place of a component trolley.
Station extensions User manual SIPLACE X-series
Matrix tray changer From software version SR.70x.xx 01/2011 EN edition
402
6.3.7 X2 machine dimensions with MTC
6
6
6
6
Fig. 6.3 - 5 Dimensions of the X2 machine with matrix tray changer in millimeters
6
PLEASE NOTE 6
A matrix tray changer may be docked in at locations 2 and 4 in place of a component trolley.
