Operational safety User manual SIPLACE X-se ries Warning labels From software version SR.70x.xx 01/2011 EN edition 48 2 Pos. W202 in Fig. 2.2 - 3 , page 47 , item no. 03009341-01 (number per X2 machine: 6, X3 machin e: 7…

100%1 / 448
User manual SIPLACE X-series Operational safety
From software version SR.70x.xx 01/2011 EN edition Warning labels
47
2.2.2 Warning labels on the gantries

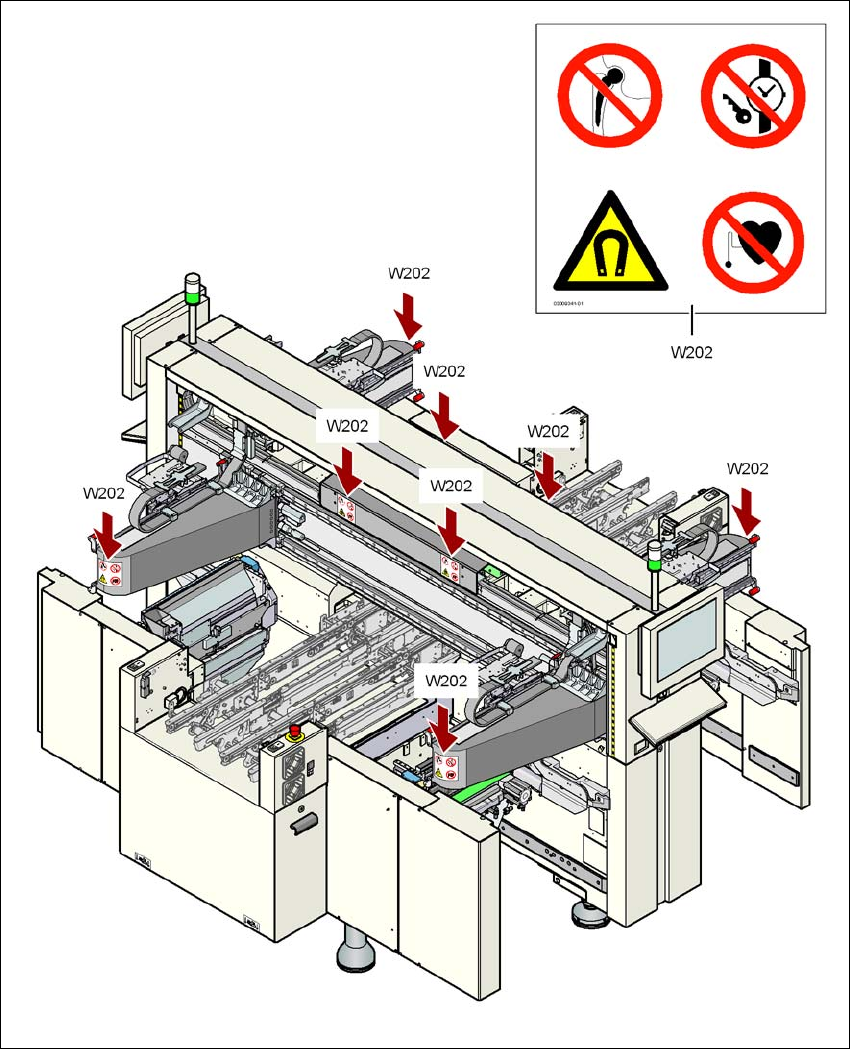

Fig. 2.2 - 3 Warning label W202 on the gantries
2
Pos. W202, item no. 03009341-01
Operational safety User manual SIPLACE X-series
Warning labels From software version SR.70x.xx 01/2011 EN edition
48
2
Pos. W202 in Fig. 2.2 - 3, page 47, item no. 03009341-01
(number per X2 machine: 6, X3 machine: 7, X4 machine: 8)
WARNING 2
Powerful permanent magnetic fields inside the machine
DANGER 2
Risk of death for persons with active implants (e.g. pacemakers, insulin pumps, defibrillators).
2
WARNING
Danger of crushing for persons with passive metal implants (e.g. plates, screws).
Do not reach into the machine or bend towards it when the protective covers are open.
Do not bring any metal objects into the area.
User manual SIPLACE X-series Operational safety
From software version SR.70x.xx 01/2011 EN edition Warning labels
49
2.2.3 Warning labels on tape cutter and used tape chute
2
Pos. W205 in Figs. 2.2 - 4, page 49, and 2.2 - 5, page 50, item no. 03009344-01 (number per ma-
chine: 8)
2.2.3.1 Warning label W205 on the top
2

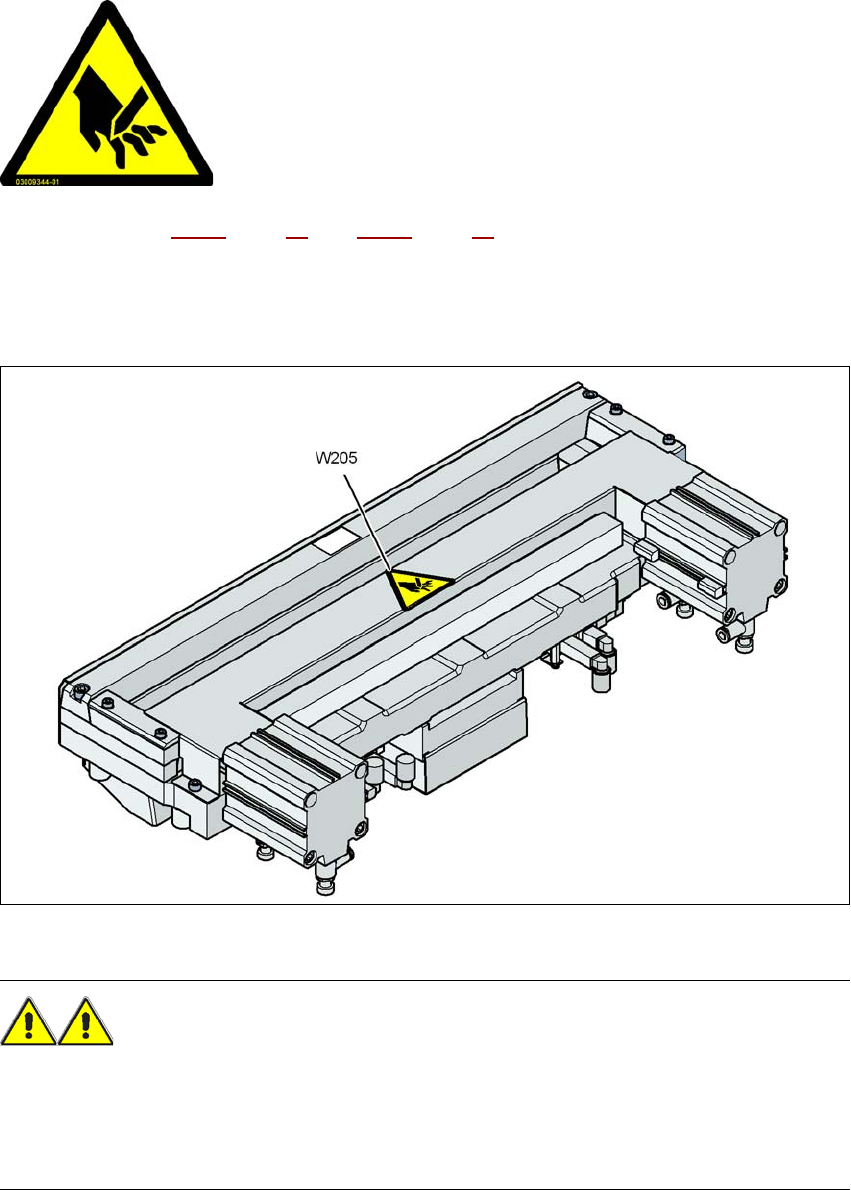

Fig. 2.2 - 4 Warning label W205 on the top of the tape cutter
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains supply
and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter. 2
2
2
2
2
2
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the machine is
switched off
