User manual SIPLACE X-series Operational safety From software version SR.70x.x x 01/2011 EN edition Warning labels 51 2.2.4 W arning labels on the power supply unit 2 Pos. W206 in Fig. 2.2 - 6 , page 51 item n o. 0300934…
Operational safety User manual SIPLACE X-series
Warning labels From software version SR.70x.xx 01/2011 EN edition
50
2.2.3.2 Warning label W205 on the used tape chute
2
Fig. 2.2 - 5 Warning label W205 on the used tape chute
User manual SIPLACE X-series Operational safety
From software version SR.70x.xx 01/2011 EN edition Warning labels
51
2.2.4 Warning labels on the power supply unit
2
Pos. W206 in Fig. 2.2 - 6, page 51 item no. 03009345-01 (number per machine: 1) and pos. W1

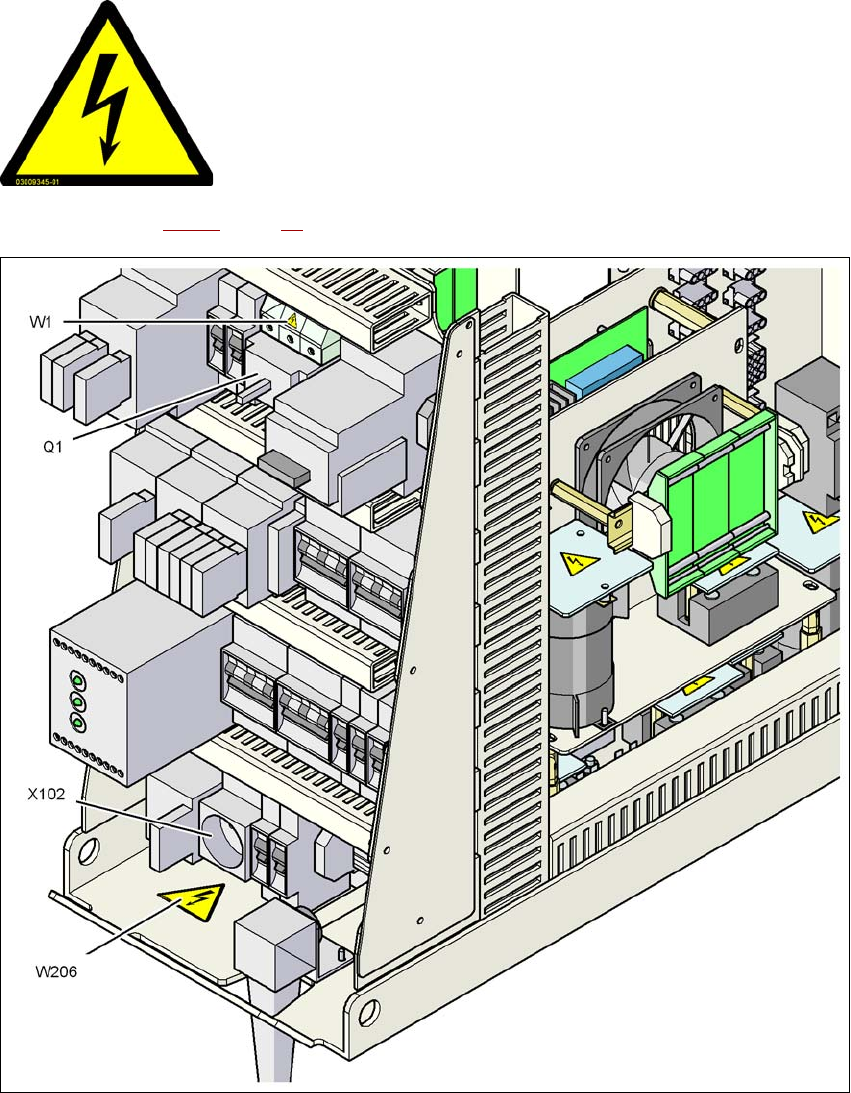

Fig. 2.2 - 6 Warning label W206 on service socket X102 and W1 on main power switch Q1
Pos. W206, item no. 03009345-01
Pos. W1, warning label on main power switch Q1
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
Operational safety User manual SIPLACE X-series
Warning labels From software version SR.70x.xx 01/2011 EN edition
52
2.2.4.1 Warning label W on the power supply unit
Fig. 2.2 - 7 Warning label W on the power supply unit
2
Pos. W in Fig. 2.2 - 7, page 52 (number per power supply unit: 8) see fig. 2.2 - 8 too, page 53.
