Operational safety User manual SIPLACE X-series
Warning labels From software version SR.70x.xx 01/2011 EN edition
56
2.2.5 Warning labels on the PCB conveyor
2
Pos. W208 "Laser class 2" on the PCB conveyor in Fig. 2.2 - 11, page 56, item no. 03009347-01
(number per machine: 4 for the dual conveyor, 2 for the single conveyor)
2
2
2

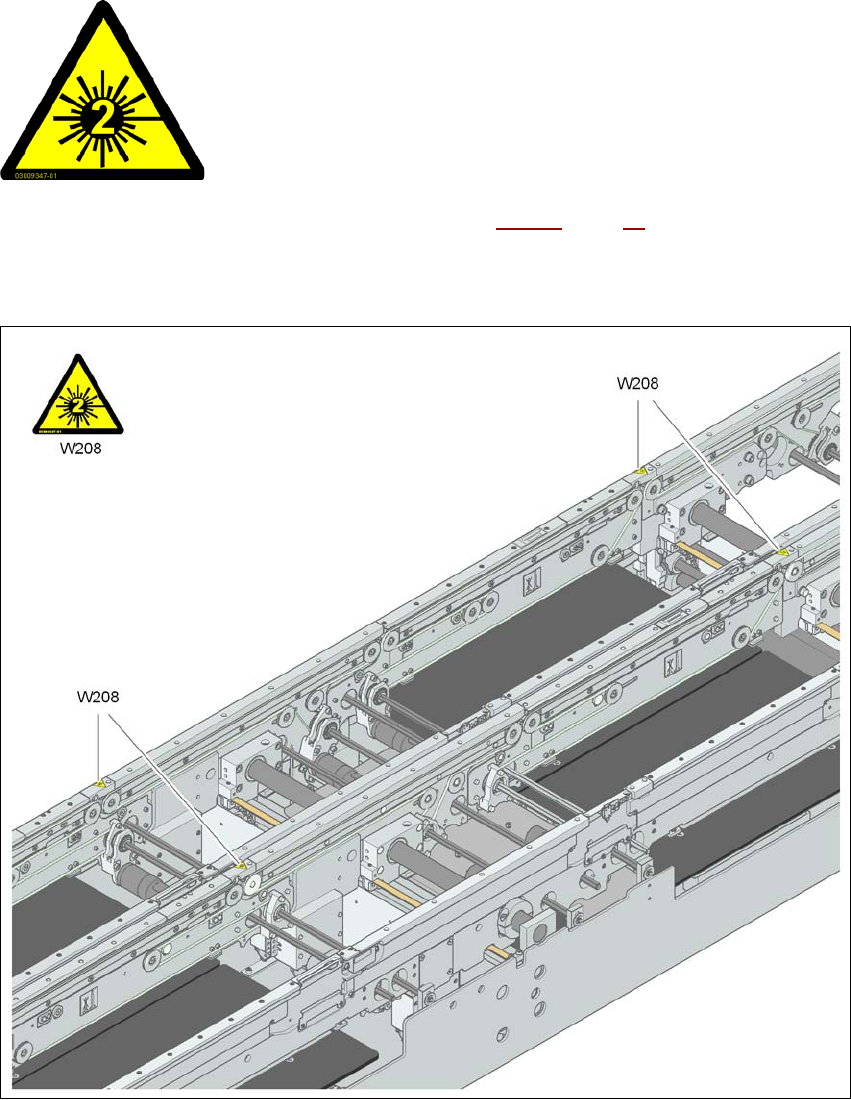

Fig. 2.2 - 11 Warning label W208 "Laser class 2" on the PCB conveyor
Pos. W208, item no. 03009347-01
2
2
LASER RADIATION!
Do not look into beam
Laser class 2
User manual SIPLACE X-series Operational safety
From software version SR.70x.xx 01/2011 EN edition Warning labels
57
2.2.6 Warning label on the CEKON plug
2
Pos. W 211 in Fig. 2.2 - 12, page 57 (number per machine: 1)
2

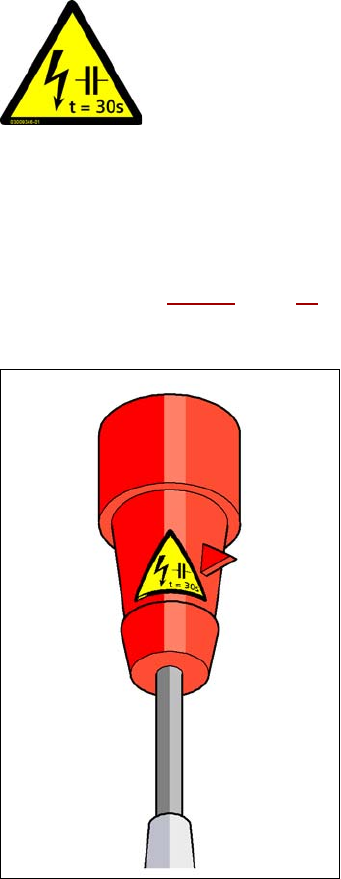

Fig. 2.2 - 12 Warning label W211 on the CEKON plug
Pos. W211, item no. 03009351-01
2
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains to
allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious in-
jury. Avoid contact with power plug and/or wire ends for 30 seconds
Operational safety User manual SIPLACE X-series
Warning labels From software version SR.70x.xx 01/2011 EN edition
58
2.2.7 Warning label on the emergency stop buttons
2
Pos. W209 in Fig. 2.2 - 13, item no. 03009349-01 (number per machine: 2)
2
2

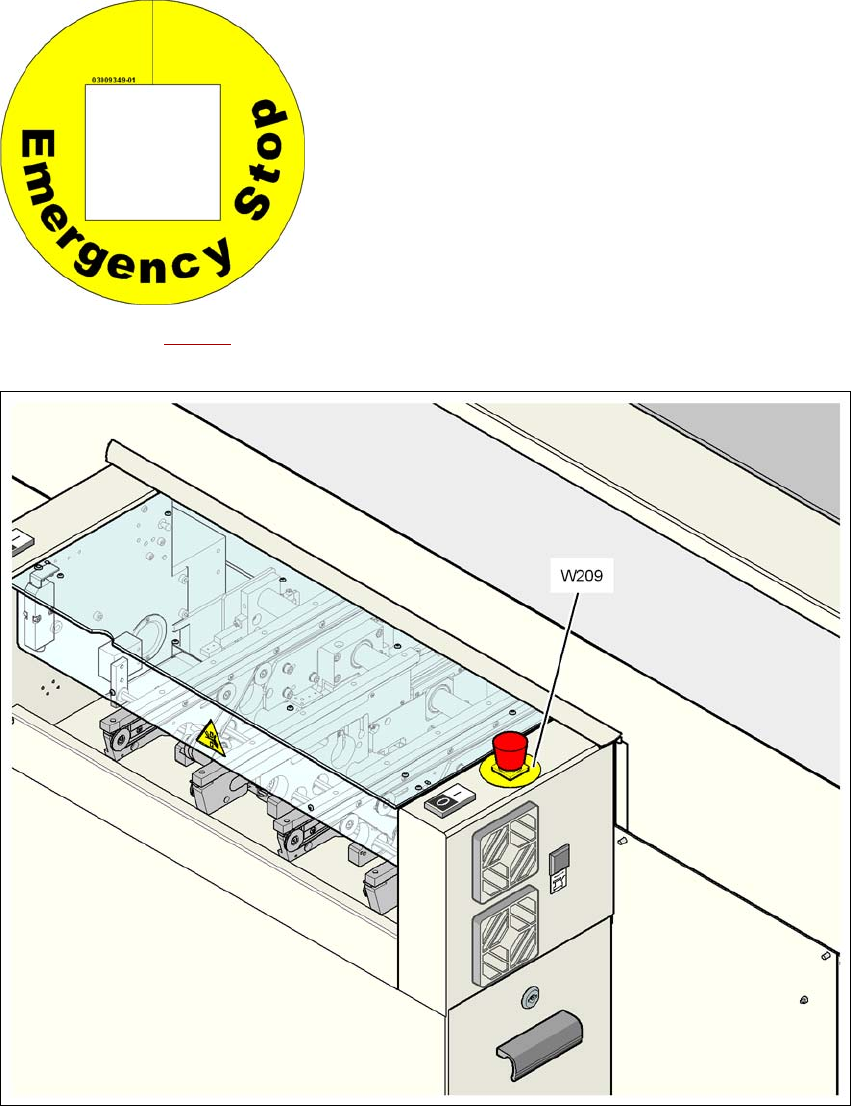

Fig. 2.2 - 13 Warning label W209 on the emergency stop buttons
Pos. W209, item no. 03009349-01
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA, warn-
ing label W209 is affixed to the extension kit in-
stead of the yellow ring on the emergency stop
buttons.
