User manual SIPLACE X-series Operational safety
From software version SR.70x.xx 01/2011 EN edition Safety equipment
79
2.6.3 Position of protective contactor combination and service socket
2
Fig. 2.6 - 6 Position of protective contactor combination and service socket
2
(1) Protective contactor combination
(2) Service socket
Operational safety User manual SIPLACE X-series
Safety equipment From software version SR.70x.xx 01/2011 EN edition
80
Protective contactor combination 3TK2806 (item 1 in Fig. 2.6 - 6, page 79) 2
The protective contactor combination is contained in the power supply unit. It is used to monitor
the emergency stop circuits and safety equipment.
There are three conditions that must be fulfilled in order to activate the protective contactor com-
bination:
– The "software enable" signal must have been sent.
– The emergency stop loop must be closed.
– The start button must have been pressed.
On the front panel of the protective contactor combination, there are three green operating display
LEDs (see Fig. 2.6 - 7
, page 81):
– The "Mains" LED indicates that voltage is present.
– The "Channel 1" and "Channel 2" LEDs light up if the start button was pressed, the emer-
gency stop loop is closed and the signaling circuit is not signaling a fault status.
Service socket (item 2 in Fig. 2.6 - 6, page 79) 2
The service socket is contained in the power supply unit and is protected by the cover. It can only
be used if the machine is connected to the main power supply via a 5-wire connection (L1, L2, L3,
N, and PE). If a 4-wire connection is used, e.g. without N, the socket cannot be used.
WARNING 2
Always follow the safety instructions concerning potentially lethal voltages - even when the
machine is switched off. (See Section 2.1.3 from page 38 onwards.)
User manual SIPLACE X-series Operational safety
From software version SR.70x.xx 01/2011 EN edition Safety equipment
81
2.6.4 Emergency stop loops and signaling circuit
2.6.4.1 Structure of the EMERGENCY STOP loops
The following contacts are connected in series and form the emergency stop loop:
– Normally open (NO) contacts for the four protective cover switches
– Normally open (NO) contacts in the two protective switches for the cover flaps over the PCB
conveyor
– Normally open (NO) contacts for the two emergency stop buttons
– Normally open (NO) contacts for the feeder module cover flaps (option)
– Normally open (NO) contacts for the four component trolleys
– Channels of the PCC K6 protective contactor combination
With emergency stop loop 2, the CAN bus signal from the signaling circuit (see Section 2.6.4.2
,
page 82
) is supplied to channel 2 of the protective contactor combination PCC K6. If the emer-
gency stop loop is closed, and the signaling circuit is not signaling a malfunction, then the two
green LEDs for channels 1 and 2 light up, in addition to the green mains power check LED of the
protective contactor combination.
2

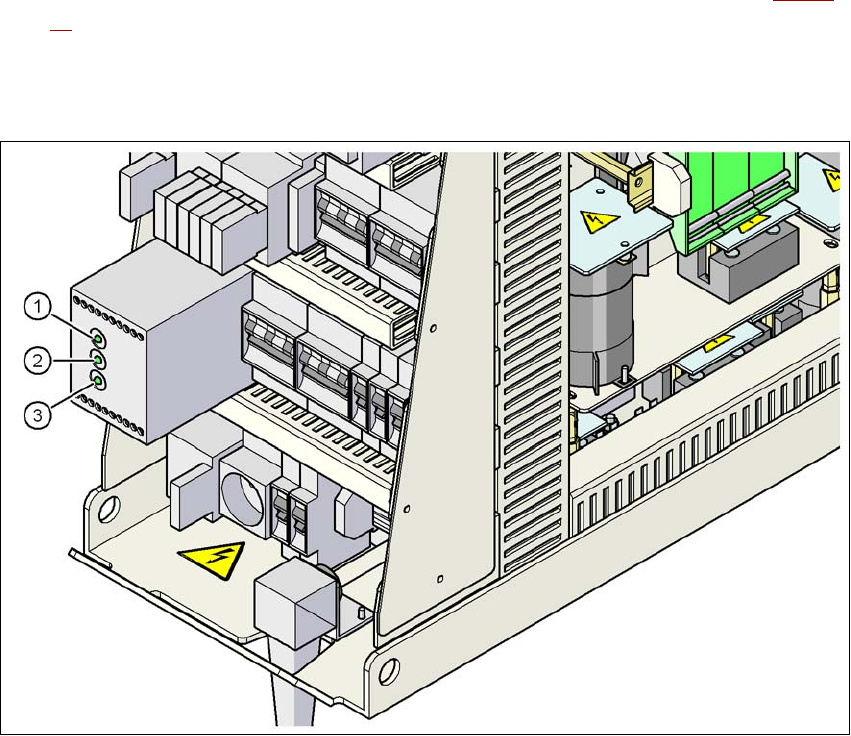

Fig. 2.6 - 7 Signal LED on the protective contactor combination
(1) Netz / Power
(2) Kanal 1 / Channel 1
(3) Kanal 2 / Channel 2
