3 2 T op Cover (Ceiling) / Conv .(UPS) Cover KMB-100-1607 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLF-M1306-A1 COVER6 ASSY . 1 2 KLF-M1305-01 COVER 6-1 1 3 KLF-M130H-02 COVER,F AN 1 4 KLF-M1…
2
2
Top Cover (Left side)
Cover
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M1302-03 COVER 2 1
2 KLF-M1301-03 COVER 1 1
3 KLF-M1321-00 BRKT,21 1
4 KLF-M1387-01 BRKT.,PAT LIGHT 1
5 KMB-M130B-00 COVER,SW 1
6 KLF-M13A3-00 COVER A3 1
7 KLF-M13A4-01 COVER A4 RH. 1
8 KLF-M13A4-51 COVER A4 LH. 1
9 KLF-M13A5-00 COVER A5 1
10 KLF-M131A-00 COVER A RH. 1
11 KLF-M131A-50 COVER A LH. 1
12 KLF-M131B-00 COVER B RH. 1
13 KLF-M131B-50 COVER B LH. 1
14 KLF-M1318-00 COVER 18 1
15 KLF-M133A-00 BRKT,LCD UNIT 1
16 KLF-M1307-00 COVER 2-2 1
17 KMB-M26FM-01 FRAME,1-1 2
18 KLF-M1372-01 COVER 72 1
19 KLF-M1335-00 BRKT.2,GATE COVER 2
20 KLF-M1332-01 BRACKET 2 1
21 KLF-M1333-02 BRKT. 1 2
22 KLF-M1336-00 RAIL,COVER 2
23 KV5-M1130-00 CATCH MG. 2
24 KMB-M130E-A0 USB BOX ASSY. 1
25 KLF-M13F1-01 COVER,CE R 1
26 KLF-M13F2-01 COVER,CE L 1
27 KLF-M13F3-00 GUIDE,FES. R 1
28 KLF-M13F4-00 GUIDE,FES. L 1
29 KMB-M13D6-00 SEAL 1(YSM40R) 1
30 90K41-001250 LABEL,WARNING 2
31 90K41-001260 LABEL,WARNING 1
32 KH1-M13A9-00 BUSH 1
33 90990-23J008 GROMMET 2
34 90990-01J074 BOLT HEX.SOCKET HEAD 8
35 90990-12J001 SCREW BIN.HEAD W/W 52
36 90990-12J004 SCREW BIN.HEAD W/W 6
37 90172-00J040 WASHER,EXTL.TOOTHED 36
38 91312-04005 BOLT HEX.SOCKET HEAD 13 M4X5
39 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
40 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
41 91312-05006 BOLT HEX.SOCKET HEAD 9 M5X6
42 91312-05008 BOLT HEX.SOCKET HEAD 12 M5X8
43 92902-04200 WASHER PLAIN 18
44 95702-04500 NUT FLANGE 17
45 98902-03005 SCREW BINDING HEAD 8
46 90990-23J006 GROMMET 1
47 KLF-M1375-00 COVER 75 1
48 KLF-M1376-00 COVER 76 1
35
35
39
9
12
1
11
35
35
35
35
35
36
36
26
30
40
28
19
18
42
36
35
35
6
35
35
35
35
35
35
42
22
35
35
27
40
35
33
35
35
35
35
2
4
15
34
31
25
23
45
38
3
10
5
29
32
14
21
16
42
38
37
21
20
37
37
44
44
37
44
46
37
44
22
42
45
23
17
24
37
38
35
43
13
17
8
7
47
48
3
2

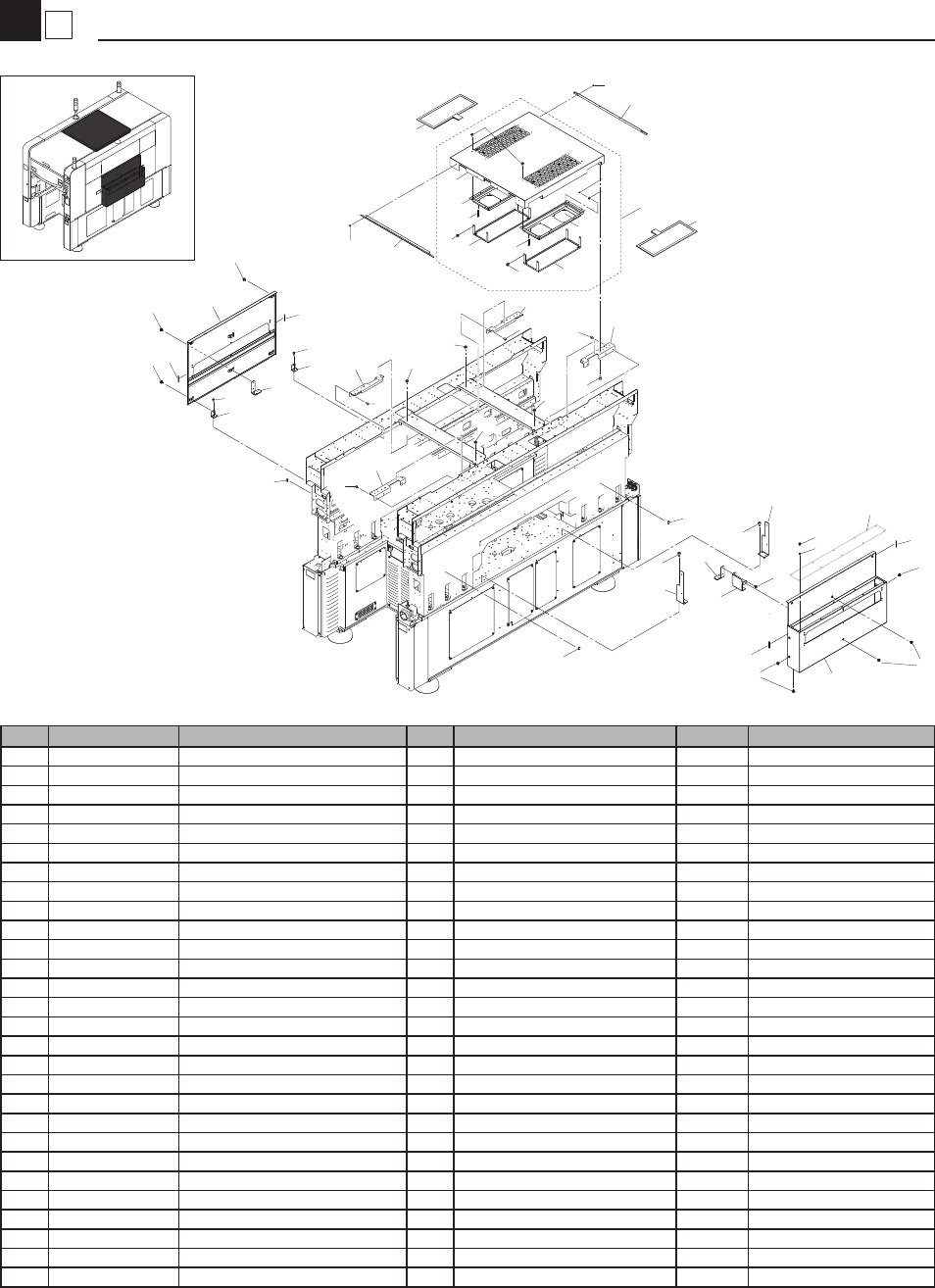

Top Cover (Ceiling) / Conv.(UPS)
Cover
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M1306-A1 COVER6 ASSY. 1
2 KLF-M1305-01 COVER 6-1 1
3 KLF-M130H-02 COVER,FAN 1
4 KLF-M1329-01 COVER 29 2
5 KLF-M26F4-00 PLATE 4 2 .
6 KLF-M26F5-00 PLATE 5 2
7 90990-12J001 SCREW BIN.HEAD W/W 16
8 90990-12J004 SCREW BIN.HEAD W/W 27
9 91312-05008 BOLT HEX.SOCKET HEAD 20 M5X8
10 92902-04200 WASHER PLAIN 4
11 98902-03005 SCREW BINDING HEAD 8
12 KLF-M130F-02 BRKT.,FAN 2
13 KLF-M1370-00 DAMPER 4
14 KLF-M1371-00 TAPE 12
15 KLF-M1372-01 COVER 72 1
16 KLF-M1335-00 BRKT.2,GATE COVER 2
17 KLF-M1379-00 COVER 79 1
18 KLF-M137C-00 BRKT,COVER79 1
19 KLF-M137D-00 BRKT 2,COVER 79 1
20 KLF-M137E-00 BRKT 3,COVER 79 1
21 KLF-M137F-00 PLATE,CON. COVER 1
22 90990-12J006 SCREW BIND HEAD W/W 10
23 90990-41J134 COLLAR 8
24 KLF-M9133-01 PLATE,DUCT 2
25 KLF-M130J-00 FILTER,TOP COVER FAN 2
26 KLF-M130P-00 MAGNET 4
27 98502-04050 SCREW PAN HEAD (+) 16
28 98702-03006 SCREW FLAT HEAD 4
7
8
8
9
9
5
12
9
9
5
6
6
7
8
8
11
11
1
2
4
4
3
8
8
15
9
9
8
16
16
14
14
13
19
21
23
22
8
8
14
14
8
20
18
9
9
8
17
13
13
24
24
7
3
12
7
25
25
27
27
28
26
4
2

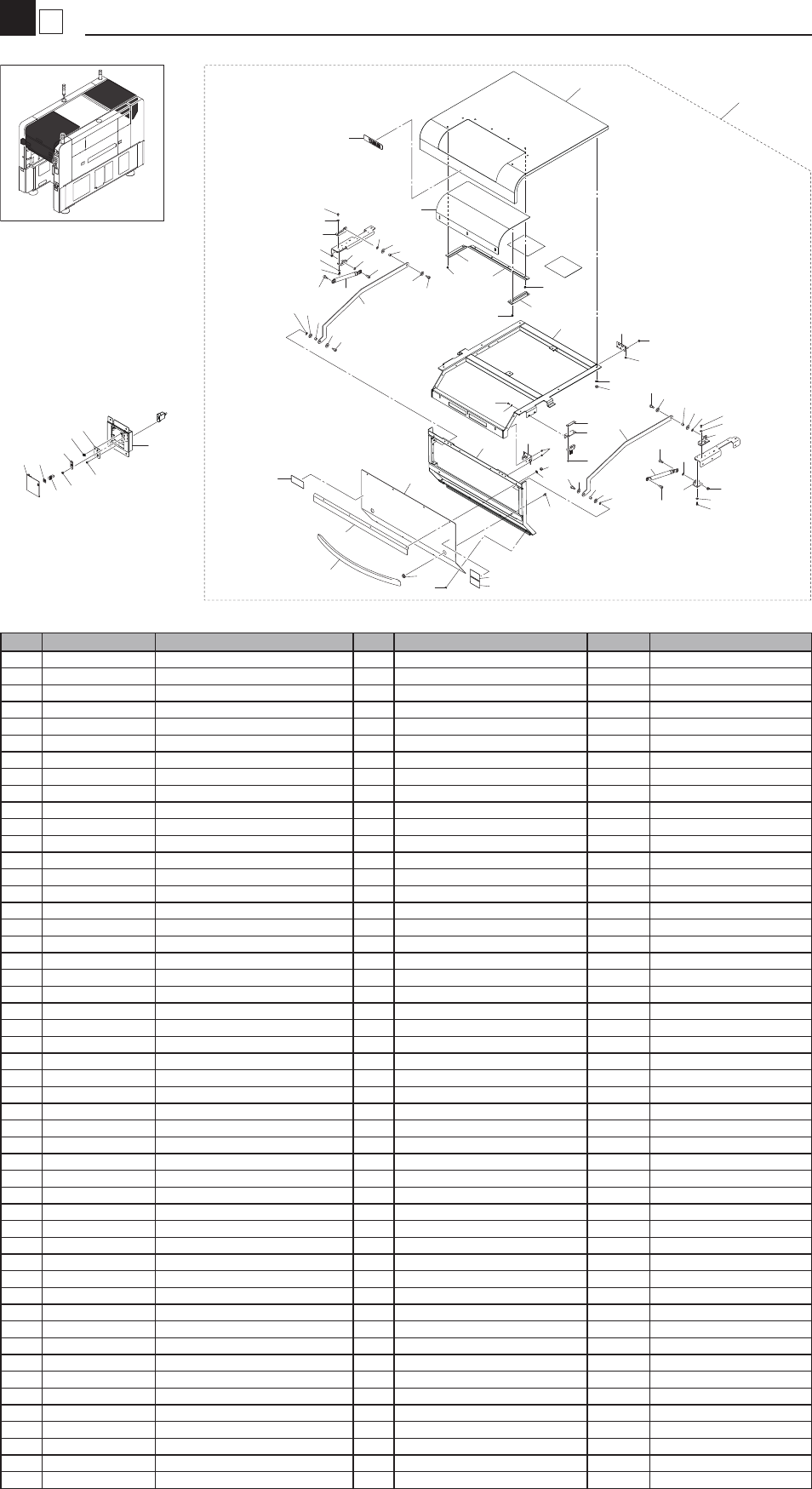

Door / USB-Box
Cover
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M1309-01 COVER 9-1 1
2 KMB-M130A-00 COVER 9-2 1
3 KMB-M130K-00 BRKT. 1,COVER 9 1
4 KMB-M130L-00 BRKT. 2,COVER 9 1
5 KLF-M1347-00 COVER 9-4 1
6 KMB-M130R-00 WINDOW,COVER 9 1
7 KLF-M1345-00 PLATE,LINK 2
8 KLF-M1324-00 KNOB 1
9 KLF-M134A-00 BRKT. NUT L 1
10 KLF-M134B-00 BRKT. NUT R 1
11 KLF-M1328-00 BRACKET, GAS DAMPER 2
12 KGS-M1348-00 GAS SPRING 2
13 K46-M1374-12 HINGE 2 3
14 KLF-M1374-00 HINGE 2
15 KLF-M1373-00 BRACKET 1, SCHMEASAL 1
16 KL0-M1374-00 PLATE 1 SCHMESAL 1
17 KGS-M1360-00 BOLT 4
18 90990-28J166 WASHER PLAIN 8
19 KHT-M1346-00 BUSH 4
20 KKX-M13D7-00 SEAL 2(YAMAHA) 1
21 90K41-001250 LABEL,WARNING 1
22 90K41-001420 LABEL,WARNING 1
23 KLF-M1392-00 LABEL,WARNING 1
24 KMB-M130E-00 BOX,USB 1
25 KLF-M130E-00 DOOR,USB 1
26 KLF-M1348-00 PLATE,USB 1
27 KW3-M1349-00 MINI LATCH 1
28 KGJ-M1350-00 SPACER,MINI LATCH 1
29 KGJ-M1351-01 PLATE,MINI LATCH 1
30 KMB-M1309-A0 COVER 9 ASSY 2
31 90990-12J001 SCREW BIN.HEAD W/W 2
32 90990-12J003 SCREW BIN.HEAD W/W 20
33 98902-03008 SCREW BINDING HEAD 2
34 98902-04006 SCREW BINDING HEAD 2
35 90990-28J003 WASHER,PLAIN 2
36 90990-31J006 BOLT,SHOULDER 8
37 90990-46J001 BOLT,THIN HEAD 4
38 91312-04005 BOLT HEX.SOCKET HEAD 17 M4X5
39 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
40 91312-05012 BOLT HEX.SOCKET HEAD 4 M5X12
41 91312-06010 BOLT HEX.SOCKET HEAD 2 M6X10
42 92902-04200 WASHER PLAIN 2
43 92902-05200 WASHER PLAIN 8
44 92902-06200 WASHER PLAIN 6
45 95307-06600 NUT HEXAGON 2
46 95702-04500 NUT FLANGE 13
47 90172-00J040 WASHER,EXTL.TOOTHED 38
48 KMB-M130S-00 PLATE,WINDOW 1 2
49 KMB-M130T-00 PLATE,WINDOW 2 1
50 97602-04306 SCREW,PAN HEAD W/W 8
20
39
43
43
45
40
9
2
36
36
44
44
18
18
19
50
6
48
48
50
50
49
12
44
18
18
18
18
44
41
47
46
38
14
17
42
16
15
46
47
17
36
36
18
36
23
26
33
24
29
31
34
27
28
25
1
4
5
8
35
37
21
22
19
19
18
44
39
43
10
19
45
43
40
36
11
44
12
36
7
7
11
30
36
3
13
32
32
