YSM40R_2-Beam_PartList - 第20页
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KMB-M3721-00 FRAME,L 1 2 KMB-M3721-50 FRAME,R 1 3 KLF-M3722-00 P ANEL,CAR T L 1 4 KLF-M3722-50 P ANEL,CAR T R 1 5 KMB-M3723-00 SP ACER,ARM 2 6 KMB-M37…
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M3R03-00 BRKT.,REEL HOLDER R 1
2 KMB-M3R04-00 BRKT.,REEL HOLDER L 1
3 KLF-M3R09-00 SHAFT,ROLLER 6
4 KHY-M3S15-00 ROLLER 2 2
5 KHY-M3R15-00 ROLLER 100
6 KLF-M3R01-02 PLATE,SIDE R 1
7 KLF-M3R02-02 PLATE,SIDE L 1
8 KLF-M3R05-00 GUIDE,PATITION 1
9 KLF-M3R08-00 COVER,UNDER 1
10
KLF-M3R10-02 REEL HOLDER 23 OK H025328-2018/11/5
KLF-M3R10-01 REEL HOLDER 23
11 KLF-M3R13-00 COLLAR 2
12 KLF-M3R14-00 COLLAR 2
13 KHY-M3R14-11 WASHER 22
14 KHY-M3R16-00 PARTITION 11
15 KHY-M3R22-00 GUIDE,PARTITION 5
16 KHY-M3R23-00 COLLAR,PARTITION 23
17 91312-03004 BOLT HEX.SOCKET HEAD 6 M3X4
18 91312-03012 BOLT,HEX.SOCKET HEAD 11 M3X12
19 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X8
20 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
21 92012-06010 BOLT,BUTTON HEAD 12
22 92902-03200 WASHER PLAIN 6
23 92902-04200 WASHER PLAIN 4
24 92902-05200 WASHER PLAIN 4
25 92902-06600 WASHER PLAIN 12
26 91312-04008 BOLT,HEX.SOCKET HEAD 4
27
KHY-M3R14-11 WASHER 1 t=1.1mm
KHW-M1385-00 SPACER 1 t=0.5mm
28 KMB-M3R09-00 SHAFT,ROLLER 1
6
3
Reel Holder
Feeder Holder
KMB-100-1607
21
25
25
21
21
25
21
21
25
25
23
24
7
20
3
3
3
28
26
21
25
1
3
12
5
5
5
26
25
21
4
2
4
10
13
16
16
16
16
14
5
5
11
17
17
22
22
18
18
9
8
15
11
14
14
21
25
11
11
25
21
25
21
21
25
23
19
24
6
20
13
12
5
5
10
10
19
3
10
27
27
21
25
OLD
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KMB-M3721-00 FRAME,L 1
2 KMB-M3721-50 FRAME,R 1
3 KLF-M3722-00 PANEL,CART L 1
4 KLF-M3722-50 PANEL,CART R 1
5 KMB-M3723-00 SPACER,ARM 2
6 KMB-M3724-00 COVER,CART L 1
7 KMB-M3724-50 COVER,CART R 1
8 KMB-M3725-00 PLATE,CAM 2
9 KLF-M3726-00 TAPE 4
10 KMB-M3727-00 ARM,SUB 2
11 KLF-M3728-00 PULL 2
12 KMB-M3729-A0 BASE,SUB ASSY. 1
13 KMB-M372D-00 STEP SCREW 2
14 KMB-M372E-00 RIB,L 1
15 KMB-M372E-50 RIB,R 1
16 KLF-M372G-00 CAM FOLLOWER 4
17 KMB-M372H-00 RIB 2
18 KLF-M372K-00 COVER,ADJUST 2
19 KMB-M372M-00 COVER,SUB ARM L 1
20 KMB-M372M-50 COVER,SUB ARM R 1
21 KL3-M1348-10 GAS,SPRING 2
22 90172-00J060 WASHER, EXTL. TOOTHED 18
23 90990-01J073 BOLT HEX.SOCKET HEAD 2
24 90990-12J001 SCREW, BIN. HEAD W/W 26
25 90990-28J078 WASHER,PLAIN 2
26 90990-31J006 BOLT, SHOULDER 4
27 91312-04008 BOLT,HEX.SOCKET HEAD 4
28 91312-06012 BOLT,HEX.SOCKET HEAD 26
29 91312-08016 BOLT,HEX.SOCKET HEAD 16
30 92902-06200 WASHER, PLAIN 18
31 92A08-05305 SCREW, SET 4
32 95302-08700 NUT, HEXAGON 2
33 95602-08100 NUT, U 4
34 99480-04014 PIN, PARALLEL 4
35 KMB-M3729-00 BASE 1
36 KMB-M372A-00 CASTER 2
37 KMB-M372B-00 CASTER 2
38 KMB-M372C-00 CHAIN 1
39 970172-00J040 WASHER, EXTL. TOOTHED 1
40 9132-04006 BOLT,HEX.SOCKET HEAD 1
41 9132-08008 BOLT,HEX.SOCKET HEAD 16
42 92902-08200 WASHER,PLAIN 16
7
3

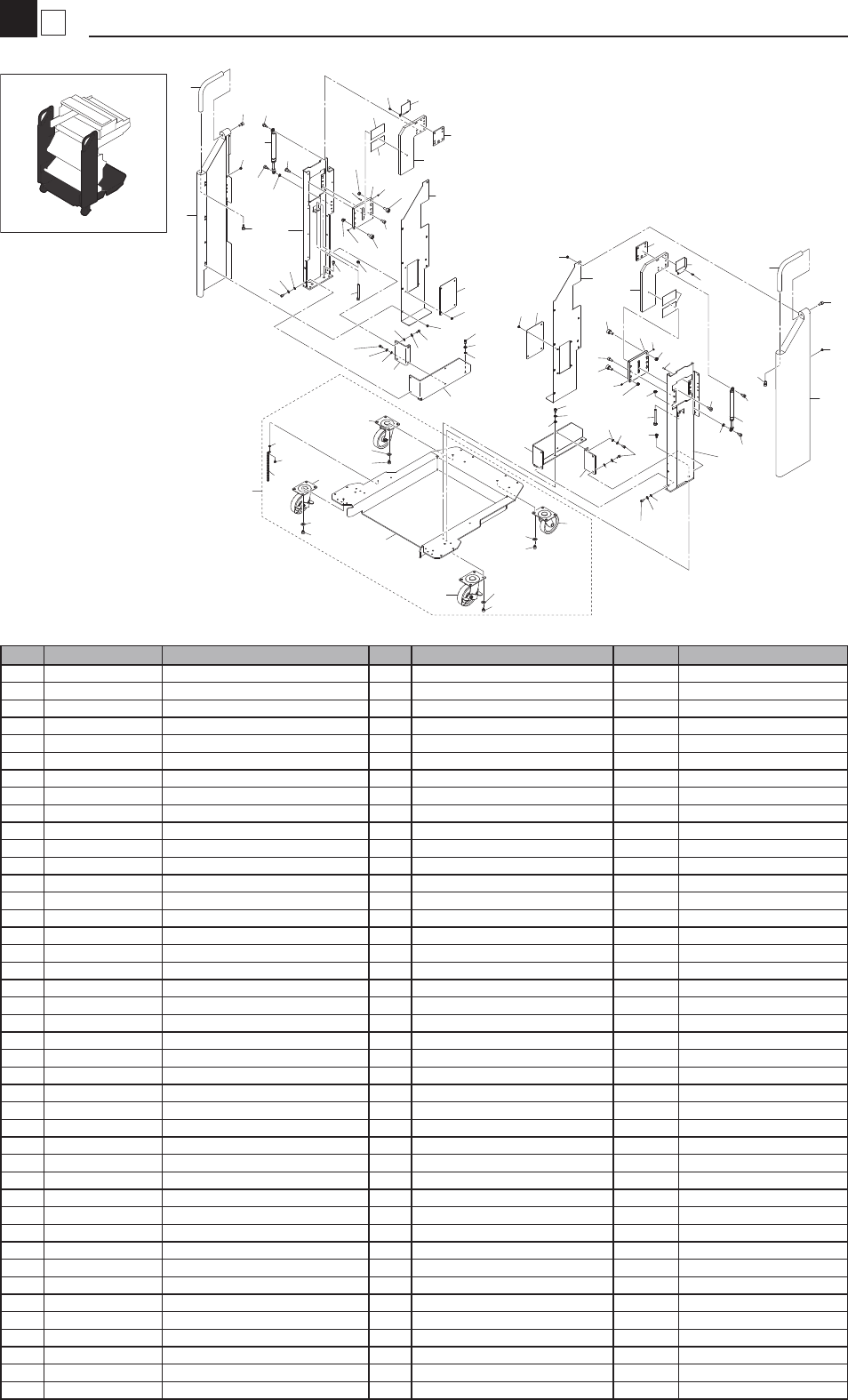

Carriage FES46
Feeder Holder
KMB-100-1607
1
2
4
5
3
5
6
7
8
8
9
9
9
10
11
10
19
11
12
35
36
13
13
14
17
17
15
16
16
16
16
18
18
20
21
21
22
22
22
30
28
22
22
22
22
22
23
23
28
24
24
24
24
24
29
24
25
25
26
26
26
26
27
27
28
28
28
28
28
28
28
30
30
30
30
30
30
30
29
29
29
31
32
31
31
31
29
29
32
33
33
34
33
33
34
36
37
37
40
41
42
38
39
41
42
41
42
41
42
8
3
Clamp FES46 Cylinder / Guide
Feeder Holder
KMB-100-1607
