YSM40R_2-Beam_PartList - 第26页
4 4 X-Duct / I/O Box (2-Beam) Moving-axis KMB-100-1607 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 $UL8 JOINT 5 2 91312-04010 BOL T HEX,SOCKET HEAD 3 3 90563-03J070 SP ACER 4 4 90990-01J032 BOL …
3
4

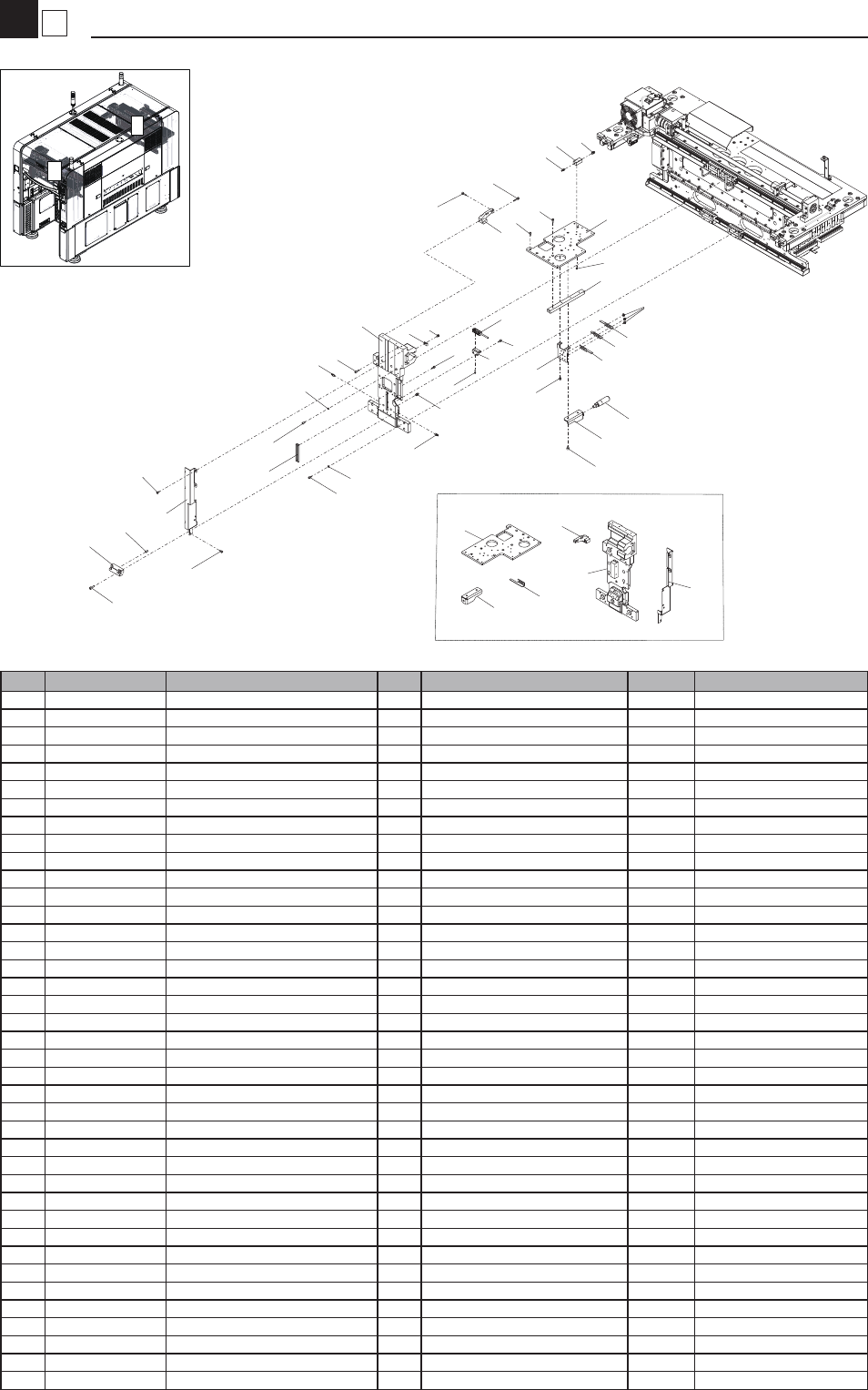

X-Holder Head (2-Beam)
Moving-axis
KMB-100-1607
26
30
14
3
35
31
27
25
5
24
9
8
23
22
4
21
29
2
6
15
6
10
13
34
12
6
13
6
10
37
1
13
17
11
19
6
7
11
6
39
5
33
18
36
38
28
16
32
20
Type A
A
B
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $NK-2N NYLON CLIP 5
2 90112-2AJ012 BOLT, HEX.SOCKET HEAD 2
3 90990-11J001 SCREW, PAN HEAD W/W 6
4 91312-03012 BOLT HEX,SOCKET HEAD 4
5 91312-04008 BOLT HEX,SOCKET HEAD 5
6 91312-04010 BOLT HEX,SOCKET HEAD 29
7 91312-04014 BOLT HEX,SOCKET HEAD 1
8 91312-04016 BOLT HEX,SOCKET HEAD 2
9 91312-04022 BOLT HEX,SOCKET HEAD 2
10 KHN-M22AD-00 GREASE NIPPLE 3
11 KHN-M22F4-00 WASHER,SWR04 16
12 KHY-M266C-00 BLOCK,JOINT 2
13 KHY-M266E-00 JOINT 4
14 KLF-M2256-00 GRIP 1 M8
15 KLF-M2237-10 HOLDER,X READ HEAD 1
16 KLF-M223A-00 PLATE,HEAD A 1 Type A
17 KLF-M223B-00 PLATE,HEAD B 1 Type B
18 KLF-M223C-01 BLOCK,LOCATE 1
19 KLF-M223D-00 PLATE,KEYWAY 1
20 KLF-M223E-00 STAY,R HEAD 1 Type A
21 KLF-M223E-50 STAY,L HEAD 1 Type B
22 KLF-M223F-10 LIB,L 1
23 KLF-M223G-10 BRKT.,L DOG X 1
24 KLF-M223K-00 DOG,X1 2ND-LM 1
25 KLF-M223K-50 DOG,X2 2ND-LM 1
26 KLF-M223L-00 DOG,XA ORG. 1 Type A
27 KLF-M223L-50 DOG,XB ORG. 1 Type B
28 KLF-M2244-F0 STAY,F DUCT X 1 Type A
29 KLF-M2244-R0 STAY,R DUCT X 1 Type B
30 KLF-M224F-01 STAY,A GRIP 1 Type A
31 KLF-M224F-51 STAY,B GRIP 1 Type B
32 KLF-M225A-00 COVER,A-1 CAM.CABLE 1 Type A
33 KLF-M225A-50 COVER,B-1 CAM.CABLE 1 Type B
34 KLF-M22T4-02 HEAD,LINEAR SCALE X 1
35 91312-05008 BOLT HEX,SOCKET HEAD 2
36 91312-05016 BOLT HEX,SOCKET HEAD 2
37 97602-04308 SCREW PAN HEAD W/WASHER 5
38 98902-04008 SCREW BINDING HEAD 2
39 99480-05010 PIN,PARALLEL 1
4
4

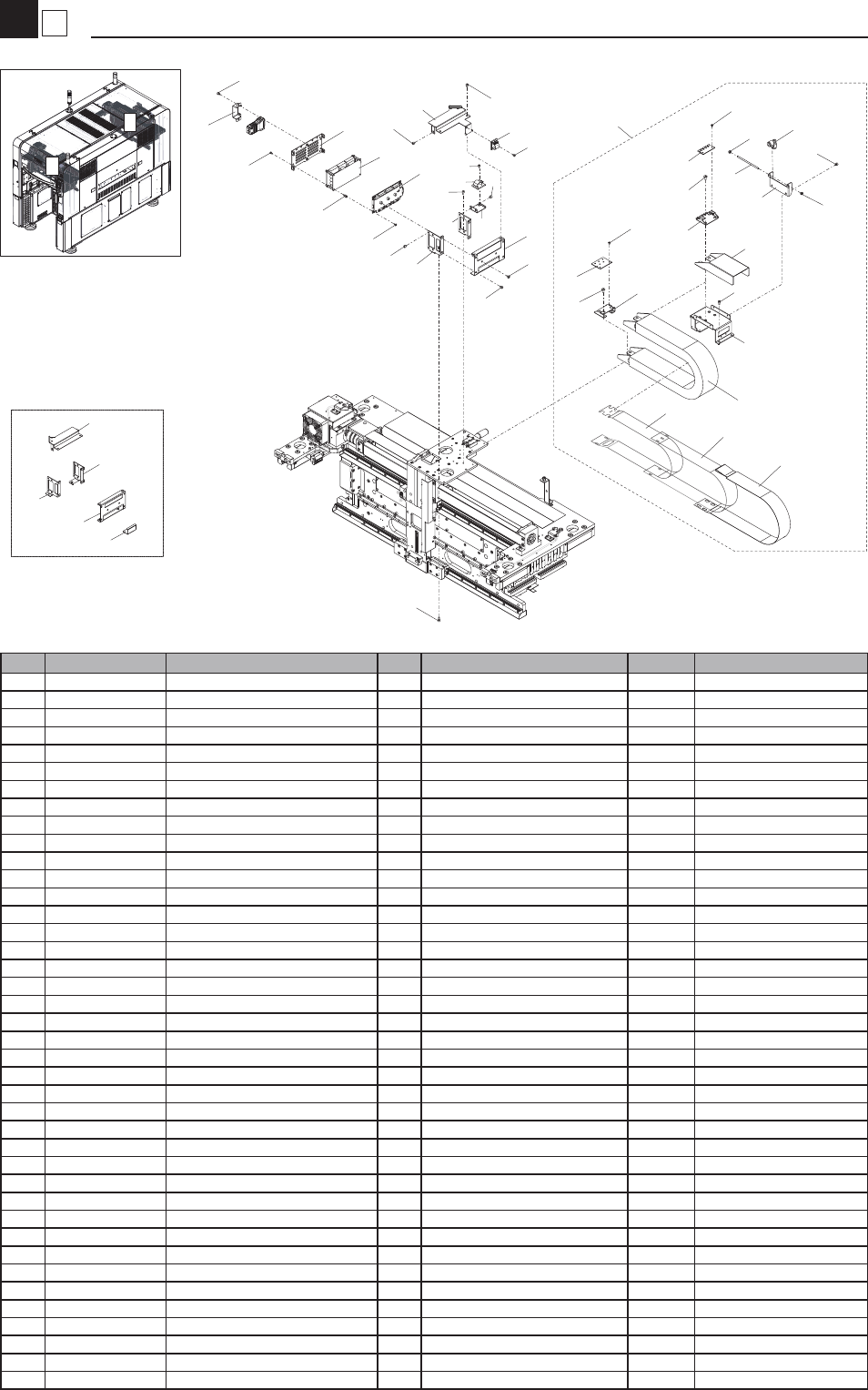

X-Duct / I/O Box (2-Beam)
Moving-axis
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $UL8 JOINT 5
2 91312-04010 BOLT HEX,SOCKET HEAD 3
3 90563-03J070 SPACER 4
4 90990-01J032 BOLT HEX,SOCKET HEAD 8
5 91312-04005 BOLT HEX,SOCKET HEAD 16
6 91312-04008 BOLT HEX,SOCKET HEAD 3
7 95302-04600 NUT HEXAGON 2
8 KLF-M2243-A0 COVER DUCT ASSY. 1
9 KGT-M2266-10 PLATE, NUT 1
10 KKE-M220F-02 CAMERA SELECTOR 1
11 KLF-M228C-00 COVER 2 HNS 1
12 KHY-M220A-00 TAPE,X DUCT 1
13 KHY-M220B-00 TAPE 2,X DUCT 1
14 KHY-M220C-00 TAPE 3,X DUCT 1
15 KLF-M2242-10 BRKT.,3 DUCT X 1
16 KHY-M2268-00 BRACKET 1, TAPE 1
17 91312-03006 BOLT HEX,SOCKET HEAD 2
18 KKE-M2267-A0 GUIDE,X AXIS ASSY 1
19 KLA-M4506-00 HEAD I/O UNIT ASSY 1
20 KLF-M224G-00 SHAFT,JOINT 1
21 KLF-M224H-00 BRKT.,JOINT 1
22 KLF-M224L-00 BRKT.,CONN. 1
23 KKE-M2269-00 BRACKET 2,TAPE 1
24 KKE-M226D-00 PLATE,NUT 1
25 KLF-M2282-00 BRKT.,1 BOARD 1
26 98902-03005 SCREW BINDING HEAD 4
27 98902-03006 SCREW BINDING HEAD 8
28 98902-04006 SCREW BINDING HEAD 2
29 KLF-M2283-01 BRKT.,C-1 BOARD 1 Type A
30 KLF-M2283-50 BRKT.,C-2 BOARD 1 Type B
31 KLF-M2284-01 BRKT.,A-2 BOARD 1 Type A
32 KLF-M2284-50 BRKT.,B-2 BOARD 1 Type B
33 KLF-M2286-01 COVER,H 1 Type A
34 KLF-M2286-52 COVER,H 1 Type B
35 KLF-M2288-00 BRKT.,D-F BOARD 1 Type A
36 KLF-M2288-50 BRKT.,D-R BOARD 1 Type B
37 KLF-M228A-00 BRKT.,1 CLAMP 1
38 KLF-M657H-00 ADJUSTBLE CLAMP 2
39 91312-04006 BOLT,HEX.SOCKET HEAD 2
40 KLF-M2240-E0 DUCT,X AXIS ASSY. 1
A
B
26
40
15
6
14
12
5
7
20
21
1
7
8
16
23
4
9
4
24
26
18
2
5
22
27
25
13
19
3
10
39
27
30
36
6
32
5
28
5
35
34
5
29
5
33
31
Type A
17
17
38
38
37
11
A
B
42
43
13
4
9
38
40
41
33
40
24
41
40
39
17
10
19
12
3
45
26
15
40
6
35
40
11
28
37
23
2
44
46
47
18
34
23
29
37
20
42
1
9
11
14
35
27
7
39
36
6
3
21
10
43
45
4
25
5
20
39
22
19
13
32
31
30
8
39
8
24
38
40
16
48
50
49
Type A
5
4

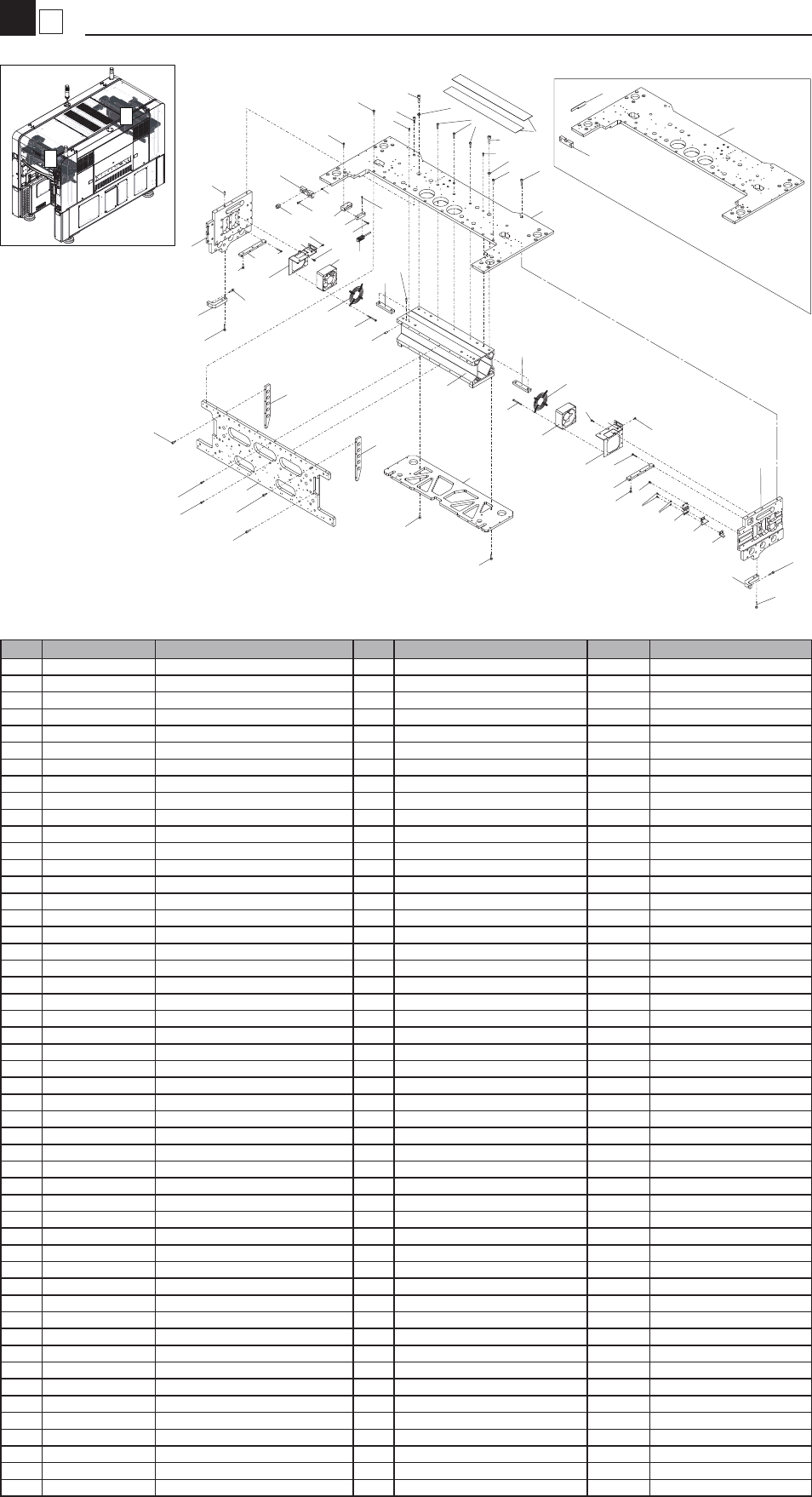

X-Frame / Y-Connection (2-Beam)
Moving-axis
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 90112-2AJ020 BOLT, HEX.SOCKET HEAD 4
2 91312-03006 BOLT HEX,SOCKET HEAD 4
3 91312-03008 BOLT HEX,SOCKET HEAD 4
4 91312-03010 BOLT HEX,SOCKET HEAD 4
5 91312-04008 BOLT HEX,SOCKET HEAD 2
6 91312-04010 BOLT HEX,SOCKET HEAD 6
7 91312-04012 BOLT HEX,SOCKET HEAD 4
8 91312-04014 BOLT HEX,SOCKET HEAD 16
9 91312-04016 BOLT HEX,SOCKET HEAD 8
10 91312-04022 BOLT HEX,SOCKET HEAD 8
11 KGN-M4187-10 FAN GUARD 2
12 KH1-M34D3-00 LOCATE PIN 1
13 KHN-M22F8-00 WASHER,SWR08 8
14 90990-41J180 COLLAR 4
15 KLF-M2204-00 LIB,1 X AXIS 1
16 KLF-M2205-00 PLATE,L X AXIS 1
17 KLF-M2206-00 PLATE,R X AXIS 1
18 KLF-M220A-00 FRAME,XL AXIS 1
19 KLF-M220E-00 LIB,4 2
20 KLF-M220F-00 LIB,3 2
21 KLF-M221B-00 BASE,X AXIS 1
22 KLF-M221D-00 PLATE,B 1 Type B
23 KLF-M221E-00 SPACER, NUT 4
24 KLF-M221F-000 LIB,2 2
25 KLF-M2228-L0 BRKT.,L FAN Y-M 1
26 KLF-M2228-R0 BRKT.,R FAN Y-M 1
27 KLF-M2262-00 PLATE 1, DAMPER 2 Type B
28 KLF-M22E0-00 TAPE, X DUCT 2
29 KLF-M2671-00 HOLDER,1 Y-RH 2
30 KLF-M2672-50 DOG,YL 2ND-LIMIT 1
31 KLF-M2673-50 DOG,YL ORG 1
32 KLF-M2674-10 BRKT.,YL DOG 1
33 KLF-M2675-01 HOLDER,2 Y-RH 2
34 KLF-M26T4-01 HEAD,LINEAR SCALE Y 2
35 KLF-M6185-B1 FAN MOTOR ASSY 2
36 KV7-M2651-00 DAMPER, STOPPER 4
37 91312-04045 BOLT HEX,SOCKET HEAD 8
38 91312-05014 BOLT HEX,SOCKET HEAD 8
39 91312-05016 BOLT HEX,SOCKET HEAD 16
40 91312-05020 BOLT HEX,SOCKET HEAD 19
41 91312-05025 BOLT HEX,SOCKET HEAD 4
42 91312-06022 BOLT HEX,SOCKET HEAD 6
43 91312-08025 BOLT HEX,SOCKET HEAD 8
44 92902-03200 WASHER,PLAIN 4
45 95302-03600 NUT HEXAGON 4
46 99480-06012 PIN,PARALLEL 2
47 99480-06014 PIN,PARALLEL 1
48 KLF-M221C-00 PLATE,A 1 Type A
49 KLF-M2262-10 PLATE 2, DAMPER 2 Type A
50 KLF-M2696-00 DOG,COL. 1 Type A
