22 16 22 15 8 2 22 21 18 14 13 11 12 3 27 21 29 24 17 28 21 20 9 7 23 31 26 26 1 10 19 4 5 30 6 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLF-M7412-00 PLA TE,HEAD 1 2 KLF-M7414-00 HOLDER,MOTOR…
4
23
22
21
9
16
17
18
20
17
6
2
3
17
17
17
7
21
16
20
21
11
14
16
16
26
12
15
25
27
21
13
1
24
21
10
8
19
13
5
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M741J-00 BASE,VALVE 1
2 KLF-M741L-00 STAY,BASE 1
3 KLF-M741M-00 STAY,COVER 1
4 KLF-M741N-00 BRACKET,CONNECTOR 1
5 KLF-M741V-00 STAY,BKT. 1
6 KLF-M741W-00 BRKT,CABLE Z MOTOR 1
7 KLA-M5802-48 HEAD SERVO UNIT ASSY 1
8 KLF-M6185-00 FAN MOTOR ASSY. 1
9 KLF-M7191-01 BOX,SERVO BRD. 1
10 KLF-M7196-00 BASE,FAN MOTOR 1
11 KLF-M71C6-00 BRACKET,SERVO BOX 1
12 KLF-M71C7-00 BRACKET,JOINT 1
13 KLF-M71CB-00 PLATE,NUT 2
14 KLF-M71CE-00 CLAMP,CONNECTOR 1
15 90990-23J030 GROMMET 5
16 91312-03006 BOLT HEX.SOCKET HEAD 8 M3X6
17 91312-03008 BOLT HEX.SOCKET HEAD 9 M3X8
18 91312-03010 BOLT HEX.SOCKET HEAD 2 M3X10
19 91312-03020 BOLT,HEX.SOCKET HEAD 4 M3X20
20 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
21 91312-04008 BOLT HEX.SOCKET HEAD 9 M4X8
22 92012-04006 BOLT, BUTTON HEAD 2 M4X6
23 92012-04008 BOLT,BUTTON HEAD 2 M4X8
24 $NK-3N NYLON CLIP 1
25 $TS6-01 JOINT 5
26 $TSM8-01 JOINT 5
27 $UP6 PLUG 1
6
5
Servo - I/O BOX (FL)
Head
KMB-100-1607

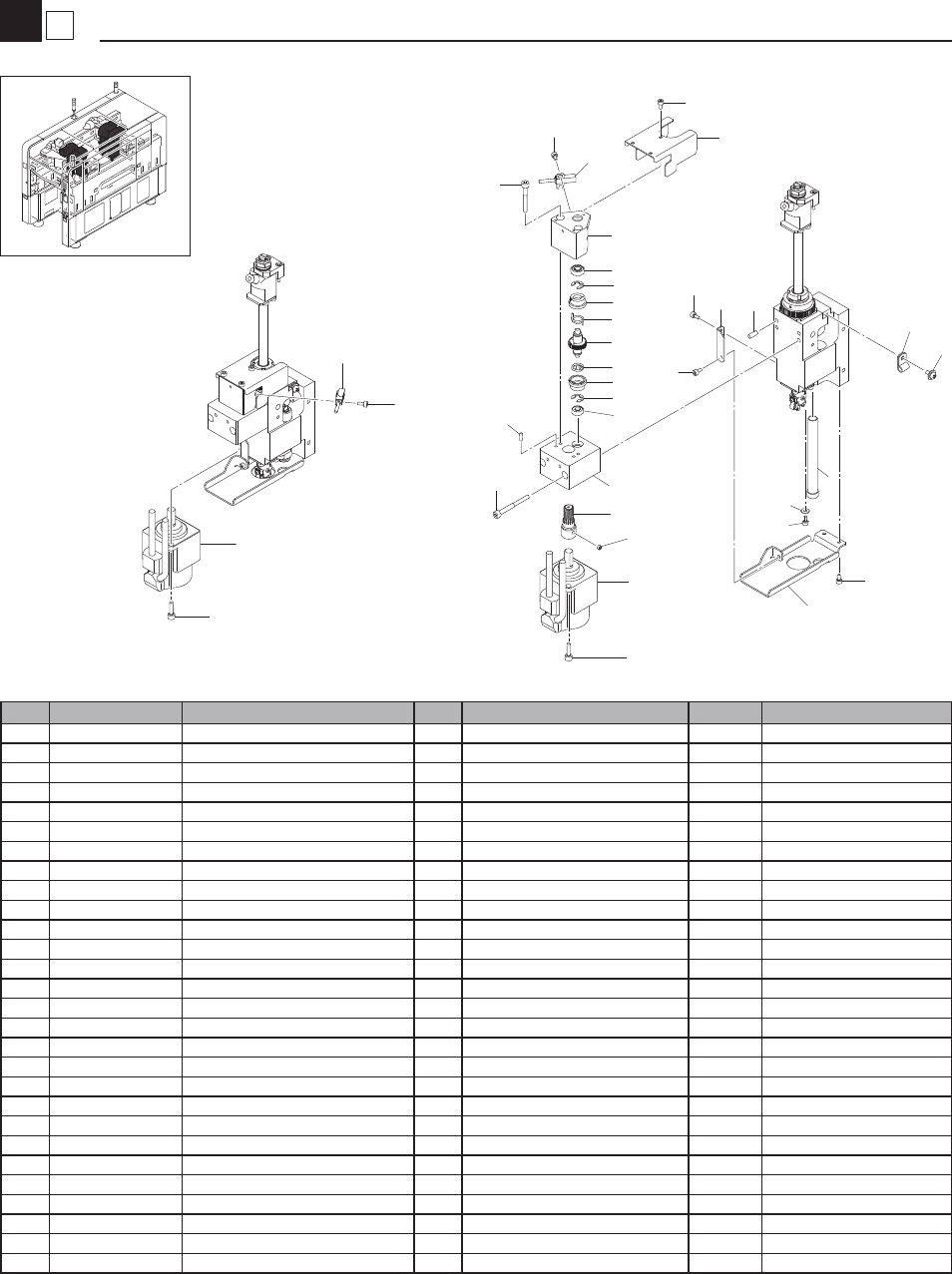

22
16
22
15
8
2
22
21
18
14
13
11
12
3
27
21
29
24
17
28
21
20
9
7
23
31
26
26
1
10
19
4
5
30
6
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7412-00 PLATE,HEAD 1
2 KLF-M7414-00 HOLDER,MOTOR Z 1
3 KLF-M7421-01 BALL SCREW 1
4 KLF-M7422-00 GUIDE,Z AXIS 1
5 KLF-M7423-00 BLOCK,SCREW 1
6 KLF-M742A-00 DAMPER 1 1
7 KLF-M742B-00 DAMPER 2 1
8 KLF-M748B-01 COUPLING 1
9 KJX-M7C15-00 HOLDER,BEARING 1
10 KJX-M7C2C-00 PLATE,HOLDER BRG. 1
11 KLH-M7C2A-00 BEARING 1
12 KLH-M7C2G-00 PLATE,BEARING 1
13 KLH-M7C2N-00 LOCK NUT,SCREW 1
14 KLH-M7C2P-00 SPACER 2
15 90K2F-032003 AC SERVO MOTOR Z1 1 Z1
16 90K2F-032004 AC SERVO MOTOR Z2 1 Z2
17 90933-02J624 BEARING 1
18 90990-02J004 SET SCREW 2
19 91312-03005 BOLT HEX.SOCKET HEAD 3 M3X5
20 91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
21 91312-03010 BOLT HEX.SOCKET HEAD 8 M3X10
22 91312-03014 BOLT,HEX.SOCKET HEAD 8 M3X14
23 91312-03018 BOLT HEX.SOCKET HEAD 2 M3X18
24 91312-03020 BOLT,HEX.SOCKET HEAD 4 M3X20
26 91312-04014 BOLT HEX.SOCKET HEAD 4 M4X14
27 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
28 99009-04400 CIRCLIP 1
29 99480-03008 PIN,PARALLEL 2
30 99480-04010 PIN PARALLEL: 4X10 4
31 99480-04012 PIN,PARALLEL 2
7
5
Z-axis Assy (FL)
Head
KMB-100-1607
21
14
19
19
23
8
7
17
15
11
12
12
11
15
16
26
22
6
4
25
13
20
20
1
23
3
24
23
23
27
28
18
23
2
5
9
10
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M741K-00 COVER,MOTOR 1
2 KLF-M741T-00 BRKT.,COVER 1
3 KLF-M7424-00 COLLAR,SPRING 1
4 KLF-M7481-00 GEAR,MOTOR R 1
5 KLF-M7482-00 GEAR 1 ,R 1
6 KLF-M7486-00 PLATE,MOTOR 1
7 KLF-M7487-00 HOLDER,BEARING 1
8 KLF-M748A-00 COVER,GEAR 1
9 KLF-M654L-00 SENSOR R1 ORG ASSY 1 R1
10 KLF-M654L-10 SENSOR R2 ORG ASSY 1 R2
11 KLF-M7032-00 GEAR 2,R 2
12 KLF-M7035-00 SPRING,TORTION 2
13 90KB0-113103 AC SERVO MOTOR R1 1 R1
14 90KB0-113104 AC SERVO MOTOR R2 1 R2
15 90440-01J060 CIRCLIP 2
16 90933-02J694 BEARING 1
17 90933-02J695 BEARING 1
18 90990-11J003 SCREW,PAN HEAD W/W 1
19 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
20 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X14
21 91312-04030 BOLT HEX.SOCKET HEAD 2 M4X30
22 91312-04040 BOLT HEX.SOCKET HEAD 2 M4X40
23 91317-03006 BOLT HEX.SOCKET HEAD 10 M3X6
24 92907-03200 WASHER PLAIN 2
25 92A08-04303 SET SCREW 2
26 99480-03008 PIN,PARALLEL 2
27 99480-04010 PIN PARALLEL: 4X10 2
28 $NK-3N NYLON CLIP 1
8
5
R-axis Assy 1 (FL)
Head
KMB-100-1607
