26 NOZZLE 601A ASSY . 27 28 30 NOZZLE 602A ASSY . 32 NOZZLE 603 ASSY . 33 NOZZLE 64A/604A ASSY . 21 34 NOZZLE 65A/605A ASSY . NOZZLE 66A/606A ASSY . 36 35 31 28 29 37 38 29 1 NOZZLE 501A ASSY . 2 3 10 NOZZLE 512A ASSY . …
28
23
27
26
1
7
37
36
36
36
34
34
33
31
35
32
32 31
35
30
33
38
38
36
36
8
3
21
24
10
11
2
9
14
17
12
18
16
16
15
13
6
19
25
20
22
5
29
4
7
7
39
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7413-00 BLOCK,SHAFT 1
2 KLF-M7419-00 PLATE,BEARING TOP 1
3 KLF-M741S-00 PLATE,STOPPER 1
4 KLF-M742M-01 ARM 1
5 KLF-M742S-00 BLOCK,SPLINE 1
6 KLF-M742V-00 PLATE,BRG 1
7 KLF-M7441-01 SPLINE SHAFT 1
8 KLF-M744A-00 COLLAR,BEARING 1
9 KLF-M7460-00 NUT,SPLINE 1
10 KLF-M7480-00 COLLAR,DOG 1
11 KLF-M7483-00 GEAR,HEAD R 1
12 KGS-M715A-02 WAVE WASHER 1
13 90933-02J605 BEARING 1
14 90990-16J002 NUT,U 1
15 90990-22J009 PACKING 1
16 90990-28J045 WASHER,PLAIN 2
17 90990-28J046 WASHER,PLAIN 1
18 90990-29J033 SHIM 1
19 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
20 91312-03016 BOLT,HEX.SOCKET HEAD 2 M3X16
21 91317-03008 BOLT HEX.SOCKET HEAD 4 M3X8
22 91609-12006 PIN SPRING 1
23 92A08-03003 SET SCREW M3X3 2
24 92A08-03005 SET SCREW M3X5 2
25 95602-05100 NUT U 1
26 98702-03008 SCREW FLAT HEAD 4
27 99009-17800 CIRCLIP (IS) 1
28 $PF PLUG 1
29 $TSH4-M5M JOINT 1
30 KLF-M74D3-01 BLOCK,NOZZLE HOLDER 1
31 KV7-M81D1-00 ARM,NOZZLE 2
32 KV7-M81D4-00 ROLLER 2
33 KV7-M81D3-01 PIN 4
34 KV7-M8171-00 PLATE,SPLING 4
35 90440-10J008 CIRCLIP 4
36 90115-02J004 BOLT,HEX.SOCKET HEAD 6
37 90990-17J079 O-RING 2
38 90990-28J002 WASHER PLAIN 2
39 KLF-M74A0-01 ROLLER LOCK ASSY. 1
9
5

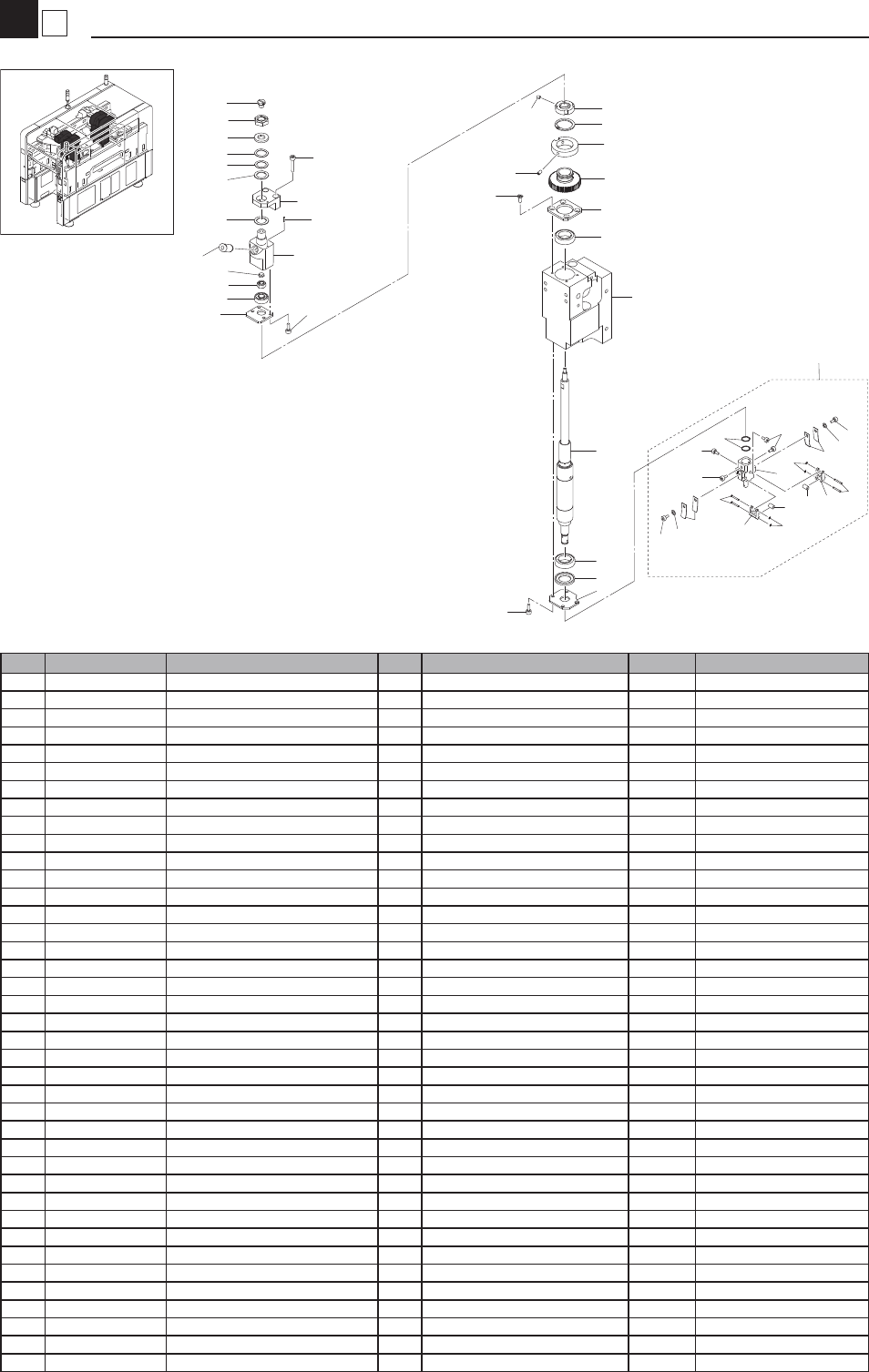

R-axis Assy 2 (FL)
Head
KMB-100-1607
26
NOZZLE 601A ASSY.
27
28
30
NOZZLE 602A ASSY.
32
NOZZLE 603 ASSY.
33
NOZZLE 64A/604A ASSY.
21
34
NOZZLE 65A/605A ASSY. NOZZLE 66A/606A ASSY.
36
35
31
28
29
37
38
29
1
NOZZLE 501A ASSY.
2
3
10
NOZZLE 512A ASSY.
11
3
12
NOZZLE 513A ASSY.
13
3
17
18
14
NOZZLE 503A/514A ASSY.
15
16
4
NOZZLE 502A ASSY.
5
3
6
NOZZLE 510A ASSY.
7
3
8
NOZZLE 511A ASSY.
9
3
20
19
NOZZLE 504A/515A ASSY.
21
17
18
22
NOZZLE 506A/515A ASSY. NOZZLE 507A/518A ASSY.
23
16
24
20
25
29
1
6
Nozzle (2-Beam)
Nozzle
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M7710-A0 NOZZLE,501A ASSY. 1 (MU)
2 KLF-M7711-00 BODY,NOZZLE 501 1
3 KLF-M7713-00 SPRING,NOZZLE 6
4 KLF-M7720-A1 NOZZLE,502A ASSY. 1 (MU)
5 KLF-M7721-00 BODY,NOZZLE 502 1
6 KLF-M87A0-A0 NOZZLE,510A ASSY. 1 (MU)
7 KLF-M87A1-00 BODY,NOZZLE 510 1
8 KLF-M8710-A1 NOZZLE,511A ASSY. 1 (MU)
9 KLF-M8711-00 BODY,NOZZLE 511 1
10 KLF-M8720-A1 NOZZLE,512A ASSY. 1 (MU)
11 KLF-M8721-00 BODY,NOZZLE 512 1
12 KLF-M8730-A2 NOZZLE,513A ASSY. 1 (MU)
13 KLF-M8731-01 BODY,NOZZLE 513 1
14 KLF-M8740-A0 NOZZLE,503A/514A AS. 1 (MU)
15 KHY-M7741-00 BODY,NOZZLE 303/314 1
16 KHN-M7713-00 SPRING 2
17 KHN-M7714-00 PIN 2
18 KHN-M7715-00 CLIP 2
19 KLF-M8750-A0 NOZZLE,504A/515A AS. 1 (MU)
20 KGS-M7742-00 LABEL,NOZZLE 2
21 90990-17J013 O-RING 1
22 KLF-M8770-A0 NOZZLE,506A/517A AS. 1 (MU)
23 KHY-M7771-00 BODY,NOZZLE 306/317 1
24 KLF-M8780-A0 NOZZLE,507A/518A AS. 1 (MU)
25 90990-17J014 O-RING 1
26 KLS-M7710-A1 NOZZLE 601A ASSY. 1 (FL)
27 KLS-M7711-00 BODY,NOZZLE 601 1
28 KLS-M7713-00 SPRING 1
29 90990-19J019 NEEDLE,PIN 1
30 KLS-M7720-A2 NOZZLE 602A ASSY. 1 (FL)
31 KLS-M7721-00 BODY,NOZZLE 602 1
32 KLS-M7730-A0 NOZZLE 603A ASSY. 1 (FL)
33 KV7-M7740-A0 NOZZLE 64A/604A AS. 1 (FL)
34 KV7-M7750-A0 NOZZLE 65A/605A AS. 1 (FL)
35 KV7-M7760-00 NOZZLE 66A/606A 1 (FL)
36 90990-17J015 O-RING 1
37 KLS-M7714-00 SPRING 1 (FL)
38 KLS-M7731-00 BODY,NOZZLE 603 1 (FL)
24
24
22
2
23
25
13
12
17
1
11
21
10
7
6
5
22
22
22
22
20
15
4
8
18
19
9
14
16
3
3
26
27
FL Type
MU Type
31
30
25
32
33
34
28
29
8
2
6
Nozzle Changer (Holder)
Nozzle
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M9661-A0 NOZZLE HOLDER ASSY. 1
2 KLF-M9662-00 PLATE,CLAMP 1
3 KLF-M9663-01 SHEET,CLAMP GUIDE 2
4 KLF-M9664-00 PLATE,JOINT,CYL. 1
5 KLF-M9665-00 PLATE 1 1
6 KLF-M9666-00 PLATE 2 1
7 KLF-M9667-00 PLATE 3 1
8 KLF-M9668-00 PLATE 4 1
9 KLF-M9655-00 BLOCK,STOPPER 1
10 KHY-M9621-A0 BASE,NOZZLE D ASSY. 8
11 KHY-M9621-B0 BASE,NOZZLE D 1
12 KLW-M96HD-A0 SPACER3 ASSY. 4
13 KLW-M96HD-00 SPACER HOLDER 3 1
14 KKU-M184K-00 CYLINDER (MBDAS) 1
15 KGS-M9604-00 JOINT CYL. 1
16 KJD-M1740-00 SPEED CONTROLLER 2
17 KKE-M9608-00 PIN,SLIDE 2
18 90112-2AJ006 BOLT,HEX.SOCKET HEAD 1
19 90112-2AJ010 BOLT,HEX.S.H:M2.5X10 2
20 90112-2AJ020 BOLT HEX.SOCKET HEAD 2
21 92012-03006 BOLT,BUTTON HEAD 2
22 91312-03008 BOLT HEX.SOCKET HEAD 8 M3X8
23 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
24 98902-03008 SCREW BINDING HEAD 8
25 91312-03006 BOLT HEX.SOCKET HEAD 2
26 KLF-M653S-00 SENSOR ANC OPEN ASSY 1
27 KLF-M653S-10 SENSOR ANC CL. ASSY 1
28 KLF-M9681-A0 NOZZLE HOLDER ASSY. 1
29 KLF-M9682-00 PLATE,CLAMP 1
30 KLF-M9684-00 PLATE 1 1
31 KLF-M9685-00 PLATE 2 1
32 KLF-M968B-00 SPACER,NOZZLE 1 1
33 KLF-M968B-A0 SPACER1 ASSY. 2
34 90112-2AJ005 BOLT,HEX.SOCKET HEAD 1
