YSM40R_2-Beam_PartList - 第55页
1 8 Multi Camera & Light Assy Camera KMB-100-1607 No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLF-M73L0-00 MUL TI LIGHT ASSY . 1 STD 2 KLF-M73L0-50 MUL TI LIGHT ASSY . 1 Co-planarity 3 KLF-M…
11
7

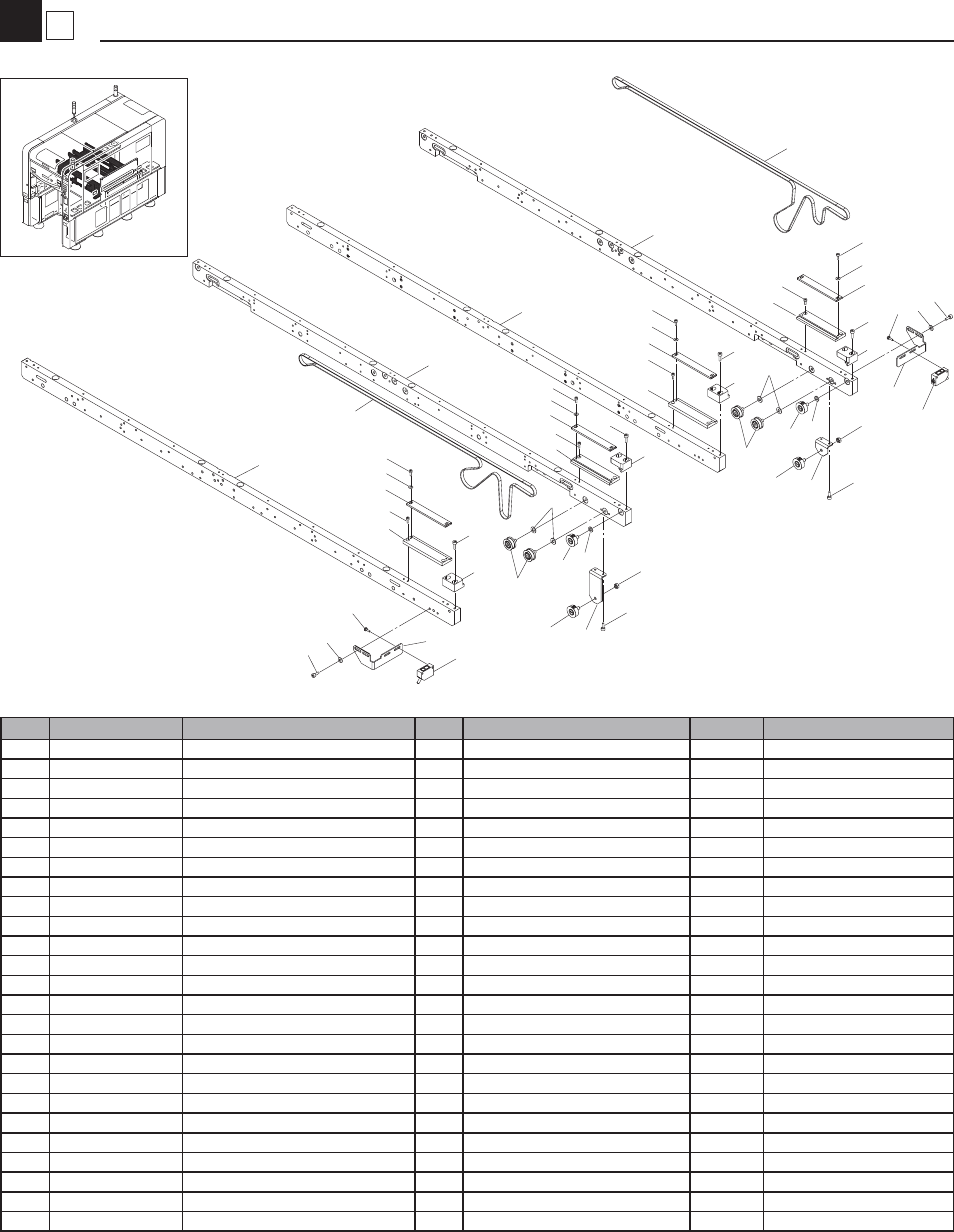

Extension
Conveyor
KMB-100-1607
22
16
4
17
2
19
11
14
16
15
18
9
15
8
23
5
4
21
20
15
18
9
15
17
1
12
22
6
7
15
18
9
15
2
17
8
8
5
20
4
21
16
4
10
24
15
18
9
15
8
17
1
19
13
23
16
3
12
3
25
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KGA-M9113-00 GUIDE 1,END 2
2 KGA-M9114-00 GUIDE 2,END 2
3 KLF-M653M-01 SENSOR ENT ASSY 2
4 KLF-M913A-A1 PULLEY,ASSY 8
5 KLF-M9150-A0 PULLEY,CONV. ASSY 8
6 KLF-M9171-02 FRAME,CONVEYOR 1
7 KLF-M9172-02 FRAME,CONVEYOR 1
8 KLF-M9173-00 PLATE 1A,GUIDE 4
9 KLF-M9174-00 GUIDE 1-1 4
10 KLF-M9175-00 STAY,PLY 1 2
11 KLF-M9176-00 STAY,PLY 2 2
12 KLF-M9177-01 BELT,CV 1 4
13 KLF-M9178-00 STAY,SENS.1 1
14 KLF-M9179-00 STAY,SENS.2 1
15 91312-03008 BOLT HEX,SOCKET HEAD 16
16 91312-04010 BOLT HEX,SOCKET HEAD 12
17 91312-04012 BOLT HEX,SOCKET HEAD 8
18 92902-03200 WASHER,PLAIN 8
19 92902-04200 WASHER,PLAIN 4
20 92902-05200 WASHER,PLAIN 8
21 92902-05600 WASHER,PLAIN 4
22 95302-05600 NUT HEXAGON 4
23 97602-03310 SCREW PAN HEAD W/WASHER 4
24 KMB-M9171-01 FRAME,CONVEYOR 1
25 KMB-M9172-01 FRAME,CONVEYOR 1
1
8
Multi Camera & Light Assy
Camera
KMB-100-1607
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M73L0-00 MULTI LIGHT ASSY. 1 STD
2 KLF-M73L0-50 MULTI LIGHT ASSY. 1 Co-planarity
3 KLF-M735S-01 M.LIGHT BOARD SET 1
4 KLF-M7361-00 CASE,LIGHT 1
5 KLF-M7362-00 COVER,LIGHT 1
6 KLF-M7363-00 COVER,GLASS 1
7 KLF-M7368-00 COVER,LIGHT 2 1
8 90990-08J019 SCREW,M2X3 36
9 91312-03005 BOLT,HEX.SOCKET HEAD 12 M3X5
10 90990-32J005 BOLT,FLANGE 2
11 KLF-M7366-00 LSD 1
12 90990-08J019 SCREW,M2X3 4
13 90563-02J120 SPACER BOLT 2
14 KLF-M735A-00 M.LIGHT CPLA CX ASSY 1
15 90112-02J006 BOLT,HEX.SOCKET HEAD 2
16 KLF-M795E-00 DIFFUSER 1
17 KLF-M7981-00 S.V.LIGHT BRD.ASSY. 1
18
KLF-M73C0-000 MULTI CAM.ASSY. 1 ( 2 beam A-Table)
KLF-M73C0-A00 MULTI+SV CAM.ASSY. 1 ( 2 beam A-Table +SV)
KLF-M73C0-B00 MULTI+CO CAM.ASSY. 1 ( 2 beam A-Table +CO)
KLF-M73C0-C00 MULTI+SV+CO CAM.ASSY 1 ( 2 beam A-Table +SV+CO )
19
KLF-M73C0-000 MULTI CAM.ASSY. 1 ( 2 beam B-Table)
KLF-M73C3-A00 MULTI+SV CAM.ASSY. 1 ( 2 beam B-Table +SV)
KLF-M73C0-B00 MULTI+CO CAM.ASSY. 1 ( 2 beam B-Table +CO)
KLF-M73C3-C00 MULTI+SV+CO CAM.ASSY 1 ( 2 beam B-Table +SV+CO )
1
9
5
B
6
7
9
9
10
4
3
8
17
18,19
16
15
11
12
13
14
12
2
A
2
8
Fiducial Camera (2-beam)
Camera
KMB-100-1607
16
17
6
1
4
9
15
10
3
13
14
3
11
2
7
8
12
6
9
5
6
9
5
8
12
10
3
13
3
14
11
2
7
4
1
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 $NK-3N NYLON CLIP 6
2 90563-03J100 SPACER 8
3 90990-08J020 SCREW, PAN HEAD 12
4 90990-11J003 SCREW, PAN HEAD W/W 6
5 91312-04016 BOLT HEX,SOCKET HEAD 10
6 91312-05016 BOLT HEX,SOCKET HEAD 6
7 98702-03006 SCREW,FLAT HEAD 8
8 99480-04010 PIN,PARALLEL 4
9 99480-05010 PIN,PARALLEL 6
10 90K41-001320 LABEL,CAUTION 2
11 KLF-M6461-00 FID.LIGHT BRD.ASSY 2
12 KLF-M76L1-01 STAY,CAMERA 2
13 KLF-M76L5-00 COVER,CAMERA 2
14 KLF-M76L6-00 DIFFUSER,MAIN 2
15 KLF-M76LA-00 STAY,2 CAMERA 1
16 KLF-M7650-10 W-FID.CAM.ASSY.L 1
17 KLF-M7650-20 W-FID.CAM.ASSY.R 1
