YSM40R_2-Beam_PartList - 第61页
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date 1 KLF-M3T70-01 COVER,FR UPPER 1 2 KLF-M3T76-02 COVER,FRONT 1 3 KLF-M3TC1-02 DUCT 1 4 KJJ-M5127-00 SAFETY SWITCH KEY 1 5 KJJ-M1 1C9-00 PLA TE,NUT 1 6 KGS…
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M3TD2-00 BLOCK,JOINT 1
2 KLF-M3TD6-00 DUCT,HNS. 1
3 KMB-M3TD7-00 COVER,HNS. 1
4 KLF-M3TDD-00 BUSH 2
5 KLF-M3TDE-00 POLY WASHER 0.5 4
6 KLF-M3TDF-00 STAND,CONNECTOR 2
7 KLF-M3TDG-00 COVER,FES CONN. 1
8 LC1-M91A1-00 CUSHION 2
9 $TSH4-M5M JOINT 4
10 KV8-M37S2-00 AIR SOCKET,2 ASSY. 3
11 KLF-M37S2-00 AIR SOCKET,3 ASSY. 1
12 $NK-2N NYLON CLIP 2
13 90990-41J151 COLLAR 1 2
14 KLF-M3TB1-01 UPPER COVER 1,46 1 Resin tape
15 KLF-M3TB5-00 UPPER COVER 2,46 1
16 91312-03014 BOLT,HEX.SOCKET HEAD 4 M3X14
17 91312-04006 BOLT HEX.SOCKET HEAD 12 M4X6
18 91312-04025 BOLT HEX.SOCKET HEAD 4 M4X20
19 91312-06016 BOLT HEX.SOCKET HEAD 4 M6X16
20 90990-32J005 BOLT,FLANGE 2
21 90112-2AJ008 BOLT HEX.SOCKET HEAD 4
22 97602-04308 SCREW,PAN HEAD W/W 2
23 98902-03004 SCREW BINDING HEAD 3
24 92A08-03305 SCREW,SET 4
25 KLF-M3T75-00 STAY,RELAY 1
26 91312-04008 BOLT HEX.SOCKET HEAD 2
27 KMB-M3TD8-00 TAPE 1
3
10
FES Joint Assy / Upper Cover
Tape Cutter
KMB-100-1607
19
3
23
22
6
17
13
5
20
13
5
5
20
8
8
4
4
9
1
21
21
17
6
19
17
18
14
15
17
10
24
24
11
16
7
12
2
27
5
9
25
26

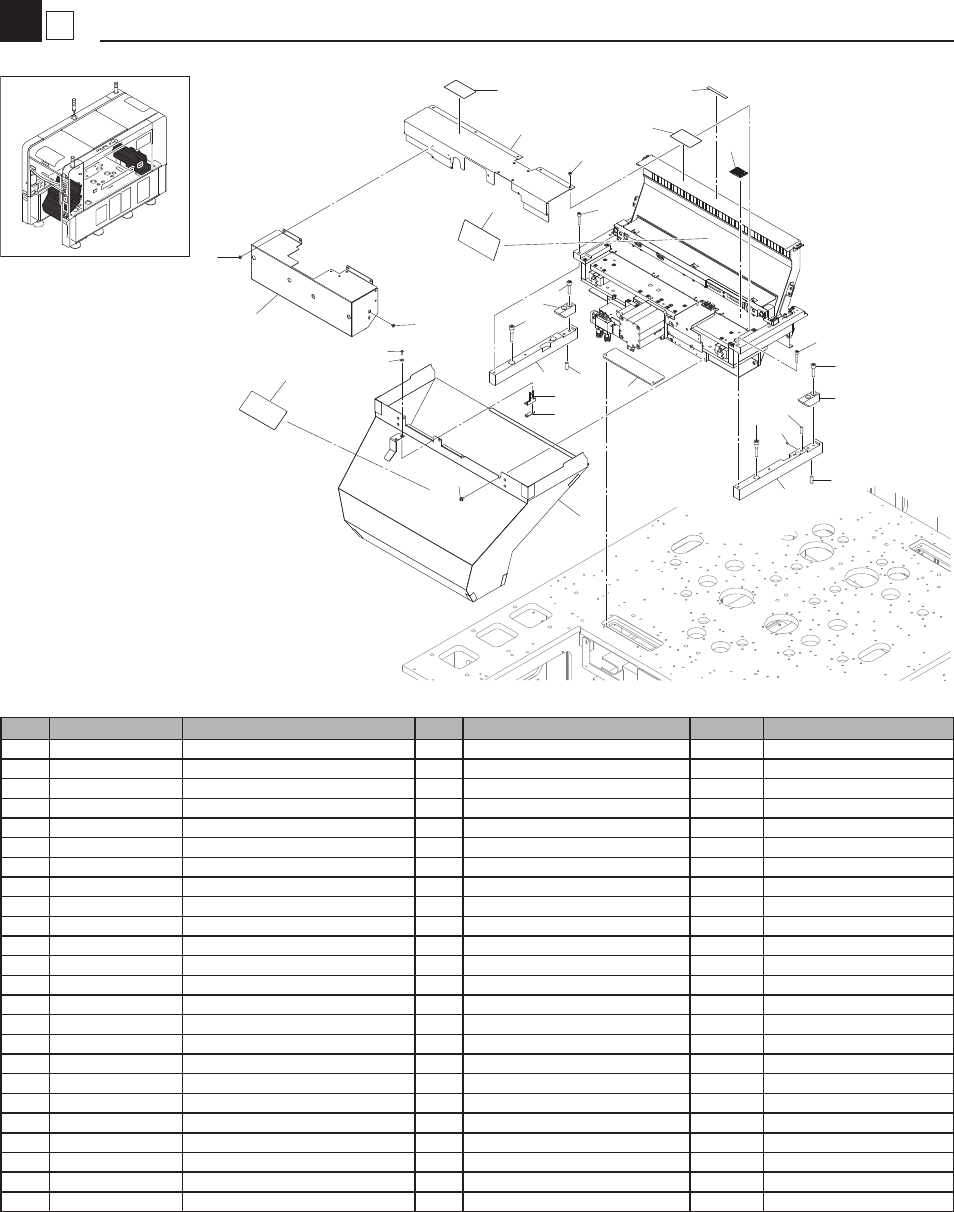

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLF-M3T70-01 COVER,FR UPPER 1
2 KLF-M3T76-02 COVER,FRONT 1
3 KLF-M3TC1-02 DUCT 1
4 KJJ-M5127-00 SAFETY SWITCH KEY 1
5 KJJ-M11C9-00 PLATE,NUT 1
6 KGS-M1360-00 BOLT 2
7 90K41-001330 LABEL,CAUTION 1
8 90K41-001410 LABEL,CAUTION 2
9 90K41-001250 LABEL,WARNING 1
10 KLF-M3TR1-00 LABEL,TC.SERIAL 1
11 KLF-M3T53-00 BLOCK,BASE R 1
12 KLF-M3T53-10 BLOCK,BASE L 1
13 KLF-M3T58-00 BLOCK,STOPPER 2
14 KLF-M3TG4-00 COVER,BASE HOLE 1
15 98902-04006 SCREW BINDING HEAD 19
16 97602-05310 SCREW,PAN HEAD W/W 4
17 91312-06030 BOLT HEX.SOCKET HEAD 6 M6X30
18 91312-08030 BOLT HEX.SOCKET HEAD 4 M8X30
19 91312-08035 BOLT HEX.SOCKET HEAD 4 M8X35
20 99480-06020 PIN PARALLEL 1
21 99480-08020 PIN PARALLEL: 8X20 2
22 92A08-04006 SET SCREW M4X6 1
23 92902-04200 WASHER PLAIN 2
24 90K41-001460 LABEL,WARNING 1
4
10
Base / Side Block
Tape Cutter
KMB-100-1607
9
1
15
15
15
2
8
8
6
23
19
18
21
12
14
19
18
17
7
10
22
20
21
13
4
5
3
16
17
13
11
24
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 99480-04012 PIN,PARALLEL 2
2 95302-12600 NUT HEXAGON (P=1.25) 4
3 90440-10J050 CIRCLIP 2
4 91312-03008 BOLT HEX,SOCKET HEAD 4
5 91312-04006 BOLT HEX,SOCKET HEAD 4
6 91312-04008 BOLT HEX,SOCKET HEAD 13
7 91312-05012 BOLT HEX,SOCKET HEAD 4
8 91312-05030 BOLT HEX,SOCKET HEAD 4
9 91312-06012 BOLT HEX,SOCKET HEAD 2
10 91312-06020 BOLT HEX,SOCKET HEAD 4
11 KLF-M3T15-22 STAY,SIDE L 1
12 KLF-M3T15-32 STAY,SIDE R 1
13 KLF-M3T68-00 BRACKET 1
14 KLF-M3T68-10 BRACKET 1
15 KLF-M3T70-51 COVER,FR UPPER 1
16 KLF-M3T78-01 STAY,CLAMP L 1
17 KLF-M3T78-11 STAY,CLAMP R 1
18 KLF-M3T79-01 STAY,CONNECTOR 1
19 KLF-M3T99-00 SCREW,STEP 2
20 KLF-M3T91-00 BASE,CLAMP L 1
21 KLF-M3T91-50 BASE,CLAMP R 1
22 KLF-M3T92-00 LEVER,CLAMP 2
23 KLF-M3T93-00 PIN 2
24 KLF-M3T94-00 DOG,CLAMP L 1
25 KLF-M3T94-50 DOG,CLAMP R 1
26 KLF-M3T96-00 BLOCK 2
27 KLF-M3T97-01 HOOK 2
28 KLF-M3T98-01 PULL ACTION 2
29 KLF-M3T9A-00 CAM FOLLOWER 2
30 KLF-M3TB2-20 STAY,SLOPE L 1
31 KLF-M3TB2-30 STAY,SLOPE R 1
32 KLF-M3TJ1-00 BRKT.,HD CNT.1 1
33 KLF-M3TJ3-10 FRAME,PIN 1
34 KLF-M653R-00 SEN.CUT CLAMP ASSY 2
35 91312-06025 BOLT HEX,SOCKET HEAD 8
36 91312-08016 BOLT HEX,SOCKET HEAD 4
37 KLF-M3TS1-00 COVER,CONNECTOR 1
38 KLF-M3TS2-00 DUCT,CONNECTOR 1
39 KLF-M3TS3-00 DUCT COVER,CONNECTOR 1
40 91312-03006 91312-03006 3
5
10
RMV(Desorption) / Clamp
Tape Cutter
KMB-100-1607
33
6
10
34
32
18
2
13
2
14
6
6
6
6
6
7
5
9
35
35
5
35
9
7
36
35
19
29
3
27
22
23
1
19
36
27
3
24
6
1
34
4
26
16
29
22
23
20
8
25
4
21
8
26
28
28
35
35
11
12
15
17
31
30
37
39
38
5
5
5
40
