Assembly instructions Pass-through transpor t for SIPLACE HF-series / X-series / D3 04/2010 Edition 29 : Secure the connecting cable using a cable clip. 2 2 : Insert the connector shown in the photograp h at location X28…
Assembly instructions Pass-through transport for SIPLACE HF-series / X-series / D3
04/2010 Edition
28

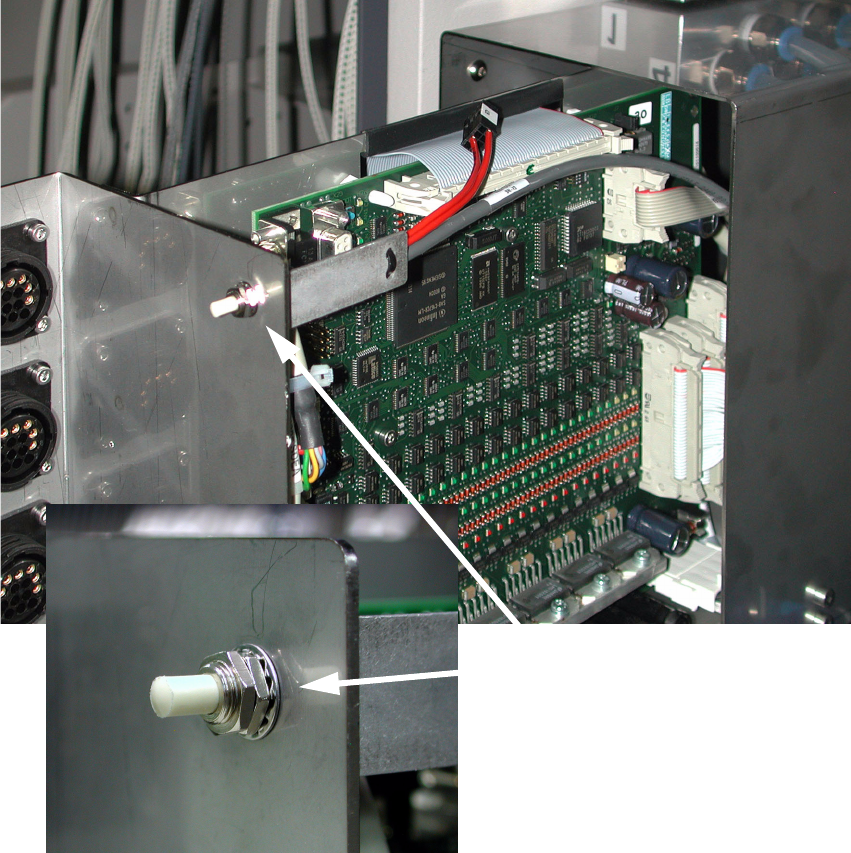

: Screw the button to the hole on the front panel of the drawer. If there is no hole, then you will
have to drill one first (see top and bottom photograph).
Lock the button in place with the nuts provided
so that it is seated firmly.
Button
2
2
2
2
2
2
2
2
Assembly instructions Pass-through transport for SIPLACE HF-series / X-series / D3
04/2010 Edition
29

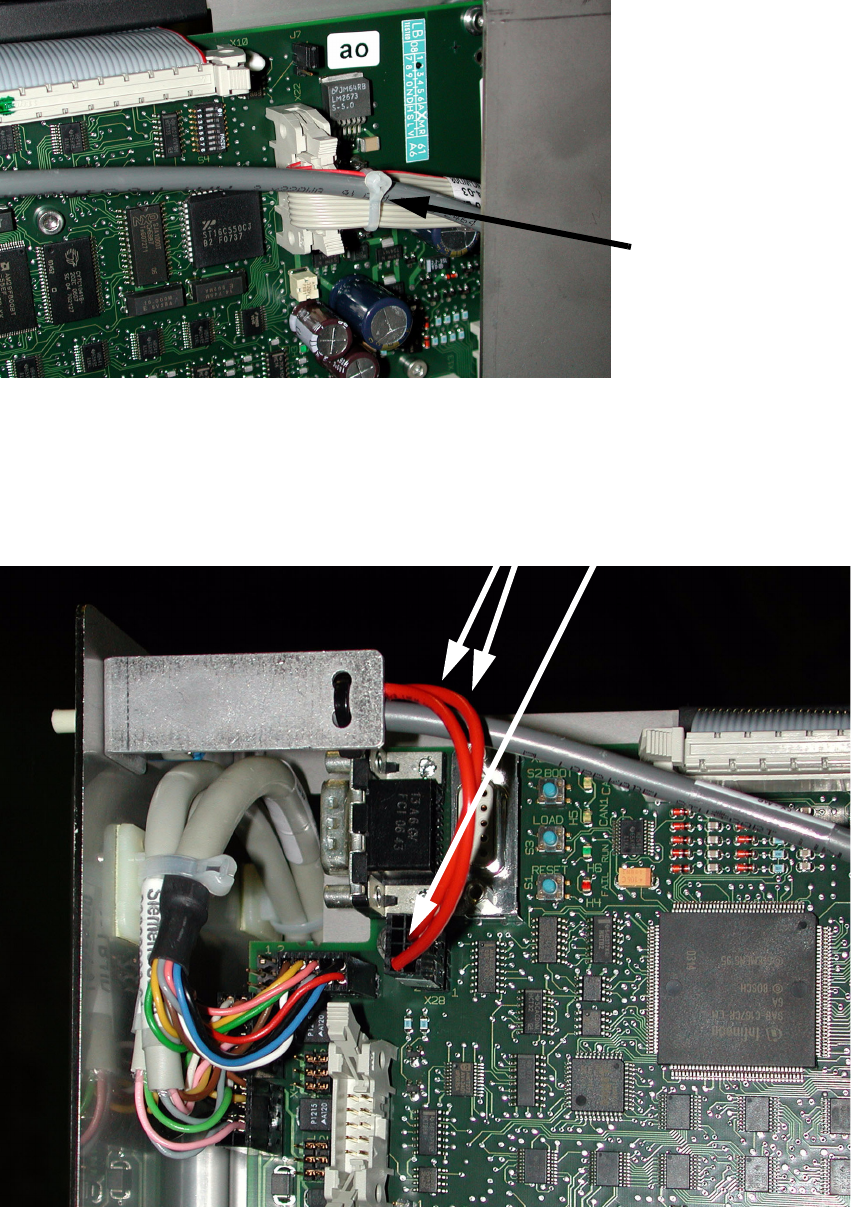

: Secure the connecting cable using a cable clip.
2
2
: Insert the connector shown in the photograph at location X28.
Plug
2
Assembly instructions Pass-through transport for SIPLACE HF-series / X-series / D3
04/2010 Edition
30
2.5 Connection on the main distribution board
2.5.1 HF / HF3 / X-series up to and including serial number B-325
2
Fig. 2.5 - 1 Main distribution board (item no.: 03010004-xx)
